Product Introduction
The P118i HVAC ultrasonic flow detector offers users the flexibility to conduct flow measurements at multiple points within a flow process without the requirement for permanent installation. This ultrasonic flowmeter integrates Gentos' distinctive PICOFLY time measurement technology, achieving an exceptional resolution of 10 picoseconds (0.01 nanosecond). This innovation facilitates highly responsive and precise ultrasonic measurement capabilities.
In comparison to conventional flowmeters or standard ultrasonic counterparts, this device stands out for its superior precision, reliability, capacity, and cost-effectiveness.
Product Parameter

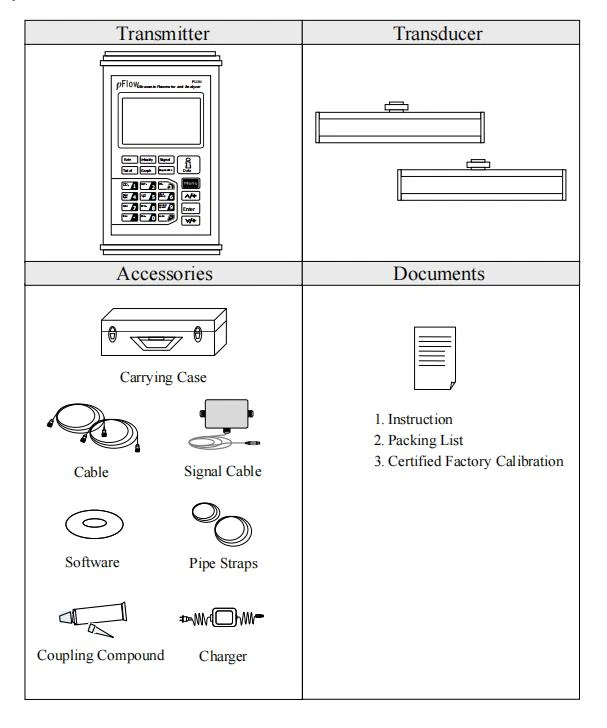

1)Body Parameters

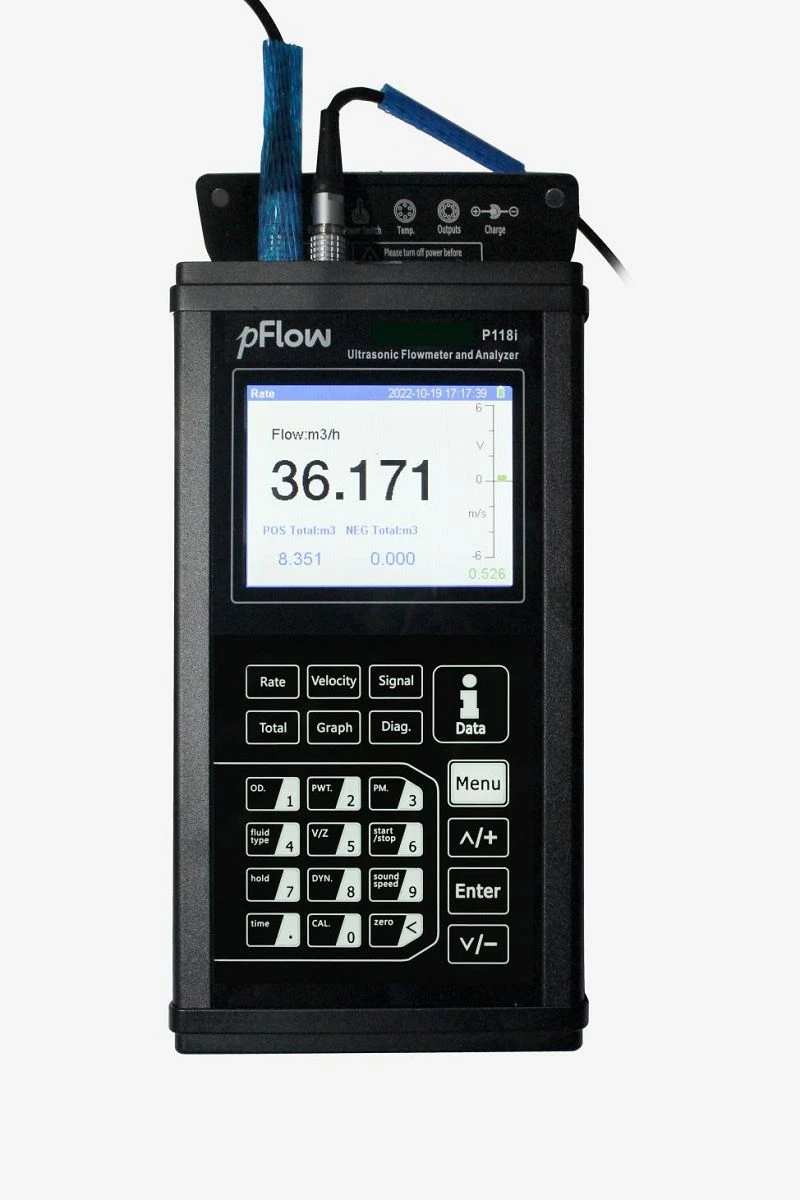

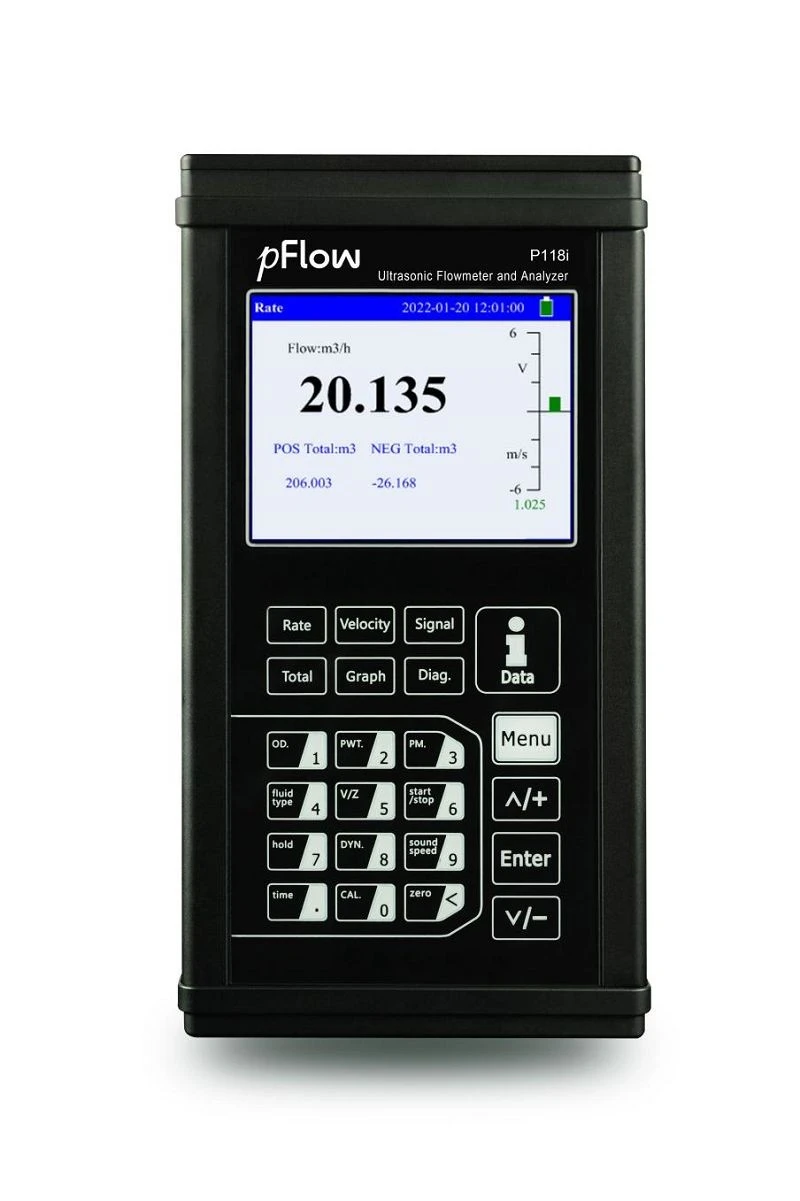

2)Appearance
3)Technical Parameters
|
Performance Index |
|
|
Flow velocity |
±(0.03 ~ 40) ft/s ± (0.01 ~ 12) m/s |
|
Accuracy |
± 0.5% of measured value 1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s (0.5 m/s～12 m/s or -0.5 m/s～-12 m/s) |
|
Repeatability |
0.15% |
|
Pipe Size |
0.6" ~ 240" (DN15 ~ DN6000) |
|
Functional Index |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ) Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
SD card |
Storage: 8GB (To prevail in kind) Max: 512 files Interval: 1 ~ 60 seconds |
|
Power Supply |
rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ) |
|
Keypad |
Tactile Keys |
|
Display |
3.5 inch TFT color screen( 320 ×240 ), backlit LCD |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃～50℃) Transducer: -40°F to 176°F (-40℃～80℃,standard) |
|
Humidity |
0 ~ 99% RH, non-condensing |
|
Physical Characteristics |
|
|
Transmitter |
NEMA13 ( IP54 ) |
|
Transducer |
Encapsulated design, IP68 Standard cable length: 5m |
|
Weight |
Transmitter: 1kg |
Product Features
Installation method: Handheld
8G SD card high memory data logging,
maximum memorize 512 days data.
Flow Range: ±0.03 ft/s ~ ±40 ft/s (±0.01 m/s~ ±12 m/s)
Accuracy: ±0.5%
Repeatability: 0.1%
Output: 4-20mA
Internal lithium power supply: 10hours
Pipe size range: 0.6″~48″(15mm~6000mm)
Transducer: IP54, CP magnet portable transducer, 5m cable
Product Applications

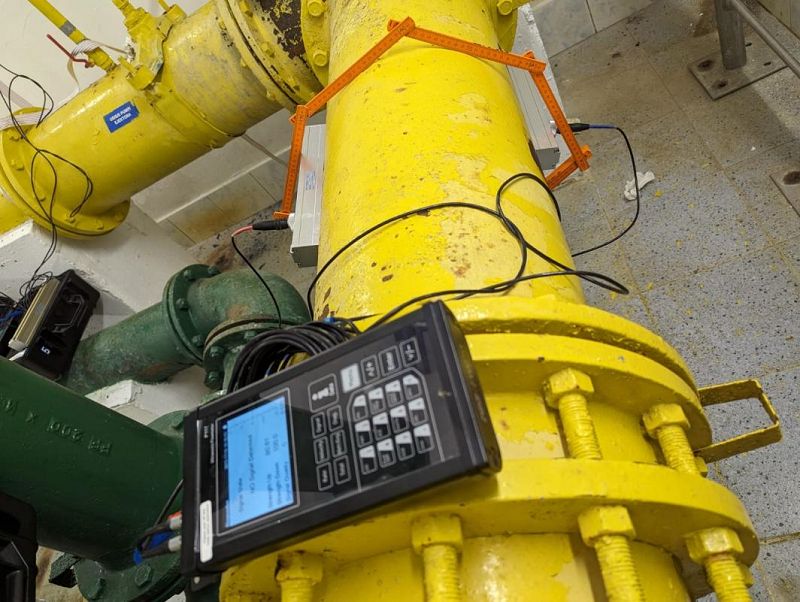

Industrial Flow Measurement: Handheld ultrasonic flow meters are used for flow measurement in industrial areas such as the chemical, HVAC. Workers can use these devices to quickly and accurately measure the velocity and flow of liquids within pipes.
Maintenance and troubleshooting: In factory and equipment maintenance, handheld ultrasonic flow meters can be used to detect possible flow problems in pipelines and equipment, helping to quickly locate faults and perform repairs.
Water resources management: In water treatment plants, reservoirs and river monitoring, handheld ultrasonic flow meters can be used to measure water velocity and flow in real time, helping with water resource management and predicting hydrological conditions.
Temporary measurement: For some occasions where temporary flow measurement is required, handheld ultrasonic flow meters are a convenient and fast choice, which can quickly measure flow without long-term installation.
Environmental monitoring: Handheld ultrasonic flow meters can also be used for environmental monitoring, such as measuring water flow in sewage treatment plants, monitoring water flow rates in rivers and lakes, etc.
Discrete flow monitoring: Ultrasonic flow meters can also be used to monitor discrete flows, such as flow measurements in some inflow pipes or pipelines.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: How does a HVAC handheld ultrasonic flow meter work?
A1: Handheld ultrasonic flow meters calculate flow rate and volume by sending ultrasonic pulses and measuring the time it takes for the ultrasonic waves to travel through the fluid.
Q2: What type of liquid is this device suitable for?
A2:Most handheld ultrasonic flow meters are suitable for water and other fluids such as solutions and HVAC. Some advanced devices are available for a variety of liquid types.
Q3: In what type of traffic range can this device be used?
A3:Most HVAC ultrasonic flow meters are available for a wide range of flow rates, from small laboratory applications to industrial-grade applications.
Q4:How does this device perform data recording and analysis?
A4:Most handheld ultrasonic flow meters have data logging and analysis capabilities that can store measurement data and provide reporting and graphical analysis.
Q5: Can this device be integrated with other systems?
A5: Some advanced handheld ultrasonic flow meters can be integrated with computer systems or data management systems to enable data sharing and further analysis.
