Product Introduction
The E3E Clip-on Ultrasonic Thermal Energy/ BTU Flow Meter adopts the ultrasonic time difference measurement principle, and is combined with Gentos ultrasonic signal processing technology and unique flow and energy algorithm, to achieve accurate measurement of fluid flow and energy in the pipeline. The product has an integrated clamp-on structure design, which is simple and convenient to install. After four steps of operation, it can be powered on for measurement. During the installation process, there is no need to contact the fluid medium, and there is no need to stop production.
The instrument adopts POE power supply and Ethernet communication to realize cloud data storage.Users can access cloud data anytime and anywhere through mobile terminals or PC terminals to manage, analyze and query measurement data information.
Product Parameter

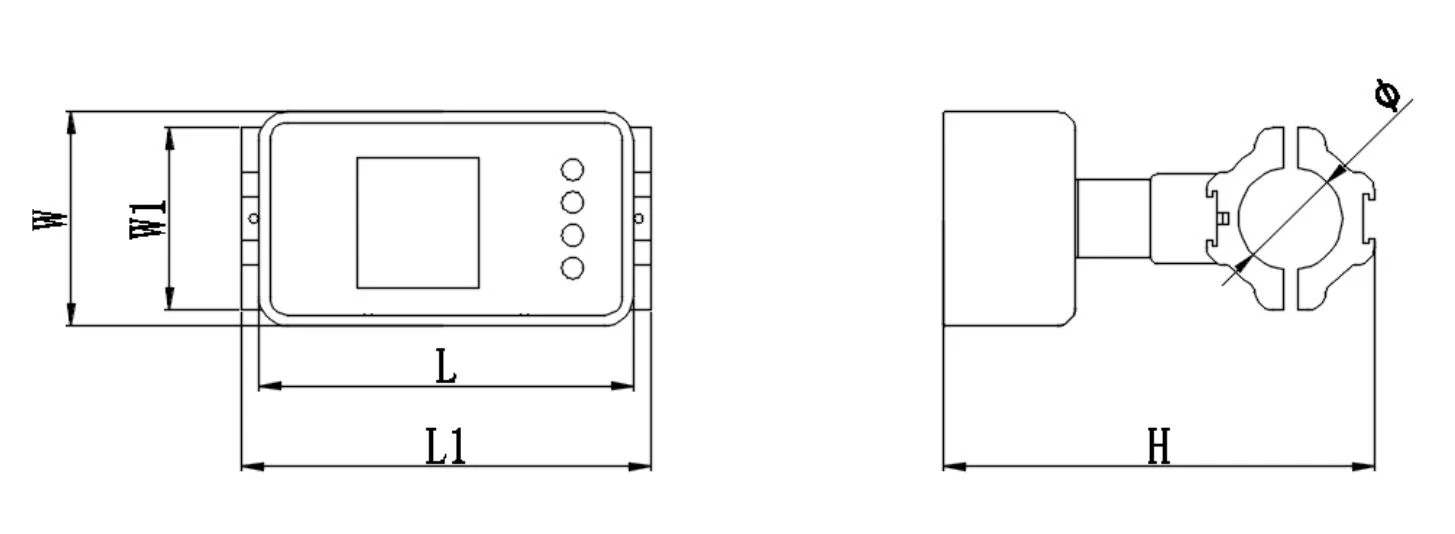

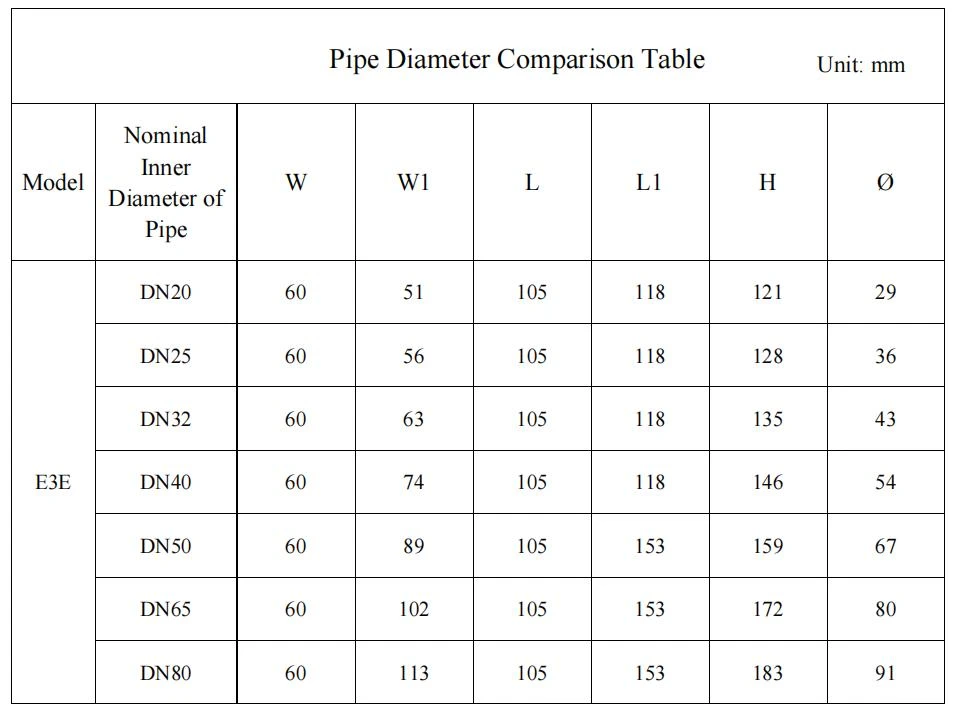

Transmitter Dimension

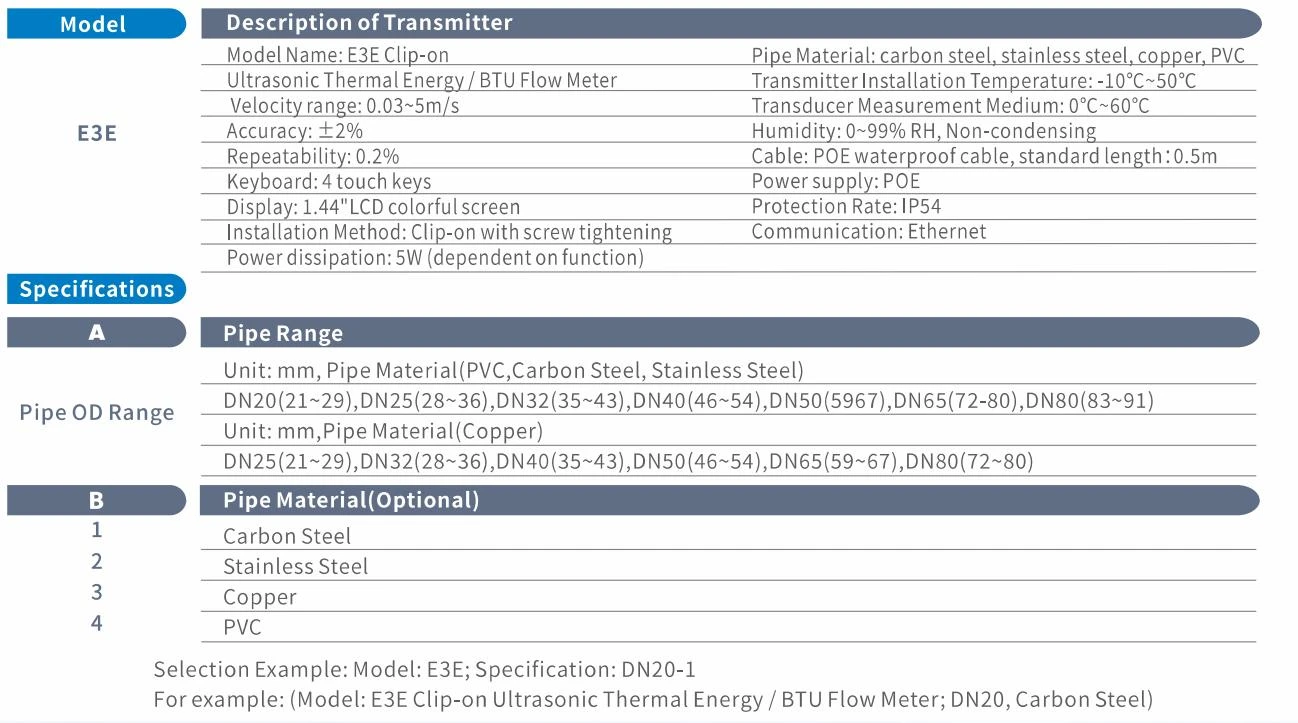

Technical Index
Product Applications
Applications:HVAC,Washing Machine,Tap Water,Modern Agricultural & Garden Irrigation,Water In Production Process,Industrial Circulating Water,Pure Water,Aquaculture etc.
A liquid cooling center usually refers to a facility used to cool electronic equipment or industrial systems. It absorbs and transfers heat through liquids (such as water, coolant, etc.) to keep the equipment running at a suitable temperature. This cooling method is very common in data centers, high-performance computers, industrial control systems, etc., because they can effectively manage large amounts of heat and improve system stability and efficiency.
Liquid cooling centers may include components such as pumps, radiators, and coolant storage and distribution systems that work together to achieve efficient thermal management.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: What advantages does E3E have?
A1: Easy Installation,No Adjustment Needed,Power and Communication over Ethernet,LCD Color Display Screen,Mobile App and Cloud Connectivity,High-Precision Matching Temperature Sensor,360° Rotation Adjustable Display Screen.
Q2: How to install the E3E clamp-on ultrasonic flowmeter?
A2:Ensure that the E3E device is selected based on the model specifications that match your pipe material and size requirements.Choose the correct model based on the pipe diameter and material. The model should be specified in the format of "E3E; A-B" where A represents the pipe range and B represents the pipe material.Identify the transmitter installation temperature, velocity range, and other specifications that are suitable for your application.The E3E is designed for an integrated clamp-on installation, which does not require breaking the pipe, stopping the pump, or setting parameters.Take out the device and clip the upper and lower pipe clamps onto the selected position on the pipe.Tighten the screws to secure the clamps in place.
Connect the E3E to an RJ45 (POE) interface of a POE switch that has been connected to the network via an Ethernet cable. This will power the device and establish communication.Once connected, the instrument should be in the power-on working state. The flow measurement can be achieved by directly tightening the screw on the pipe section and connecting the power supply.
Use an Android phone to scan the QR code of the MeterTube APP, follow the prompts to install the MeterTube software, and configure the device through the app.
The flow data is uploaded to the cloud server via the internet, and the MeterTube App software can be used to access cloud data and operate through mobile terminals and PC terminals.Ensure that the direction of the arrow on the nameplate of the instrument is consistent with the direction of the fluid in the pipeline for accurate measurement.
Q3: What is the communication method of E3E?
A3:Ethernet communication,The E3E flowmeter uses Ethernet as a communication mode and is connected to the network through an RJ45 interface.
PoE power supply:The device supports Power over Ethernet (PoE) technology, which means it can be powered and data communicated via the same Ethernet cable, simplifying cabling requirements.
Cloud Data Storage:Over the Ethernet connection, the E3E can upload traffic data to the cloud server for remote data access and management.
MeterTube APP and Platform:Users can access and manipulate cloud data through the MeterTube app and platform, using mobile or PC terminals.

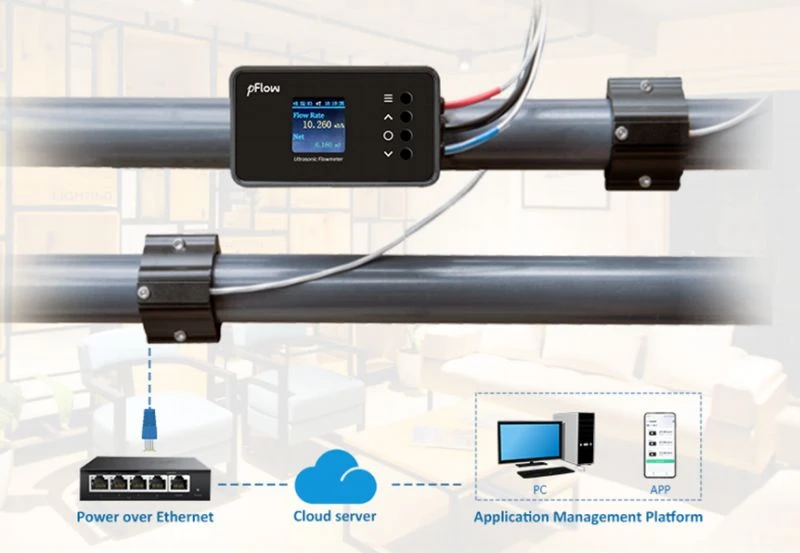

Network connection topology:The E3E connects to the POE switch in the network through a network cable, and then connects to the Internet through a router to achieve cloud storage and remote access to data.Check for and install any firmware updates provided by the manufacturer. These updates can improve performance and fix any known issues.Calibrate the flow meter regularly to ensure measurement accuracy.The manual mentions a "Meter factor" or K-factor that can be used to correct flow measurement results. If necessary, recalibrate the flowmeter using the appropriate procedures.
Q4:What is the relationship between Liquid Cooling Centerand E3W Clamp-on Ultrasonic Flowmeter?
A4:In liquid cooling systems, the E3E clamp-on ultrasonic flow meter can be used to monitor the flow of coolant in real time to ensure that the system operates normally according to design requirements. Through the data provided by the E3E flow meter, the cooling efficiency of the liquid cooling center can be evaluated and optimized, and the flow rate can be adjusted to meet different cooling needs. The E3E flow meter can help monitor and record the energy consumption of liquid cooling systems and identify energy saving potential by analyzing flow data.
Flow meters can detect abnormal changes in flow, such as flow that is too low or too high, which may indicate leaks, blockages, or other faults in the system, allowing for early diagnosis and preventive maintenance.
Q5:When is the delivery time?
A5:Lead time:1-2days.
