Product Introduction
GFCL ultrasonic flowmeter adopts the measurement principle of transit-time method, relies on high-reliability signal processing circuits, and accurately measures flow rate through complex algorithms such as sampling, calculation, and correction.
The product is designed with an integrated external clamping structure for quick and easy installation and operates without direct contact with the fluid medium, effectively avoiding interference with existing production processes. Accurate flow measurement can be realized in just a few simple steps. For small pipe diameter flow measurement needs, GFCL clamp-on ultrasonic flowmeter is undoubtedly the best choice.
Product Parameter

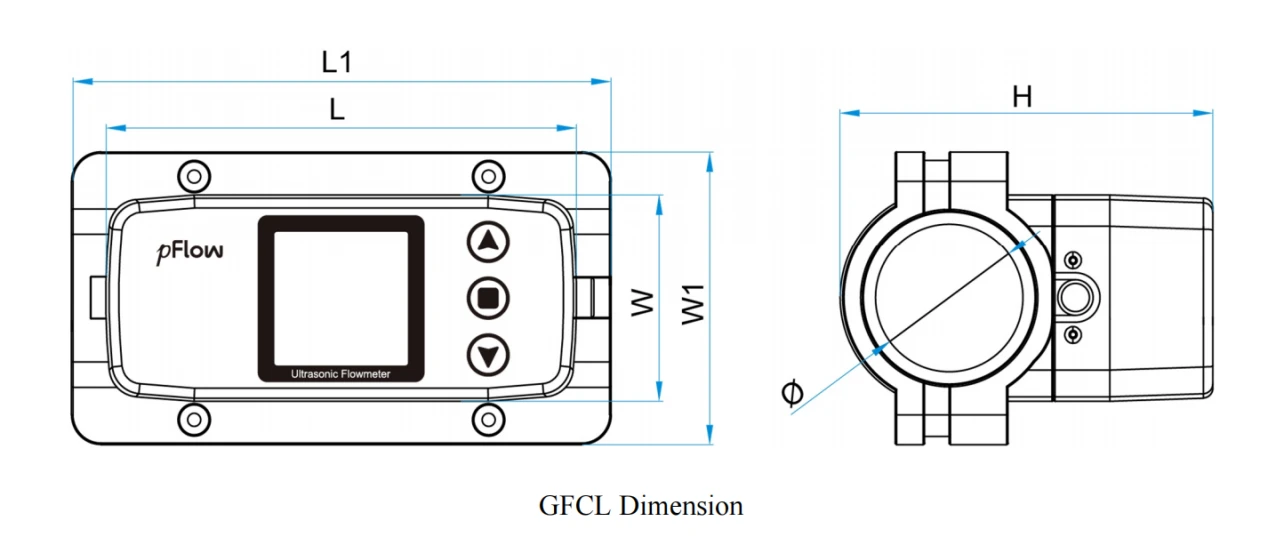

1) Body Parameters

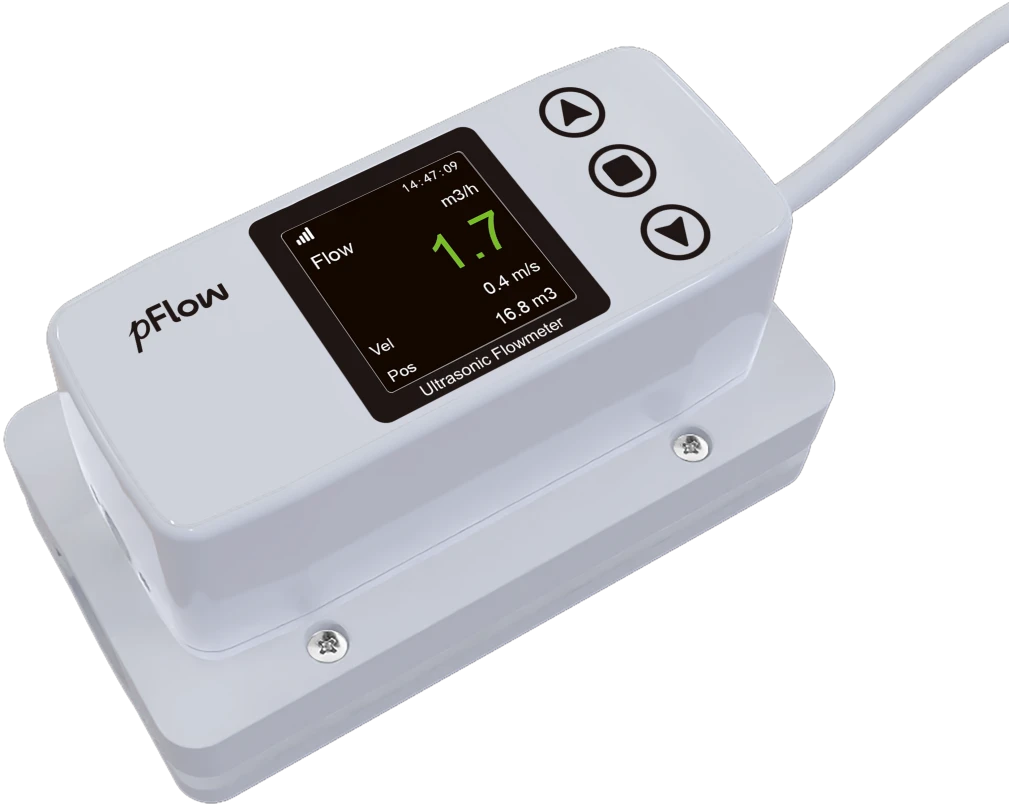

Appearance
3)Technical Parameters
|
Performance Index |
|
|
Flow velocity |
0.03m/s ~5.0m/s |
|
Accuracy |
±2%,(0.3m/s ~5m/s) |
|
Repeatability |
0.4% |
|
Pipe Size |
DN15,DN20,DN25,DN32,DN40,DN50 |
|
Medium |
Water |
|
Pipe Material |
Stainless Steel, PVC, Copper, PPR |
|
Functional Index |
|
|
Communication Interface |
RS485, Support FUJI Protocol and MODBUS Protocol |
|
Output |
4~20mA |
|
Power Supply |
10～36VDC/500mA |
|
Keypad |
3 touch keys |
|
Display Screen |
1.54"LCD color screen, resolution 240*240 |
|
Temperature |
Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ ) Transducer: 32℉ to 140℉ ( 0℃ ~ 60℃ ) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Cable |
φ5 six core cable, standard length: 2m |

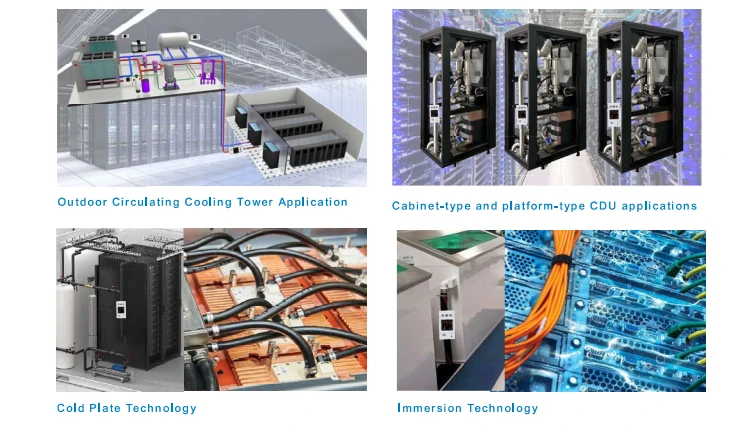

Product Applications
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
1)Q1: What is a cooling flow meter?
A1: The flow meter measures the amount of cooling lubricant used for internal and external tool cooling. The sensor can be installed at different locations in the machine tool pipe system.
2)Q2:How to monitor coolant temperature?
A2:A cooling meter is usually located on the dashboard of the vehicle and displays the temperature of the engine coolant. This indicator will let you know if the engine coolant is cold, normal, or overheated.
3)Q3: What are the cooling system functions?
A3:Maintaining a constant engine temperature.
Q4:What components does the cooling system consist of?
A4:The main components of the cooling system are the flowmeter,water pump, antifreeze plugs, thermostat, radiator, cooling fan, heater core, pressure cap, overflow tank and hoses
Q5: What are the installation and maintenance precautions for GFCL Flowmeter?
A5: During installation, attention should be paid to the direction of fluid flow, requirements for straight pipeline sections, etc.; during maintenance, equipment should be regularly calibrated and sensors cleaned to ensure normal operation of the equipment.
