Brief Introduction
|
Accuracy: |
Flow accuracy: ±0.5%; Energy accuracy: ±2%. |
Pipe Size: |
1″ ~ 200″ ( 25 mm ~ 5000 mm ) |
|
Flow range: |
±0.03 ~±40 ft/s (±0.01~ ±12 m/s) |
Repeatability |
0.15% |
Product Introduction

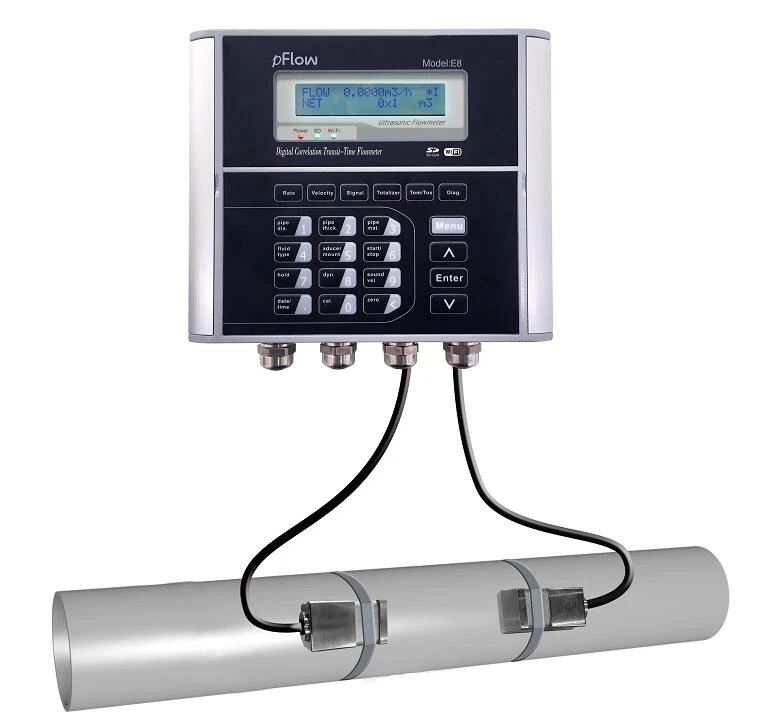

Clamp-on, transit-time thermal energy meter engineered for clean-loop pharmacy HVAC & clean-room chilled water. Built-in WiFi uploads real-time hot/cold BTU, flow and alarm data to icloud;
8 GB SD card stores 512 days for audits. Auto-billing software turns every fan-coil into a sub-meter in minutes.
- ±0.5 % accuracy, 8 GB SD log, WiFi cloud service
- no pipe cut, zero downtime
- Bidirectional hot/cold BTU, real-time alarms, pay-as-you-use billing
- Petrochemical-industry
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Flow range |
±(0.03~40)ft/s ±(0.01~12)m/s |
|
Accuracy |
Flow accuracy: ±0.5% of measured value., Energy accuracy: ±2%. 1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s (0.5 m/s～12 m/s or -0.5 m/s～-12 m/s) |
|
Repeatability |
0.15% |
|
Pipe Size |
1″ ~ 200″ ( 25 mm ~ 5000 mm ) |
|
Functional Index |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ); Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ); Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ). |
|
Input Interface |
2*PT1000 interface Three-wire system： 0~100℃(32～212℉)heat(cold) energy meter |
|
Communication Interface |
RS232 & RS485 |
|
WIFI |
Frequency range: 2.412~2.484GHz |
|
Transmitting power: 802.11b 16±2 dBm 802.11n 13±2 dBm 802.11g 14±2 dBm |
|
|
Working temperature：-20~85℃ |
|
|
40m transmission distance in open environment40 |
|
|
Standard SD card |
Maximum storage period: 512 days, storage interval: 1-3600 seconds |
|
Power supply |
90 ~ 245 VAC (48 ~ 63 Hz) Or 10 ~ 36 VDC |
|
Keypad |
22 light tactile keys |
|
Display |
20 × 2 lattice alphanumeric, backlit LCD |
|
Temperature |
Transmitter: 14℉~122℉(-10℃~50℃) Transducer: 40℉~176℉(-40℃~80℃) |
|
Humidity |
0~99% RH, non-condensing. |
|
Physical Characteristics |
|
|
Transmitter |
Die-cast aluminum, IP65. |
|
Transducer |
Encapsulated design. IP68. Standard / Maximum cable length: 30 ft / 1000 ft ( 9m / 305 m ). |
|
Weight |
Transmitter: approximately 4.7 lb ( 2.15 kg ). Transducer: approximately 2.0 lb ( 0.9 kg ). ( standard ) |
Body Parameters

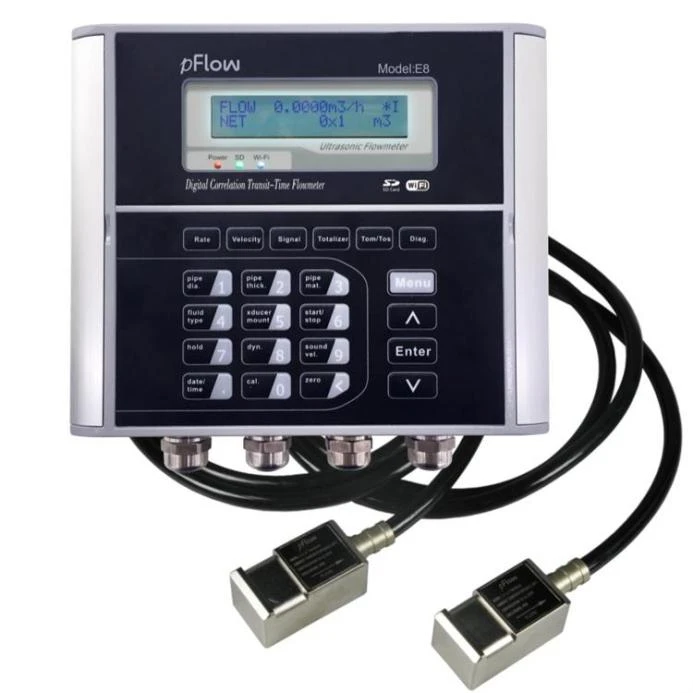

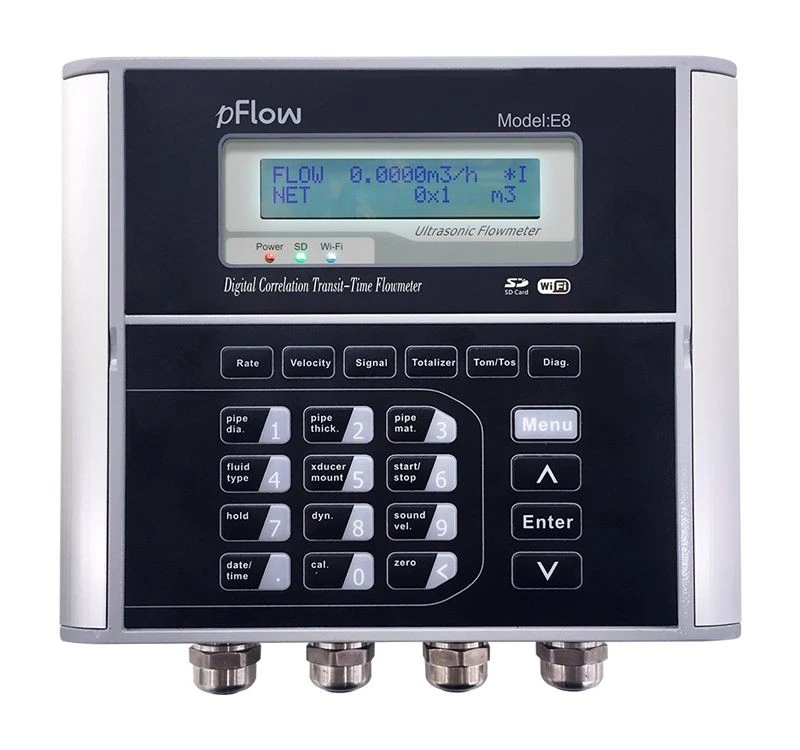

Transmitter
Transducer
PT1000 Temperature senor

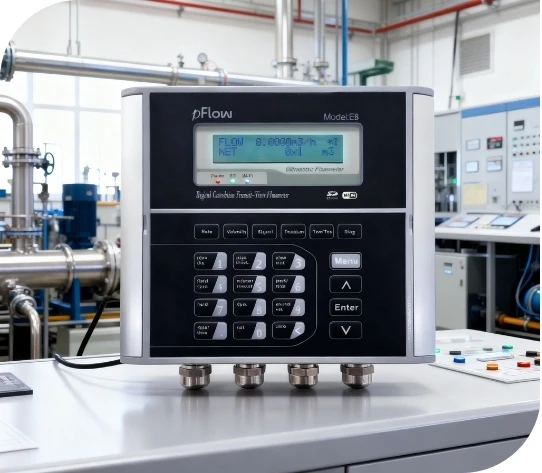

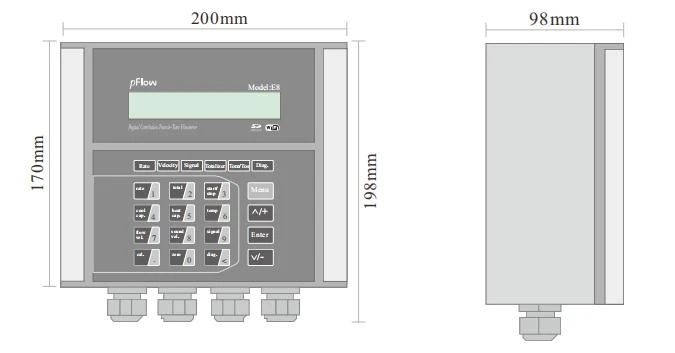

Appearance

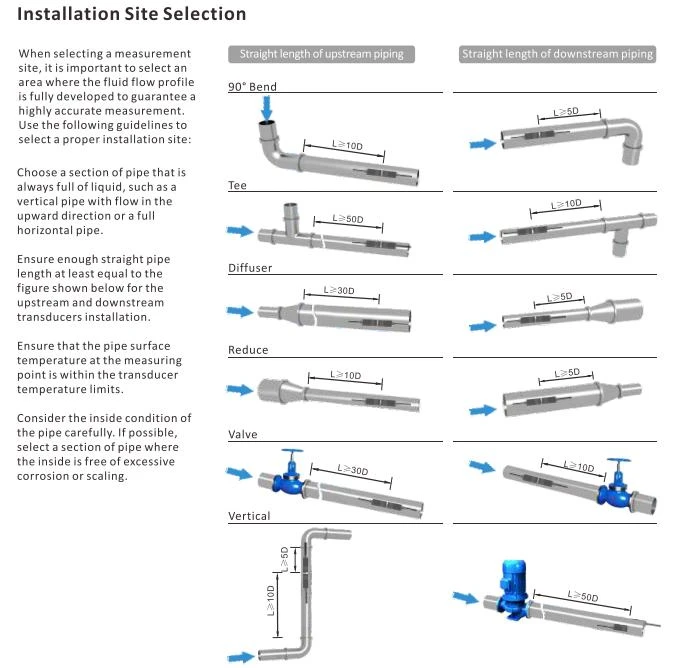

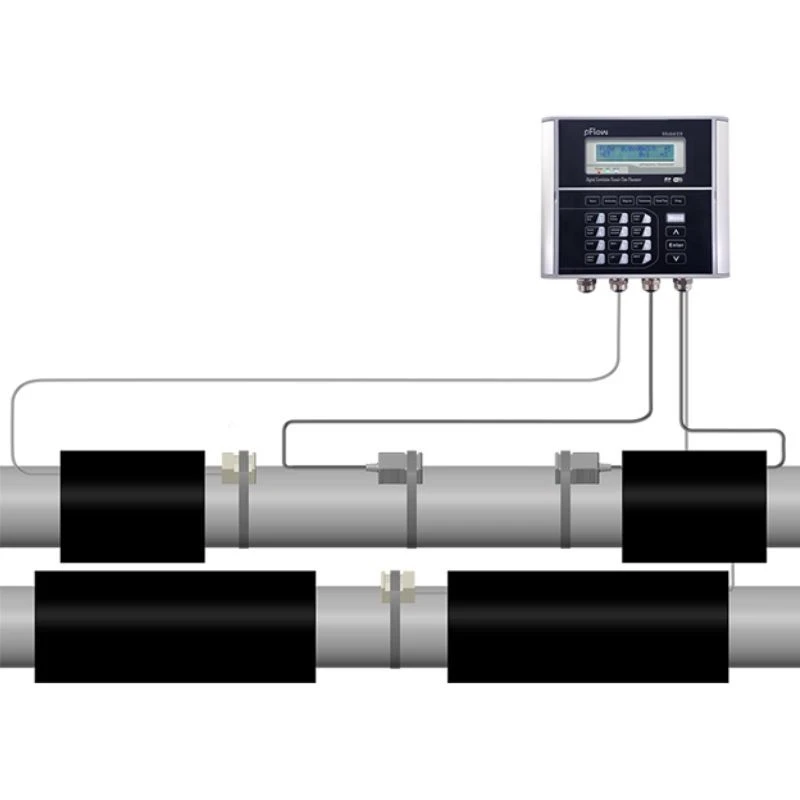

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
