IoT Ball Valve



This cloud-controlled IoT valve actuator, the VC200-R/VC201-R, developed by Gentos Corporation, offers impressive features and advantages. It utilizes LoRa wireless communication technology and the LoRaWAN communication protocol, enabling long-distance transmission and strong penetration capabilities. This means that users can remotely control the valve actuator without worrying about signal obstruction or interruption, even in complex environments.



The VC200-R/VC201-R provides an innovative solution for the intelligence of electric valves. It leverages advanced communication technology and cloud computing platforms, enabling users to remotely control and manage water systems for intelligent water resource management and energy optimization. This brings users a more convenient, efficient, and sustainable water system control experience.





• Support LoRaWAN communication protocol
• Wireless communication, no wiring required
• Timing control
• Long transmission distance and strong penetration ability
• The valve can be adjusted 0-100% opening to control the flow rate
• IP Rating: IP65
• 18 month warranty
• Excellent after service
• Private label optional
• Free Returns for Quality Issues

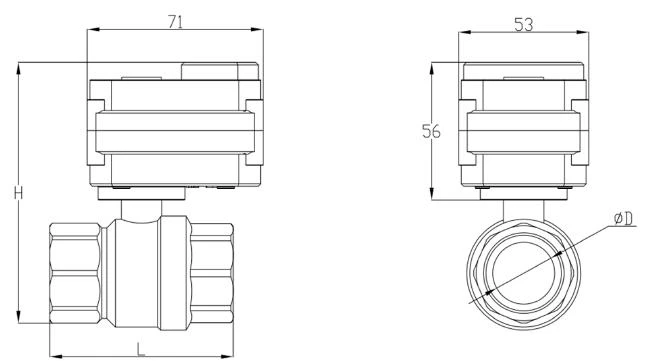

Valve Body Parameters



*Note: unit:mm; H/L/D refers to valve body materials and caliber specifications, with a tolerance of ±1mm



Material	Caliber	Interface Type	D	L	H
Stainless Steel	DN15	2-Way internal thread G1/2	4 inches	63	93
	DN20	2-Way internal thread G3/4	6 inches	66	100
	DN25	2-Way internal thread G1	1inche	89	110



Material	Caliber	Interface Type	D	L	H
Copper	DN15	2-Way internal thread G1/2	4 inches	60	96
	DN20	2-Way internal thread G3/4	6 inches	67	102
	DN25	2-Way internal thread G1	1inche	74	109
	DN32	2-Way internal thread G11/4	1.2inches	86	117



Technical Parameters

Technical Parameters
Applicable Medium: Water	Power Supply Voltage: DC5V	Maximum Power: 3W
Medium Temperature: ≤100°C	Operating Pressure: ≤1.0MPa	Output Torque: 2Nm
Valve Body Diameter:	Copper：DN15~DN32 Stainless Steel：DN15~DN25
Valve Body Material:	Brass(copper), Stainless Steel
Controller Operation:	Remote control via MeterTube mobile APP
Connection Method:	2-Way internal thread G
Communication Method:	WIFI; MeterTube APP: Available
LoRa Communication	Support LoRaWAN communication protocol
	Maximum transmit power：22dBm
	Temperature：-40℃~85℃
LoRa Frequency Selection	EU868 Frequency：863000000~865400000,Unit:HZ
	US915 Frequency：902300000~914900000,Unit: HZ
	CN779 Frequency：780100000~786500000,Unit: HZ
	EU433 Frequency：433775000~434665000,Unit: HZ
	AU915 Frequency：915200000~927800000,Unit: HZ
	CN470 Frequency：470300000~489300000,Unit: HZ
	AS923(HK) Frequency：920000000~925000000,Unit: HZ







• Smart Home: LoRa ball valves can be integrated with smart home systems, allowing remote control and monitoring through a mobile application or smart home hub. Users can open or close the valve at any time using the mobile app, enabling flexible water flow control.
• Water Resource Management: LoRa ball valves can be used in water resource management, such as city water supply systems or agricultural irrigation systems. Through remote control and monitoring, precise control and management of water flow can be achieved, improving water resource utilization efficiency.
• Leak Detection and Prevention: LoRa ball valves can monitor water flow and automatically close the valve when abnormal flow or leaks are detected, avoiding water waste and potential damages. By integrating with other sensors such as flow sensors or pressure sensors, timely detection and alerts for leaks can be achieved.
• Industrial Automation: LoRa ball valves can be applied in industrial automation fields, such as process control, liquid transportation, and treatment systems. Through remote control and monitoring, control and optimization of water flow in industrial processes can be achieved.





Gentos is a leading manufacturer of ultrasonic flow meters, dedicated to advancing fluid measurement technology for over 30 years. Our mission is to provide innovative and reliable solutions that meet the diverse needs of industries worldwide.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





With an unwavering focus on customer satisfaction, Gentos has introduced a swift delivery system, assuring timely product acquisition. Meticulously, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day timeframe. Empowered by an array of transportation and express delivery options, Gentos prides itself on exceeding customer expectations.





Q: What is the most common application for a ball valve?

A:The most common application for a ball valve is in plumbing and industrial systems for controlling the flow of fluids. Ball valves are widely used in residential, commercial, and industrial settings for various purposes such as shut-off valves, control valves, and isolation valves. They are commonly found in water supply systems, heating and cooling systems, oil and gas pipelines, chemical processing plants, and many other applications where reliable and efficient flow control is required.



Q: What is the main function of a ball valve?

A:The main function of a ball valve is to control the flow of fluids by using a spherical ball with a hole or port in the center. The ball is rotated within the valve body to either allow or block the flow of the fluid.



Q: Is ball valve used for flow control?

A:Yes, ball valves can be used for flow control. While their primary function is to quickly and reliably shut off the flow of fluid, they can also be used to regulate the flow rate.



Q: How do you control a ball valve?

A: Ball valves are typically controlled by rotating the ball inside the valve body. The ball has a hole or port through its center, and when the hole aligns with the flow path, the valve is open, allowing fluid to pass through. To close the valve, the ball is rotated so that the hole is perpendicular to the flow path, blocking the flow of fluid.



Q: What is LoRaWAN technology?

A: LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. It wirelessly connects devices to the internet and manages communication between end-node devices and network gateways..
