Product Introduction
The E3W Smart Home BTU Flow Meter utilizes the ultrasonic propagation time measurement principle and combines Gentos ultrasonic signal processing technology and a unique flow rate algorithms to accurately measure fluid flow in pipelines. The product is designed as a stand-alone
The product is designed as a stand-alone unit with an external clamping structure for simple and easy installation. During installation, there is no contact with the fluid medium and no need to stop production.
Product Parameter

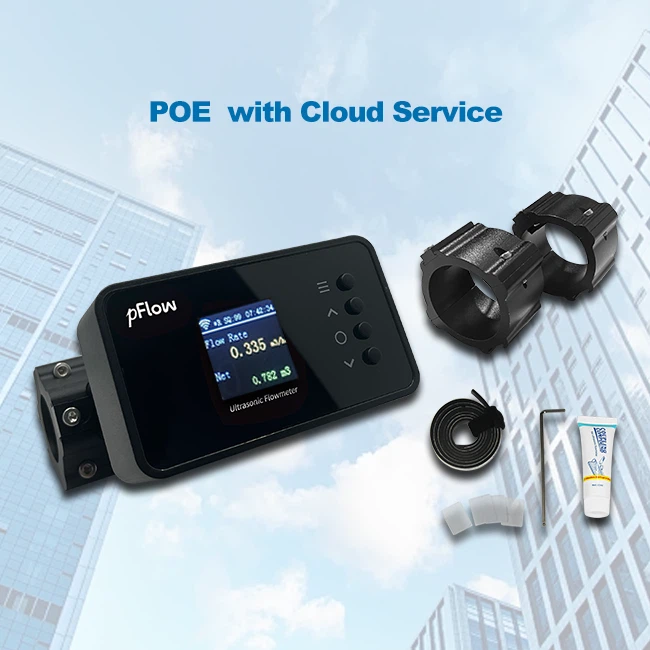

1)Appearance
2)Feature
● Easy installation, No pipe rework or damage
● No adjustment, Clip on to measure
● LCD colorful display screen
● 360° rotation adjustable display screen
● Mobile terminal app to view flow data
3)Technical Parameters
|
Performance Specifications |
|
|
Flow velocity |
0.03~5.0 m/s |
|
Pipe Size |
DN20~DN80 |
|
Measured medium |
water |
|
Pipe Material |
Carbon steel, Stainless Steel, Copper, PVC (According to the user's model selection, the model has been determined at the time of delivery.) |
|
Function Index |
|
|
Input interface |
2*PT1000 Clamp-on temperature sensor 0~100℃(32～212℉) |
|
Communication Interface |
RS485(standard); Support FUJI Protocol and MODBUS Protocol |
|
Power supply |
10～36VDC/500mA |
|
Keyboard |
4 touch keys |
|
Display screen |
1.44 " LCD colorful screen, resolution 128 * 128 |
|
Temperature range |
Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃~50℃ ) Transducer measures medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ). |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP Rating |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
Integrated |
|
Transducer |
Clamp-on |
|
Cable |
φ5 six core cable, standard length: 2m |
Product Applications

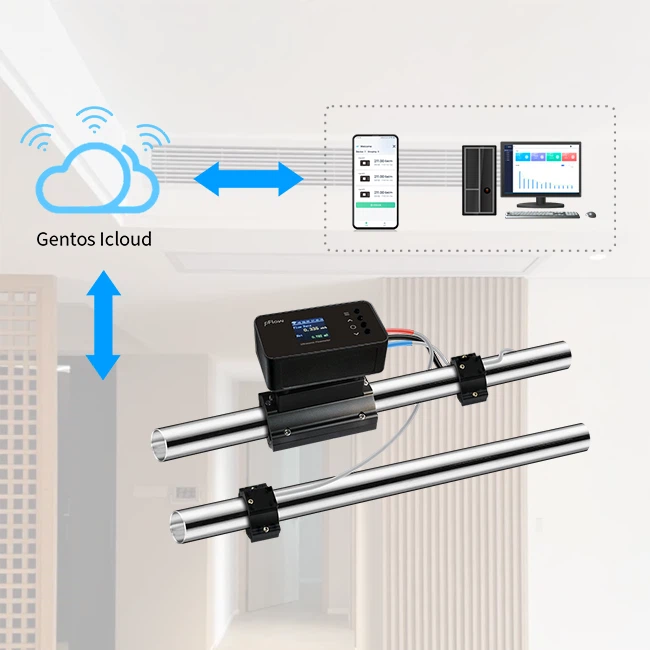

The instrument uses WIFI communication technology to achieve cloud data storage. Users can access cloud data anytime and anywhere through mobile terminals or PC terminals to manage, analyze and query measurement data information. E3W BTU Flow Meter is a practical household smart flow meter.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
1.What is an Smart Home BTU Flow Meter?
An Smart Home BTU Flow Meter, also known as a heat flow meter or thermal energy meter, is a device used to measure the flow rate and heat energy consumption in a heating or cooling system.
2.What are the advantages of Smart Home BTU Flow Meter ?
It offer advantages such as accurate measurement, non-intrusive installation, wide dynamic range, long lifespan, and data integration capabilities.
3.How can we detect thermal energy?
One common method is to use infrared thermography, which involves using a thermal imaging camera to capture and visualize heat patterns emitted by objects.
4.What are the installation and maintenance precautions for Smart Home BTU Flow Meter?
During installation, attention should be paid to the direction of fluid flow, requirements for straight pipeline sections, etc.; during maintenance, equipment should be regularly calibrated and sensors cleaned to ensure normal operation of the equipment.
5.How does an BTU Meter Comprehensive Flow Control Flow Meter work?
It calculate flow rate and volume by sending ultrasonic pulses into the fluid and measuring how long it takes for the detector to receive these pulses.
