IoT Enhanced BTU Measurement

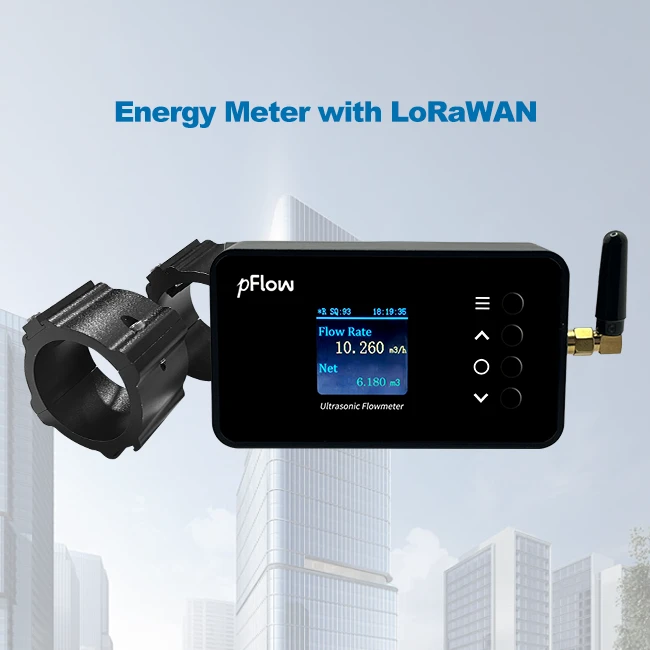

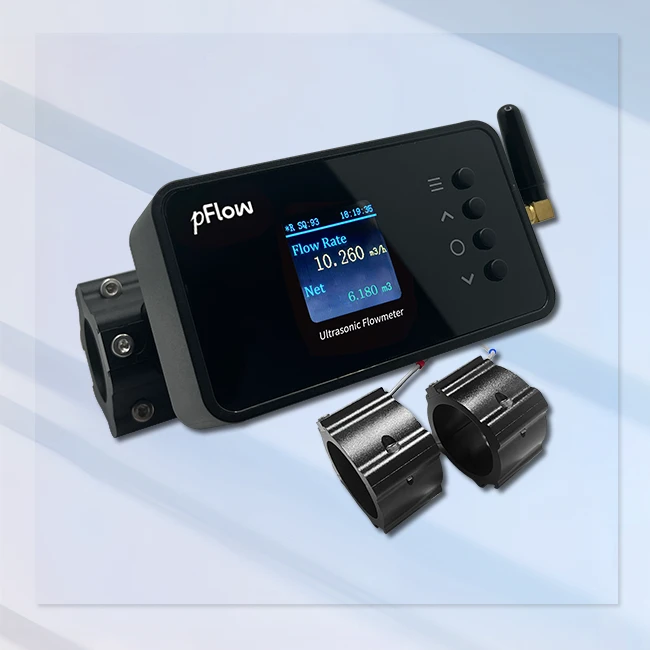

IoT Enhanced BTU Measurement E3R adopts LoRa communication technology and supports the LoRaWAN communication protocol.Also adopts the ultrasonic transit time measurement principle, combined with Gentos patented flow algorithm technology, it realizes accurate measurement of the fluid flow in the pipe. The product is all-in-one and Clamp-on structure design, which is simple and convenient to install.





● LoRaWAN communicaton protocol available

● Ultrasonic transit time measurement principle

● 1.44" LCD colorful screen,resolution 128*128

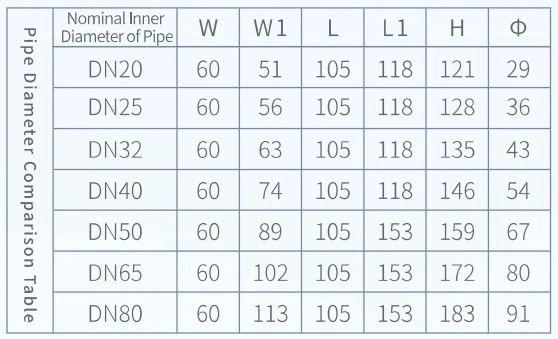

1)Body Parameters

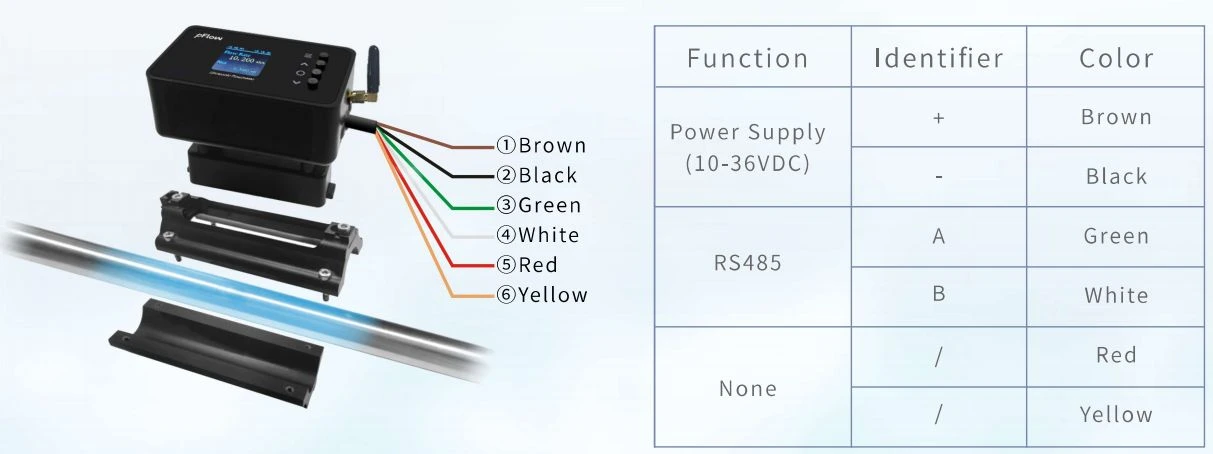

Meter Wiring



Installation Steps

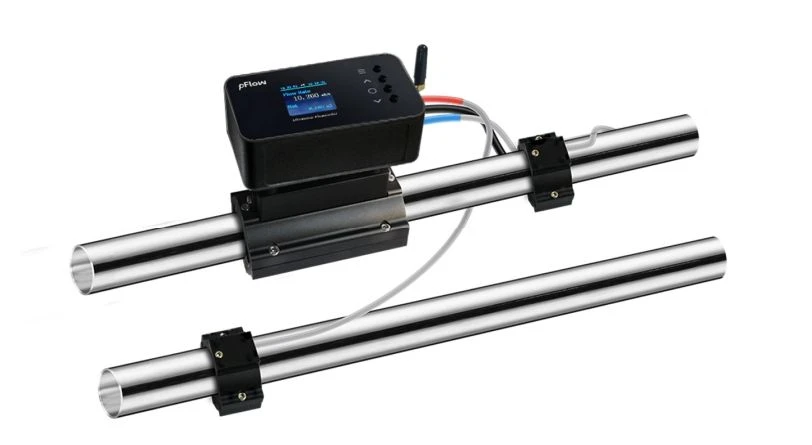

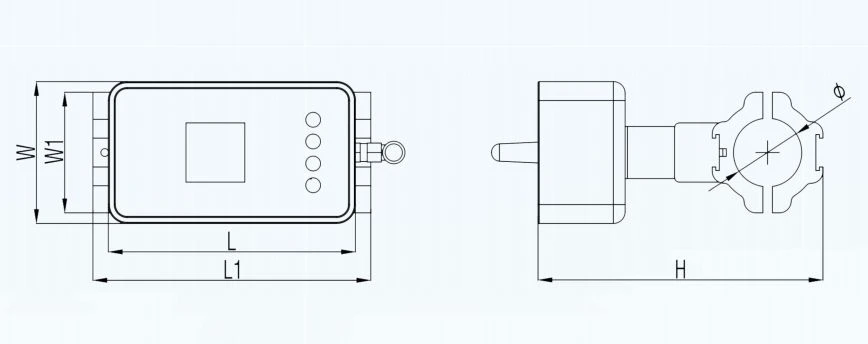

2) Appearance



3)Technical Parameters



Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Temperature	Temperature:Transmitter: -10℃~50℃ Transducer: 0℃~60℃ Temperature Range: 4-95°C Temperature Difference Range: 3~75K Temperature Resolution: 0.01℃
Functional Index
Input	2*PT1000 Clamp-on temperature sensor, 0-100°C (32-212°F)
Output	RS485(Standard), FUJI or MODBUS Protocol
LoRa Communication	Maximum Transmit Power: 22dBm Temperature：-40~85℃ LoRaWAN communication protocol is available
LoRa Frequency Selection	EU868 Frequency: 863000000~865400000, unit: HZ US915 Frequency: 902300000~914900000, unit: HZ CN779 Frequency: 780100000~786500000, unit: HZ EU433 Frequency: 433775000~434665000, unit: HZ AU915 Frequency: 915200000~927800000, unit: HZ CN470 Frequency: 470300000~489300000, unit: HZ AS923(HK) Frequency: 920000000~925000000, unit: HZ
Power supply	10~36VDC/500mA
Key	4 touch keys
Display screen	1.44" LCD Display Screen Resolution 128*128
Humidity	Relative humidity 0~99%, No condensation





Applications:Municipal Garden Irrigation,Building Water Management,Residential Water Management,Collective Dormitory Water Management,Aquaculture,Farm Irrigation,Automatic Car Washing etc.



LoRa (from "long range") is a physical proprietary radio communication technique. LoRaWAN (Wide Area Network) defines the communication protocol and system architecture.

Together, LoRa and LoRaWAN define a Low Power, Wide Area (LPWA) networking protocol designed to wirelessly connect devices to the internet in regional, national or global networks, and targets key Internet of things (IoT) requirements such as bi-directional communication, end-to-end security, mobility and localization services.

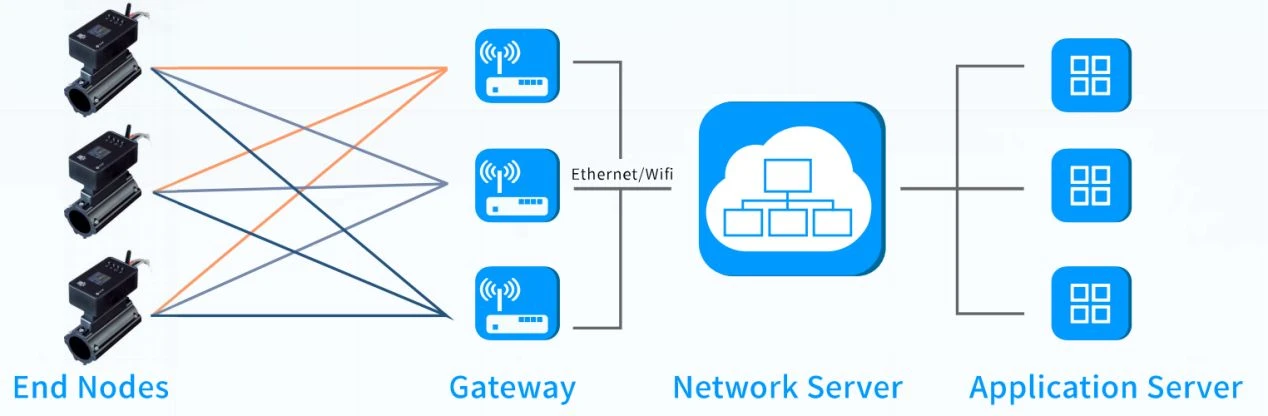

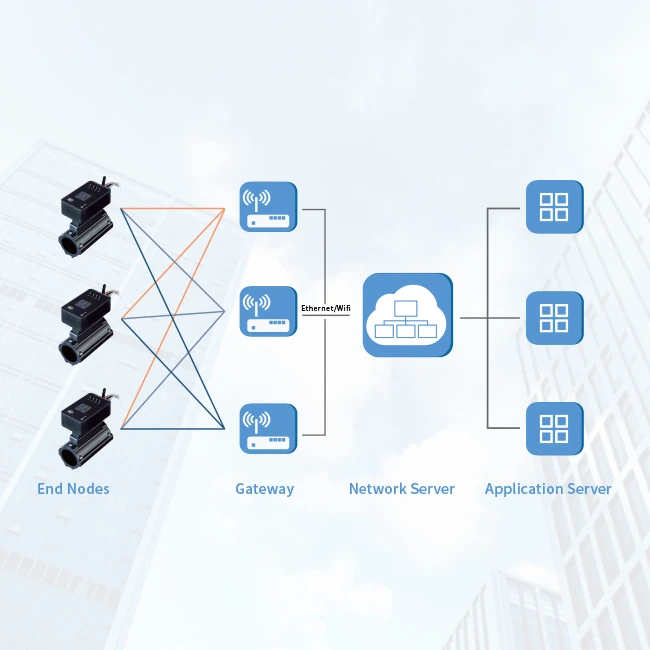

The LoRaWAN architecture contains four major components:

End Nodes Gateway

Network Server Application Server

In this architecture, you can see how LoRa and LoRaWAN allow wide and dense networks of edge devices to be connected. This allows you to capture and monitor data from thousands of nodes in a manageable way
