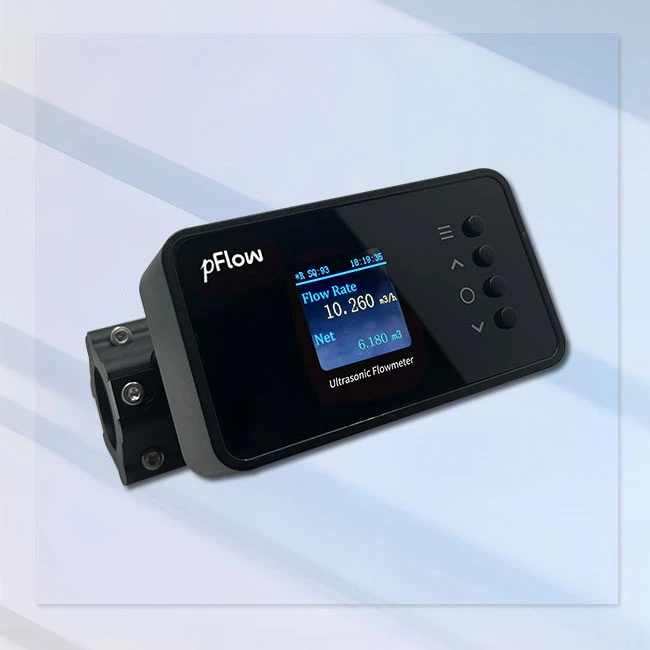

PVC Flow Meter-F3CL



F3CL adopts the ultrasonic transit time measurement principle, combined with Gentos patented flow algorithm technology, it realizes accurate measurement of the fluid flow in the pipe. The PVC flow meter F3CL is all-in-one and clip-on structure design, which is simple and convenient to install. Only four steps are needed all along. The installation process requires no contact with fluid media and no need to shut down. The standard configuration of the product is the RS485 communication interface commonly used in industrial occasions. With MODBUS protocol, it can realize remote monitoring and data transmission of instruments. PVC flow meter F3CL is equipped with a display unit that provides real-time information about the flow rate, total volume, and other relevant parameters. The display may utilize digital or analog readouts for easy monitoring. PVC flow meters are generally more affordable compared to flow meters constructed from other materials like stainless steel or brass, making them an economical choice for various applications. PVC flow meter F3CL offers a reliable and cost-effective solution for measuring the flow of liquids in various industrial, commercial, and residential settings. It's corrosion resistance, chemical compatibility, and affordability make it a preferred choice for many fluid measurement applications.





1)Body Parameters

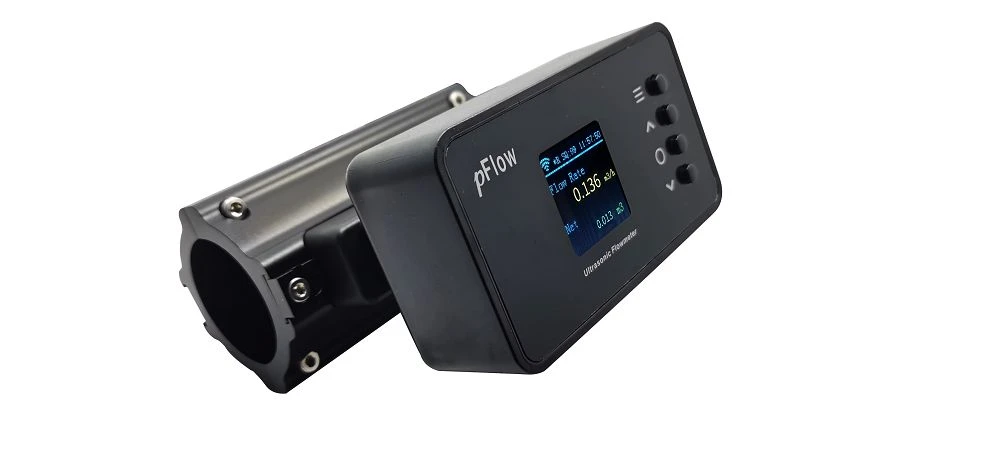

2)Appearance



3)Technical Parameters

Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Functional Index
Communication Interface	RS485 and 4-20mA(Max load resistance750Ù)
Power supply	10~36VDC, max 500mA
Key	4 keys
Display screen	1.44 "LCD color screen, resolution 128 * 128
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Compact
Transducer	Clamp on Standard cable length：2m





Food and Beverage: In the food and beverage industry, ultrasonic flow meter F3CL finds a range of specific applications tailored to the unique requirements of production processes. F3CL is used to precisely measure the flow of ingredients such as water, milk, juices, syrups and other liquids used in food and beverage production. Accurate measurement ensures consistency in product quality and recipe formulation. Many food and beverage manufacturing processes involve batch production. Ultrasonic flow meters accurately measure the flow of ingredients into mixing tanks or vessels during batch processing, ensuring precise control over batch sizes and recipe adherence. Cleaning and sanitation are critical in food and beverage processing to maintain hygiene and prevent contamination. F3CL monitors the flow of cleaning solutions, detergents, and sanitizing agents during Clean-in-Place processes, ensuring thorough cleaning while minimizing water and chemical usage. F3CL can be integrated into bottling and packaging lines to monitor the flow of beverages into bottles, cans, or other containers. Precise flow measurement ensures accurate filling levels, minimizes product giveaway, and reduces packaging waste. In breweries, wineries, and fermentation facilities, F3CL monitors the flow of liquids during fermentation processes. Accurate flow measurement helps maintain optimal fermentation conditions, such as temperature and flow rate, to ensure the desired product characteristics. Efficient water usage is essential in food and beverage production to minimize waste and environmental impact. Ultrasonic flow meters monitor water consumption in various processes, such as rinsing, cooling, and boiler feed water, allowing for efficient water management and conservation efforts.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is a PVC flow meter, and how does it work?

A1: A PVC flow meter is a device used to measure the flow rate of liquids. It typically consists of a PVC body with a flow sensor that detects the movement of fluid. The sensor sends signals to a display unit, which translates them into flow rate readings. Various technologies such as paddlewheels, turbines, or ultrasonic sensors can be used to measure flow rates.



Q2: What are the advantages of using PVC flow meters?

A2: PVC flow meters offer several advantages, including corrosion resistance, affordability, chemical compatibility, lightweight construction, and low maintenance requirements. They are suitable for measuring the flow of corrosive liquids and are widely used in various industries due to their versatility and cost-effectiveness.



Q3: Are PVC flow meters suitable for outdoor applications?

A3: Yes, PVC flow meters are suitable for outdoor applications, provided they are designed to withstand environmental conditions such as temperature variations, UV exposure, and moisture. It's essential to choose a model with suitable weatherproofing and protection features for outdoor use.



Q4: Can PVC flow meters be installed vertically or horizontally?

A4: PVC flow meters can typically be installed in both vertical and horizontal orientations, depending on the specific application and mounting options available. It's essential to follow the manufacturer's guidelines for proper installation to ensure accurate flow measurements.



Q5: Where are PVC flow meters commonly used?

A5: PVC flow meters find applications in various industries and sectors, including water treatment, chemical processing, pharmaceutical manufacturing, food and beverage production, HVAC systems, agriculture, irrigation, and municipal wastewater management.
