Brief Introduction
|
Accuracy: |
0.5 % |
Pipe Size Range: |
Clamp-on type: 25mm~5000mm (1" ~ 200" ) |
|
Flow Rage: |
±0.01m/s ~ ±12 m/s ±0.03ft/s ~ ±40 ft/s |
Communication : |
RS485, available to MODBUS protocol |

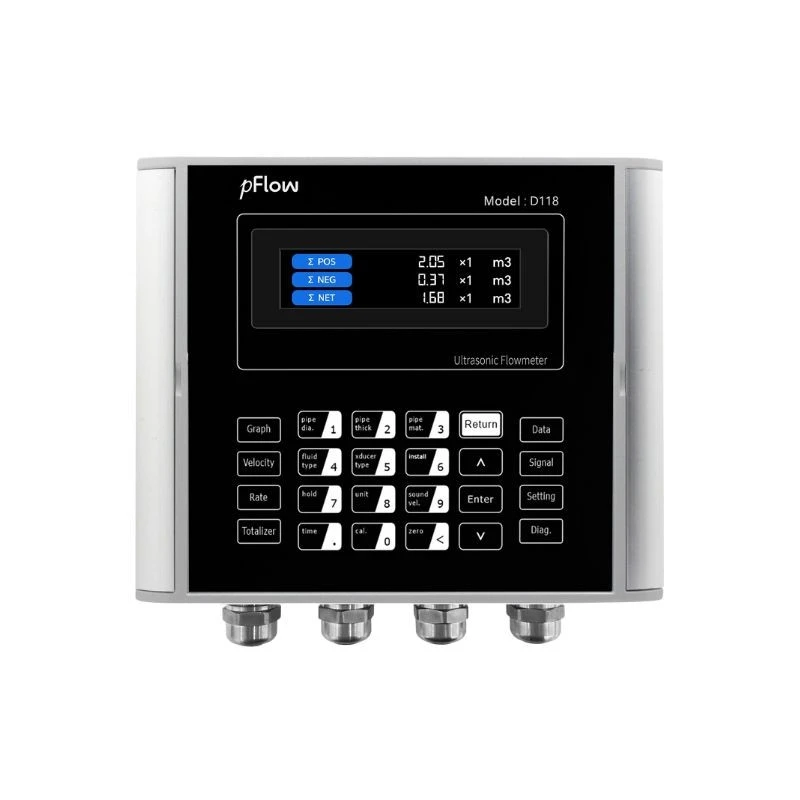

Product Introduction

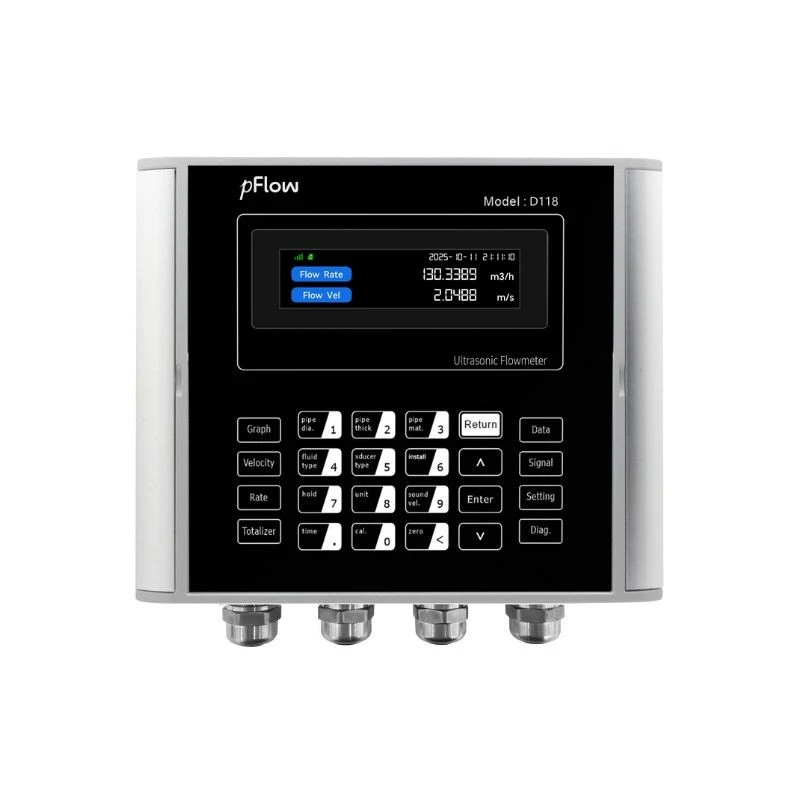

The D118 clamp-on ultrasonic flowmeter keeps industrial loops running without pause: leveraging ultrasonic transit-time principle, it clamps on in minutes-no pipe cutting, no flow stoppage-delivers ±0.5 % of true flow, and logs 16 GB of history on board.
- No pipework
- No extra wiring
- No process interruption

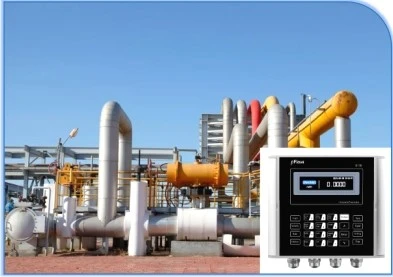

- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Energy management and environmental monitoring
- Process industries (chemical, pharmaceutical, food and beverage)
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance specifications |
|
|
Measurable Flow Velocity Range |
±0.01m/s～±12 m/s(±0.03 ft/s～±40 ft/s) |
|
Accuracy |
0.5% (0.5~5m/s standard condition) |
|
Repeatability |
0.1% |
|
Pipe Size Range |
Clamp-on type: 25mm~5000 mm (1″~200″) Insertion type: 50mm~5000 mm (2″~200″) |
|
Function specifications |
|
|
Outputs |
Analog output: 4～20mA, maximum load 750Ω Pulse output: 0～9999Hz, OCT output (maximum and minimum frequencies adjustable) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
Communication |
RS485, available to MODBUS protocol |
|
TF Card |
Storage period: More than 1000 days Storage interval: 1～3600 seconds |
|
Power Supply |
90～245VAC(48～63Hz)or 10～36VDC |
|
Keyboard |
24-key touch keyboard |
|
Display Screen |
3.71-inch TFT color screen |
|
Temperature |
Transmitter ambient temperature: -10℃～50℃ Sensor medium temperature: -40℃～80℃ (standard) |
|
Humidity |
Up to 99% RH, non-condensing |
|
Physical specifications |
|
|
Transmitter |

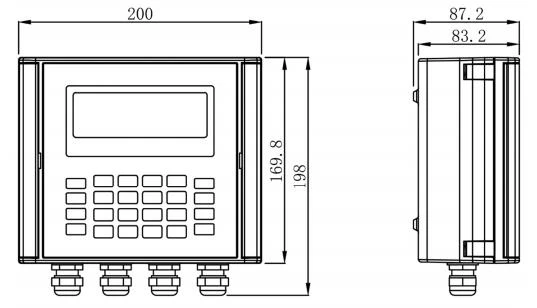

Die-cast aluminum chassis, IP rating: IP65 |
|
Transducer/Sensor |
Sealed design, IP rating: IP68 Standard cable length: 9m, can be extended to 305m |
|
Weight |
Transmitter: Approximately 2.2kg Clamp-on sensor: Approximately 2kg per pair Insertion sensor: Approximately 4kg per pair |
Body Parameters

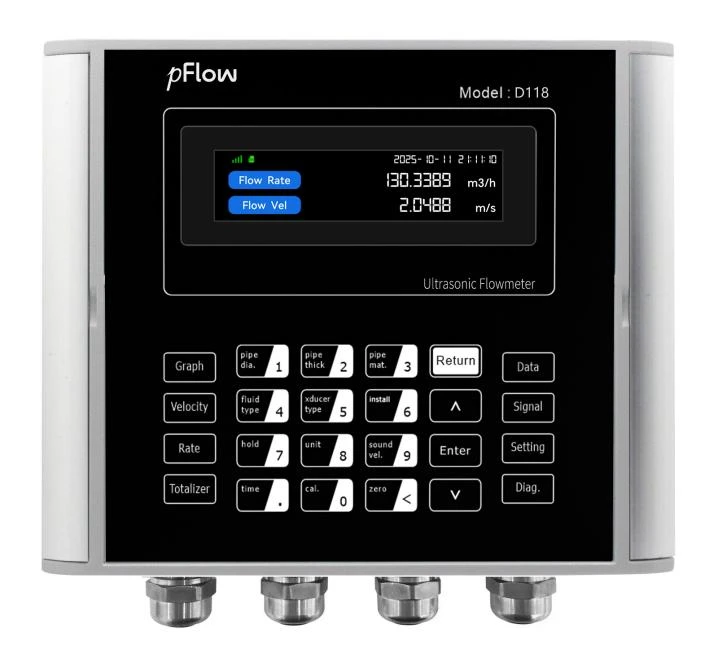

Appearance

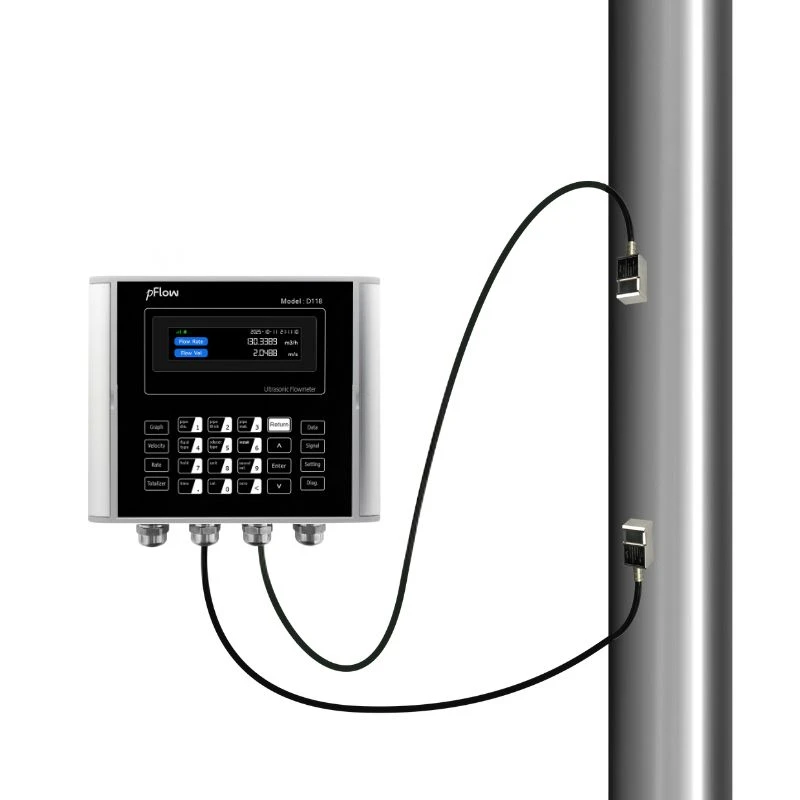

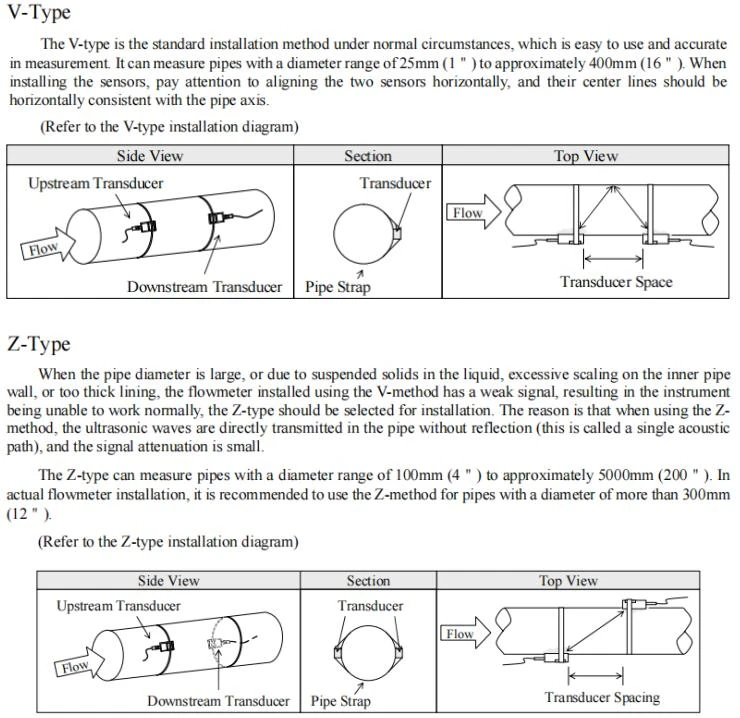

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: Does the D118 require pipe cutting or process shutdown for installation?
A: No-clamp-on sensors mount externally in minutes; the line stays live and intact.
Q: What power sources can the D118 accept?
A: Either 90-245 VAC or 10-36 VDC; simply wire the selected supply to the clearly marked terminals.
Q: How accurate is the meter and what pipe sizes can it handle?
A: ±0.5 % of reading, 0.1 % repeatability, covering 25 mm to 5000 mm pipes with the same clamp-on sensor.
Q: How do I retrieve logged data for analysis?
A: Pull the supplied 16 GB TF card, copy the daily .txt files to a PC, and convert them to Excel with the free "Converter.exe" tool.
Hot Tags: ultrasonic clamp-on flowmeter, China ultrasonic clamp-on flowmeter manufacturers, suppliers, factory, agricultural irrigation flow meters, Clamp On Ultrasonic Water Flow Meter, LoRaWAN Flow Sensor, ro water flow meter, Smart Water Flow Meter, Ultrasonic Flowmeter Clamp On Type
Products Description
1)Technical Parameters
|
Performance specifications |
|
|
Measurable Flow Velocity Range |
±0.01m/s～±12 m/s(±0.03 ft/s～±40 ft/s) |
|
Accuracy |
0.5% (0.5~5m/s standard condition) |
|
Repeatability |
0.1% |
|
Pipe Size Range |
Clamp-on type: 25mm~5000 mm (1″~200″) Insertion type: 50mm~5000 mm (2″~200″) |
|
Function specifications |
|
|
Outputs |
Analog output: 4～20mA, maximum load 750Ω Pulse output: 0～9999Hz, OCT output (maximum and minimum frequencies adjustable) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
Communication |
RS485, available to MODBUS protocol |
|
TF Card |
Storage period: More than 1000 days Storage interval: 1～3600 seconds |
|
Power Supply |
90～245VAC(48～63Hz)or 10～36VDC |
|
Keyboard |
24-key touch keyboard |
|
Display Screen |
3.71-inch TFT color screen |
|
Temperature |
Transmitter ambient temperature: -10℃～50℃ Sensor medium temperature: -40℃～80℃ (standard) |
|
Humidity |
Up to 99% RH, non-condensing |
|
Physical specifications |
|
|
Transmitter |
Die-cast aluminum chassis, IP rating: IP65 |
|
Transducer/Sensor |
Sealed design, IP rating: IP68 Standard cable length: 9m, can be extended to 305m |
|
Weight |
Transmitter: Approximately 2.2kg Clamp-on sensor: Approximately 2kg per pair Insertion sensor: Approximately 4kg per pair |
