F3RO Flow Velocity Measurement



The F3RO Flowmeter from Gentos is designed for accurate flow velocity measurement, utilizing the ultrasonic transit time measurement principle combined with Gentos' patented flow algorithm technology. This non-invasive method allows for precise measurement of fluid flow within pipes without contact with the fluid media, making it ideal for various applications, including household water, aquaculture, and industrial water management

● The F3RO's all-in-one, clip-on structure design ensures simple and convenient installation, requiring no shutdown of the flow

● With a flow velocity range of 0.03 to 5.0 meters per second, it covers a broad spectrum of flow rates

● The device also features an RS485 communication interface and supports MODBUS protocol for remote monitoring and data transmission, enhancing its utility in temperature control and other precision measurement applications





1)Body Parameters

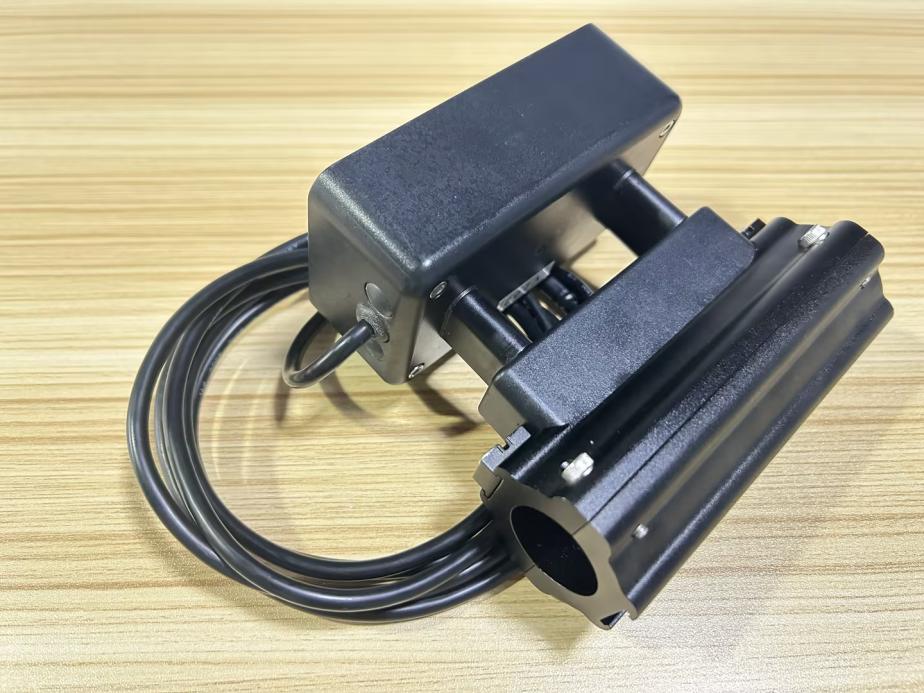

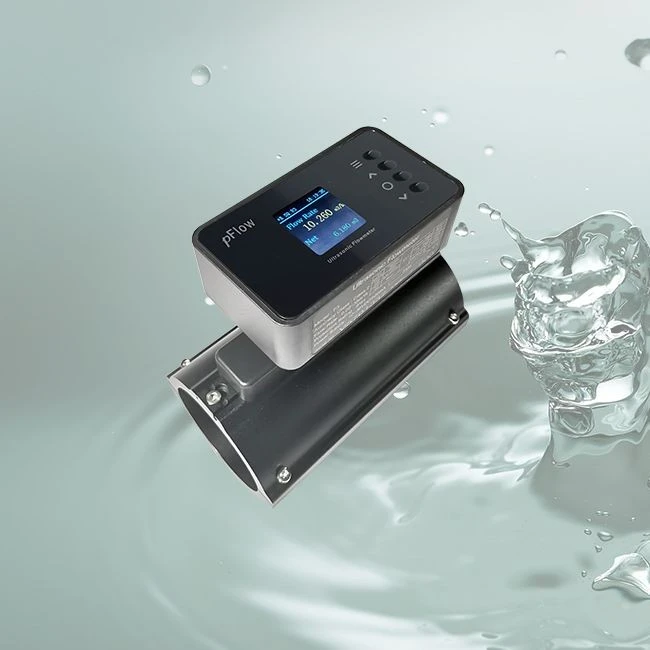

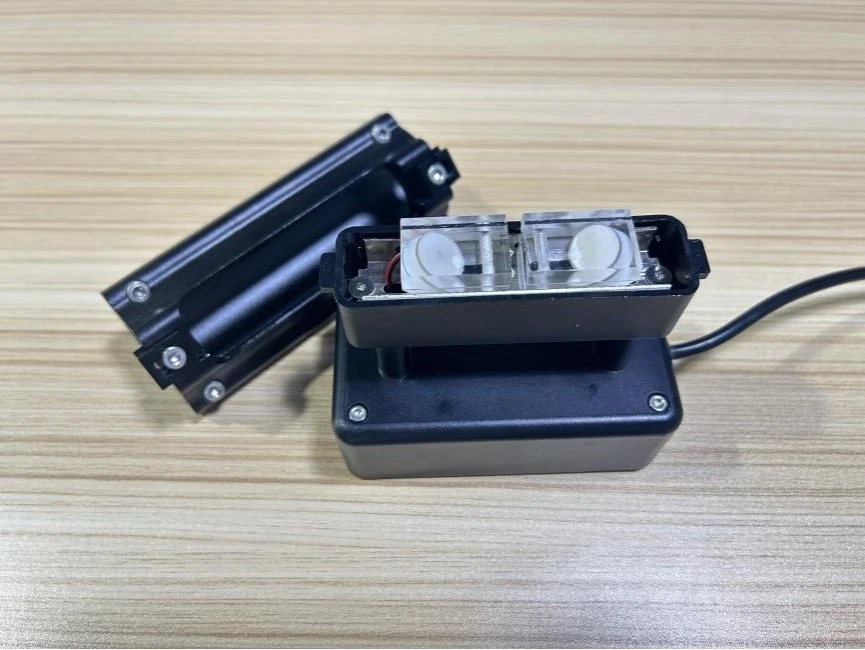

2)Appearance



3)Technical Parameters

Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Functional Index
Communication Protocol	RS485 and OCT or Relay (All comes with FUJI or MODBUS Protocol)
Power supply	10～36VDC/500mA
Key	4 keys
Display screen	1.44 "LCD color screen, resolution 128 * 128
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Integrated
Transducer	Clamp on
Network Cable	φ5 six core cable, standard length: 2m









For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





What is flow velocity measurement?

It is the process of determining the speed of fluid flow in a pipe or channel.



Which instruments are used for flow velocity measurement?

Common instruments include anemometers, pitot tubes, flow meters, and ultrasonic sensors.



Why is flow velocity measurement important?

It helps optimize fluid transport systems, ensuring efficiency, safety, and accurate monitoring of fluid dynamics.



How does an ultrasonic flow meter measure flow velocity?

It uses sound waves to detect fluid speed by measuring the time difference between emitted and received signals.



What industries rely on flow velocity measurement?

Industries like water treatment, oil and gas, HVAC, and chemical manufacturing depend on accurate flow velocity data.
