Product Introduction

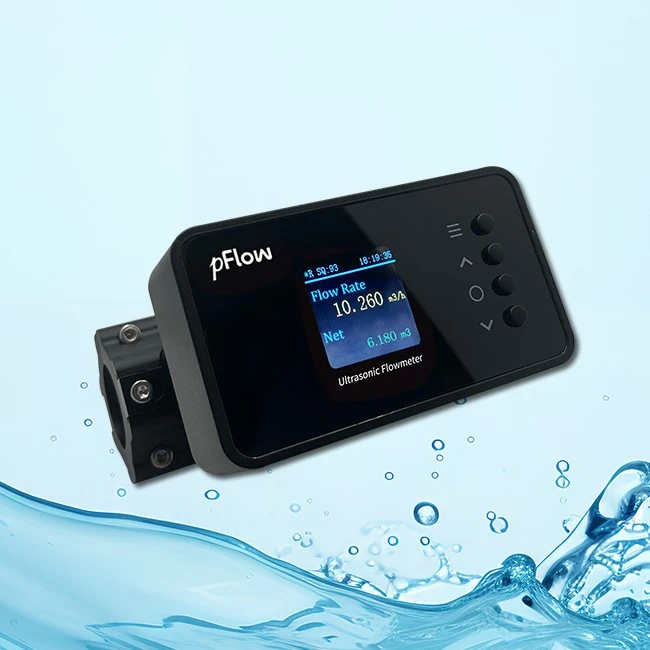

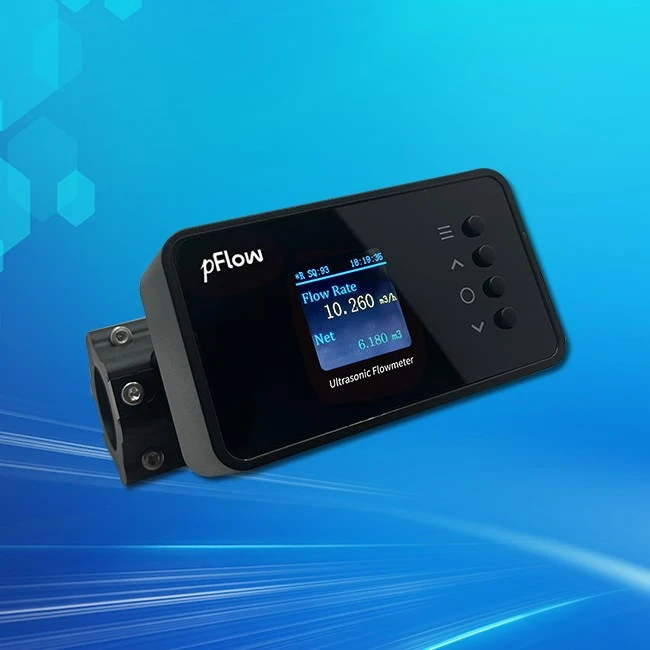

The Gentos F3CL liquid monitoring flow meter, employing the ultrasonic transit time measurement principle and Gentos' proprietary flow algorithm technology, ensures precise fluid flow measurement within pipelines. Its all-in-one, clip-on design simplifies installation to just four effortless steps, negating the necessity for fluid contact or shutdown procedures. Equipped with the standard RS485 communication interface typical in industrial settings, it enables remote instrument monitoring and data transmission through the utilization of the MODBUS protocol.
Product Parameter
1)Body Parameters
2)Appearance
3)Technical Parameters
|
Performance Index |
|
|
Flow velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2%,(1.0~16ft/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
DN20~DN80 |
|
Measured medium |
water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC |
|
Functional Index |
|
|
Communication interface |
RS485(standard); Support FUJI Protocol and MODBUS Protocol |
|
Output |
OCT&Relay |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
4 keys |
|
Display screen |
1.44 " LCD color screen, resolution 128 * 128 |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
Integrated |
|
Transducer |
Clamp on |
|
Cable |
φ5 Six-core cable, standard length: 2m |
Product Features
Easy installation, No breaking pipeline
No need to adjust, Clip on to measure
LCD color display screen
360° rotatable display screen
Product Applications
Industrial Flow Measurement: Handheld ultrasonic flow meters are used for flow measurement in industrial areas such as the chemical, HVAC. Workers can use these devices to quickly and accurately measure the velocity and flow of liquids within pipes.
Maintenance and troubleshooting: In factory and equipment maintenance, handheld ultrasonic flow meters can be used to detect possible flow problems in pipelines and equipment, helping to quickly locate faults and perform repairs.
Water resources management: In wat
Water, sewage ( with low particle content ) and seawater;
Water supply and drainage water;
Power plants ( nuclear power plant, thermal and hydropower plants ), heat energy, boiler feed water and energy management system;
Metallurgy and mining applications ( cooling water and acid recovery, for example );
Petroleum and chemicals;
Food, beverage and pharmaceutical;
Marine operation and maintenance;
Energy economy supervision and water conservation management;
Pulp and paper;
Pipeline leak detection;
Regular inspection, tracking and collection;
Energy measuring and balance;
Network monitoring systems and energy / flow computer management.
er treatment plants, reservoirs and river monitoring, handheld ultrasonic flow meters can be used to measure water velocity and flow in real time, helping with water resource management and predicting hydrological conditions.
Temporary measurement: For some occasions where temporary flow measurement is required, handheld ultrasonic flow meters are a convenient and fast choice, which can quickly measure flow without long-term installation.
Environmental monitoring: Handheld ultrasonic flow meters can also be used for environmental monitoring, such as measuring water flow in sewage treatment plants, monitoring water flow rates in rivers and lakes, etc.
Discrete flow monitoring: Ultrasonic flow meters can also be used to monitor discrete flows, such as flow measurements in some inflow pipes or pipelines.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Our technically trained sales staff has extensive product knowledge as well as application and industry experience. This experience and specialization allows us to quickly recommend the most effective solutions to our customers, thus saving valuable time.
Gentos supports its customers with 30 years of manufacturing experience and expertise. Our sales staff is ready to provide comprehensive support at all levels of the business, from model selection, to on-site guided installation and operation, to post-product support.
Gentos has established a fast delivery system to ensure that customers can get the products they need when they need them. Generally, after receiving an order, Gentos can complete the delivery of the product within 2 to 3 days. Gentos supports a variety of transportation and express delivery methods.
FAQ
Q1: How can an F3CL Thermal Energy Storage Flow Meter help me monitor the velocity and volume of water?
A1: F3CL Thermal Energy Storage Flow Meter help you monitor water flow in real time by sending and receiving ultrasonic beams to measure water velocity and flow.
Q2: How to choose the installation location of ultrasonic flowmeter in storage?
A2: When installing an ultrasonic flowmeter, you should choose a location with stable water flow and no stirring, and avoid places with bubbles or particulate matter on the water surface.
Q3: How does an ultrasonic flow meter ensure accurate water flow data?
A3:Regular calibration of ultrasonic flow meters is a critical step in ensuring accurate flow data, while proper installation and maintenance also improves data accuracy.
Q4:Can an ultrasonic flow meter help me optimize my storage system?
A4:Yes, the flow data provided by ultrasonic flow meters can help you adjust your storage system to improve efficiency and production levels.
Q5: Can an ultrasonic flow meter help me save energy and reduce waste?
A5: By effectively monitoring and managing water flow, ultrasonic flow meters can help you use water resources more efficiently, saving energy and reducing waste.
