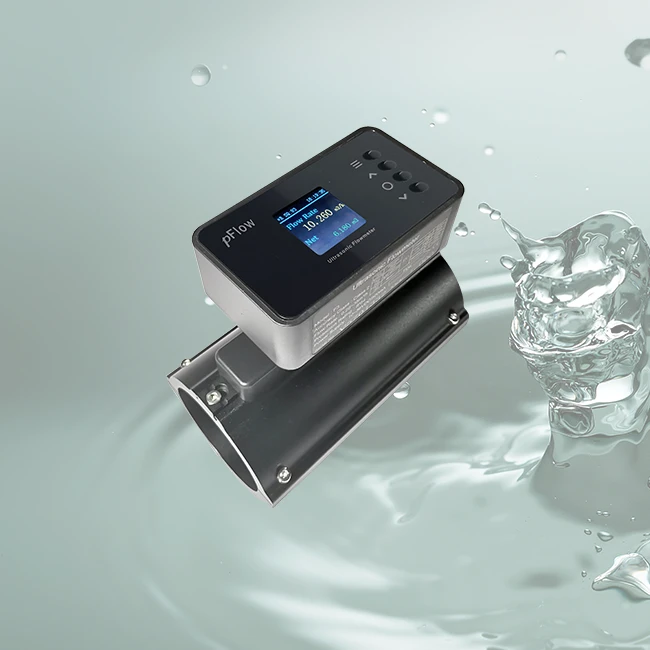

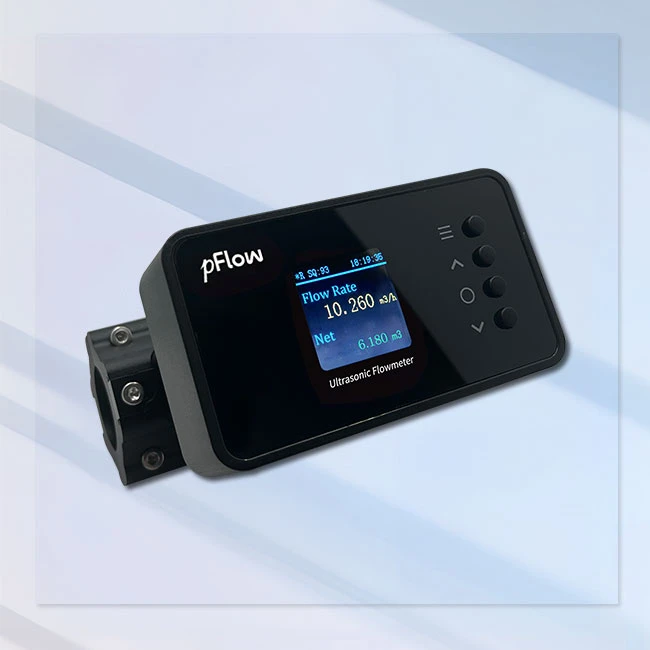

Water Monitoring Meter



Accuracy: ±2%

Easy and quick installation in four steps.

Stabilized output using RS485 and accurate data viewing

Pipe Size: DN20-DN80





F3CL water monitoring meter offer several advantages in water detection:

Non-intrusive Measurement: F3CL do not require direct contact with the water flow. They can measure flow externally using fixed clamps, eliminating the need to cut pipes or alter pipe structures, reducing maintenance and operational complexity.

Easy Installation: Simply fixing the sensors on the external surface of the pipe without the need for shutdowns makes installation and setup quick and straightforward, reducing maintenance costs and installation time.

Versatility: Water monitoring meter can be used with various pipe materials and diameters, and they are suitable for different types of liquid mediums such as clean water, wastewater, and chemical liquids, demonstrating strong versatility.

Real-time Monitoring: These flow meters provide real-time monitoring data, allowing users to stay informed about flow conditions within the pipe, enabling prompt issue identification and resolution for efficient pipeline system operation and management.

High Accuracy: Utilizing ultrasonic technology for measurement, clamp-on flow meters offer high accuracy, meeting the precision requirements of water treatment systems and industrial applications that demand accurate flow measurement.

Energy Efficiency and Environmental Benefits: By avoiding the need to alter pipe structures, clamp-on flow meters prevent water waste and energy consumption, promoting energy efficiency and environmental sustainability.

In summary, F3CL provide advantages such as easy installation, high accuracy, real-time monitoring, making them suitable for various water treatment systems and industrial applications requiring flow monitoring.





Specifications
Flow Velocity	0.1~16ft/s (0.03~5.0m/s)
Accuracy	±2%,(1.0~16ft/s)
Repeatability	0.2%
Pipe Size	DN20-DN80mm
Medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC
Communication Interface	RS485(standard); Support FUJI Protocol and MODBUS Protocol
Output	4-20mA, Max load resistance750Ω
Power Supply	10～36VDC/500mA
Keyboard	4 physical keys
Display Screen	1.44 " LCD color screen, resolution 128 * 128
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Humidity	Relative humidity 0~99%, No condensation
IP	IP54
Transmitter	Integrated
Transducer	Clamp on
Cable	φ5 six core cable, standard length: 2m





Water Treatment: Applied in compact water treatment systems for accurate flow monitoring.

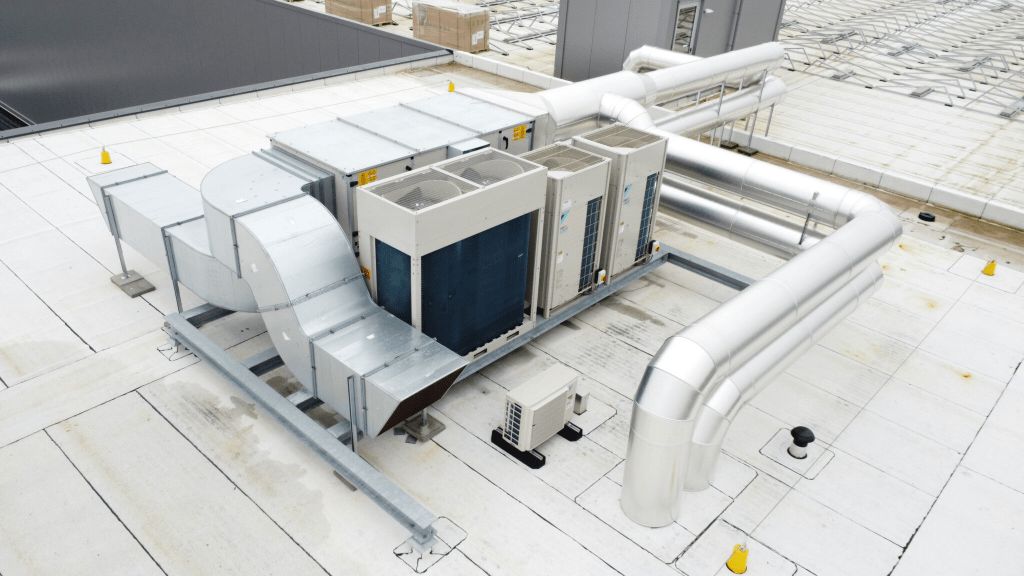

HVAC Systems: Used in heating, ventilation, and air conditioning systems for monitoring water flow in small pipes.



Chemical Industry: Applied for measuring flow rates of various chemicals in small pipelines.



Pharmaceuticals: Utilized for precise flow measurement in pharmaceutical manufacturing processes.

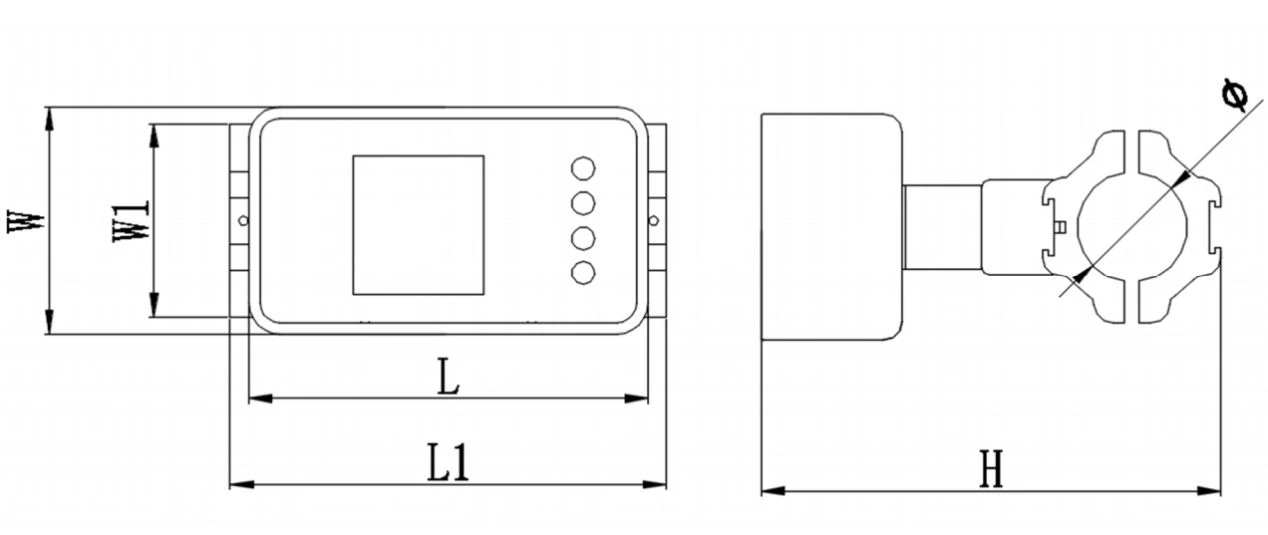

Transmitter Dimension

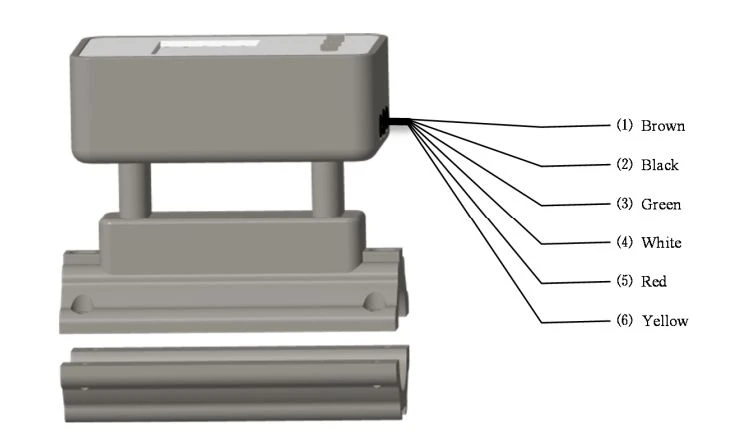

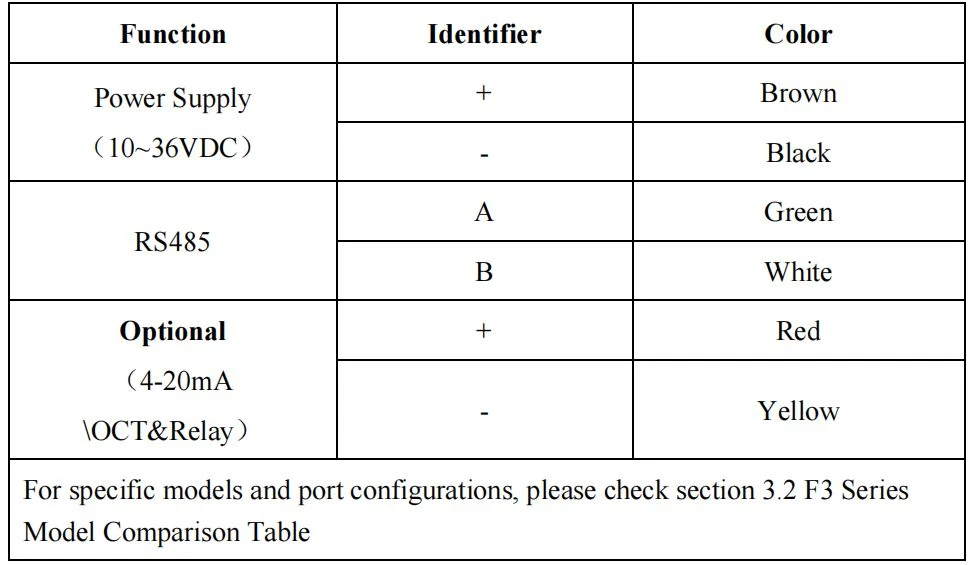

Meter Wiring

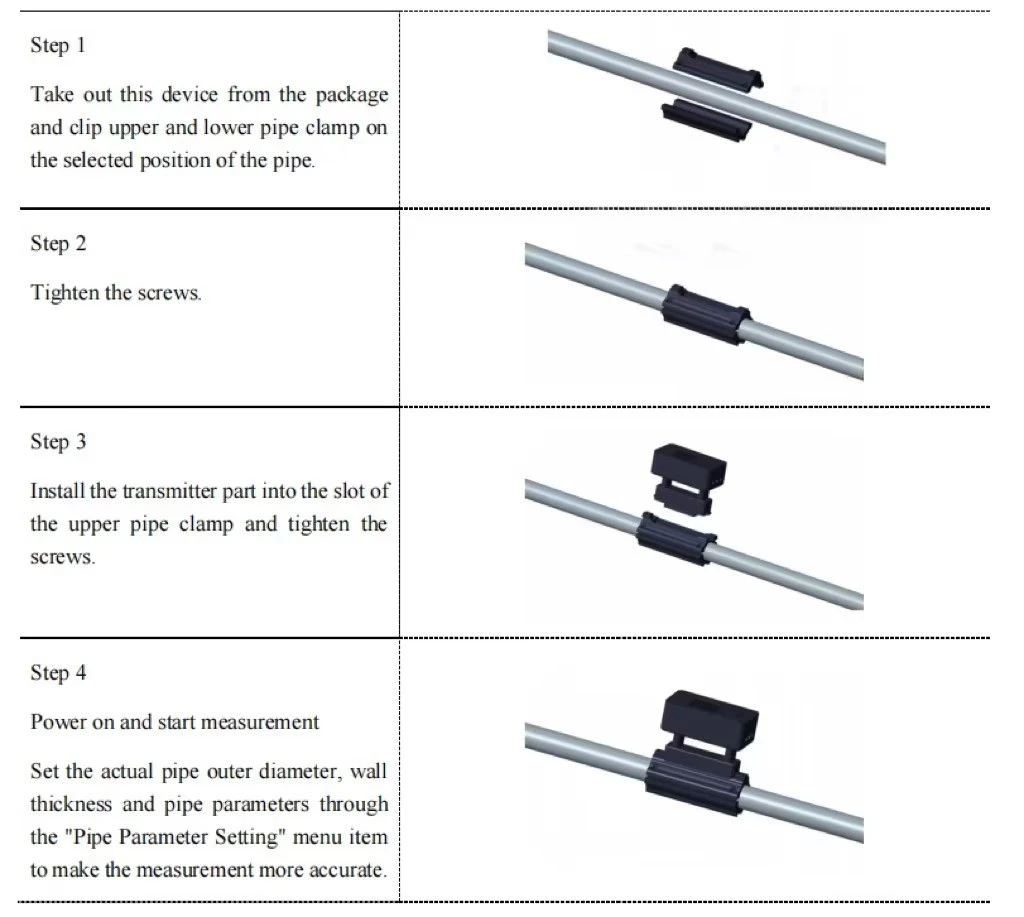

Installation Steps

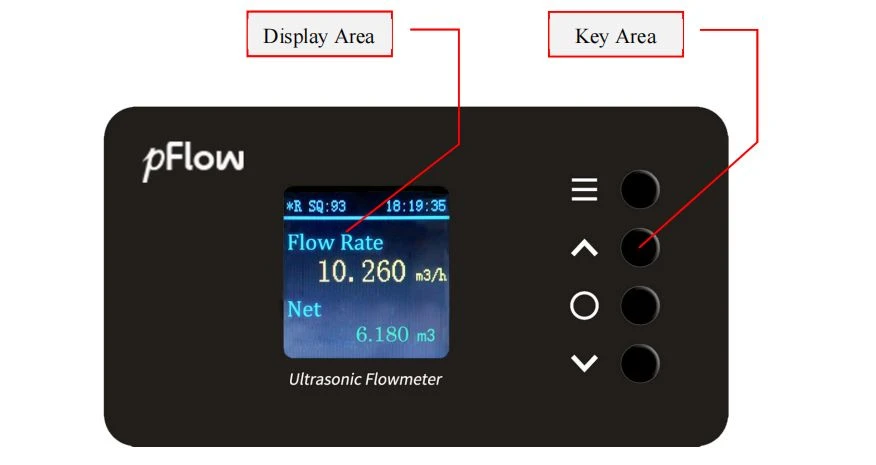

Display Description





Gentos is driven by a clear objective: to elevate industry benchmarks while maintaining affordability. As pioneers of innovative and eco-friendly products, we continuously push boundaries in our field.

Our product line evolves daily, with an unwavering commitment to enhancing features. We prioritize excellence in quality and performance, always striving to offer the most advanced solutions.

Customer input is invaluable to us. We actively seek their insights on new designs, recognizing their crucial role in our success. This collaborative approach sets us apart, allowing us to combine reliability and efficiency uniquely.

By listening to customers and incorporating their feedback, we deliver solutions that not only meet but exceed expectations. Gentos stands out for its dedication to innovation, sustainability, and customer collaboration, ensuring industry-leading standards.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Gentos places a high priority on customer satisfaction by employing a rapid delivery system that guarantees swift product acquisition. Consistently, Gentos processes orders efficiently and ships products within a 2 to 3-day window. To enhance convenience, Gentos provides a range of transportation and express delivery choices.





Q:What pipe materials can F3CL be used for?

A:Our water monitoring meter F3CL could measure PVC,Stainless Steel,Carbon Steel and Copper.Considering our D116(HDPE),P118i and P117 will help you measure more pipe material.



Q:Could we use F3CL to measure DN10~DN50mm pipe?

A:We will produce the new flowmeter that measuring DN10~DN50mm after1~2 months,for more product information could contact our sales department .



Q:Does the flow meter F3CL have a battery?

A:Our F3CL flow meter are powered by 10-36VDC and do not have a built-in battery.
