Water Meter Flow Indicator

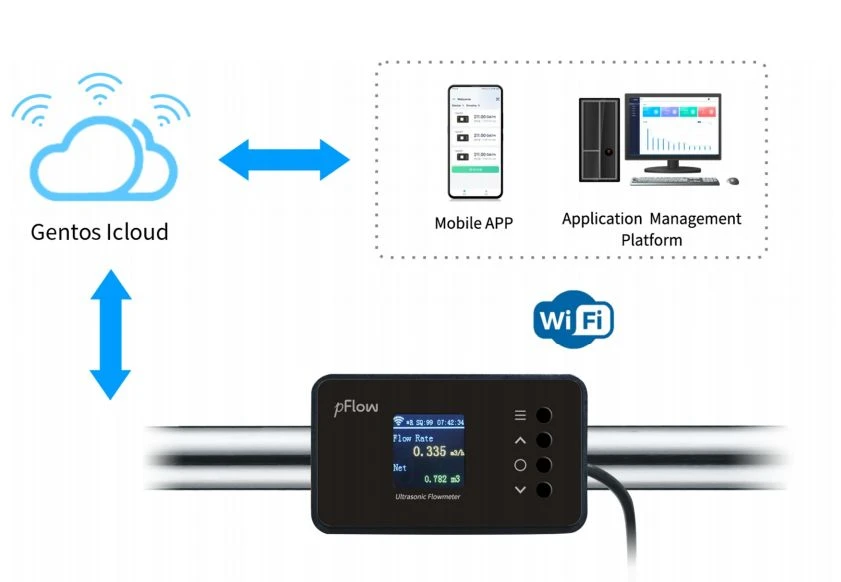

The F3W is connected by WiFi,its measuring data will be uploaded to the cloud,

user can access cloud data by mobile APP or PC Platform.F3W Help you realizing remote monitoring and managing instruments efficiently.





● Mobile App Network Configuration

● 360° Rotation Adjustable Display Screen

● Management Platform To View Real-time Data





1.Body Parameters

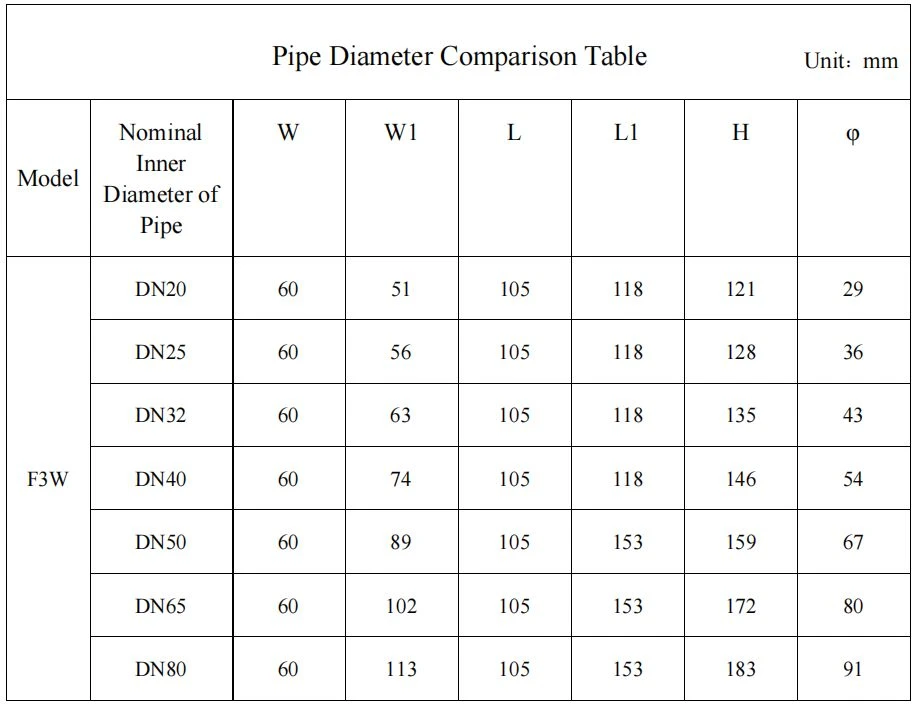

Transmitter Dimension

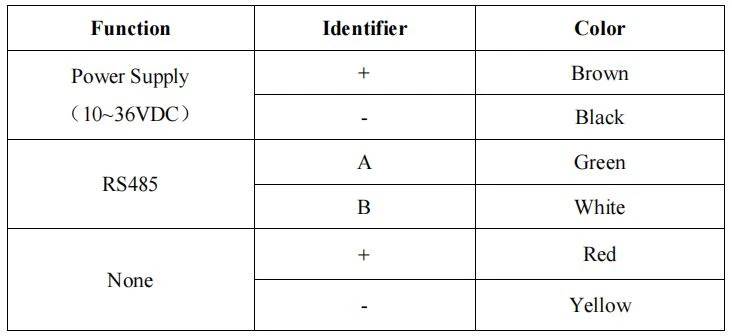

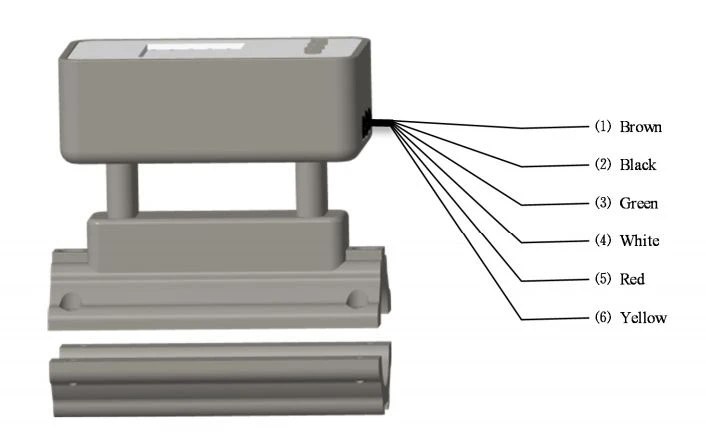

Meter Wiring



2.Appearance



3)Technical Parameters



Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: -10℃~50℃ Transducer: 0℃~60℃
Functional Index
Communication interface	RS485(Standard) FUJI or MODBUS Protocol
Power supply	10～36VDC/500mA
Key	4 keys
Display screen	1.44" LCD Color Display Resolution 128*128
Humidity	Relative humidity 0~99%, No condensation





Applications:HVAC,Washing Machine,Tap Water,Modern Agricultural & Garden Irrigation,Water In Production Process,Industrial Circulating Water,Pure Water,Aquaculture etc.

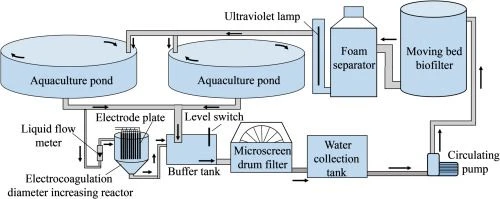

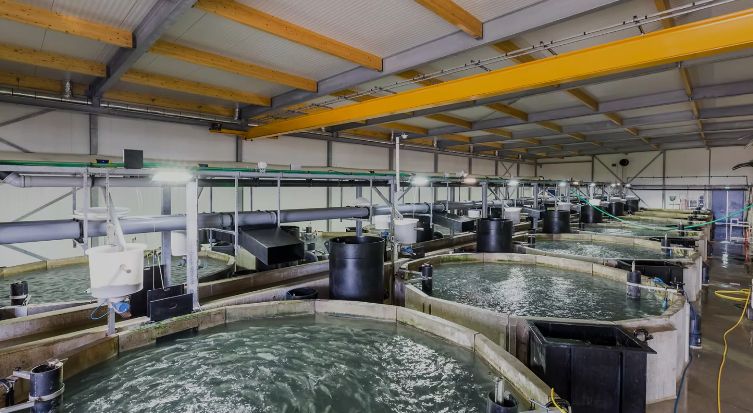

F3W water meter flow indicator plays a key role in Aquaculture & Irrigation,no pipe damaged,easy installation for Carbon Steel,Stainless Steel,PVC,Copper.Help user apply to different application case.Compact ultrasonic water meter flow indicator in aquaculture and irrigation can provide accurate and reliable flow measurement, to help users achieve efficient water management, improve production efficiency and ensure the safe and stable operation of the system.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is the purpose of a rotameter?

A1: The purpose of a rotameter is to measure the flow rate of a fluid (liquid or gas) passing through a pipe or tube. Rotameters are simple and cost-effective flow meters that rely on the principle of variable area flow measurement. The key components of a rotameter include a tapered tube through which the fluid flows, a float or ball that moves up and down based on the flow rate, and a scale to read the flow rate.



Q2: Why does rotameter need to be mounted vertically?

A2: Rotameters are typically designed to be mounted vertically because the float or ball inside the tube relies on the force of gravity to accurately indicate the flow rate of the fluid passing through the tube. When mounted vertically, gravity ensures that the float or ball moves freely and responds accurately to changes in flow rate.



Q3: What is the difference between a flowmeter and a rotameter?

A3:Flowmeters are more versatile and accurate instruments for measuring flow rates, while rotameters are simpler devices that provide a visual indication of flow rate but may have limitations in accuracy and range. The choice between a flowmeter and a rotameter depends on the specific requirements of the application and the level of accuracy needed for the flow rate measurement.



Q4:How does a rotameter measure flow rate?

A4:A rotameter measures flow rate by utilizing the principles of buoyancy and flow resistance to indicate the flow rate of a fluid based on the position of a float or ball within a tapered tube. It is a simple and cost-effective flow measurement instrument suitable for applications where accurate flow rate indication is sufficient.



Q5: How to adjust the rotameter?

A5: Adjust the measuring range of the rotameter according to your needs and fluid properties. The measuring range can be adjusted by changing the position of the float by turning the adjusting screw or adjusting the valve.
