Portable Water Flow Meter



P117 is a portable water flow meter with high precision, flexible diameter support, multiple communication options, wide application range, comprehensive accessories, and calibration services. Ideal for accurate flow measurement!





1.High Precision Measurement: The P117 Portable water flow meter offers exceptional measurement accuracy, making it suitable for various industrial . It can accurately measure a wide range of fluid pipe diameters.

2.Flexible Diameter Support: One pair sensors supports different pipe diameter ranges, making it adaptable to various application scenarios. Whether it's large or small pipe diameters, the P117 can handle them.

3.Multiple Communication Options: The P117 supports various communication interfaces, including RS485, 4-20mA, and more. You can choose the appropriate communication method based on your specific requirements for data transmission and monitoring.

4.Wide Application Range: The P117 is suitable for diverse work environments, including industrial process control, water treatment, energy management, and more. Regardless of the fluid medium or environmental conditions, the P117 performs reliably.

5.Comprehensive Accessories: The P117 comes with all necessary accessories, ensuring a hassle-free installation process. You won't need to purchase additional parts; it's ready for quick deployment.

6.Calibration Reports and Services: Each P117 unit includes a calibration report, and free calibration services are provided to ensure accurate flow measurement results.





1)Body Parameters

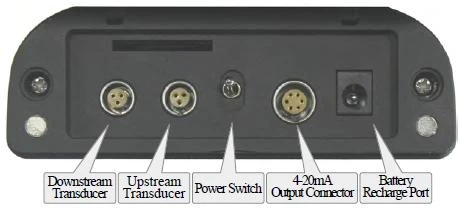

Wring diagram

Transmitter dimensions

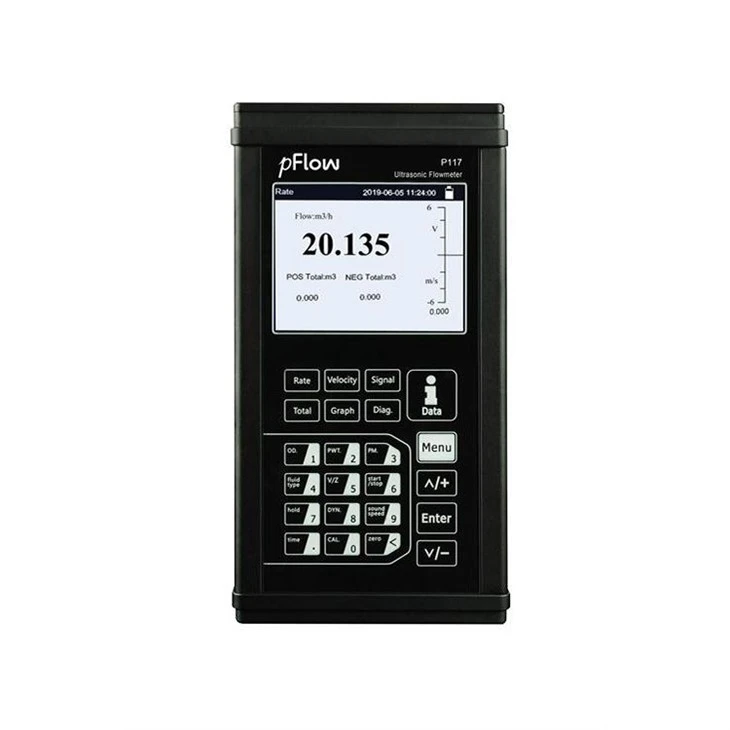

2)Appearance

3)Technical Parameters

Performance Index
Flow velocity	±0.03 ~ ±20 ft/s (±0.01~ ±6 m/s)
Accuracy	±1%
Repeatability	0.3%
Linearity	±1%
Pipe Size	Clamp-on:1″~ 48″ (25mm~1200mm)
Functional Index
Outputs	Analog output: 4~20mA, Max 750 Ω.
SD card	Storage: 8GB; Max: 512 files; Interval: 1 ~ 60 seconds.
Power supply	Rechargeable Lithium Battery Power .
Keypad	Tactile Keys.
Display screen	3.5 inch TFT screen( 320 × 240 ), backlit LCD.
Humidity	Relative humidity 0~99%, No condensation
Temperature	Transmitter(Ambient):14℉~122℉(-10℃~50℃) Transducer(Fluid):40℉~176℉(-40℃~80℃)
Physical Characteristics
Transmitter	NEMA13 ( IP54 ).
Transducer	Encapsulated design, IP68; Standard cable length: 5m.
Network Cable	Transmitter:approximately1.0kg.

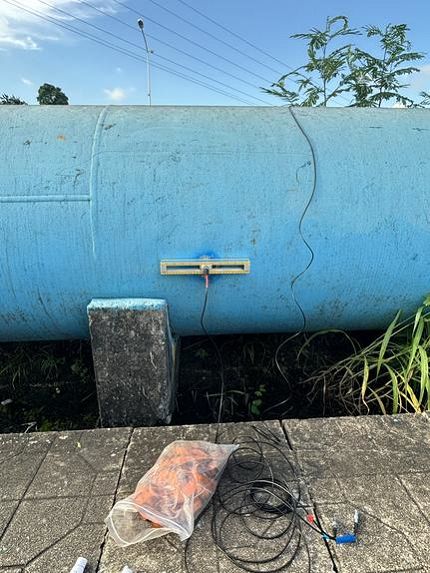

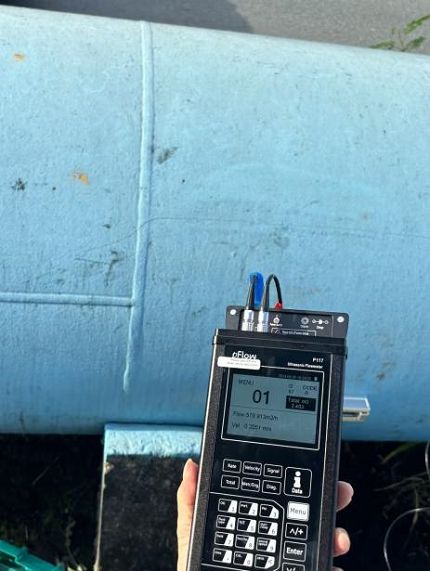

Application: 1000mm Carbon steel

Model name:P117

Pipe material: Carbon steel

Pipe size: DN1000

Liquid: Water
Location: Indonesia





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving



Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is a portable flow meter?

A1: A portable flow meter is a handheld device used to measure fluid flow in pipes without interrupting the flow or causing pressure drops. It employs ultrasonic waves to determine the flow rate of liquids, gases, or steam. These meters are versatile, compact, and lightweight, making them convenient for various applications



Q2: What is the most accurate way to measure water flow?

A2:The most accurate methods for measuring water flow depend on the context and application. Here are some reliable approaches:



Q3: How do I choose a water flow meter?

A3:Choosing a water flow meter involves considering several factors to ensure that you select the right type of meter for your specific application.



Q4:What are the five 5 types of flow meters?

A4:There are several types of flow meters used to measure the flow rate of fluids. Here are five common types of flow meters:Electromagnetic Flow Meters,Ultrasonic Flow Meters,Turbine Flow Meters,Vortex Flow Meters, Differential Pressure Flow Meters.



Q5: What are flow meters used for in industry?

A5: Flow meters play a crucial role in various industries by measuring the flow rate of liquids or gases in a wide range of applications.
