Energy Saving Audit Flow Meter

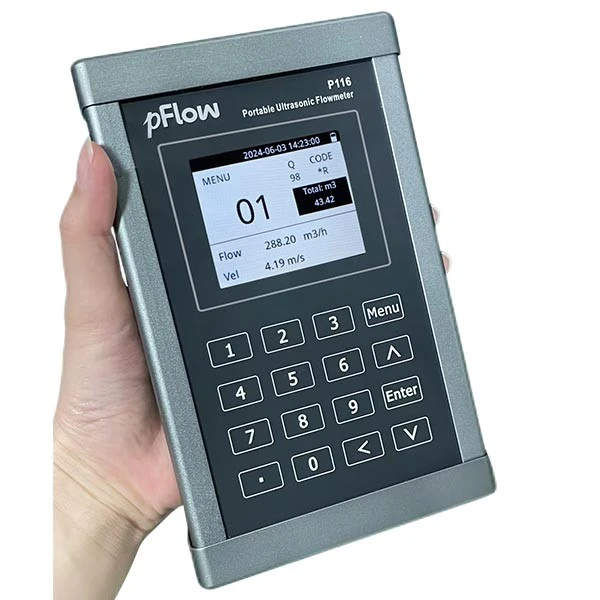

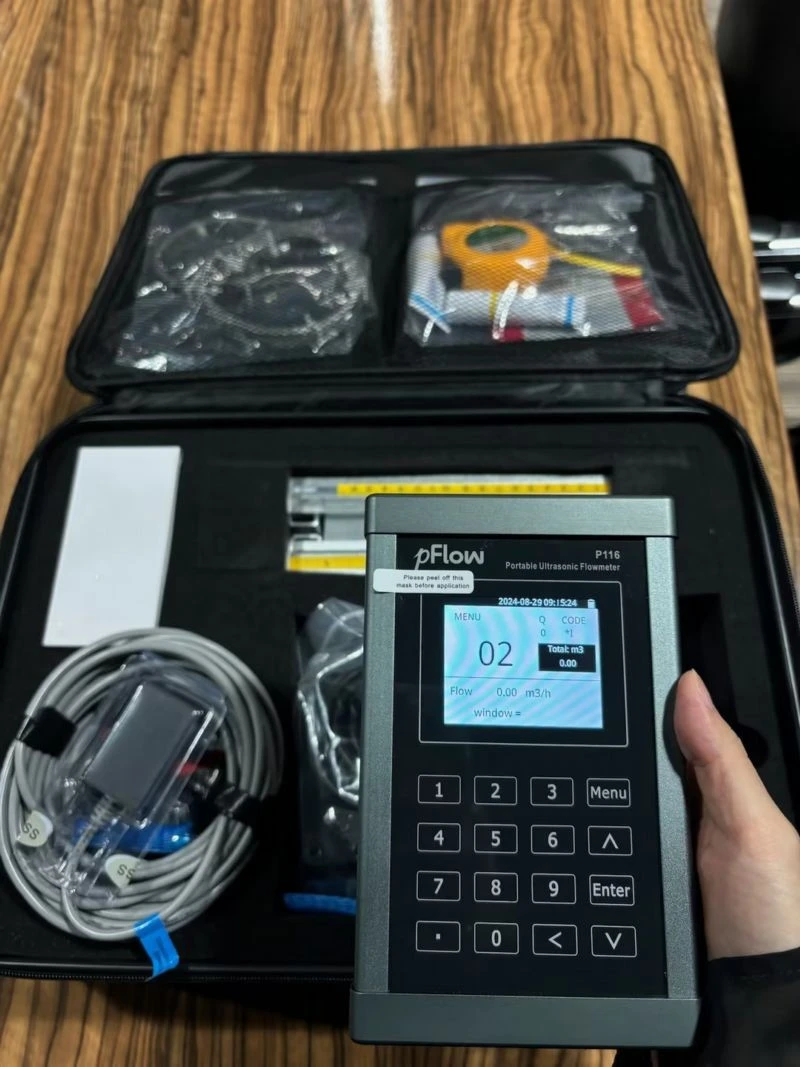

The P116 Portable Ultrasonic Flowmeter with ARM chip and low-voltage wide-pulse

sending technology,which has the characteristics of non-contact measurement, installation, auxiliary measurement, portability and ease of use, data storage and communication, wide application range, etc.





Body Parameters

Transmitter Dimension

Technical Parameters

Performance specifications
Flow range			± (0.03 ~ 16) ft/s ± (0.01 ~ 5) m/s
Accuracy			± 1.0% of measured value.(0.5 m/s～5 m/s)
Repeatability			0.2%
Pipe Size			1" ~ 32" (25mm～800mm)
Function specifications

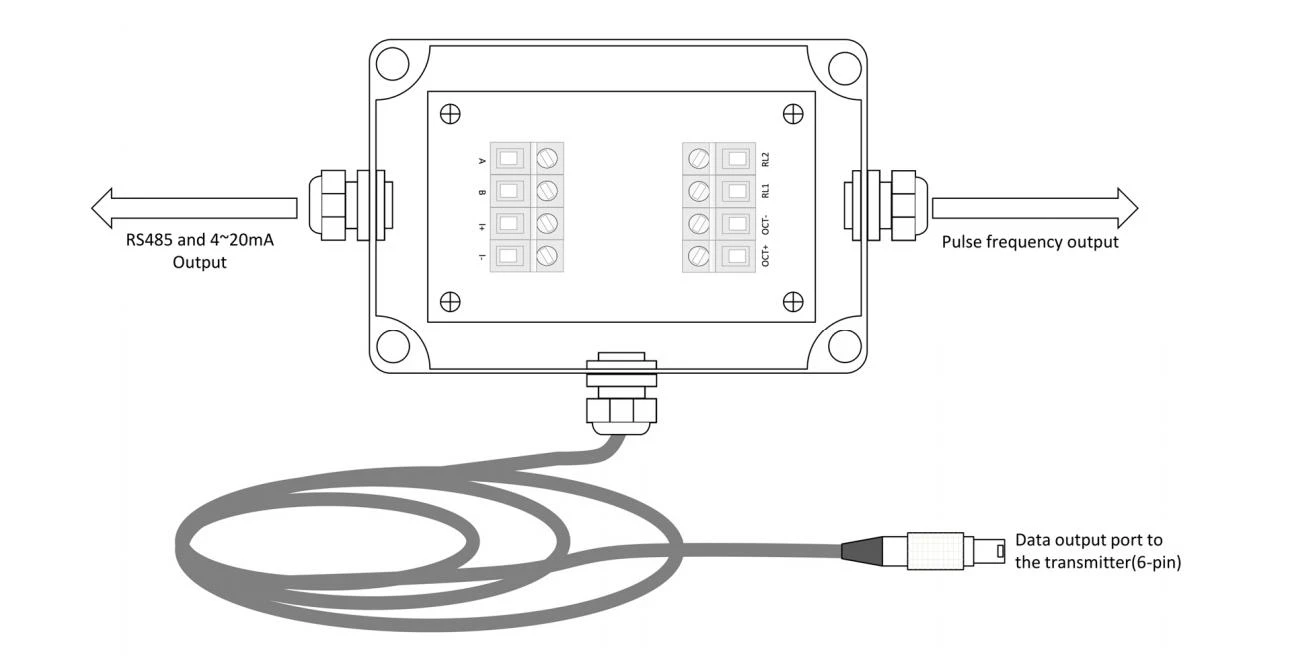

Outputs		Analog output: 4 ~ 20 mA, ( max load 500 Ω ). Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ).
Communication		RS485, Support MODBUS RTU, FUJI protocol.
TF card		Storage: 16GB (To prevail in kind); Max: 1000 files; Interval: 1 ~ 60 seconds.
Power Supply		10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ).
Keypad		Tactile Keys.
Display Screen		2.8" TFT black and white screen 240×320, with backlight LCD display.
Temperature		Transmitter: 14°F to 122°F (-10℃~ 50℃) Transducer: 32°F to 176°F (0℃~ 80℃,standard )
Humidity		0 ~ 99% RH, non-condensing.
Physical specifications
Transmitter	NEMA13 ( IP54 )
Transducer	Encapsulated design, IP68; Standard cable length: 5m.
Weight	Transmitter: approximately 0.7kg Transducer: (including transducer rail): 1.2kg





Applications:HVAC,Washing Machine,Tap Water,Modern Agricultural & Garden Irrigation,Water In Production Process,Industrial Circulating Water,Pure Water,Aquaculture etc.



P116 Portable Ultrasonic flowmeters are not only limited to measuring flow, but also can monitor fluid status in real time, such as flow rate, pressure, etc. These parameters are essential for assessing and optimizing carbon emissions in the production process. Through the real-time monitoring of ultrasonic flow meters, enterprises can timely discover and adjust the factors that may lead to increased carbon emissions in the production process, so as to effectively control carbon emissions.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving



Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What advantages does P116 have?

A1: Non-intrusive measurement: Since the sensor is mounted on the outside of the pipe, there is no need to cut or drill holes to access the inside of the pipe.High precision and reliability: Using advanced ultrasonic technology and signal processing technology, the handheld ultrasonic flow meter can provide high-precision flow measurement. It can resist external interference and ensure the stability and reliability of measurement results.Portability and flexibility: The handheld ultrasonic flow meter is compact and lightweight, making it easy to carry and move.Data storage and communication functions.



Q2: What does carbon auditing have to do with handheld flow meters?

A2: The handheld flow meter can not only provide accurate flow measurement data; it can also improve the efficiency and accuracy of carbon audits through its portability and flexibility; at the same time, its data recording and analysis functions also provide in-depth analysis and decision-making for carbon audits. Strong support.



Q3: What applications do handheld flow meters have in carbon audits?

A3:Accurately measure energy consumption, Improve the flexibility and efficiency of on-site inspections, Support the calculation and verification of carbon emissions.Formulation of auxiliary energy conservation and emission reduction measures, Promote the intelligent development of carbon auditing.



Q4: Why Carbon Audits Need Ultrasonic Flowmeters?

A4:Carbon audits require ultrasonic flow meters because of their characteristics and advantages such as high accuracy, non-intrusive measurement, wide range of applications, real-time data monitoring and analysis, and compliance with low-carbon development trends.



Q5: How to install P116?

A5: Before installing the transducers, clean the pipe surface where the transducers are to be mounted. Remove any rust, scale or loose paint and make a smooth surface. Choose a section of sound conducting pipe for installing the

transducers. Apply a wide band of sonic coupling compound down the center of the face of each transducer as well as on the pipe surface, ensure there are no air bubbles between the transducers and the pipe wall, and then attach the transducers to the pipe with the straps provided and tighten them securely.
