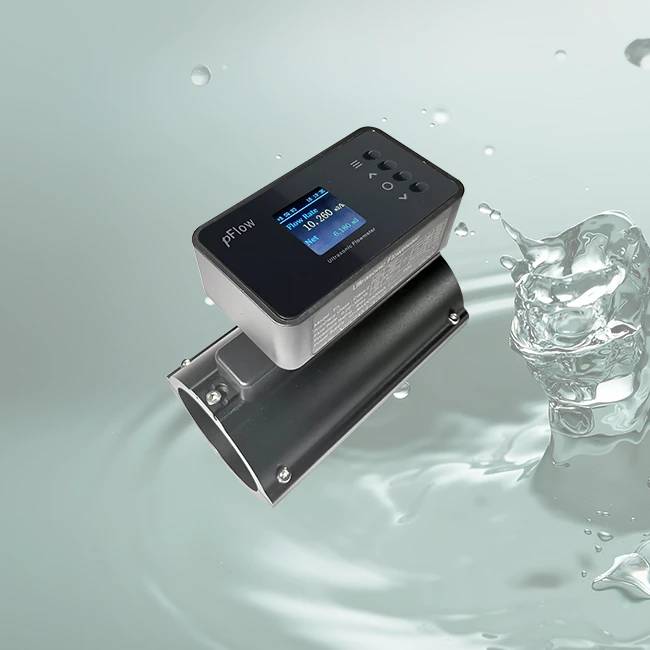

Dynamic Water Feature Flow Meter



The F3CL Thermal flow meter offers effortless installation, exceptional accuracy and comprehensive data collection for precise flow monitoring in industrial applications.





1)Easy Installation: The F3CL ultrasonic flow meter offers a hassle-free installation process, eliminating the need for pipe disruption or complex setups. With its user-friendly design, customers can quickly and efficiently integrate this device into their existing systems without extensive downtime or specialized expertise.



2)LCD Color Screen: Experience the ultimate visual clarity with the F3CL's LCD color screen, boasting a superior resolution that enhances readability and usability. The vibrant colors and sharp display ensure that users can easily access and interpret flow data, even in varying lighting conditions, for enhanced convenience and accuracy.



3)Flow Monitoring: Stay informed and in control with the F3CL's comprehensive flow monitoring capabilities. This device enables users to track flow rates on a daily, monthly, and yearly basis, providing valuable insights into usage patterns and trends over time. By offering this level of monitoring granularity, the F3CL empowers users to optimize their operations and make informed decisions based on real-time data.



4)Versatile Applications: Designed to excel in a wide range of environments and applications, the F3CL is a versatile solution that adapts to diverse scenarios with ease. Whether used in industrial settings, commercial facilities, or residential properties, this flow meter delivers reliable and accurate performance, making it a versatile and indispensable tool for various industries and sectors.





1) Body Parameters

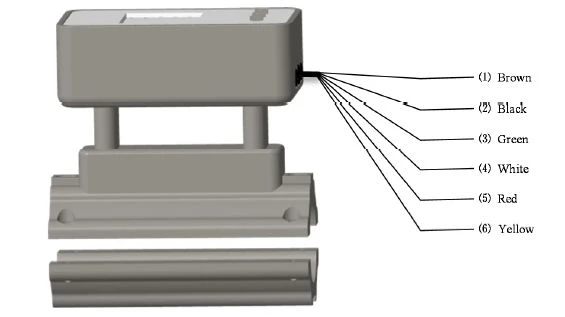

Wring diagram

Function	Identifier	Color
Power Supply (10~36VDC)	+	Brown
	-	Black
RS485	A	Green
	B	White
Optional (4-20mA\OCT&Relay)	+	Red
	-	Yellow

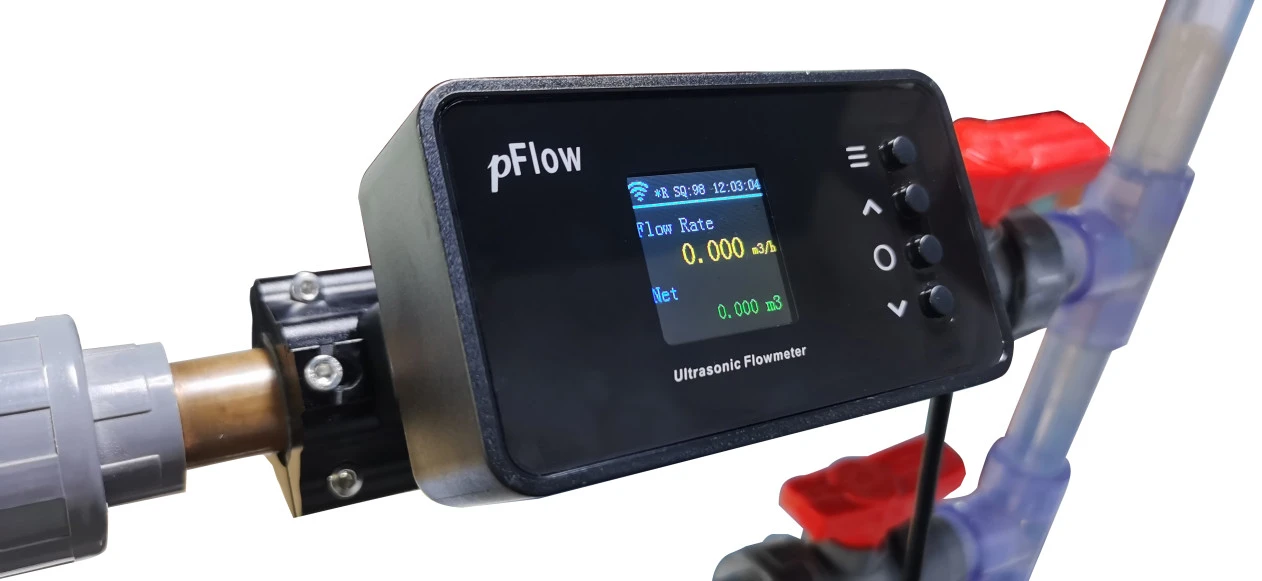

2) Appearance



3)Technical Parameters



Performance Index
Flow velocity	0.03~5.0m/s
Pipe size	DN20~DN80
Accuracy	±2%
Measuring medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC
Functional Index
Output	4-20mA (for F3CL)
Communication Interface	RS485(standard); Support FUJI Protocol and MODBUS Protocol.
Power supply	10～36VDC/500mA
Keypad	4 touch keys
Display screen	1.44 " LCD colorful screen, resolution 128 * 128
Temperature	Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer measures medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Humidity	Relative humidity 0~99%, No condensation
IP	IP54
Physical Characteristics
Transmitter	Integrated
Transducer	Clamp on
Cable	φ5 six core cable, standard length: 2m

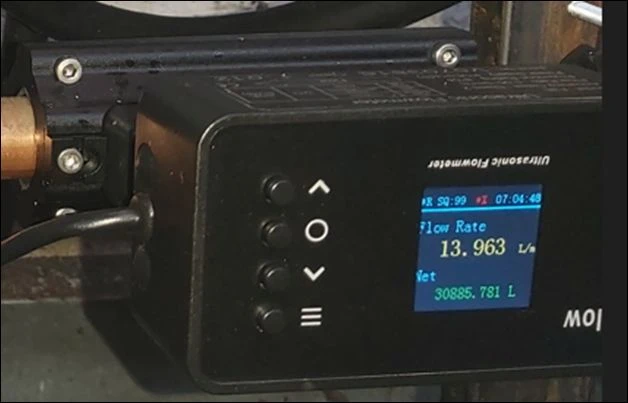

Model name: F3CL

Pipe material: Copper

Pipe size: DN20

Liquid: Water





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is the difference between a flow meter and a water meter?

A1: A flow meter is a device used to measure the rate of flow of a fluid (such as water, gas, or oil) in a pipeline or system. A water meter is a specific type of flow meter designed to measure the volume of water passing through a pipe



Q2: Which type of flowmeter is used for measuring water flow?

A2: The type of flow meter commonly used for measuring water flow is a water meter. Water meters are specifically designed flow meters that are calibrated to accurately measure the volume of water passing through a pipe. They are widely used by utility companies to monitor water consumption for billing purposes in residential, commercial, and industrial settings. Water meters come in various types, including mechanical (such as positive displacement and turbine meters) and electronic (such as electromagnetic and ultrasonic meters), each with its own advantages and applications.



Q3: How does water flow meter work?

A3: Water flow meters work by measuring the velocity of the water flow and then calculating the volume of water passing through the meter based on this velocity and the cross-sectional area of the pipe



Q4: How does an inductive flow meter work?

A4: Inductive flow meters work by inducing a voltage in a conductive fluid as it flows through a magnetic field. This induced voltage is then measured to determine the flow rate of the fluid passing through the meter.



Q5: How do I choose a water flow meter?

A5:When selecting a water flow meter, consider the following steps:Confirm the Properties of the Detection Fluid;Clarify the Purpose of Measurement;Confirm Product Specifications etc.
