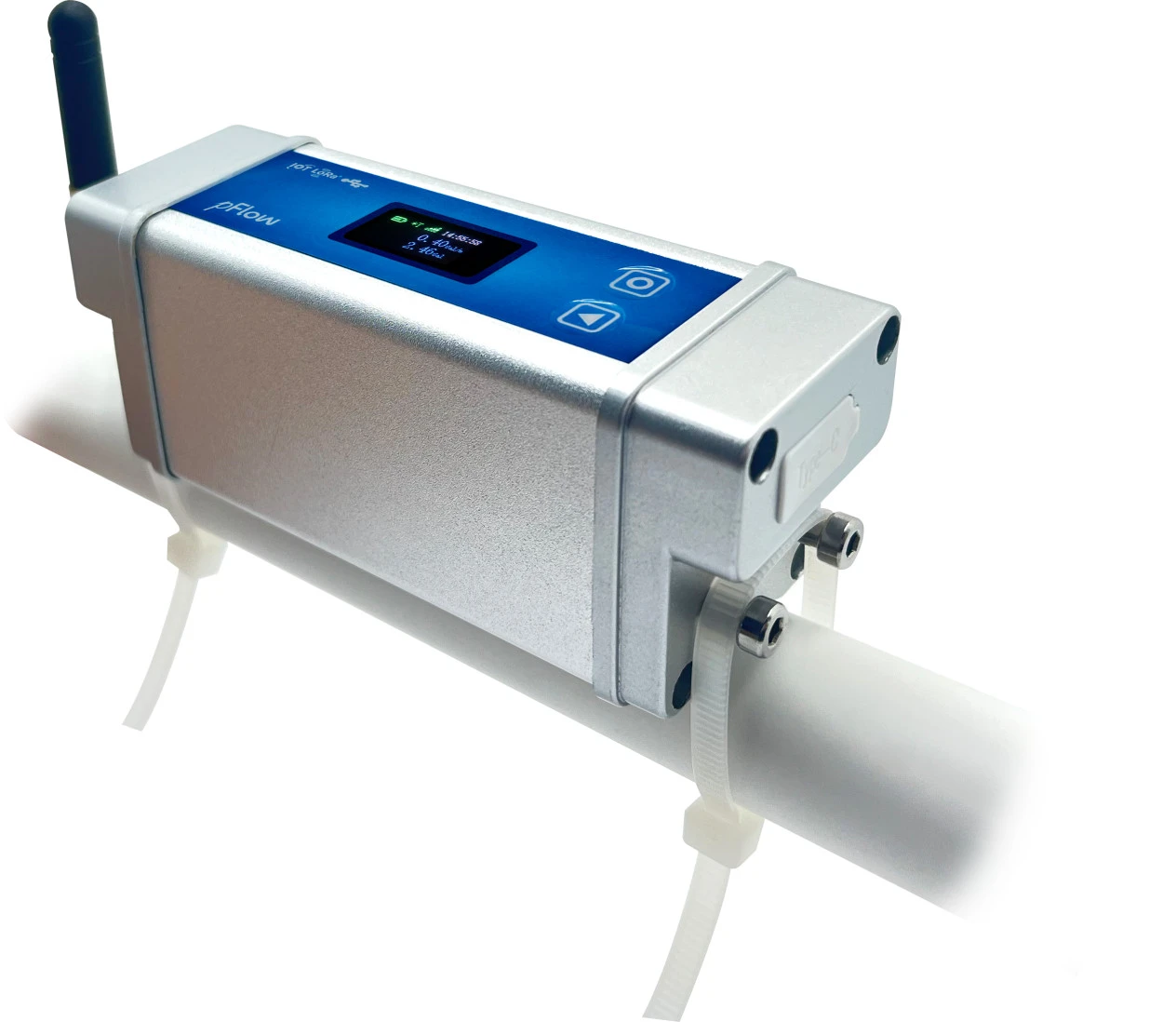

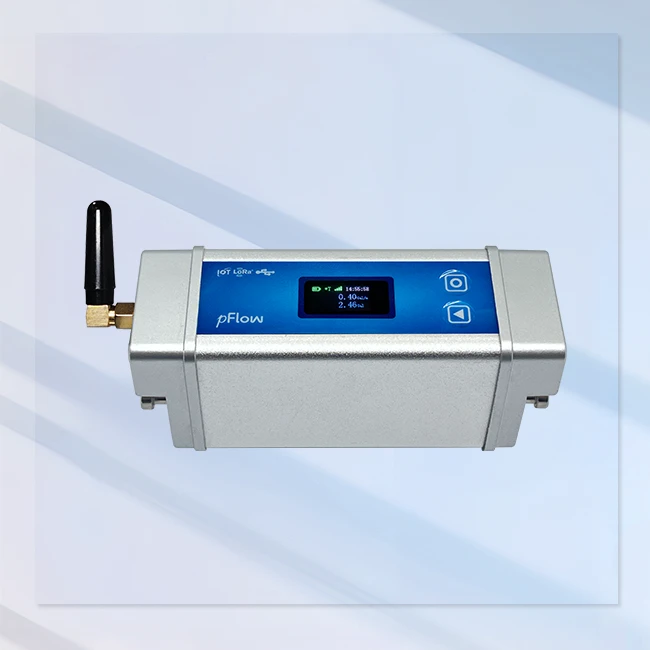

Connected Home Flow Sensor



The connected hoe flow sensor is equipped with a built-in battery and can be powered, charged, and used for serial communication through the Type-C port. Users also could access the MP LoRaWAN Series flow sensor through a cloud server,which is helpful to reviewing data.





● LoRaWAN communication protocol available

● 0.96" LCD display scree,resolution 80*160

● H~9h standby time





1) Body Parameters

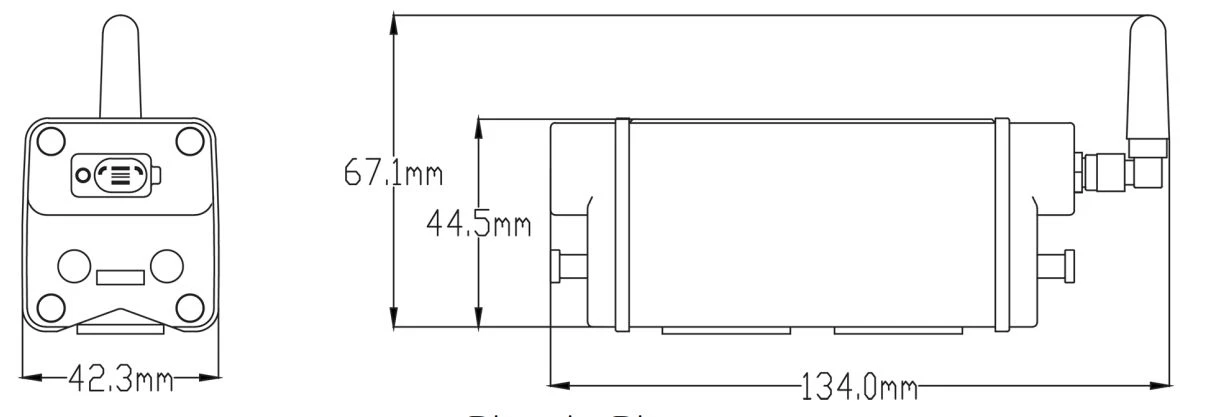

Transmitter Dimensions

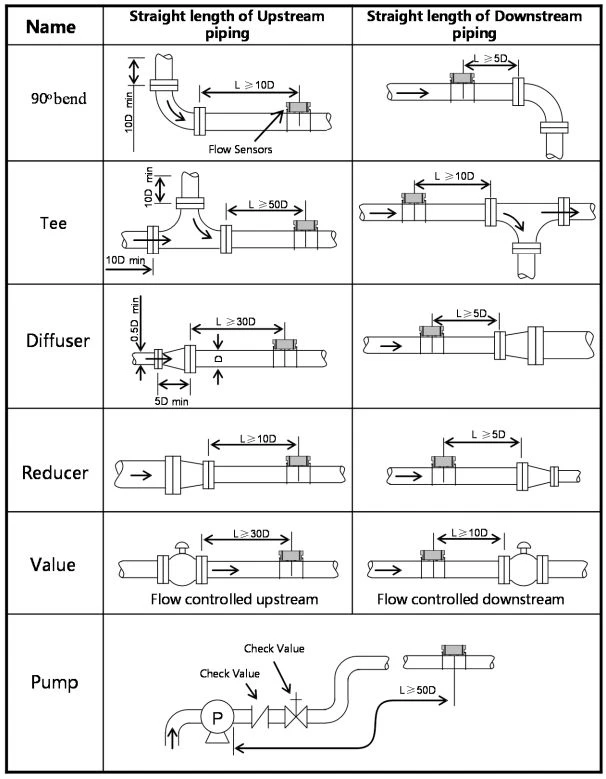

Measurement Site Selection

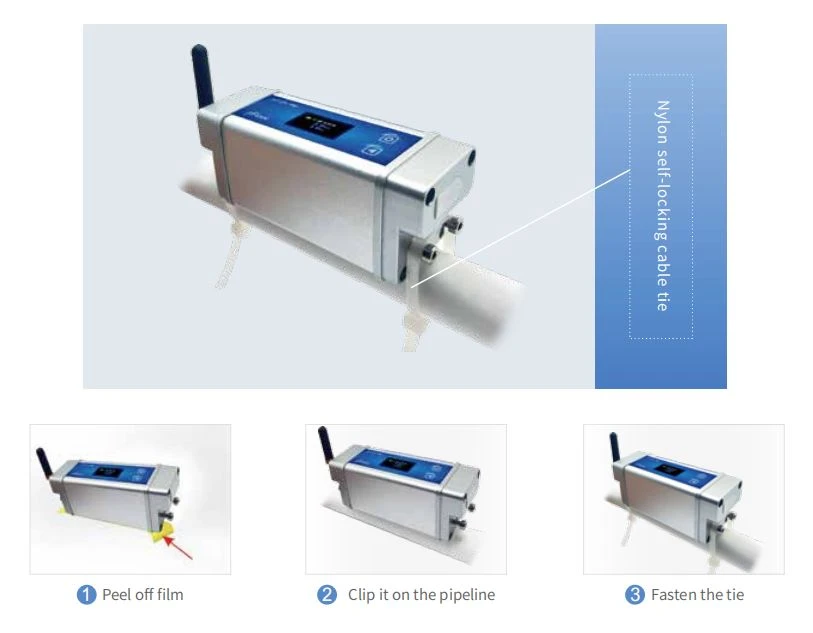

Installation Diagram



Meter Wiring



2)Appearance

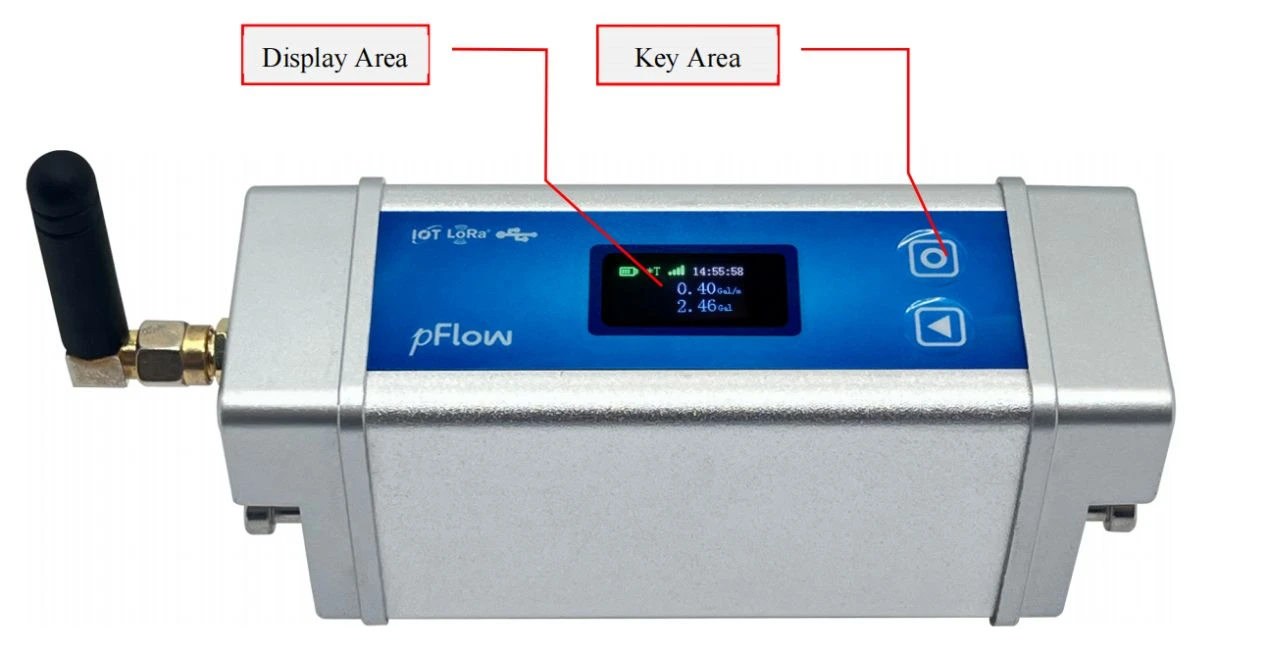

Display and Settings



3)Technical Parameters



Performance Index
Flow velocity	0.03~5.0 m/s
Pipe Size	DN20,DN25,DN32
Measured medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (According to the user's model selection, the model has been determined at the time of delivery.)
Temperature	Transmitter installation ambient temperature: Class A, 5~55℃ The temperature of the medium measured by the sensor: 0℃~60℃
Functional Index
Input	Type-C (Power Supply, Charge, Serial Communication)
Output	Type-C (Serial Communication)
LoRa Communication	Maximum Transmit Power: 22dBm Temperature：-40~85℃ LoRaWAN communication protocol is available
LoRa Frequency Selection	EU868 Frequency: 863000000~865400000, unit: HZ US915 Frequency: 902300000~914900000, unit: HZ CN779 Frequency: 780100000~786500000, unit: HZ EU433 Frequency: 433775000~434665000, unit: HZ AU915 Frequency: 915200000~927800000, unit: HZ CN470 Frequency: 470300000~489300000, unit: HZ AS923(HK) Frequency: 920000000~925000000, unit: HZ
Power supply	Built-in two 3.7V (760mAH) batteries, fully charged for 6~9 hours Externally Connected with 5V/2A power adapter for power or charge
Key	2 touch keys
Display screen	0.96" LCD Display Screen Resolution 80*160
Humidity	Relative humidity 0~99%, No condensation





Applications:Municipal Garden Irrigation,Building Water Management,Residential Water Management,Collective Dormitory Water Management,Aquaculture,Farm Irrigation,Automatic Car Washing etc.

LoRa (from "long range") is a physical proprietary radio communication technique. LoRaWAN (Wide Area Network) defines the communication protocol and system architecture.

Together, LoRa and LoRaWAN define a Low Power, Wide Area (LPWA) networking protocol designed to wirelessly connect devices to the internet in regional, national or global networks, and targets key Internet of things (IoT) requirements such as bi-directional communication, end-to-end security, mobility and localization services.

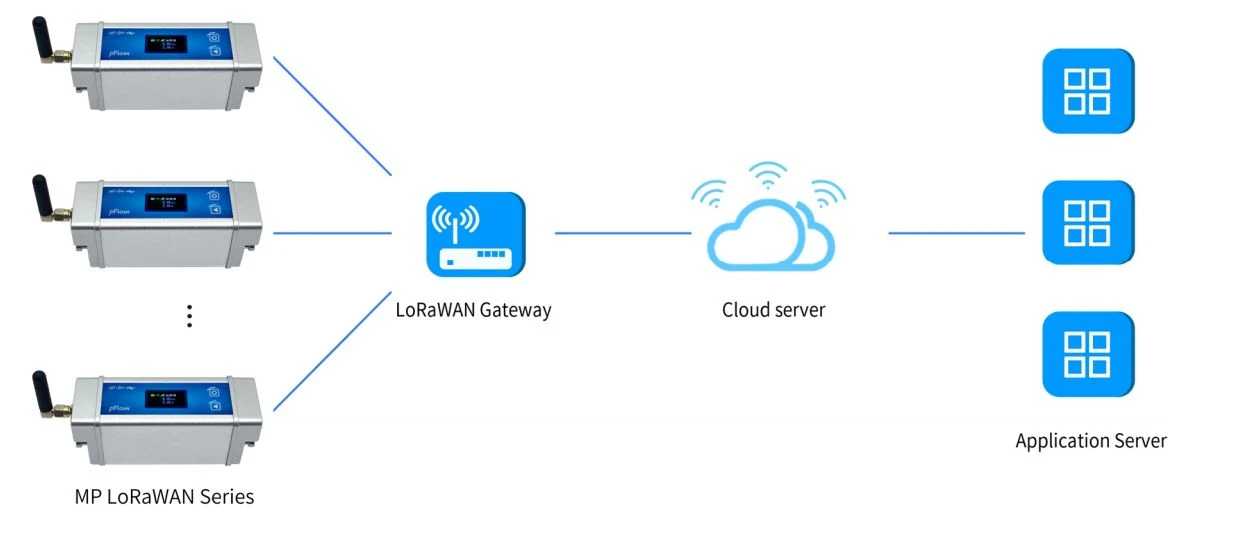

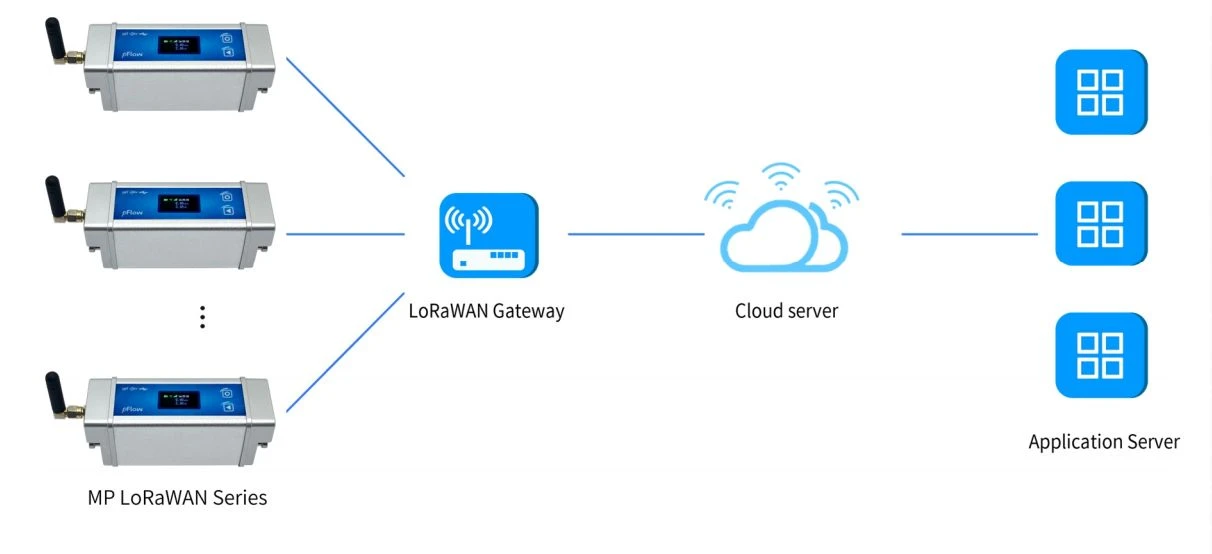

The LoRaWAN architecture contains four major components:

End Nodes Gateway

Network Server Application Server

In this architecture, you can see how LoRa and LoRaWAN allow wide and dense networks of edge devices to be connected. This allows you to capture and monitor data from thousands of nodes in a manageable way





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is the purpose of a rotameter?

A1: The purpose of a rotameter is to measure the flow rate of a fluid (liquid or gas) passing through a pipe or tube. Rotameters are simple and cost-effective flow meters that rely on the principle of variable area flow measurement. The key components of a rotameter include a tapered tube through which the fluid flows, a float or ball that moves up and down based on the flow rate, and a scale to read the flow rate.



Q2: Why does rotameter need to be mounted vertically?

A2: Rotameters are typically designed to be mounted vertically because the float or ball inside the tube relies on the force of gravity to accurately indicate the flow rate of the fluid passing through the tube. When mounted vertically, gravity ensures that the float or ball moves freely and responds accurately to changes in flow rate.



Q3: What is the difference between a flowmeter and a rotameter?

A3:Flowmeters are more versatile and accurate instruments for measuring flow rates, while rotameters are simpler devices that provide a visual indication of flow rate but may have limitations in accuracy and range. The choice between a flowmeter and a rotameter depends on the specific requirements of the application and the level of accuracy needed for the flow rate measurement.



Q4:How does a rotameter measure flow rate?

A4:A rotameter measures flow rate by utilizing the principles of buoyancy and flow resistance to indicate the flow rate of a fluid based on the position of a float or ball within a tapered tube. It is a simple and cost-effective flow measurement instrument suitable for applications where accurate flow rate indication is sufficient.



Q5: How to adjust the rotameter?

A5: Adjust the measuring range of the rotameter according to your needs and fluid properties. The measuring range can be adjusted by changing the position of the float by turning the adjusting screw or adjusting the valve.
