Brief Introduction
|
Accuracy: |
±1.0% |
Pipe size : |
1"~48" (25~1200mm) |
|
|
Output: |
OCT, Relay RS485, 4-20mA ,WiFi |
IP Rating: |
IP68 transducer |
|
|
Temperature: |
32 °F to 176 °F ( 0℃ ~ 80℃ ) |
|||
Product Introduction
The F5 series ultrasonic flowmeter is designed for precision measurement in municipal water supply systems. It utilizes advanced ultrasonic time measurement technology combined with high-reliability signal processing circuits to ensure accurate flow measurement. By employing sophisticated algorithms for sampling, calculation, and correction, the F5 can provide highly precise data even in complex conditions. The F5 is engineered for quick and easy installation, allowing for seamless integration into existing municipal water supply infrastructure. Its non-intrusive design means it can operate without direct contact with the fluid medium, thereby avoiding any disruption to the existing water flow processes.
Product Applications
●Hotel energy metering,Lodge cooling energy metering
●Liquid cooling industry,efficient cooling, temperature control, energy saving
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow range |
0.03 ~ 16 ft/s ( 0.01 ~ 5.0 m/s ) |
|
Accuracy |
Flow accuracy: ±1% (0.5~5m/s standard condition) Energy accuracy: ±2% |
|
Fluid |
Water(chilled water,pure water,clean water,sea water,hot water,etc.) |
|
Pipe Size |
Clamp-on type: 25mm to 1,200mm (1" to 48") |
|
Pipe Material |
Stainless Steel, Carbon Steel, Copper,PVC |
|
Functional Index |
|
|
Communication Interface |
RS485 MODBUS |
|
Output |
OCT Pulse output: 0-5000Hz. Analog output : 4 ~ 20mA, max load 750Ω |
|
WIFI |
Frequency range: 2.412~2.484GHz Transmitting power:802.11b 16±2 dBm ,802.11n 13±2 dBm , 802.11g 14±2 dBm Working temperature：-20~85℃ 40m transmission distance in open environment 40 |
|
Power supply |
10 ~ 36VDC/1A. |
|
Standard SD card |
Maximum storage period: 512 days, storage interval: 1-3600 seconds |
|
Keypad |
16 ( 4×4 ) key with tactile action. |
|
Display screen |
20×2 lattice alphanumeric, back lit LCD. |
|
Humidity |
Up to 99% RH, non-condensing. |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃ ) |
|
Physical Characteristics |
|
|
Transmitter |
PC/ABS, IP65 |
|
Transducer |
Encapsulated design, IP68 |
|
Cable |
The standard length of cable: 30ft (9m) Maximum lengthen to 1000ft(305m) |
|
Weight |
Transmitter: approximately 0.7kg Transducer: approximately 0.4kg |
2)Body Parameters
Transmitter Wiring
3)Appearance

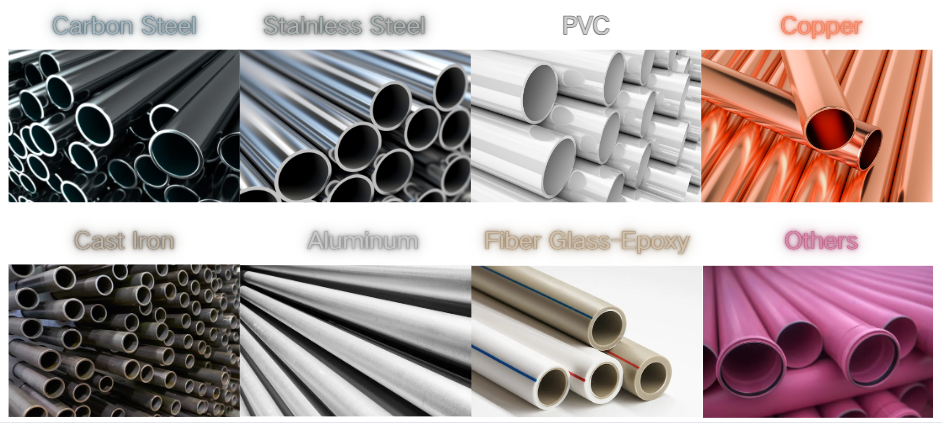

Compatible Pipe Materials
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: How to ensure the accuracy of the F5 ultrasonic flowmeter in municipal water supply applications?
A: Ensure proper installation by selecting a straight pipe section free from air bubbles or sediment. Follow the manual's guidelines for transducer spacing and mounting methods to achieve optimal signal strength and quality.
Q: What should I do if the F5 flowmeter shows no signal in a municipal water supply pipeline?
A: Check the transducer installation, ensuring they are securely mounted with sufficient coupling compound. Verify the pipe parameters are correctly entered and consider cleaning the pipe surface if scaling is suspected.
Q: How can I access the data from the F5 flowmeter used in municipal water supply?
A: Connect the F5 to a data acquisition system via RS-485 or use the optional WiFi feature to upload data to cloud servers. You can also retrieve data from the SD card for offline analysis.
Q: What are the power supply requirements for the F5 flowmeter in a municipal water supply setting?
A: The F5 flowmeter operates on a power supply of 10~36VDC with a maximum current of 1A. Ensure the power connections are stable and grounded properly to avoid any interference.
Q: How do I perform a zero calibration on the F5 flowmeter in a municipal water supply system?
A: With the flow in a static state, access the zero calibration settings in the menu (Window M42). Follow the on-screen prompts to adjust the zero point, ensuring accurate measurements at low flow rates.
