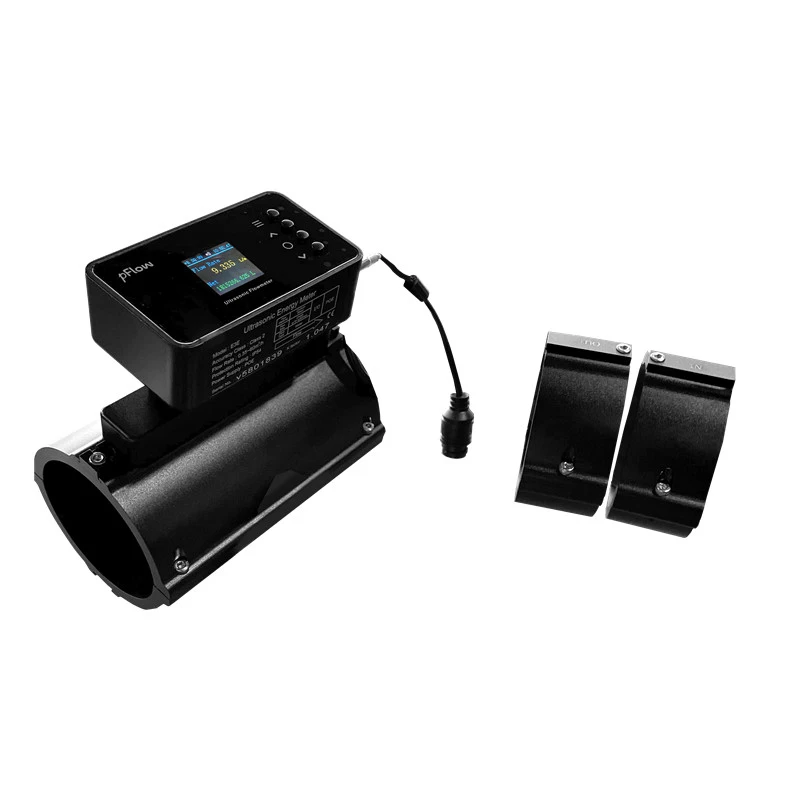

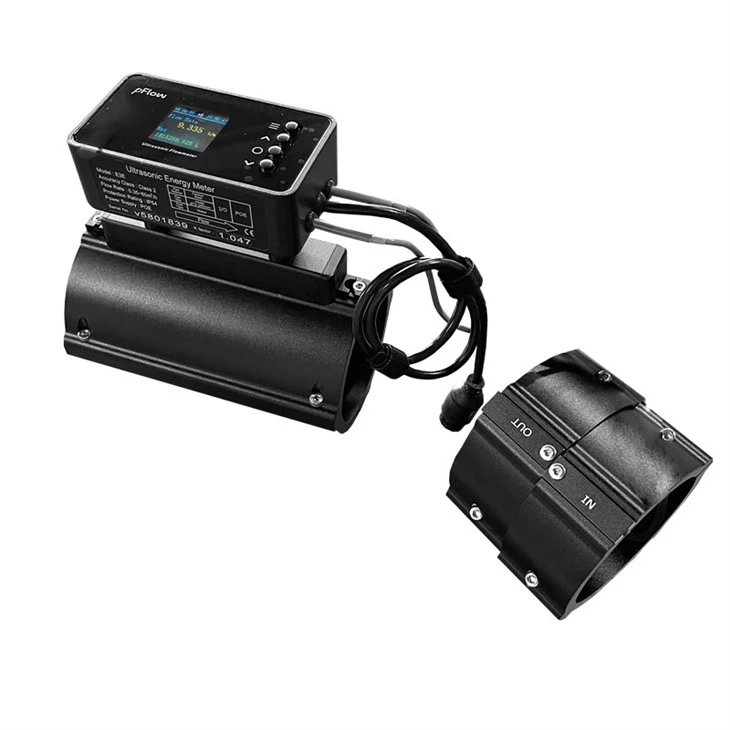

IoT Ultrasonic BTU Meter For Plant Breeding



Power Supply:	POE	Communication :	Ethernet
Pipe Size:	DN20~DN80	Display:	LCD1.44"

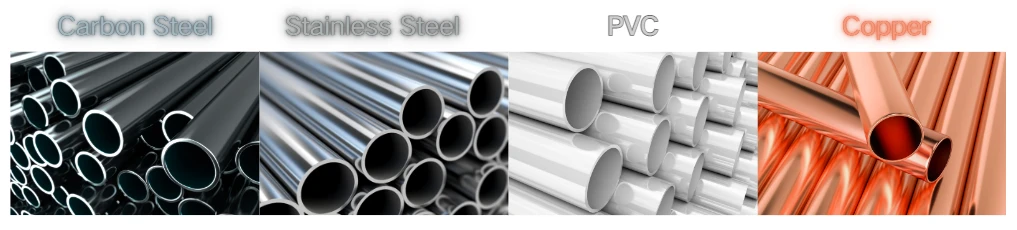

Pipe Material:	Carbon Steel, Stainless Steel, Copper, PVC

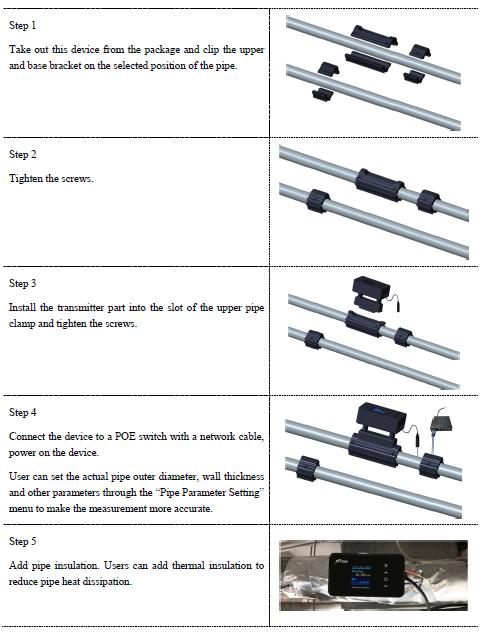

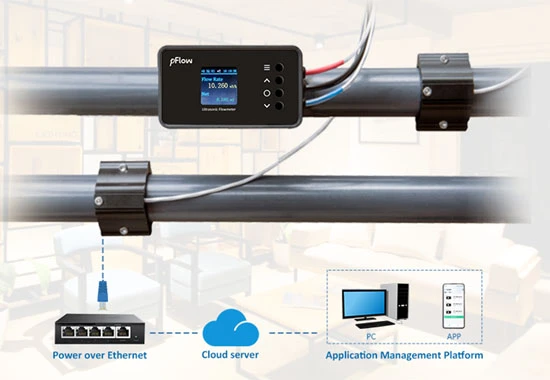

The E3E Clip-on Ultrasonic BTU Flow Meter, designed for plant breeding, uses the ultrasonic time difference principle with advanced signal processing and algorithms for precise liquid, flow, and energy measurement. Its clamp-on structure allows easy installation without medium contact or production stoppage. Just four steps and it's ready. With POE power and Ethernet communication, it enables cloud data storage. Users can manage, analyze, and query data via mobile or PC terminals, making it ideal for modern breeding temperature control and energy management systems.







●Hotel energy metering,Lodge cooling energy metering

●Liquid cooling industry,efficient cooling, temperature control, energy saving

●Water and wastewater management

●HVAC (Heating, Ventilation, and Air Conditioning) systems

●Process industries (chemical, pharmaceutical, food and beverage)

●Energy management and environmental monitoring

●Plant Breeding

●Agriculture and irrigation systems

●Research and development

●Facilities management

●Industrial maintenance and troubleshooting

●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.





1)Technical Parameters

Performance Index
Flow Velocity	0.03~5.0m/s
Nominal diameter	DN20~DN80
Accuracy level	±2%
Temperature range	0~60℃
Temperature difference range	2~50K
Temperature resolution	0.01℃
Measuring medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.)
Functional Index
Input interface	2*PT1000 Clamp-on temperature sensor
Support Protocol	HTTP, MQTT Protocol
Power Supply	Power over Ethernet
Keyboard	4 touch keys
Display Screen	1.44 " LCD colorful screen, resolution 128 * 128
Temperature	Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer measures medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Humidity	Relative humidity 0~99%, No condensation
IP	IP54
Physical Characteristics
Transmitter	Integrated
Transducer	Clamp on
Cable	POE waterproof cable, standard length：0.5m Temperature sensor cable, standard length：2m



Transmitter Dimension

E3E Outline Dimension Drawing

Pipe Diameter Comparison Table Unit: mm
Model	Nominal Inner Diameter of Pipe	W	W1	L	L1	H	Ø
E3E	DN20	60	51	105	118	121	29
	DN25	60	56	105	118	128	36
	DN32	60	63	105	118	135	43
	DN40	60	74	105	118	146	54
	DN50	60	89	105	153	159	67
	DN65	60	102	105	153	172	80
	DN80	60	113	105	153	183	91

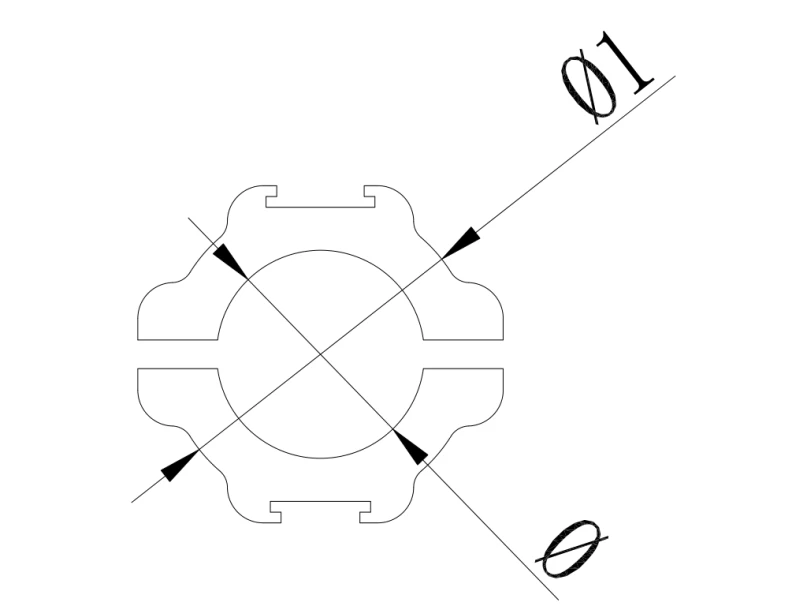

Temperature Sensor Clamp Size

Pipe Size	Ø Pipe clamp inner diameter (mm)	Ø 1 Pipe clamp outer diameter(mm)
DN20	29	43
DN25	36	48
DN32	43	55
DN40	54	66
DN50	67	81
DN65	80	94
DN80	91	105

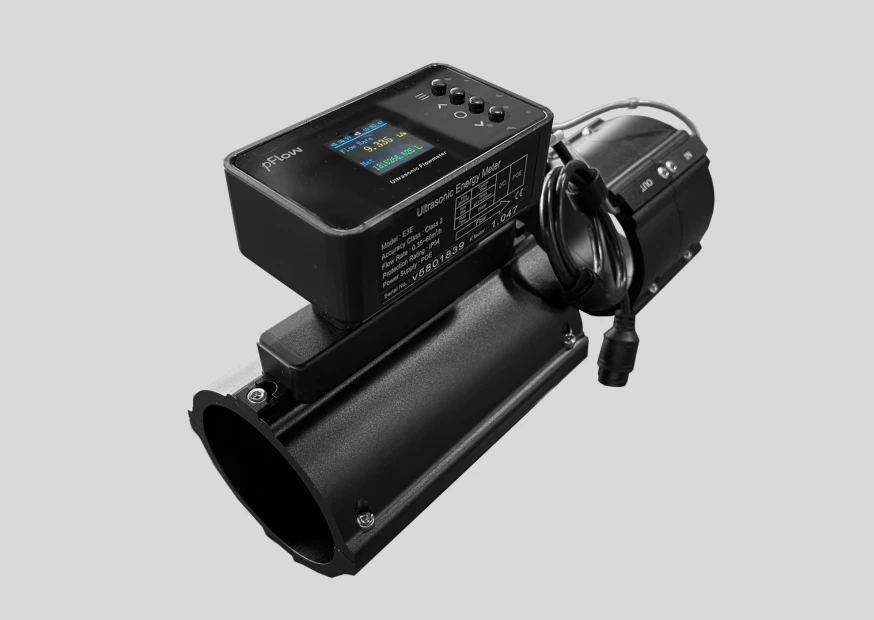

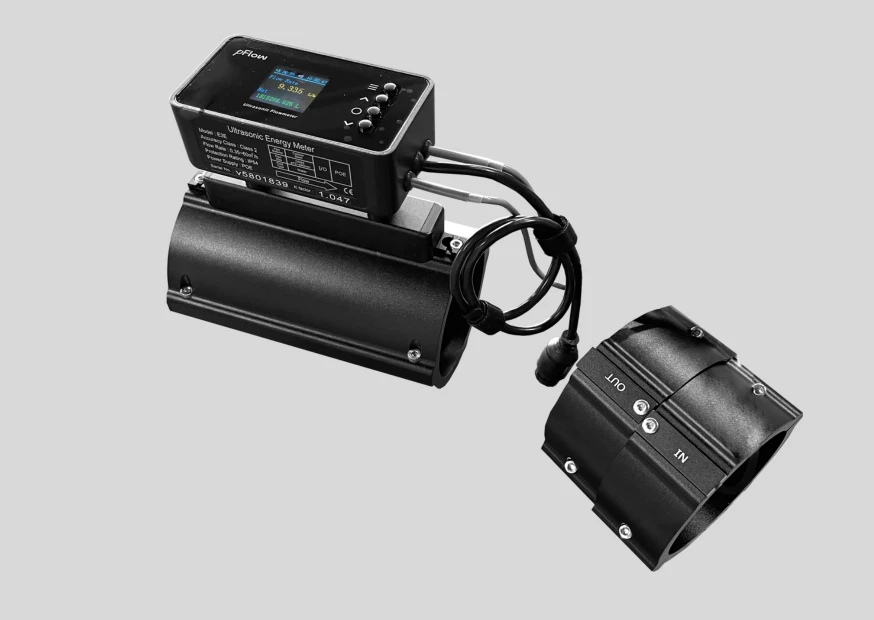

3)Appearance

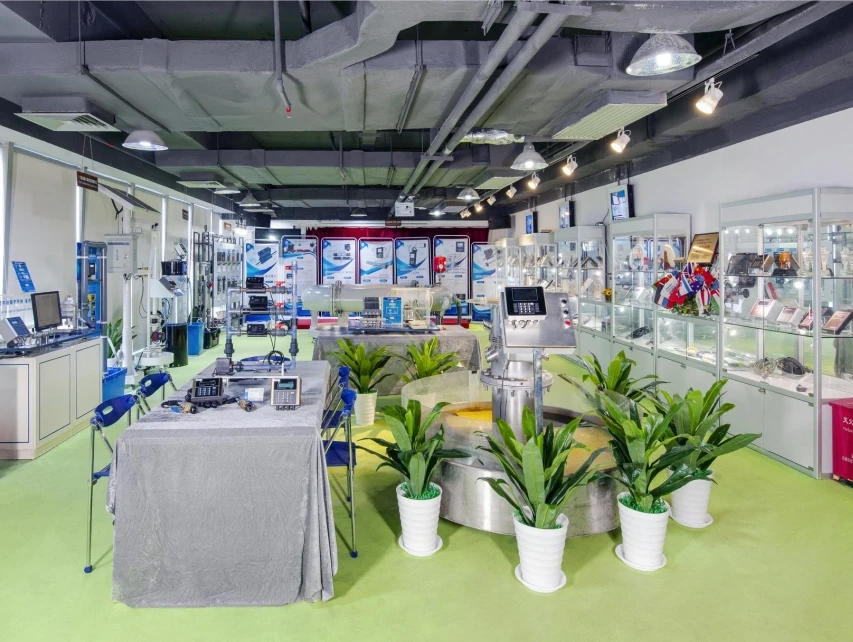

For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
