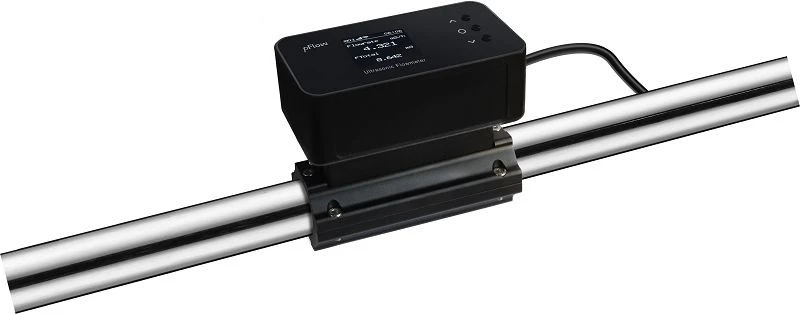

F2 Compact Flowmeter For Fish Production System



● Easy installation, No breaking pipeline

● No need to adjust, Clip on to measure

● LCD color display screen

● 360° rotatable display screen

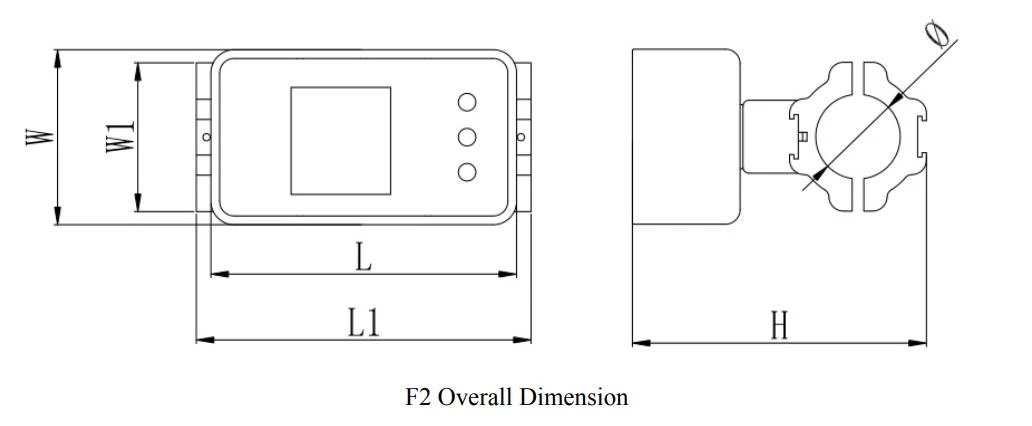

1)Body Parameters

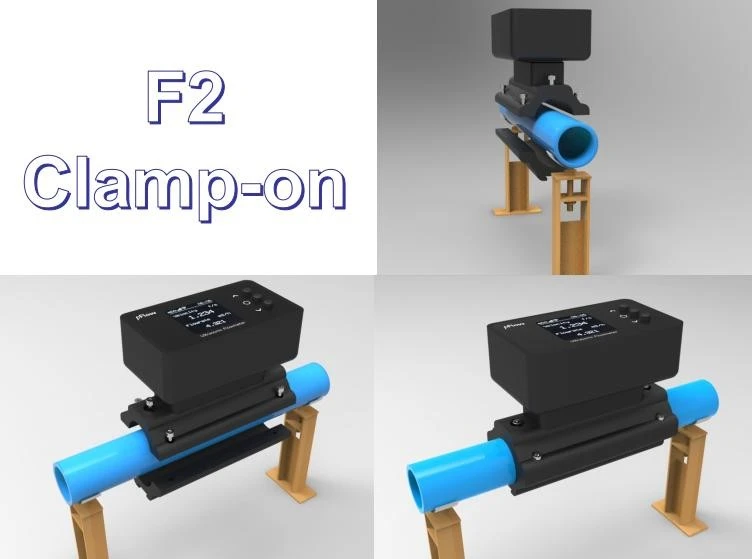

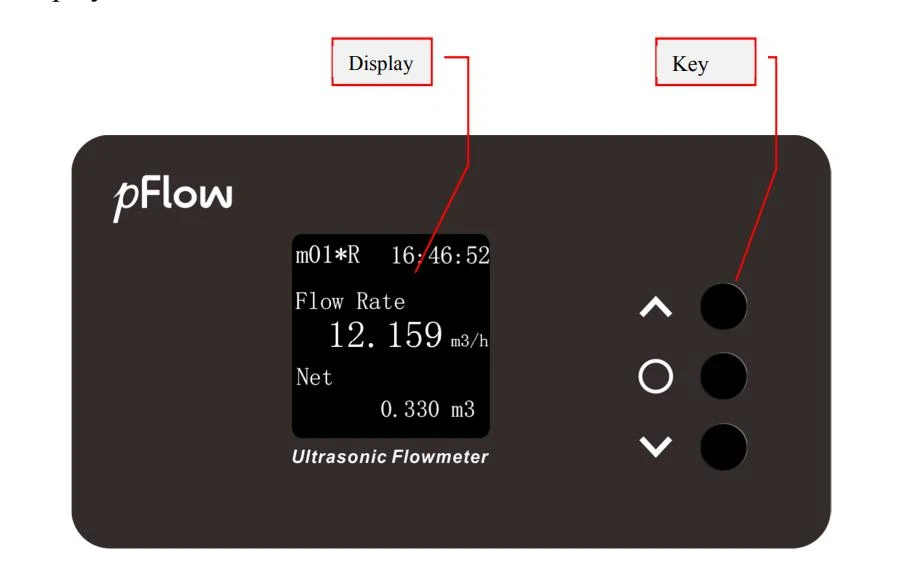

2)Appearance



3)Technical Parameters

Performance Index
Flow velocity	0.03~5.0m/s
Pipe size	DN20~DN80
Accuracy	±2%
Measuring medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC
Functional Index
Output	4-20mA
Communication Interface	RS485(standard); Support FUJI Protocol and MODBUS Protocol.
Power supply	10～36VDC/500mA
Keypad	3 touch keys
Display screen	1.44 " LCD colorful screen, resolution 128 * 128
Temperature	Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer measures medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Humidity	Relative humidity 0~99%, No condensation
IP	IP54
Physical Characteristics
Transmitter	Integrated
Transducer	Clamp on
Cable	φ5 six core cable, standard length: 2m





Fish Production System,Inland farming,Recirculating aquaculture systems;

Water, sewage ( with low particle content ) and seawater;

Water supply and drainage water;

Power plants ( nuclear power plant, thermal and hydropower plants ), heat energy, boiler feed water and energy management system;

Metallurgy and mining applications ( cooling water and acid recovery, for example );

Petroleum and chemicals;

Food, beverage and pharmaceutical;

Marine operation and maintenance;

Energy economy supervision and water conservation management;

Pulp and paper;

Pipeline leak detection;

Regular inspection, tracking and collection;

Energy measuring and balance;

Network monitoring systems and energy / flow computer management.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: How can an F3CL Thermal Energy Storage Flow Meter help me monitor the velocity and volume of water?

A1: F3CL Thermal Energy Storage Flow Meter help you monitor water flow in real time by sending and receiving ultrasonic beams to measure water velocity and flow.



Q2: How to choose the installation location of ultrasonic flowmeter in storage?

A2: When installing an ultrasonic flowmeter, you should choose a location with stable water flow and no stirring, and avoid places with bubbles or particulate matter on the water surface.



Q3: How does an ultrasonic flow meter ensure accurate water flow data?

A3:Regular calibration of ultrasonic flow meters is a critical step in ensuring accurate flow data, while proper installation and maintenance also improves data accuracy.



Q4:Can an ultrasonic flow meter help me optimize my storage system?

A4:Yes, the flow data provided by ultrasonic flow meters can help you adjust your storage system to improve efficiency and production levels.



Q5: Can an ultrasonic flow meter help me save energy and reduce waste?

A5: By effectively monitoring and managing water flow, ultrasonic flow meters can help you use water resources more efficiently, saving energy and reducing waste.
