F5 Stream Flow Meter



F5 stream flow meter is a cost-effective universal transit-time flowmeter designed using FPGA chip and low-voltage broadband pulse transmission.Comparing with other traditional flowmeter or ultrasonic flowmeter, it has distinctive features such as high precision, high reliability, high capability and low cost, the flowmeter features other advantages:

●TCT technology designed.

●Less hardware components, low voltage broadband pulse transmission, low consumption power.

●Clear, user-friendly menu selections make flowmeter simple and convenient to use.

●Daily, monthly and yearly totalized flow Parallel operation of positive, negative and net flow totalizes with scale factor(span) and 7 digit display, while the output of totalize pulse and frequency output are transmitted via relay and open collector.

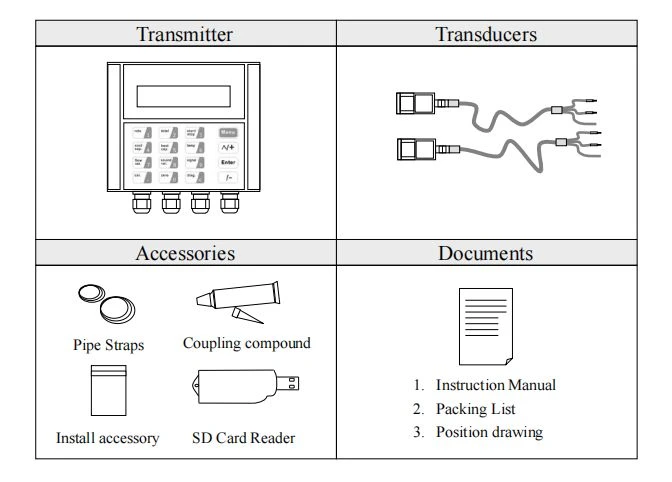

1)Body Parameters

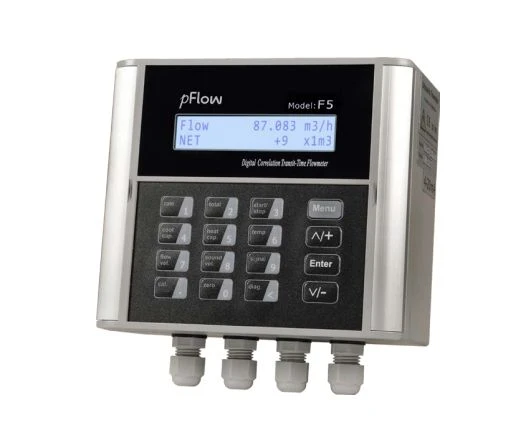

2)Appearance





3)Technical Parameters

Performance specifications
Flow range	0 ~ 16 ft/s ( 0 ~ 5.0 m/s )
Pipe Size	Clamp-on: 1" ~ 48" ( 25mm ~ 1200mm )
Accuracy	± 1.0 % of measured value , velocity＞0.5m/s
Measured medium	water
Function specifications
Outputs	OCT Pulse output: 0-5000Hz Analog output : 4 ~ 20mA, max load 750Ω
Communication interface	RS485 MODBUS
Power supply	10 ~ 36VDC/1A
WIFI	Frequency range: 2.412~2.484GHz
	Transmitting power:802.11b 16±2 dBm ,802.11n 13±2 dBm , 802.11g 14±2 dBm
	Working temperature：-20~85℃
	40m transmission distance in open environment 40
Standard SD card	Maximum storage period: 512 days, storage interval: 1-3600 seconds
Keypad	16 ( 4×4 ) key with tactile action
Display	20×2 lattice alphanumeric, back lit LCD
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃ )
Humidity	Up to 99% RH, non-condensing
Physical Characteristics
Transmitter	PC/ABS, IP65
Transducer	Encapsulated design, IP68
Transducer cable	Standard cable length: 30 ft (9m)
Weight	Transmitter: approximately 0.7kg Transducer: approximately 0.4kg





Agriculture Irrigation

Cooling Water system

Water Treatment System

Washing/Cleaning Industries

Building Management System (BMS)

Wastewater/Sewage Treatment System

Recirculating Aquaculture System (RAS)

Heating Ventilation and Air Conditioning (HVAC)





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: How to measure flow in a stream?

A1: Multiply the average depth of the river by the width of the river to find the area in ft2. Divide the distance traveled by the average travel time to find the velocity of the stream in feet per second. Multiply the velocity of the flow by the correction factor. This is the corrected flow velocity.



Q2: What is a steam flow meter?

A2: Steam flow meters help evaluate the performance of your system and can provide useful data for evaluating boiler performance, calculating boiler efficiency, and tracking the amount of steam required by your system. In some systems, steam flow meters provide measurement signals to the boiler control system.



Q3: What is the difference between a flow meter and a water meter?

A3:A water meter measures the amount of water used, while a flow meter measures the flow of a liquid or gas. A water meter measures the amount of water used over a certain period of time, while a flow meter measures the speed at which liquid or gas flows through a pipe.



Q4:How to control steam flow?

A4:Steam flow and pressure are controlled by orifice plates. You can use a fixed orifice, a line sensing pressure regulator, or a full control valve. There is no orifice adjustment. The regulator has a fixed output set point but cannot be adjusted by the control system.



Q5:How to choose a good flow meter?

A5:Consider Specific Parameters: To choose the right flow meter, consider parameters such as fluid density, pressure, temperature, and any pressure drop. These factors can affect how well the flow meter works in your application.
