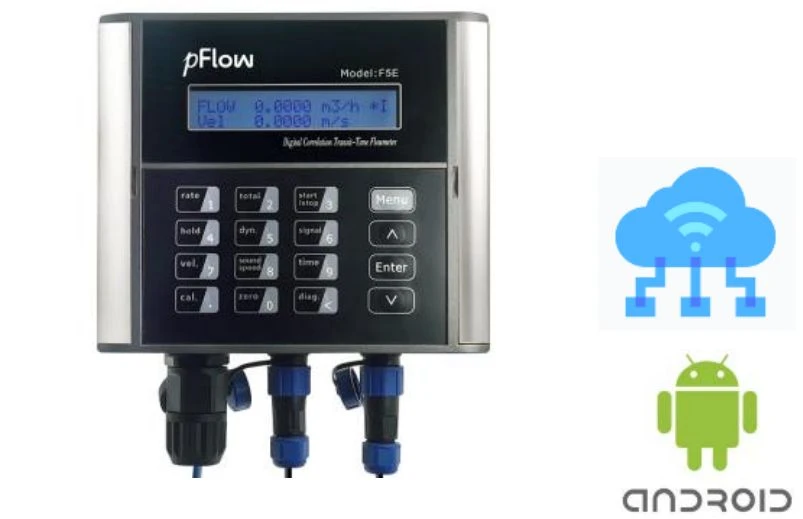

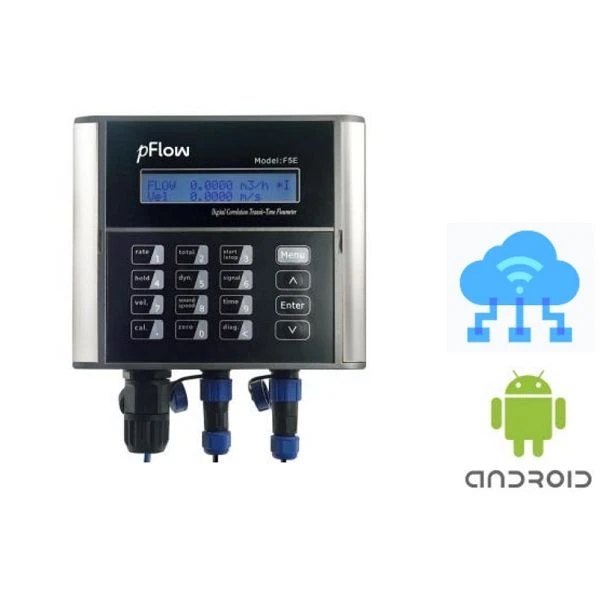

River Flow Meter



● 20*2 Alphanumeric Backlit LCD

● With POE Networking Cloud Service

● Energy Efficiency Monitoring





1)Body Parameters

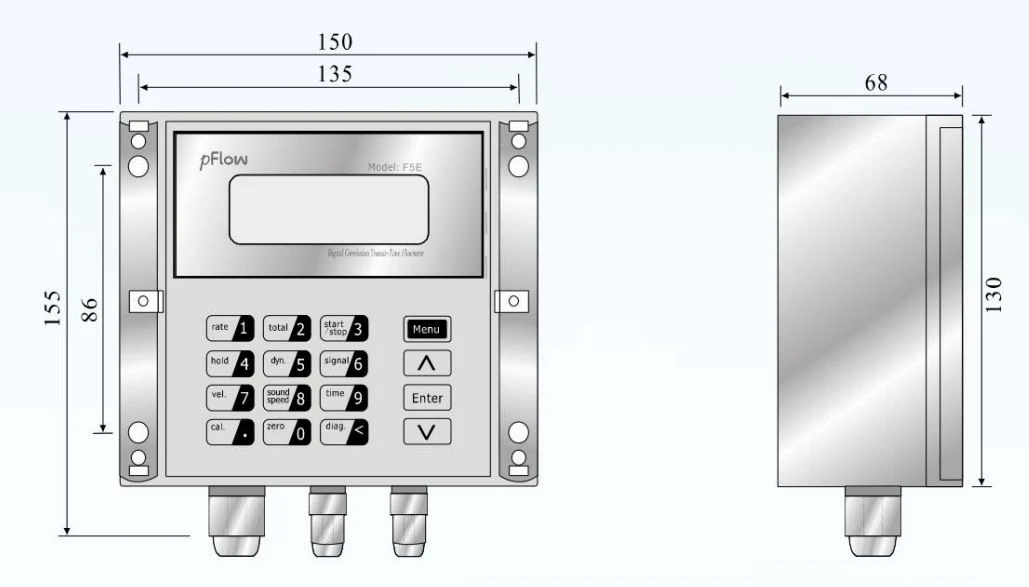

Transmitter Dimensions (unit:mm)

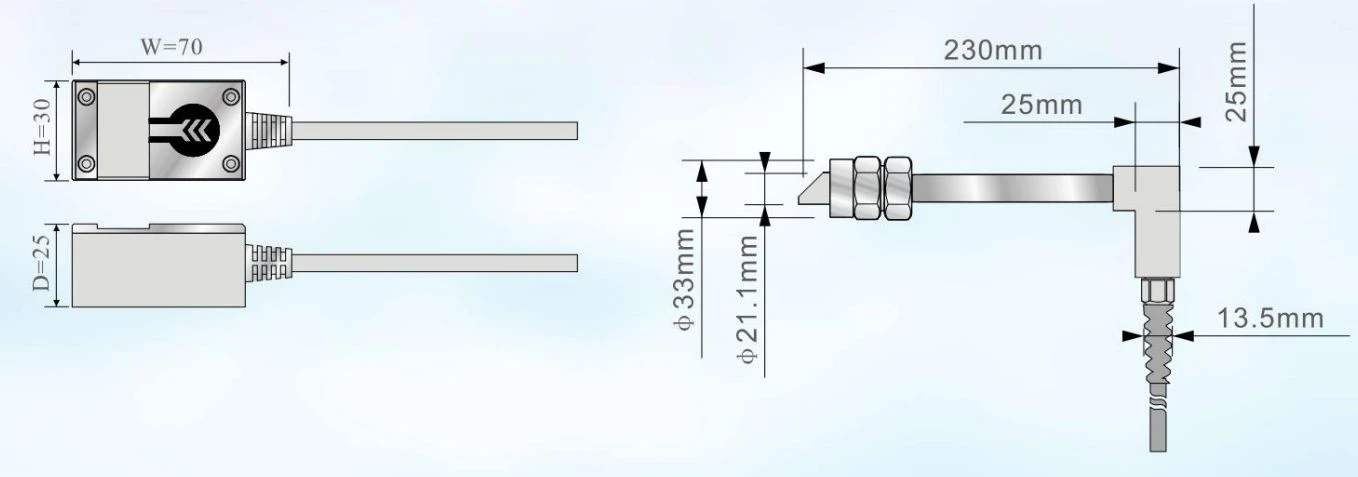

Transducer Dimensions (unit:mm)

Clamp On Transducer/Insertion Transducer

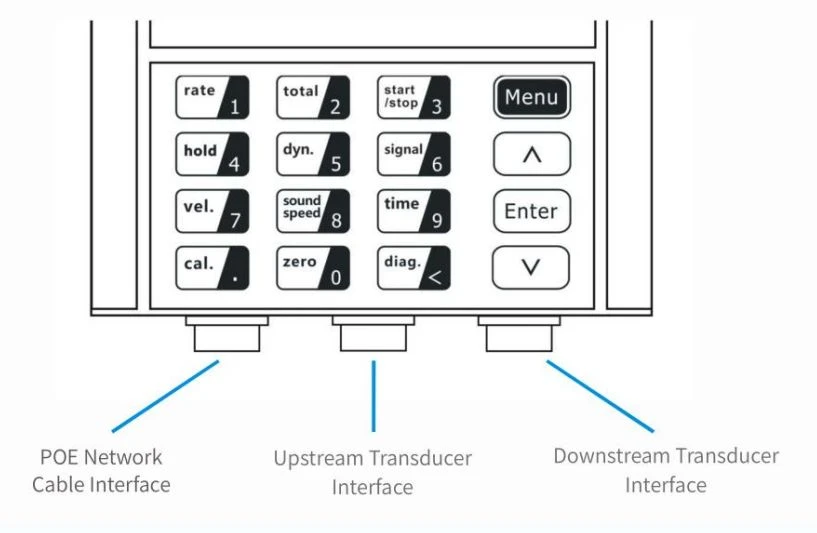

Wiring Diagrams

V Method Mounting

Z Method Mounting



2)Appearance



3)Technical Parameters

Performance Index
Flow velocity	0.03 ~ ±16ft/s (0.01 ~ ±5m/s)
Pipe Size	1"~48" (25mm ~ 1200mm)
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC etc
Accuracy level	±1.0% of measured value
Temperature	Transmitter: IP65, ABS/PC enclosure Transducer:14℉ to 122℉(-10℃~50℃)
Functional Index
Communication Protocol	Support HTTP Protocol and MQTT Protocol
Power supply	POE network cable power supply
Key	16 (4×4) touch keys
Display screen	20×2, alphanumeric, backlit LCD
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Plate mounted type
Transducer	Clamp on Standard cable length：9m
Network Cable	POE network cable, standard length: 2m





● Water, sewage ( with low particle content ) and seawater,Acid alkali liquor, edible oil, diesel oil, crude oil, alcohol, beer, etc.

● Water plant and sewage treatment plants

● Metallurgy and mining applications ( cooling water and acid recovery, for example )

● Petroleum and chemicals,Food and Medicine

● Energy-saving monitoring, water-saving management and flow inspection,flow tracking and collection, computerized management and monitoring network system

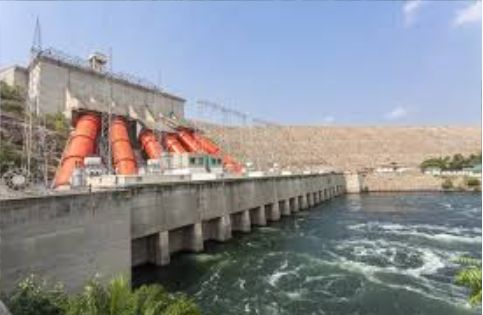

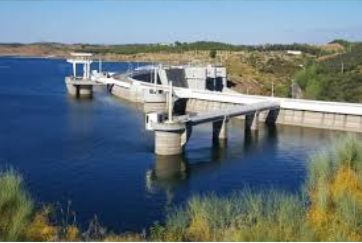

F5E(POE) River Flow Meter can help the hydropower station to monitor the changes in water flow, timely detection of abnormalities, such as sudden increase or decrease in water flow, to help prevent damage to hydropower station equipment or the occurrence of accidents.

F5E(POE) River Flow Meter also can help hydropower station to monitor the water flow, to ensure that the turbine and other equipment operating within the safety range, to avoid equipment damage or safety accidents caused by abnormal water flow.

By optimizing the operation of the turbine and other equipment, the hydropower station can achieve energy saving and emission reduction, reduce the impact on the environment, in line with the concept of sustainable development.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is the purpose of a rotameter?

A1: The purpose of a rotameter is to measure the flow rate of a fluid (liquid or gas) passing through a pipe or tube. Rotameters are simple and cost-effective flow meters that rely on the principle of variable area flow measurement. The key components of a rotameter include a tapered tube through which the fluid flows, a float or ball that moves up and down based on the flow rate, and a scale to read the flow rate.



Q2: Why does rotameter need to be mounted vertically?

A2: Rotameters are typically designed to be mounted vertically because the float or ball inside the tube relies on the force of gravity to accurately indicate the flow rate of the fluid passing through the tube. When mounted vertically, gravity ensures that the float or ball moves freely and responds accurately to changes in flow rate.



Q3: What is the difference between a flowmeter and a rotameter?

A3:Flowmeters are more versatile and accurate instruments for measuring flow rates, while rotameters are simpler devices that provide a visual indication of flow rate but may have limitations in accuracy and range. The choice between a flowmeter and a rotameter depends on the specific requirements of the application and the level of accuracy needed for the flow rate measurement.



Q4:How does a rotameter measure flow rate?

A4:A rotameter measures flow rate by utilizing the principles of buoyancy and flow resistance to indicate the flow rate of a fluid based on the position of a float or ball within a tapered tube. It is a simple and cost-effective flow measurement instrument suitable for applications where accurate flow rate indication is sufficient.



Q5: How to adjust the rotameter?

A5: Adjust the measuring range of the rotameter according to your needs and fluid properties. The measuring range can be adjusted by changing the position of the float by turning the adjusting screw or adjusting the valve.
