Brief Introduction
|
Accuracy: |
+1.0% |
Pipe size : |
1"~32′′(25mm~800mm) |
|
Communication |
RS485, Support MODBUS RTU, FUJI protocol. |
Flow range: |
(0.03 ~ 16) ft/s (0.01 ~ 5) m/s |
|
Temperature: |
32 °F to 176 °F ( 0℃ ~ 80℃ )Transducer 14°F to 122°F( –10℃ ~ 50℃ )Transmitter |
||

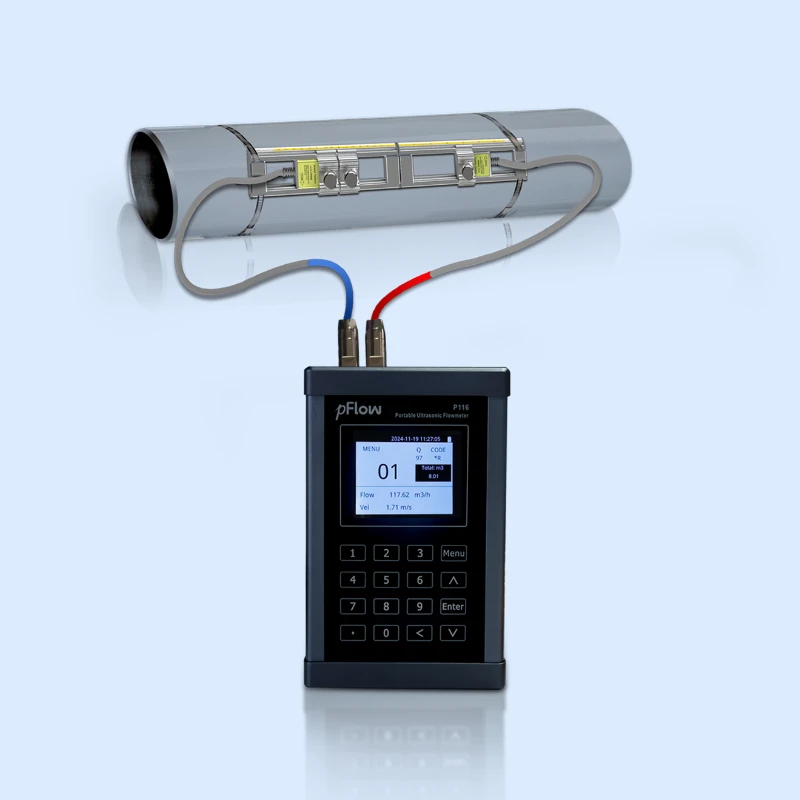

Product Introduction
The Clamp On Ultrasonic Flow Transmitter is highly accurate and widely used for measuring petrochemical liquid flow in industrial settings.
It offers non-invasive measurement by attaching to the outside of pipes, eliminating the need for pipe cutting or interruption of flow. This makes it ideal for continuous monitoring of petrochemical liquid flow in pipelines. With its advanced ultrasonic technology, it provides real-time data with high precision, ensuring reliable flow measurement.
Its robust design and high accuracy make it suitable for various petrochemical liquid applications, contributing to efficient process control and management in the petrochemical industry.
Product Applications
●Petrochemical Liquid Meter
●Data center HAVC cooling systems
●PC Liquid Cooling Systems
●Pharmaceutical water system
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow range |
(0.03~16)f/s |
|
Accuracy |
+1.0% ofmeasured value.(0.5 m/s-5 m/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
1"~32′′(25mm~800mm) |
|
Pipe Material |
Stainless Steel, Carbon Steel, Copper,PVC |
|
Measurement medium |
Water |
|
Functional Index |
|
|
Communication |
RS485, Support MODBUS RTU, FUJI protocol. |
|
Output |
Analog output:4 ~20 mA,( max load 500 Ω2). |
|
TF card |
Storage: 16GB (To prevail in kind); |
|
Power supply |
10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ). |
|
Keypad |
Tactile Keys. |
|
Display |
2.8" TFT black and white screen 240x 320, with backlightLCD display |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃,standard ) |
|
Humidity |
0~ 99% RH, non-condensing. |
|
Physical Characteristics |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68; |
|
Weight |
Transmitter: approximately 0.7kg Transducer: (including transducer rail): 1.2kg |

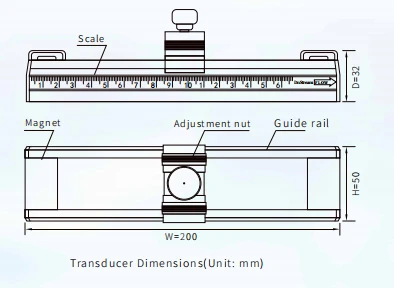

Body Parameters

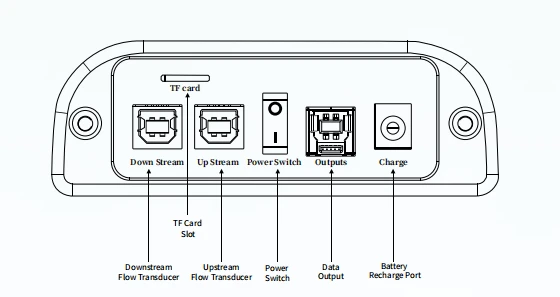

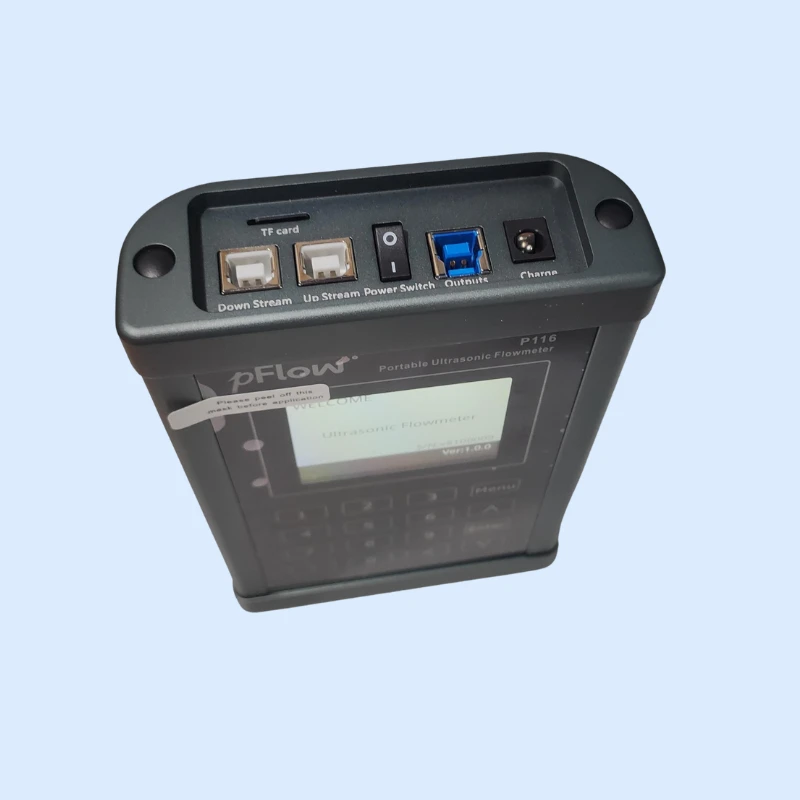

Product Wiring

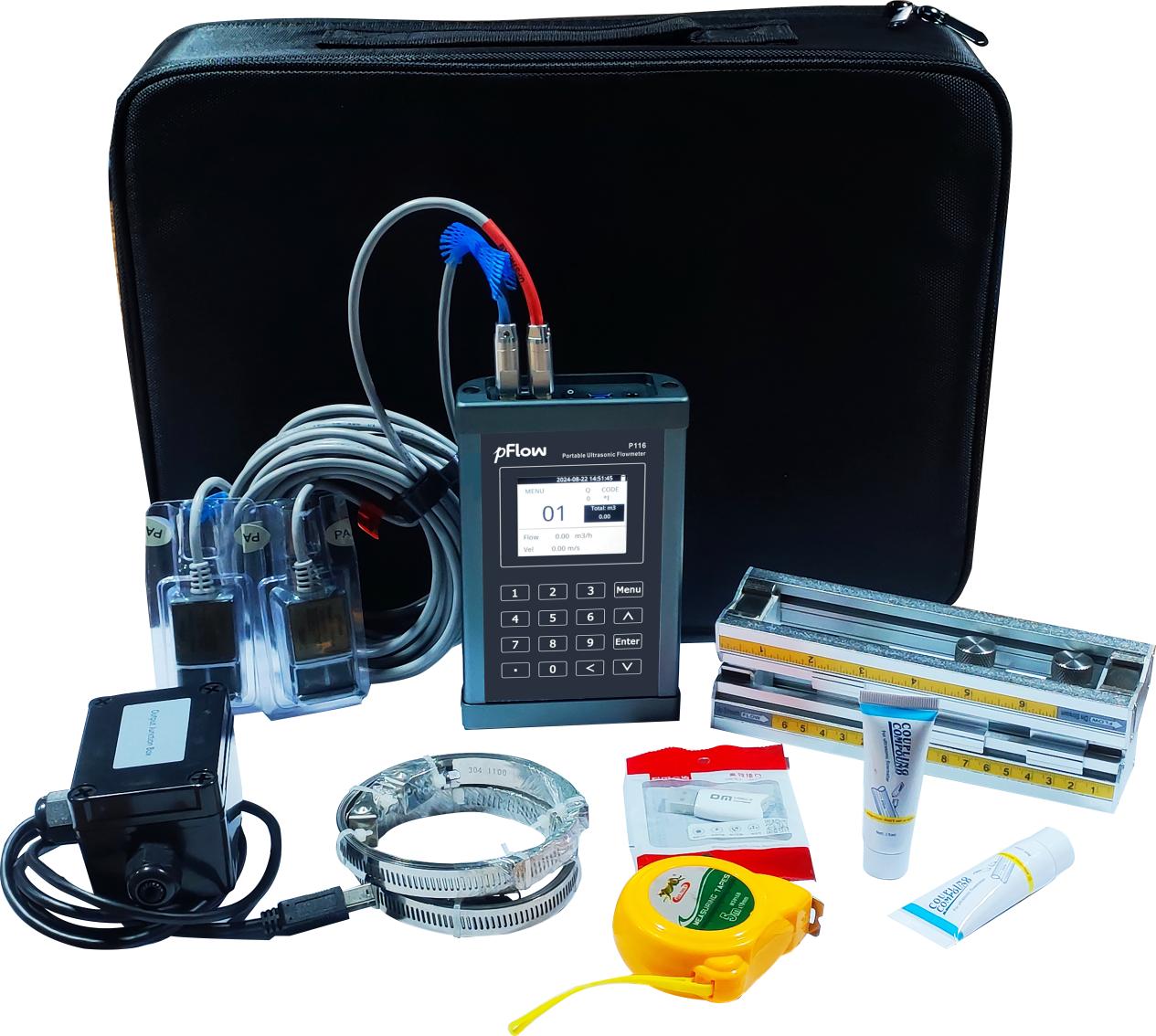

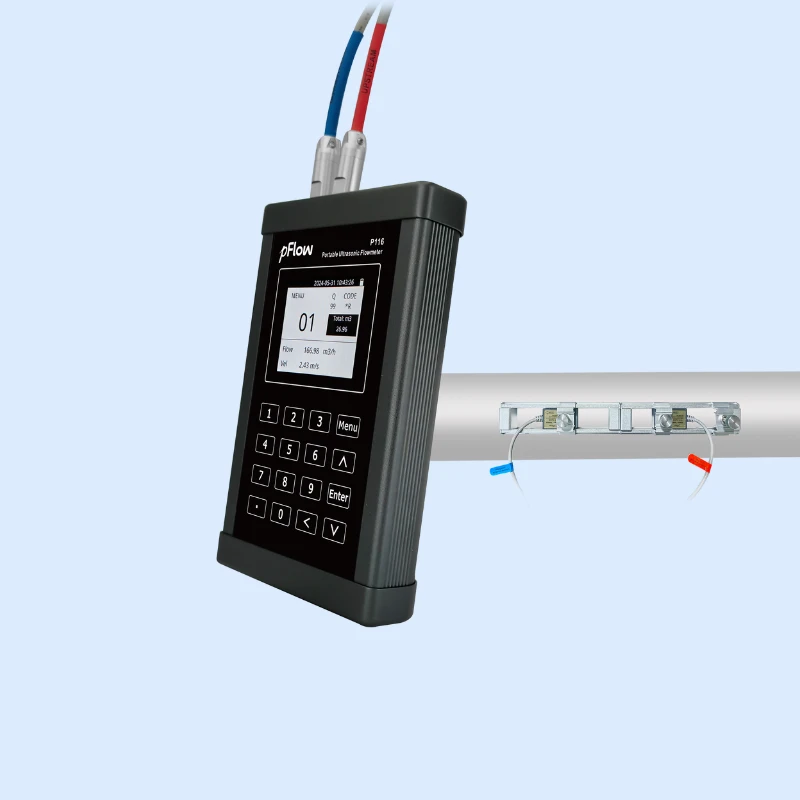

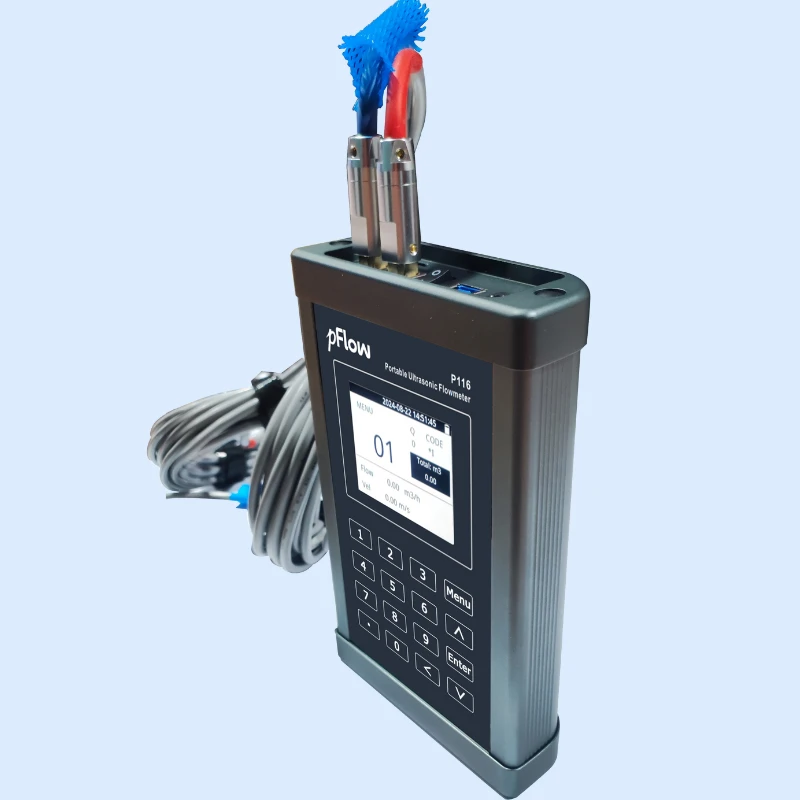

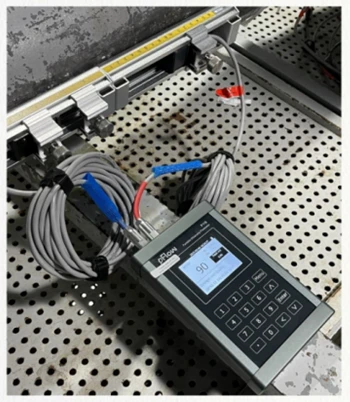

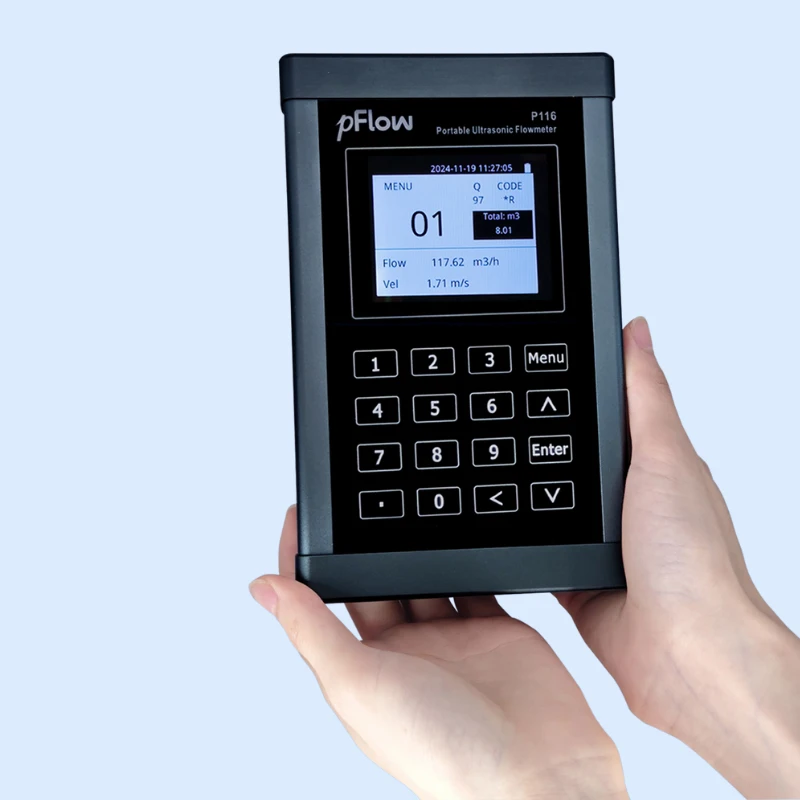

Appearance

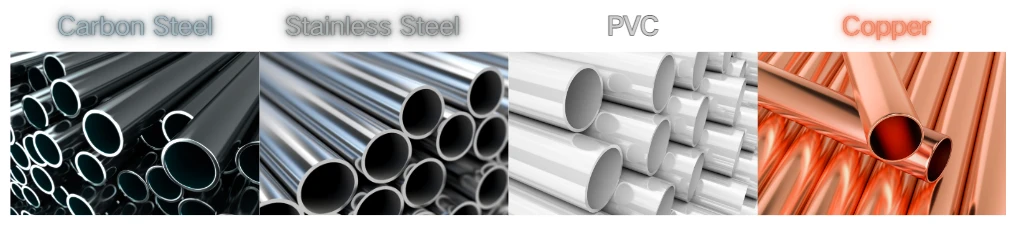

Compatible Pipe Materials
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
