Brief Introduction
|
Accuracy: |
±2% of RD |
Pipe Size: |
DN50~ DN150 |
|
Output: |
4~20 mA, max load 500Ω |
Medium Temperature: |
-10℃ to 50℃ |
Product Introduction

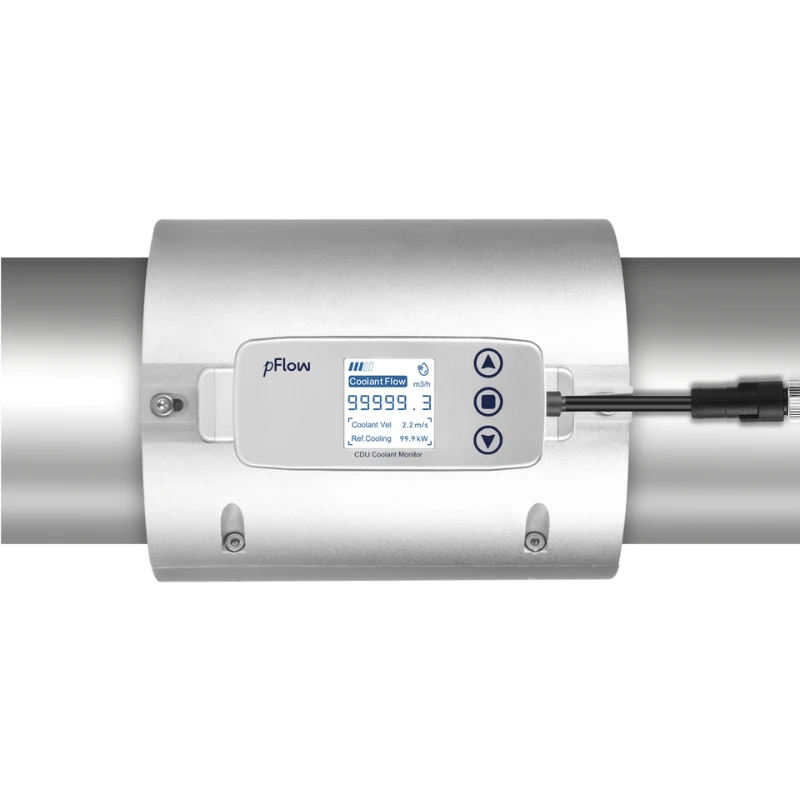

The D5 CDU Coolant Monitor is a non-invasive flow monitoring device for liquid cooling systems. It uses ultrasonic technology to measure coolant flow accurately without disrupting pipelines
- Easy installation, no pipeline disruption required
- No adjustments needed, simply clamp and measure
- LCD color display with 360° rotatable screen

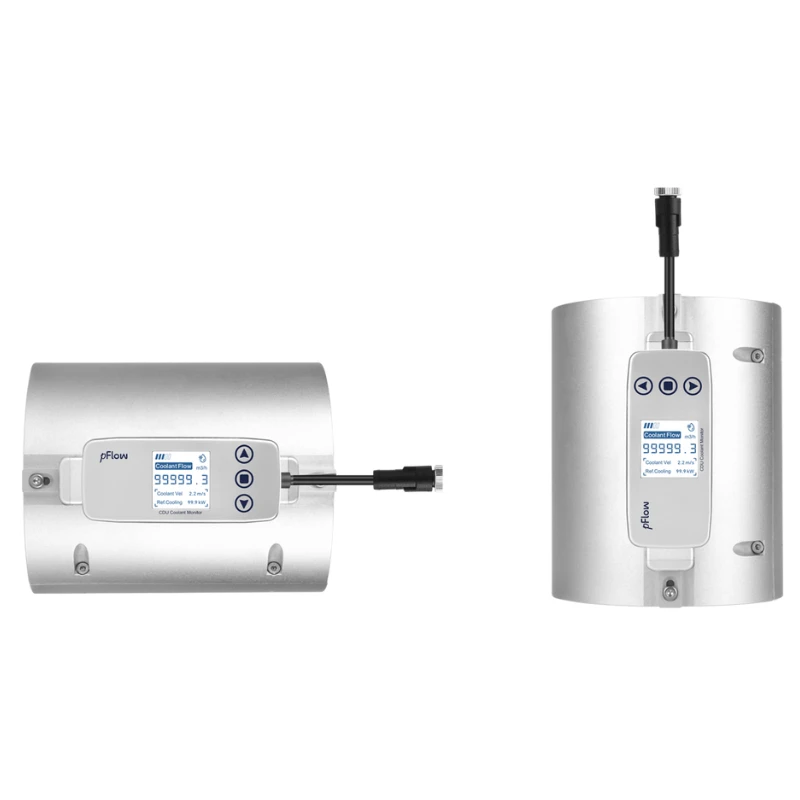

- Available for horizontal & vertical installation
- Pharmaceutical industry
- Process industries (chemical, pharmaceutical, food and beverage)Water
- and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.3m/s ~5.0m/s |
|
Accuracy |
±2% of RD |
|
Repeatability |
0.4% |
|
Pipe Size |
DN50, DN65, DN80, DN100, DN125, DN150 |
|
Medium |
Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
|
Pipe Material |
Stainless steel |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20 mA, max load 500Ω |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
1.54"LCD colorful screen, Resolution 240*240. |
|
Temperature |
Transmitter: -10℃ to 50℃ Transducer: 0℃~60℃ |
|
Humidity |
20~90% relative humidity, no condensation |
|
IP |
IP65 |
|
Physical Characteristics |
|
|
Casing Material |
PC engineering plastic |
|
Clamp Material |
Aluminum alloy |
|
Transmitter |
Integrated |
|
Transducer |
Clamp On |
|
cable |
φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |

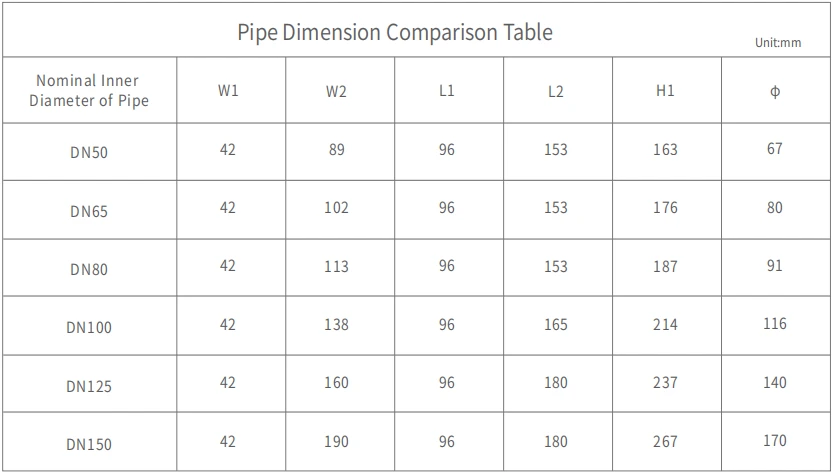

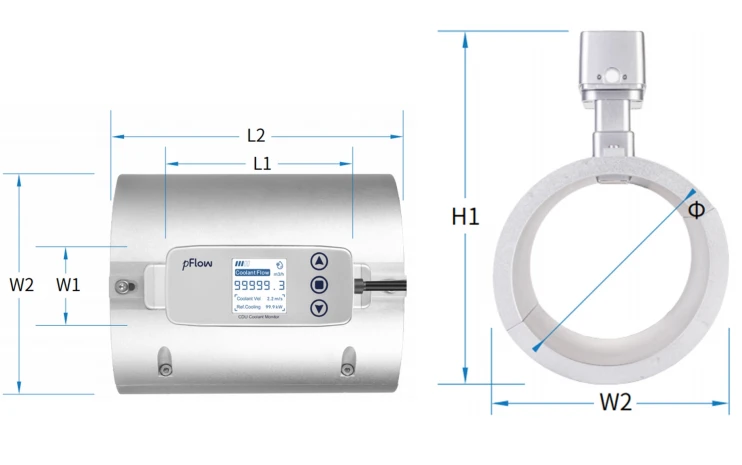

Body Parameters

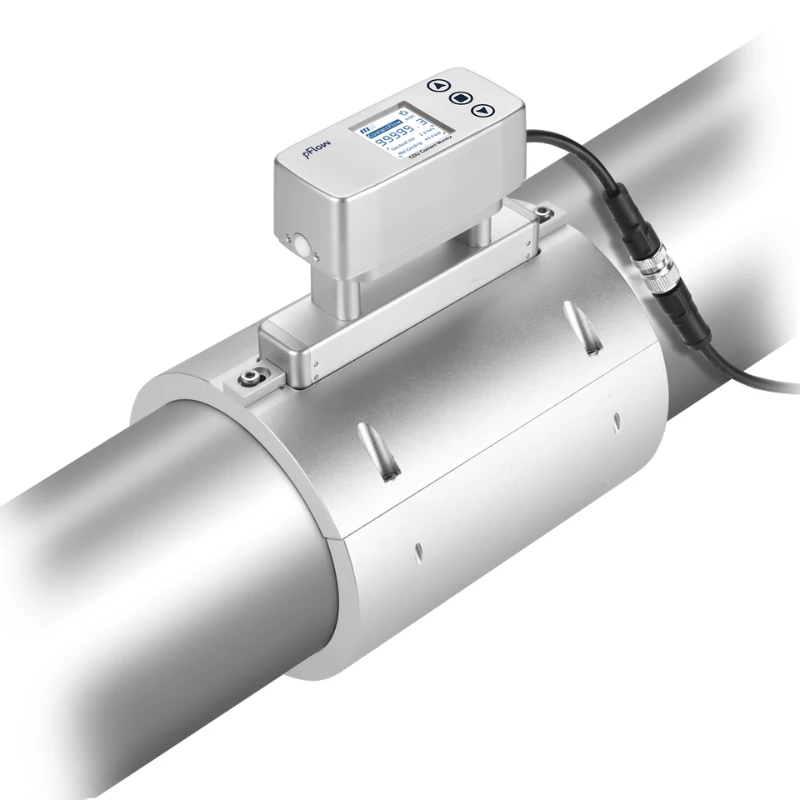

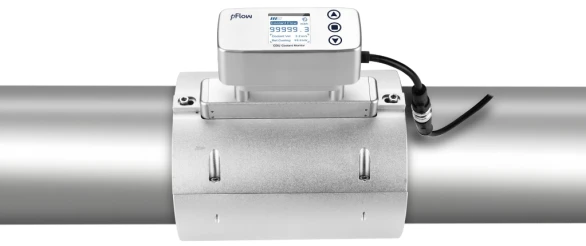

Appearance

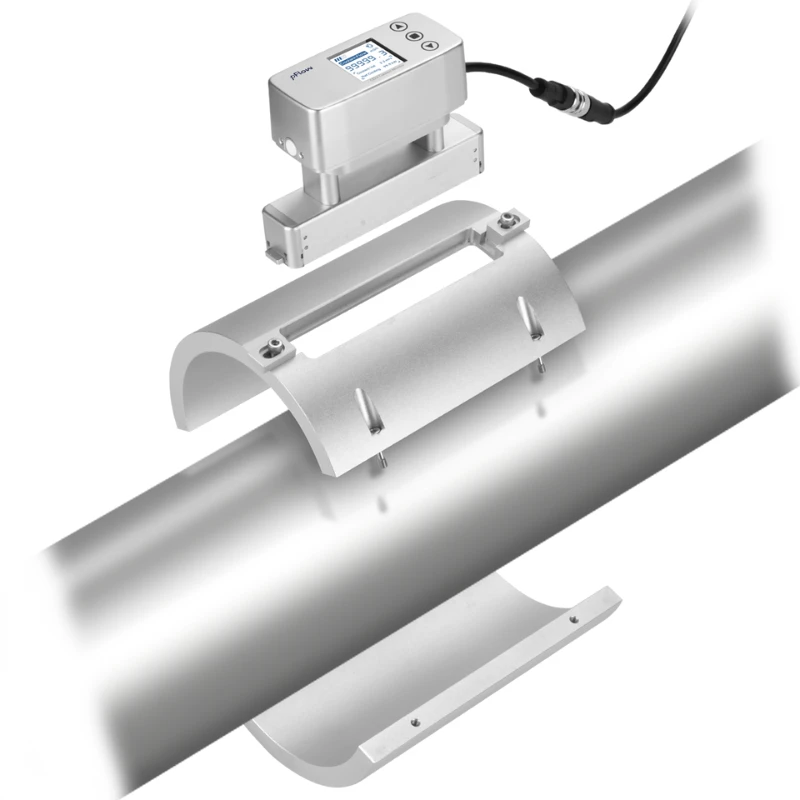

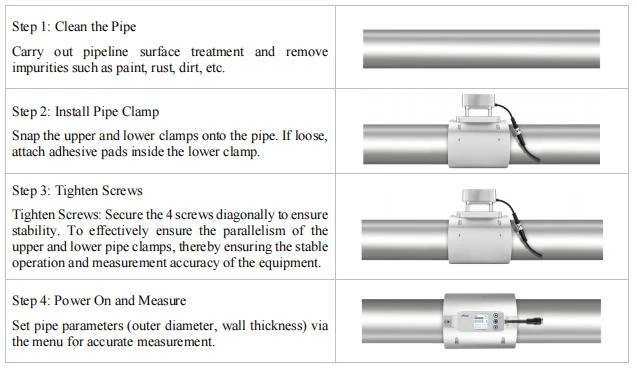

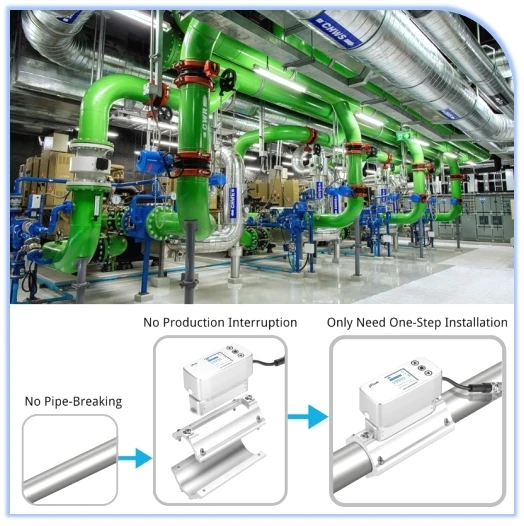

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
