Brief Introduction
|
Accuracy: |
±2% |
Pipe Size: |
DN15,DN20,DN25,DN32,DN40,DN50 |
|
Output: |
4-20mA |
Pipe Material: |
Stainless Steel |
Product Introduction
The GF-GH-CL ultrasonic flowmeter delivers a 4-20 mA loop-powered signal with ±2 % accuracy on DN15–50 stainless lines, letting thermal-energy-storage systems monitor every litre of heat-transfer water instantly-no pipework, no downtime.
- Non-Invasive Clamp-On Design
- High Measurement Accuracy
- High-Temperature Compatibility
- Photovoltaic and Energy Storage
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Flow Velocity |
0.03m/s ~5.0m/s |
|
Accuracy |
±2%, (0.3m/s ~5m/s) |
|
Repeatability |
0.4% |
|
Pipe Size |
DN15,DN20,DN25,DN32,DN40,DN50 |
|
Medium |
Water |
|
Pipe Material |
Stainless Steel |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20mA |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
1.54"LCD color screen, resolution 240*240 |
|
Temperature |
Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ ) Transducer: 32℉ to 185℉ ( 0℃ ~ 85℃ ) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Casing Material |
PC (Polycarbonate) engineering plastic |
|
Clamp Material |
Please choose one: aluminum alloy material or PC (Polycarbonate) engineering plastic |
|
Transmitter |
All-in-one |
|
Transducer |
Clamp On |
|
cable |
φ5 six-core cable with self-locking connectors, standard length: 2m |

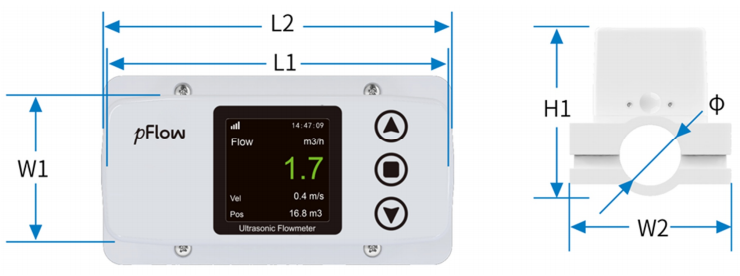

Body Parameters
Appearance
Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A:They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
