Brief Introduction
|
Accuracy: |
±1.0% |
Pipe Size: |
25mm~1200mm |
|
Output: |
4 ~ 20mA,RS485 |
Medium Temperature: |
40°F~176°F(-40℃~80℃) |
Product Introduction

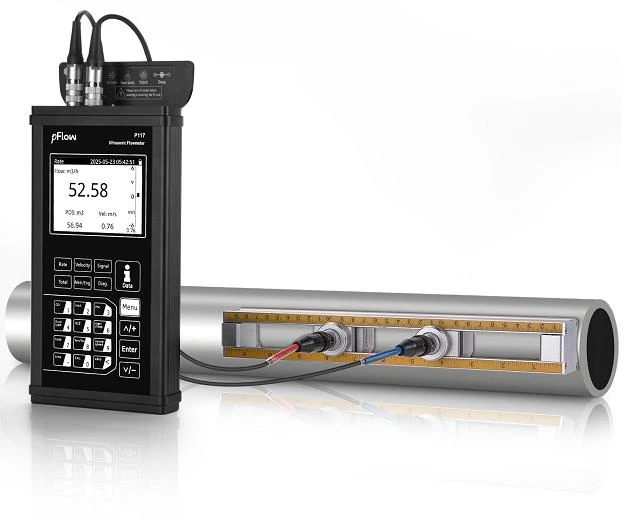

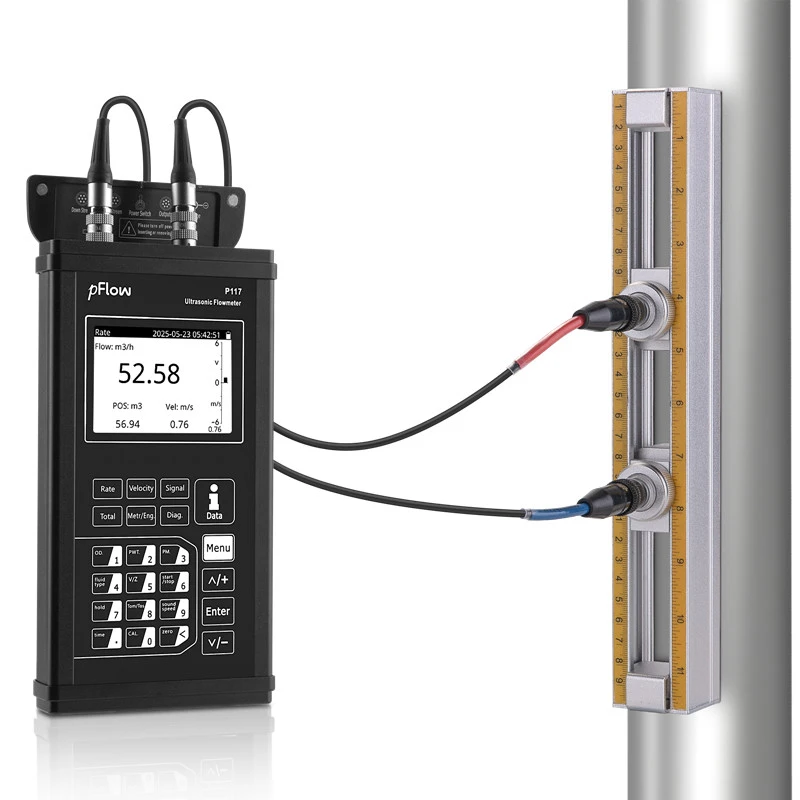

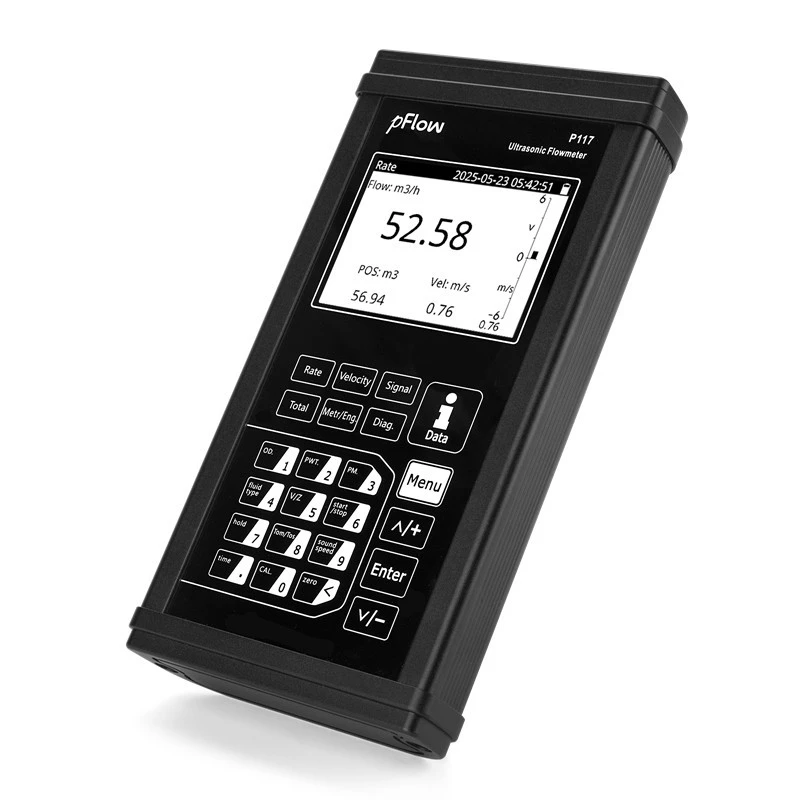

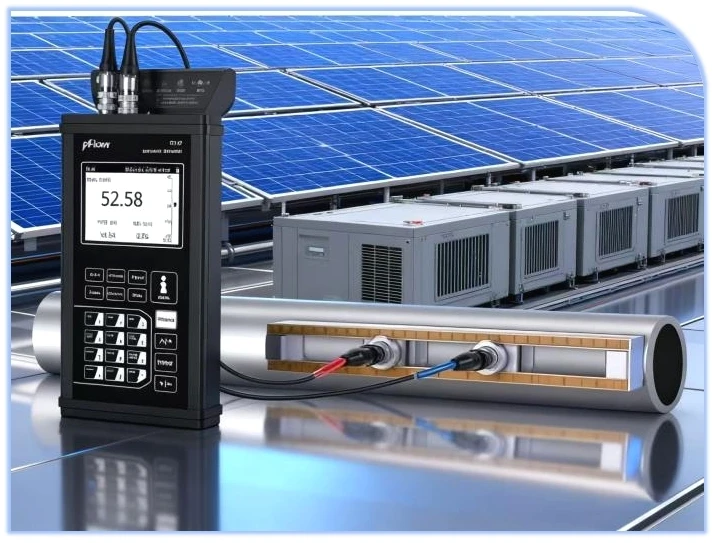

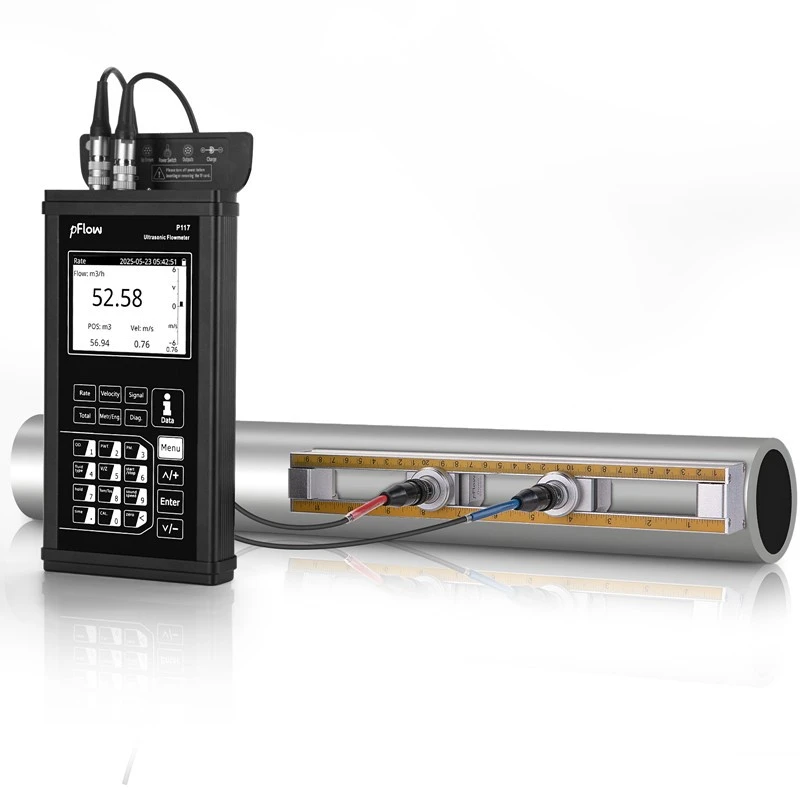

P117 portable ultrasonic meter clamps-on in seconds, no pipe cutting, no downtime; it gives rapid water flow checks across PV battery racks, inverters and heat-exchangers with one tool.
- Fewer hardware components, low voltage broadband pulse transmission, and low power consumption.
- Clear, user-friendly menu selections make flowmeter simple and convenient to use.
- Provides daily, monthly and yearly totalized flow.
- Photovoltaic energy storage
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Specifications |
|
|
Flow range |
± (0.03 ~ 16) ft/s ± (0.01 ~ 5) m/s |
|
Accuracy |
± 1.0% of measured value |
|
Repeatability |
0.2% |
|
Pipe Size |
1" ~ 48" (25mm ~ 1200mm) |
|
Functional Specifications |
|
|
Outputs |
Analog output: 4~20mA, Max 500 Ω. |
|
TF card |
Storage: 16GB (To prevail in kind); Max: 1000 files; Interval: 1 ~ 86400 seconds. |
|
Power supply |
10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 6 hours ). |
|
Keypad |
Tactile Keys. |
|
Display |
3.5 inch TFT black and white screen( 320 × 480 ), backlit LCD. |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃～50℃) Transducer: -40°F to 176°F (-40℃～80℃,standard) |
|
Humidity |
0 ~ 99% RH, non-condensing. |
|
Physical Specifications |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68; Standard cable length: 5m. |
|
Weight |
Transmitter: approximately 0.85kg Transducer: (including transducer rail): 1.25kg |
Body Parameters

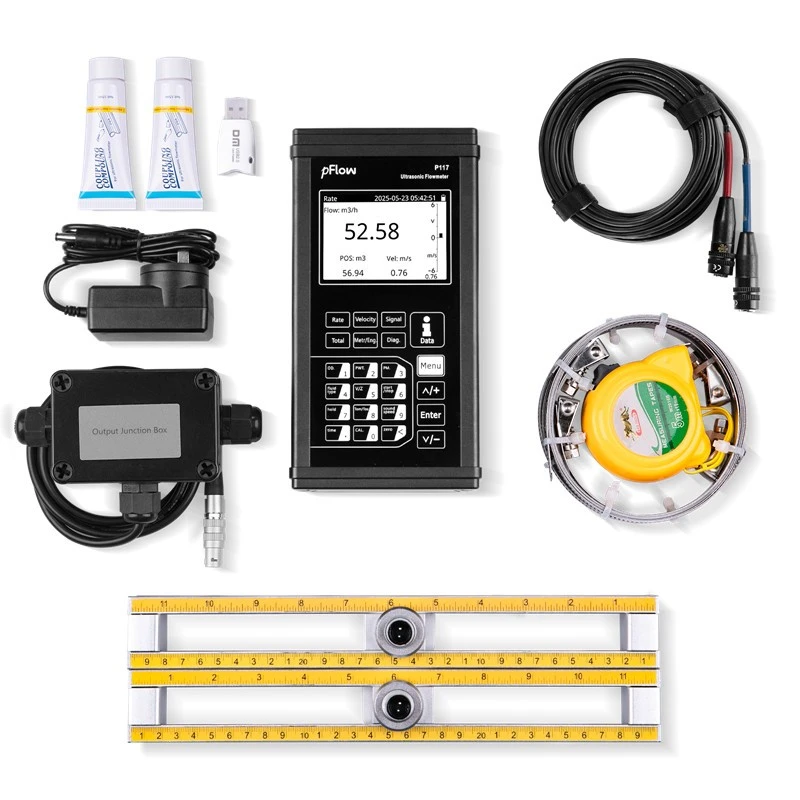

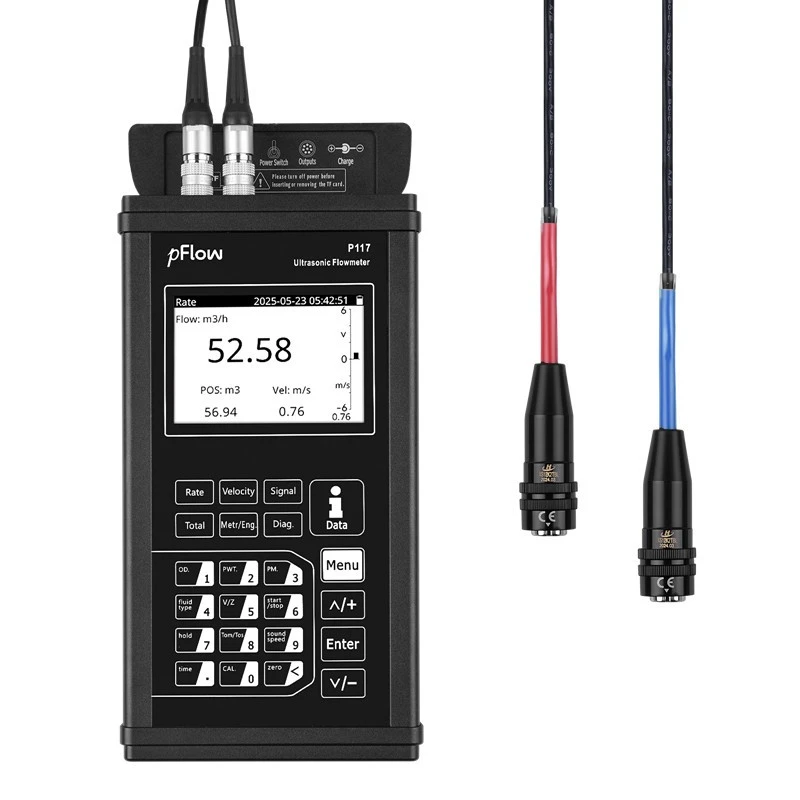

Appearance

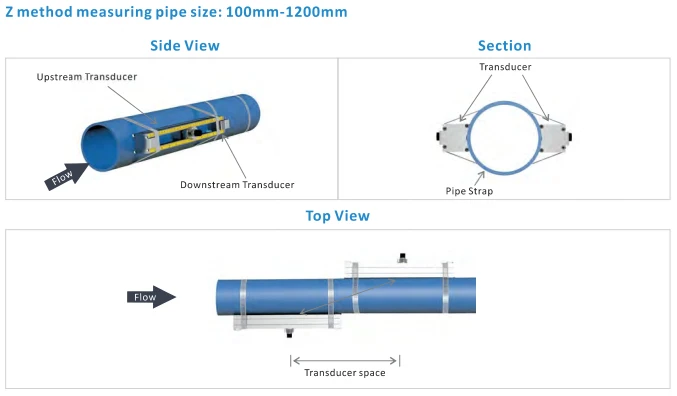

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
