Brief Introduction
|
Accuracy: |
±2% of RD |
Pipe Size: |
DN50-DN150 |
|
Output: |
4~20mA |
Pipe Material: |
Stainless steel |
Product Introduction

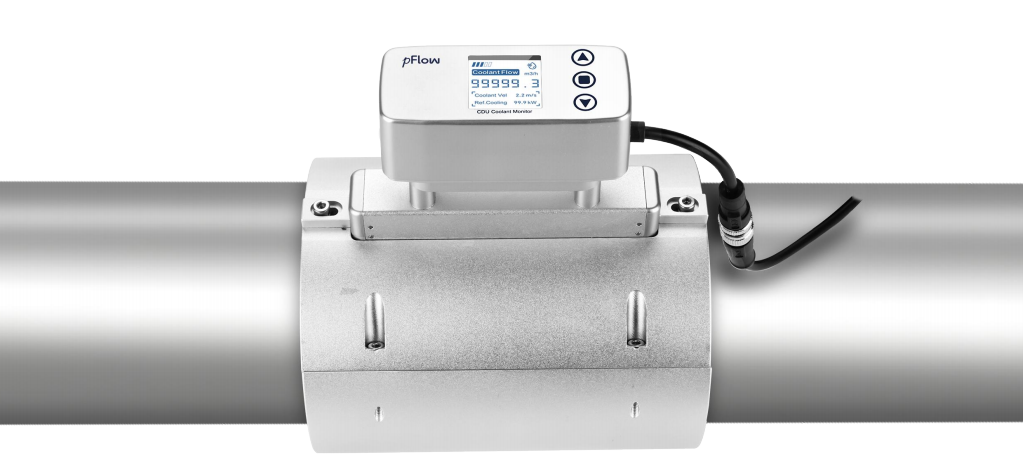

The D5 clamp-on ultrasonic flow meter brings ±2% RD accuracy to water treatment lines: It tracks flow in DN50-150 pipes and transmits 4-20 mA/Modbus data directly to SCADA without cutting the pipe.
Non-Invasive Installation
Intelligent Control Network Integration
High Accuracy and Reliability
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systemsProcess
- industries (chemical, pharmaceutical, food and beverage)Energy
- management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Indicators |
|
|
Flow Velocity Range |
0.3m/s ~5.0m/s |
|
Accuracy |
±2% of RD |
|
Repeatability |
0.4% |
|
Pipe Sizes |
DN50, DN65, DN80, DN100, DN125, DN150 |
|
Medium |
Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
|
Pipe Material |
Stainless steel |
|
Function Indicators |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20 mA, max load 500Ω |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 Touch Keys |
|

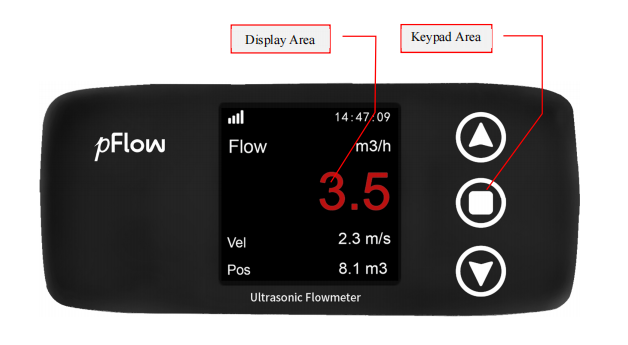

Display Screen |
1.54"LCD colorful screen, Resolution 240*240. |
|
Temperature |
Transmitter: -10℃~50℃ Transducer: 0℃~60℃ |
|
Humidity |
20~90% relative humidity, no condensation |
|
IP |
IP65 |
|
Physical Characteristics |
|
|
Housing Material |
PC engineering plastic |
|
Pipe Clamp Material |
Aluminum alloy |
|
Transmitter |
Integrated |
|
Transducer |
Clamp On |
|
cable |
φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |

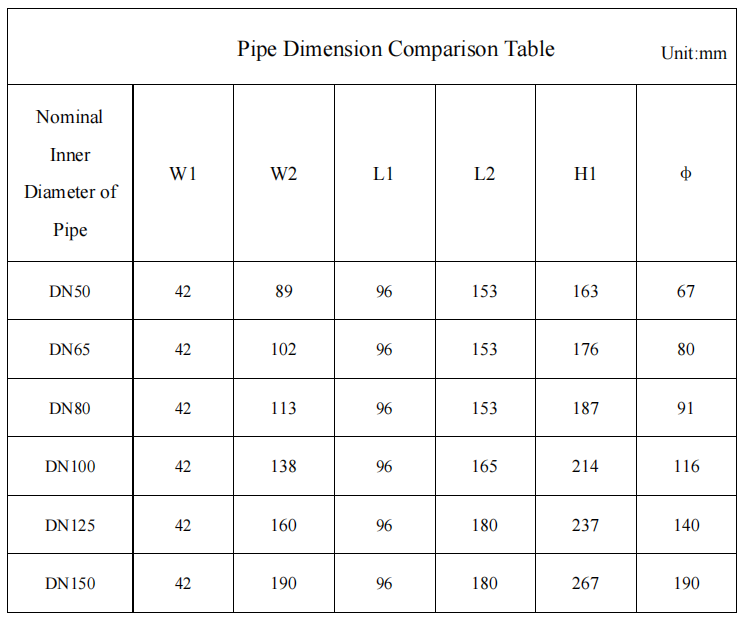

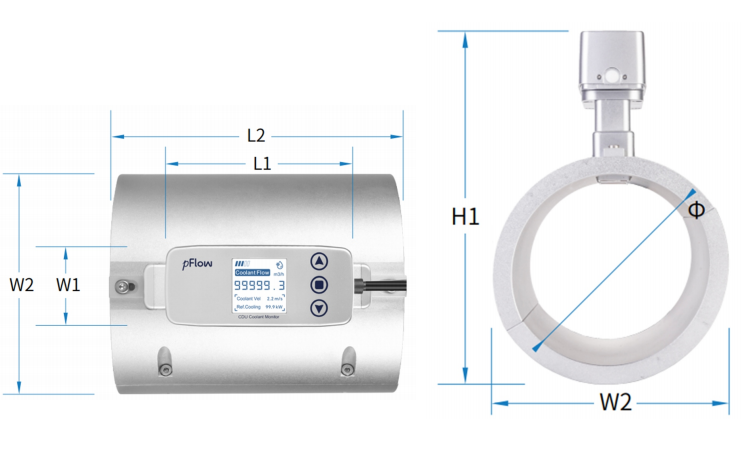

Body Parameters
Appearance

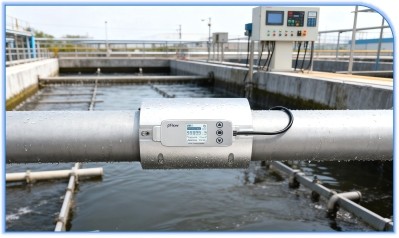

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
