Brief Introduction
|
Accuracy: |
± 2.0 % |
Pipe Size: |
1" ~ 24" |
|
Output: |
4 ~ 20mA |
Pipe Material: |
Carbon steel, Stainless steel, PVC, Copper |
Product Introduction

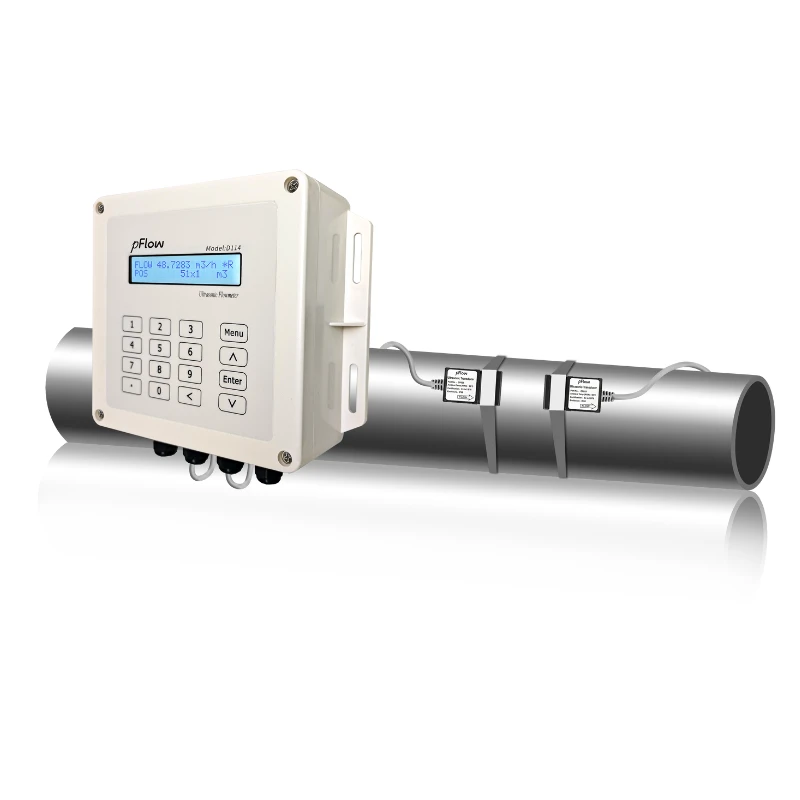

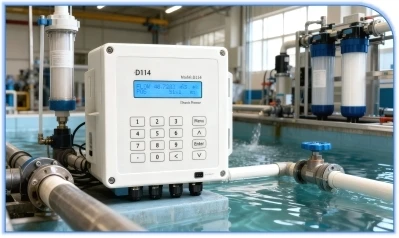

D114 ultrasonic flowmeter is a dependable solution for precise water flow measurement in filter systems. With its clamp-on design, installation is quick and non-invasive-no need to cut pipes or halt operations. Ideal for monitoring flow in water filtration setups, D114 delivers high accuracy and stable performance.
- Ultra-Low Power Consumption
- Easy installation
- Versatile Applications
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systemsProcess
- industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoringAgriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance specifications |
|
|
Flow range |
0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ) |
|
Accuracy |
± 2.0 % of measured value |
|
Pipe Size |
1" ~ 24" ( 25mm ~ 600mm ) |
|
Fluid |
Water |
|
Pipe Material |
Carbon steel, Stainless steel, PVC, Copper |
|
Function specifications |
|
|
Outputs |
Analog output : 4 ~ 20mA, max load 750Ω |
|
Communication Interface |
RS485 MODBUS |
|
Power Supply |
10~36VDC/1A |
|
Keypad |
16 Touch Keys |
|
Display |
20×2 lattice alphanumeric, back lit LCD |
|
Temperature |
Transmitter: 14℉ to 122℉(-10℃~50℃) Transducer: 32℉ to 140 ℉(0℃ ~ 60℃) |
|
Humidity |
Up to 99% RH, non-condensing |
|
Physical specifications |
|
|
Transmitter |
Engineering Plastic (ABS), IP Rating IP65 |
|
Transducer |
Encapsulated design, IP68 |
|
Transducer cable |
Standard cable length: 16 ft (5m) |
|
Weight |
Transmitter: approximately 0.6kg Transducer: approximately 0.5kg |
Body Parameters

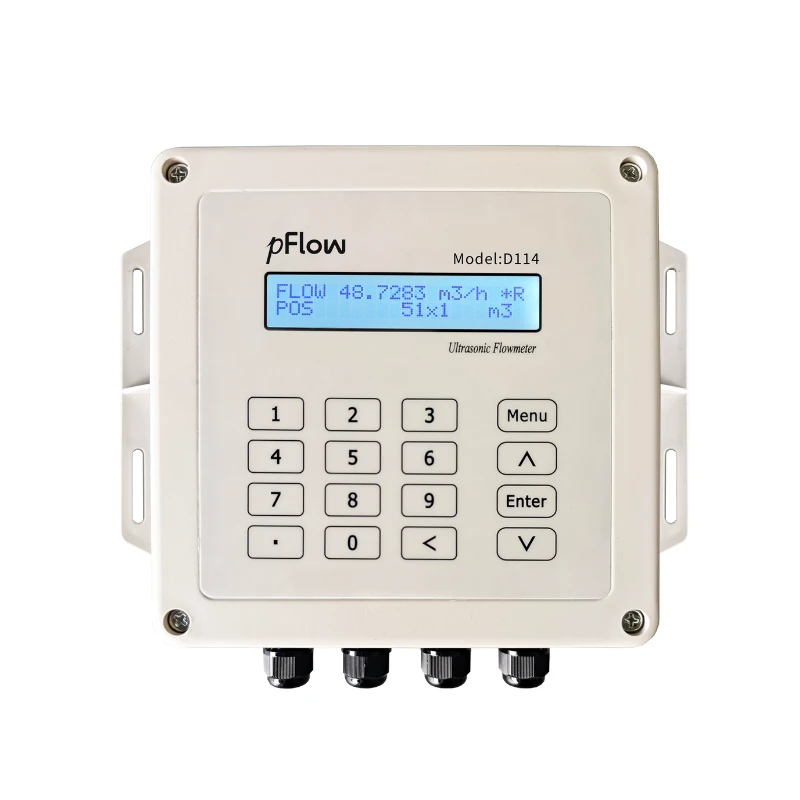

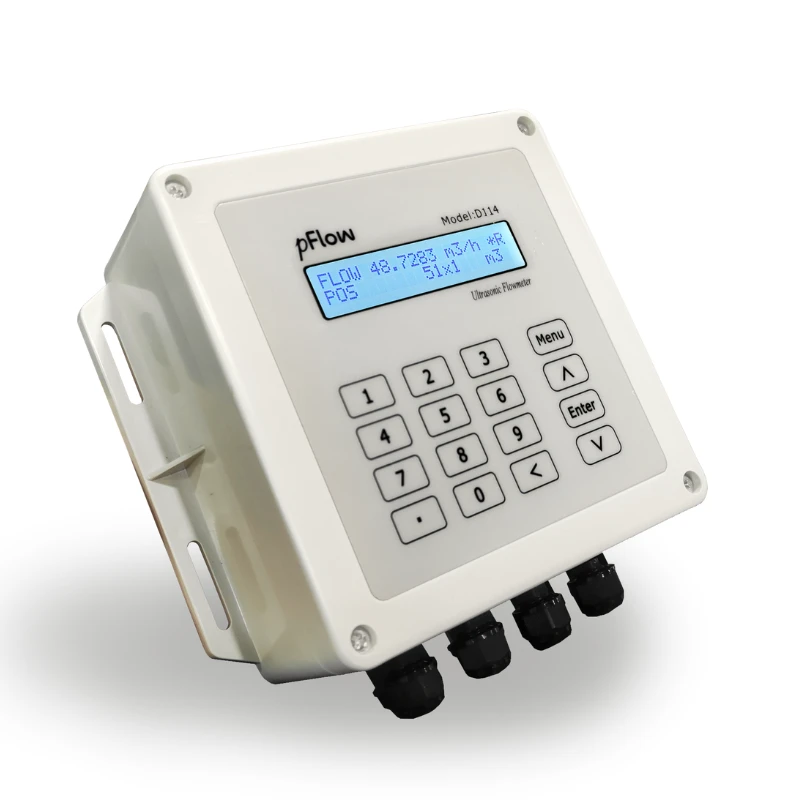

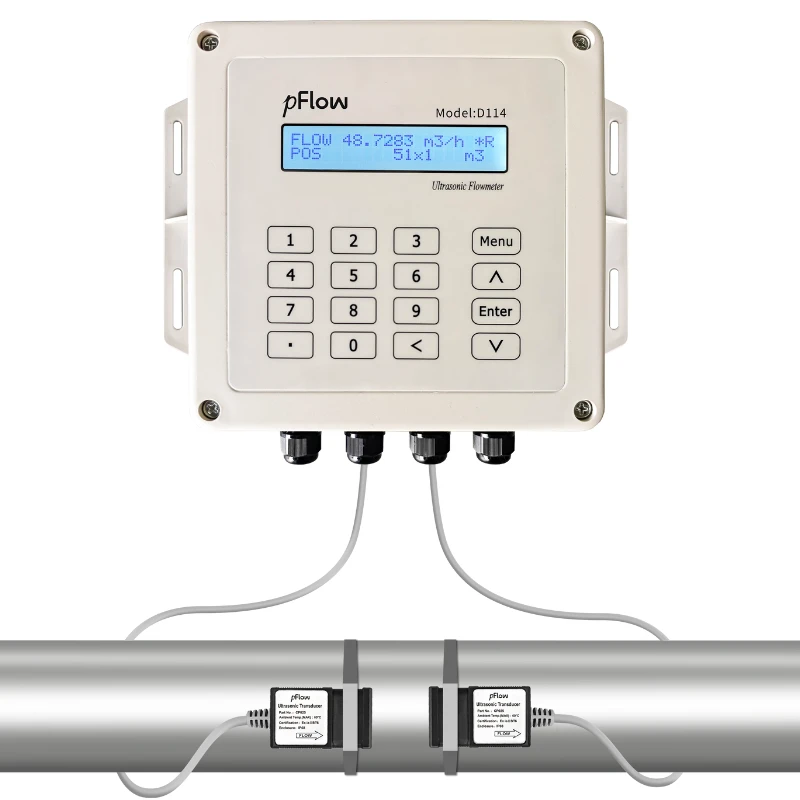

Appearance

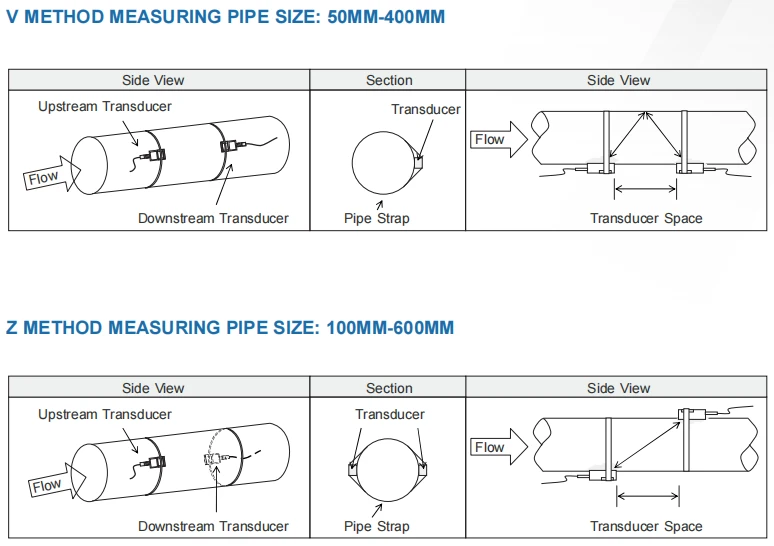

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
