Brief Introduction
|
Fluid: |
Water |
Pipe Size: |
1ʺ ~ 24ʺ ( 25mm ~ 600mm ) |
|
Flow Range: |
0.16 ft/s ~ 16ft/s ( 0.5 m/s ~ 5.0 m/s ) |
Pipe Material: |
Carbon steel, Stainless steel, PVC, Copper |
Product Introduction

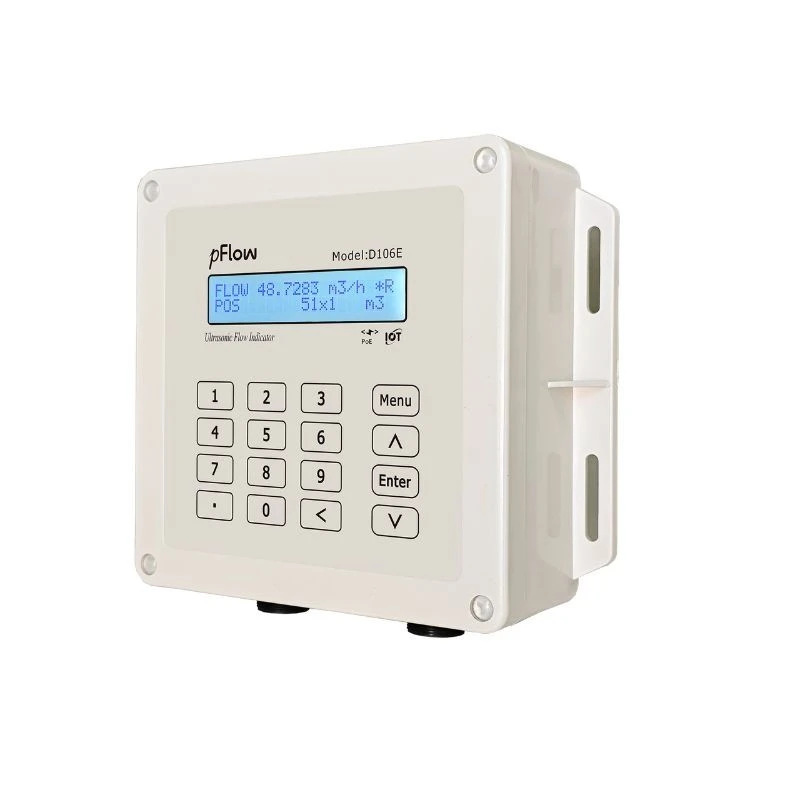

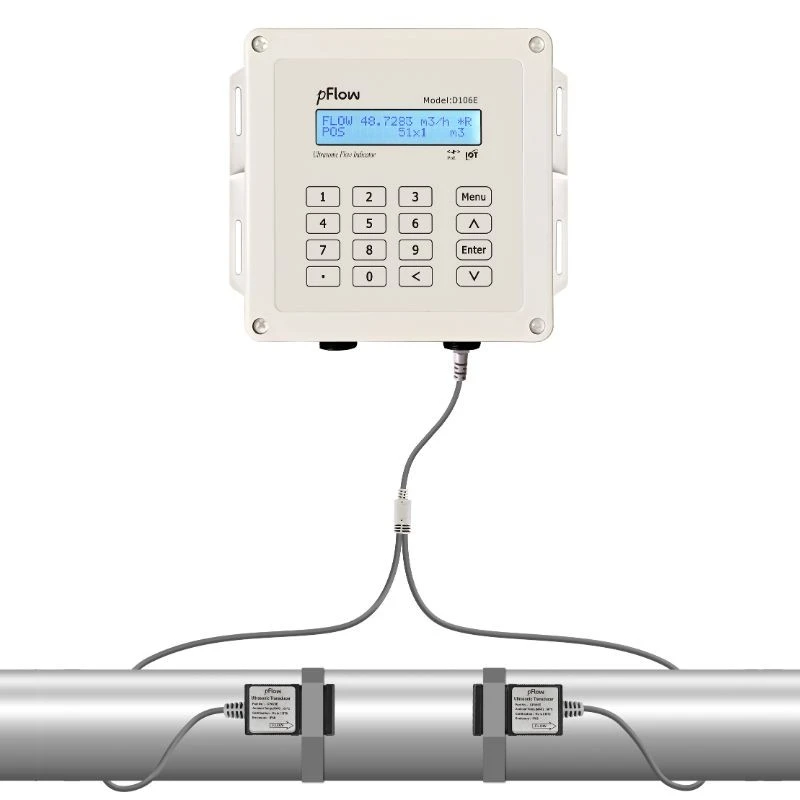

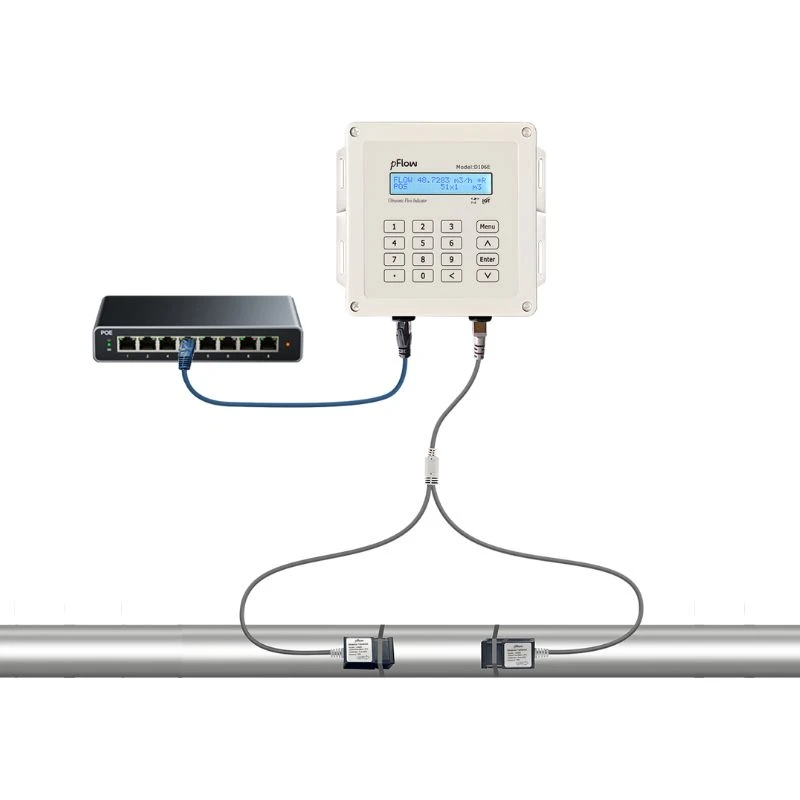

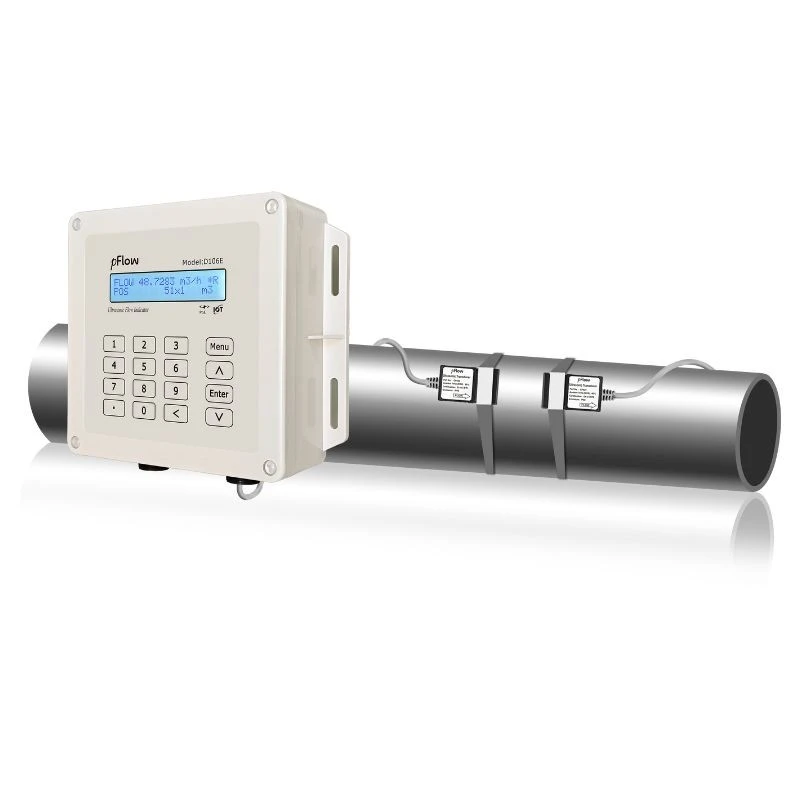

D106E Ultrasonic Flow Indicator brings transit-time accuracy to water-treatment skids and distribution lines. Clamp-on sensors mount on 1–24" carbon-steel, stainless, PVC or copper pipes without cutting flow; POE powers the IP65 transmitter and pushes MQTT data to the MeterTube app for 24/7 remote reading.
- Plug-and-play install
- Low power POE
- Stable wide range
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Technical Specifications |
|
|
Flow range |
0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ) |
|
Pipe Size |
1ʺ ~ 24ʺ ( 25mm ~ 600mm ) |
|
Fluid |
Water |
|
Pipe Material |
Carbon steel, Stainless steel, PVC, Copper |
|
Functional Indicators |
|
|
Support Protocols |
HTTP,MQTT Protocol |
|
Power Supply |
POE Network cable power supply |
|
Keyboard |
Touch Keys*16 |
|
Display |
20×2 lattice alphanumeric, back lit LCD |
|
Temperature |
Transmitter temperature: -10℃～50℃ Transducer temperature: 0℃～60℃ |
|
Humidity |
Relative Humidity0～99%, No condensation |
|
Physical Characteristics |
|
|
Transmitter |
Engineering Plastic (ABS), IP Rating IP65 |
|
Transducer |
Sealed design, protection class IP68 |
|
Transducer cable |
Standard cable length: 16 ft (5m) |
|
Network Cable |
POE network cable, standard length: 5m |
|
Weight |
Transmitter: approximately 0.6kg Transducer: approximately 0.5kg |
Body Parameters

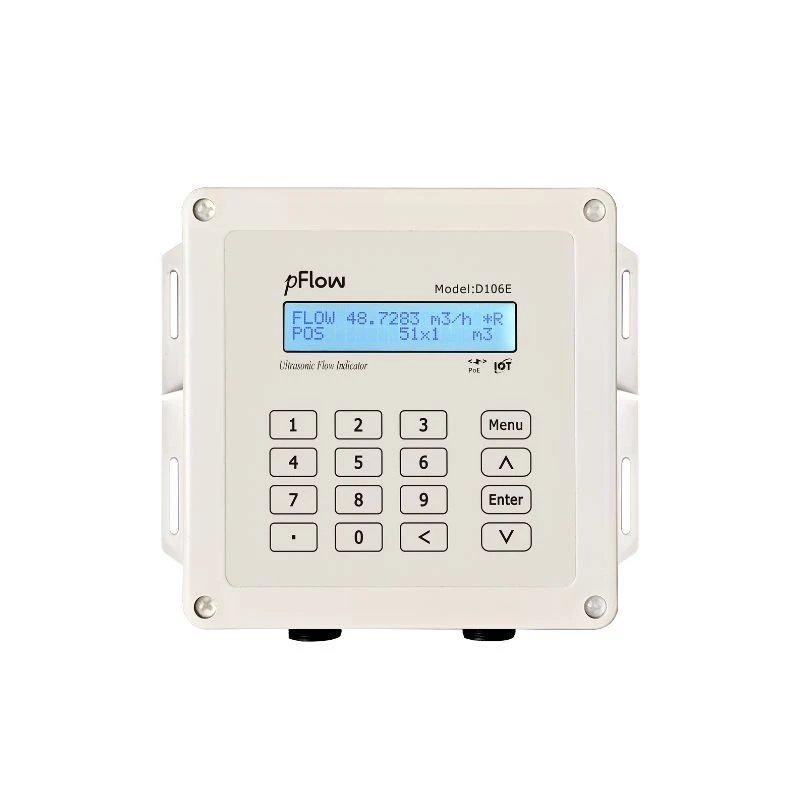

Appearance

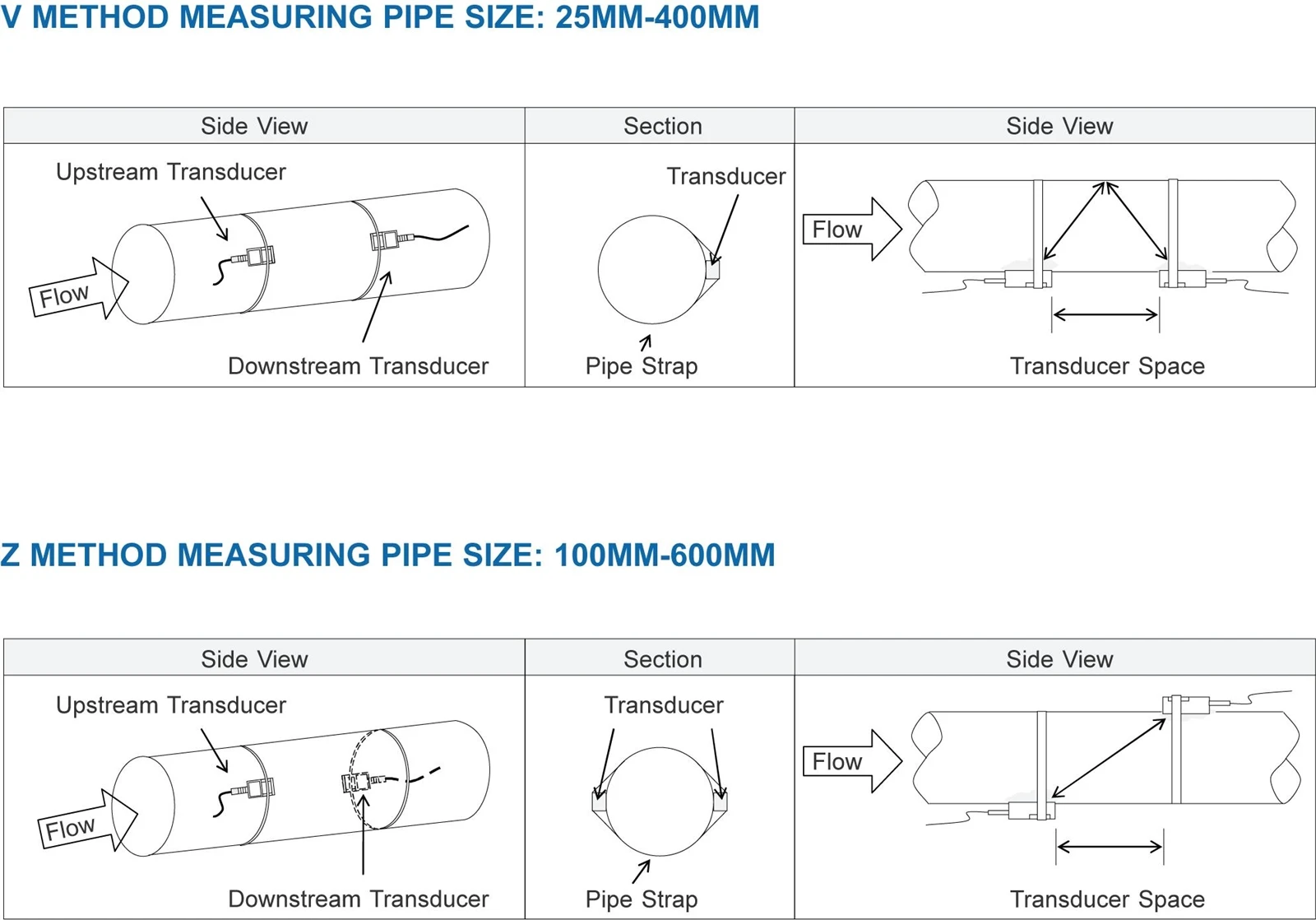

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
