Garden Flow Switch

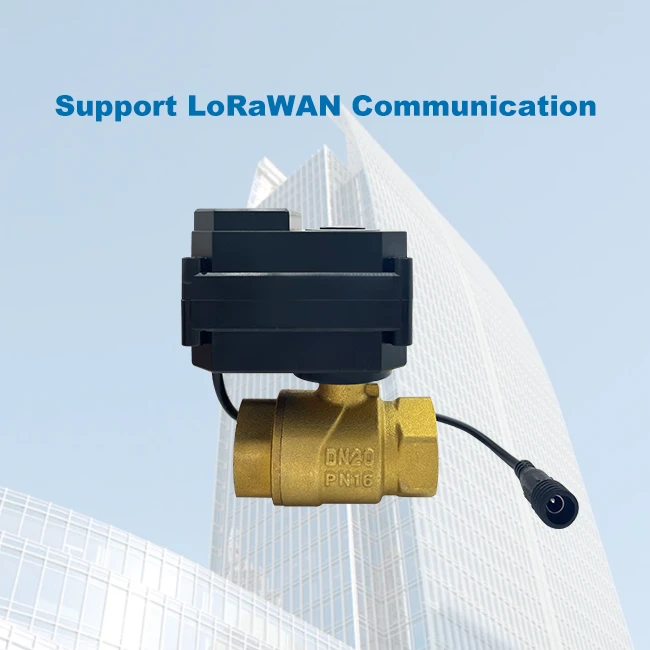

Gentos has newly researched and developed a cloud-controlled IoT valve actuator VC200-R.VC200-R use LoRa wireless communication technology that support LoRaWAN communication protocol.Long-distance transmission and strong penetration capabilities.With cloud servers,user can remotely control IoT valve actuator on their PCs,help people control over water systems efficiently.





● Can be adjusted 0-100% opening to control flow rate

● Wireless communication,no wiring required

● Support LoRaWAN communication protocol





1.Body Parameters

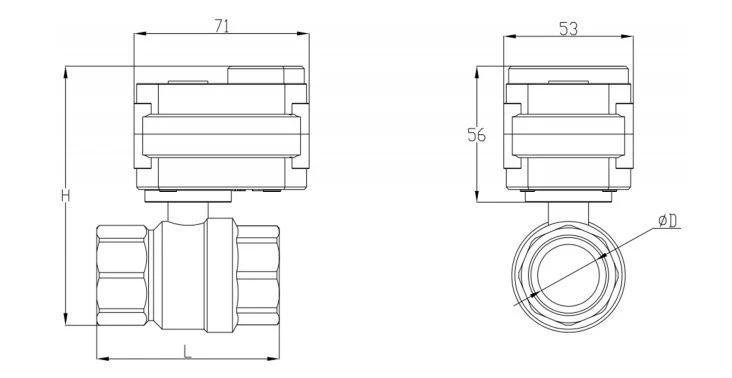

External Dimensions

*Note：H/L/D refers to valve body materials and caliber specifications, with a tolerance of ±1mm.

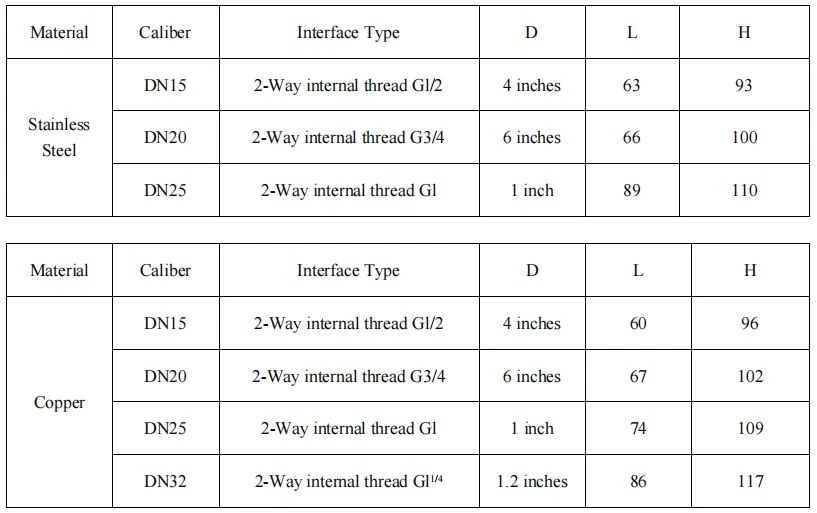

Valve Body Parameters

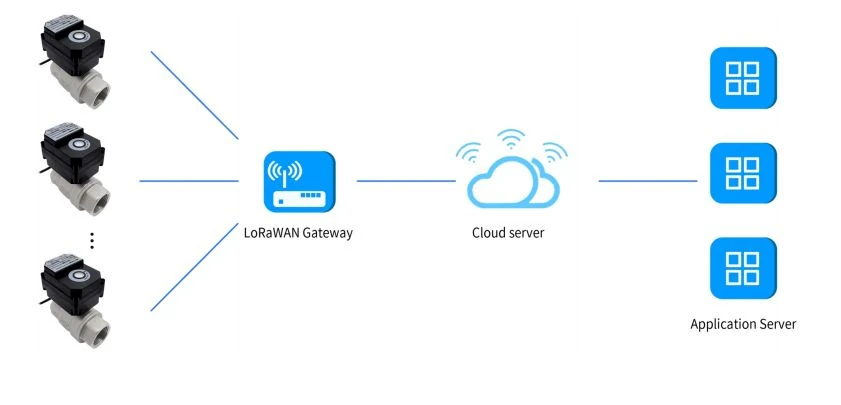

Device Wiring

1.IoT valve actuator is connected to DC5V power supply.

2.Users access the IoT valve actuator by the cloud server.

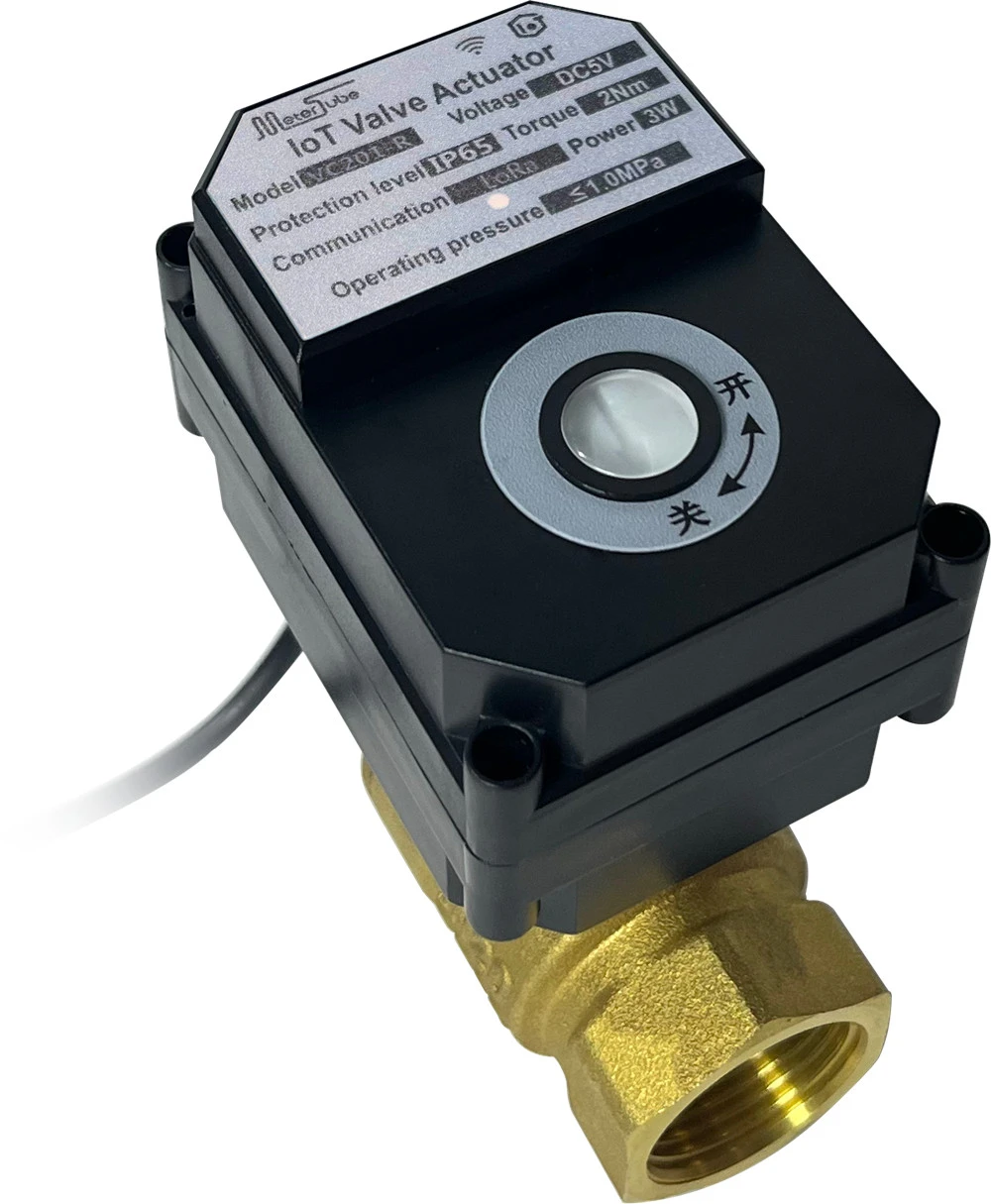

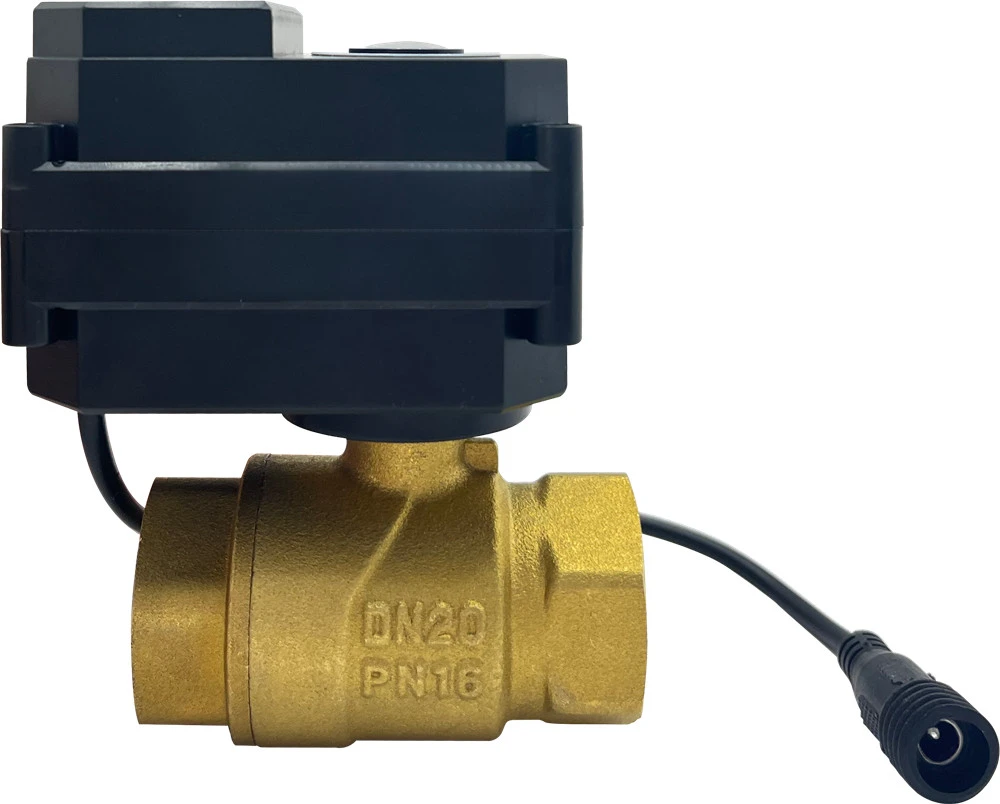

2.Appearance







3)Technical Parameters

Performance Index
Pipe Size	Copper：DN15~DN32 Stainless Steel：DN15~DN25
Measured medium	Water
Maximum Power	3W
Output Torque	2Nm
Functional Index
LoRa Communication	Support LoRaWAN communication protocol Maximum transmit power：22dBm Temperature：-40℃~85℃
Power Supply Voltage	DC5V
LoRa Frequency Selection	EU868 Frequency：863000000~865400000,Unit:HZ US915 Frequency：902300000~914900000,Unit: HZ CN779 Frequency：780100000~786500000,Unit: HZ EU433 Frequency：433775000~434665000,Unit: HZ AU915 Frequency：915200000~927800000,Unit: HZ CN470 Frequency：470300000~489300000,Unit: HZ AS923(HK) Frequency：920000000~925000000,Unit: HZ
MeterTube App	Available
Controller Operation	Remote control via MeterTube Mobile APP
Operation Pressure	≤1.0MPa
Connection Method	2-Way internal thread G
IP Rating	IP65
Medium Temperature	≤100℃
Valve Body Material	Copper, Stainless Steel





● Farm Irrigation:Farm and gardening irrigation system flow control

● Household Water Management:Automatic garden & vegetable watering system control

● Building Water Management:Remote water & flow control management

● Aquaculture:Control the flow rate to meet various water demands for fish or shrimp

VC200-R Garden Flow Switch support LoRaWAN communication protocol,long-distance and strong penetration capabilities.User can adjust the valve 0-100% opening to control the flow rate,help user save the water source,also beneficial to the environment.VC200-R could remotely control IoT Garden Flow Switch on their PCs.Choose VC200-R Garden Flow Switch help user monitoring and managing water highly effective.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is the purpose of a rotameter?

A1: The purpose of a rotameter is to measure the flow rate of a fluid (liquid or gas) passing through a pipe or tube. Rotameters are simple and cost-effective flow meters that rely on the principle of variable area flow measurement. The key components of a rotameter include a tapered tube through which the fluid flows, a float or ball that moves up and down based on the flow rate, and a scale to read the flow rate.



Q2: Why does rotameter need to be mounted vertically?

A2: Rotameters are typically designed to be mounted vertically because the float or ball inside the tube relies on the force of gravity to accurately indicate the flow rate of the fluid passing through the tube. When mounted vertically, gravity ensures that the float or ball moves freely and responds accurately to changes in flow rate.



Q3: What is the difference between a flowmeter and a rotameter?

A3:Flowmeters are more versatile and accurate instruments for measuring flow rates, while rotameters are simpler devices that provide a visual indication of flow rate but may have limitations in accuracy and range. The choice between a flowmeter and a rotameter depends on the specific requirements of the application and the level of accuracy needed for the flow rate measurement.



Q4:How does a rotameter measure flow rate?

A4:A rotameter measures flow rate by utilizing the principles of buoyancy and flow resistance to indicate the flow rate of a fluid based on the position of a float or ball within a tapered tube. It is a simple and cost-effective flow measurement instrument suitable for applications where accurate flow rate indication is sufficient.



Q5: How to adjust the rotameter?

A5: Adjust the measuring range of the rotameter according to your needs and fluid properties. The measuring range can be adjusted by changing the position of the float by turning the adjusting screw or adjusting the valve.
