Water Treatment Flow Switch



The VC200R/VC201R water treatment flow switch make it an ideal choice for industrial, agricultural, and residential applications, offering users a convenient and efficient valve control solution.





1)LoRa Communication: VC200R/VC201R water treatment flow switch equipped with LoRa wireless communication technology, it ensures stable and reliable remote communication for secure and efficient data transmission.

2)Valve On/Off Switching, Flow Control: It can precisely control the opening and closing of the valve, enabling accurate flow management to meet various operational requirements.

3)Remote Control via Mobile App: Users can remotely control the VC200R/VC201R flow switch through a mobile app, allowing for real-time monitoring and adjustment of valve status for an intelligent operational experience.

4)Self-adjusting Valve Opening: It supports setting scheduled opening and closing times for the valve. Users can also self-adjust the valve opening to suit their specific needs, providing personalized valve control.

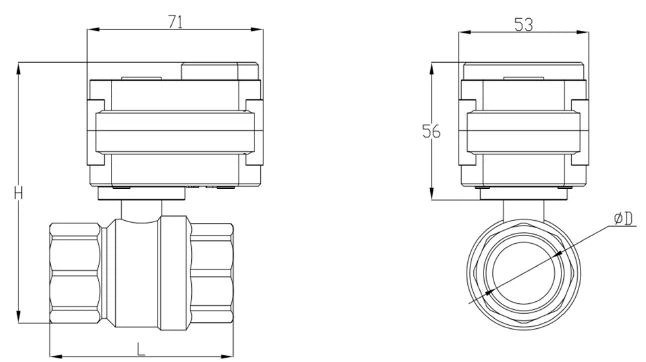

1.Body Parameters

*Note: unit:mm; H/L/D refers to valve body materials and caliber specifications, with a tolerance

of ±1mm

Material	Caliber	Interface Type	D	L	H
Stainless Steel	DN15	2-Way internal thread G1/2	4 inches	63	93
	DN20	2-Way internal thread G3/4	6 inches	66	100
	DN25	2-Way internal thread G1	1inche	89	110



Material	Caliber	Interface Type	D	L	H
Copper	DN15	2-Way internal thread G1/2	4 inches	60	96
	DN20	2-Way internal thread G3/4	6 inches	67	102
	DN25	2-Way internal thread G1	1inche	74	109
	DN32	2-Way internal thread G11/4	1.2inches	86	117





2.Appearance



3)Technical Parameters



Valve Body Diameter	Copper：DN15~DN32 Stainless Steel：DN15~DN25
Applicable Medium	Water
Power Supply Voltage	DC5V
Maximum Power	3W
Output Torque	2Nm
LoRa Communication	Support LoRaWAN communication protocol
	Maximum transmit power：22dBm
	Temperature：-40℃~85℃
LoRa Frequency Selection	EU868 Frequency：863000000~865400000,Unit:HZ
	US915 Frequency：902300000~914900000,Unit: HZ
	CN779 Frequency：780100000~786500000,Unit: HZ
	EU433 Frequency：433775000~434665000,Unit: HZ
	AU915 Frequency：915200000~927800000,Unit: HZ
	CN470 Frequency：470300000~489300000,Unit: HZ
	AS923(HK) Frequency：920000000~925000000,Unit: HZ
MeterTube App	Available
Controller Operation	Remote control via MeterTube Mobile APP
Operation Pressure	≤1.0MPa
Connection Method	2-Way internal thread G
IP Rating	IP65
Medium Temperature	≤100℃
Valve Body Material	Copper, Stainless Steel





Model name: VC200R

Pipe material: Stainless steel

Pipe size: DN20

Liquid: Water





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is the water flow switch?

A1: .When water flows through the system, the flow switch detects this movement and triggers a response, such as closing or opening an electrical circuit. This response can be used to indicate normal flow conditions, detect low or high flow rates, or even shut off the water flow in case of emergencies.



Q2:How does a flow control switch work?

A2: A flow control switch works by detecting the flow of fluid in a system and activating a switch mechanism to generate a signal or trigger a specific action based on the flow status.



Q3: What is the function of flow switch in chiller?

A3:The function of a flow switch in a chiller system is to monitor and control the flow of fluid, protect the equipment from damage, optimize efficiency, detect faults, and contribute to the overall reliable and efficient operation of the chiller system.



Q4:What is a flow switch also known as?

A4: A flow switch is also known by several other names, including: Flow Sensor,Flow Detector,Flow Indicator,Flow Meter Switch.



Q5: What is a flow switch used for?

A5:Flow switches are versatile devices that play a critical role in ensuring the proper operation, safety, and efficiency of a wide range of systems and processes that rely on the controlled flow of fluids.
