Aquaculture Flow Switch



Pipe: Copper for DN15~DN32 Stainless Steel for DN15~DN25

Support LoRaWAN communication protocol

Remote control via MeterTube Mobile APP

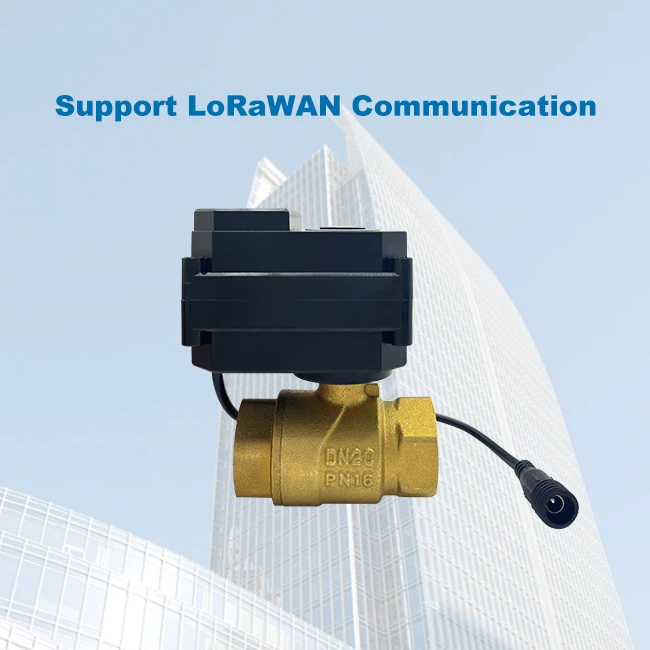

The VC200-R Garden Flow Switch is equipped with LoRaWAN communication protocol, providing long-distance and strong penetration capabilities. Users have the flexibility to adjust the valve opening from 0% to 100%, enabling precise control over the flow rate. This not only helps users conserve water resources but also contributes to environmental preservation.

Durability: Ball valves are known for their robust construction and long service life, ensuring reliable performance in aquaculture environments.

Precise Flow Control: The design of ball valves allows for precise adjustment of water flow rates, crucial for maintaining optimal conditions in aquaculture systems.

Corrosion Resistance: Their resistance to corrosion and ability to withstand harsh aquatic conditions make them a preferred choice for aquaculture applications.

Low Maintenance: Ball valves require minimal maintenance, reducing downtime and operational costs for aquaculture facilities.





Valve Body Parameters

*Note: unit:mm; H/L/D refers to valve body materials and caliber specifications, with a tolerance of ±1mm

Material	Caliber	Interface Type	D	L	H
Stainless Steel	DN15	2-Way internal thread G1/2	4 inches	63	93
	DN20	2-Way internal thread G3/4	6 inches	66	100
	DN25	2-Way internal thread G1	1inche	89	110



Material	Caliber	Interface Type	D	L	H
Copper	DN15	2-Way internal thread G1/2	4 inches	60	96
	DN20	2-Way internal thread G3/4	6 inches	67	102
	DN25	2-Way internal thread G1	1inche	74	109
	DN32	2-Way internal thread G11/4	1.2inches	86	117



3)Technical Parameters



Technical Parameters
Applicable Medium: Water	Power Supply Voltage: DC5V	Maximum Power: 3W
Medium Temperature: ≤100°C	Operating Pressure: ≤1.0MPa	Output Torque: 2Nm
Valve Body Diameter:	Copper：DN15~DN32 Stainless Steel：DN15~DN25
Valve Body Material:	Brass(copper), Stainless Steel
Controller Operation:	Remote control via MeterTube mobile APP
Connection Method:	2-Way internal thread G
Communication Method:	WIFI; MeterTube APP: Available
LoRa Communication	Support LoRaWAN communication protocol
	Maximum transmit power：22dBm
	Temperature：-40℃~85℃
LoRa Frequency Selection	EU868 Frequency：863000000~865400000,Unit:HZ
	US915 Frequency：902300000~914900000,Unit: HZ
	CN779 Frequency：780100000~786500000,Unit: HZ
	EU433 Frequency：433775000~434665000,Unit: HZ
	AU915 Frequency：915200000~927800000,Unit: HZ
	CN470 Frequency：470300000~489300000,Unit: HZ
	AS923(HK) Frequency：920000000~925000000,Unit: HZ





Water Flow Management:

Essential Role: Ball valves are vital for regulating water flow within aquaculture systems, facilitating the adjustment of water levels and controlling water circulation.

Aquatic Health: Proper water flow control is crucial for sustaining ideal conditions for aquatic organisms, ensuring sufficient oxygen levels and effective waste removal.

Integration into Aquaculture Systems:

Versatile Usage: Ball valves are seamlessly incorporated into various components of aquaculture setups, including water intake pipes, filtration systems, and drainage systems.

Diverse Applications: They are utilized for tasks such as directing water flow to different tanks, managing water levels in ponds, and overseeing water recirculation systems.

Precision Flow Regulation:

Fine-Tuned Control: Ball valves offer precise manipulation of water flow rates, empowering operators to adjust flow to meet the specific demands of different aquaculture environments.

Optimizing Conditions: Maintaining consistent and controlled water flow is pivotal for ensuring the well-being and development of aquatic species in aquaculture facilities.





Gentos is a leading manufacturer of ultrasonic flow meters, dedicated to advancing fluid measurement technology for over 30 years. Our mission is to provide innovative and reliable solutions that meet the diverse needs of industries worldwide.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What features should buyers consider when selecting a smart ball valve with LoRa communication for aquaculture applications?

A1: Buyers should consider features like corrosion resistance, flow control precision, and remote monitoring capabilities.



Q2: How does the integration of LoRa communication benefit aquaculture operations when using smart ball valves?

A2: LoRa communication enables remote control, enhances operational efficiency, and ensures reliable connectivity over long distances.



Q3: What are the cost considerations associated with implementing smart ball valves with LoRa communication in aquaculture systems?

A3:Cost considerations include initial investment, installation and integration costs, and ongoing maintenance expenses.



Q4: How do smart ball valves with LoRa communication contribute to sustainability and resource conservation in aquaculture practices?

A4: Smart ball valves help optimize water usage, promote environmental sustainability through eco-friendly practices, and enable enhanced monitoring for proactive resource management.
