Brief Introduction
|
Valve Body Diameter： |
Copper: DN15~DN32 Stainless Steel: DN15~DN25 |
|
Applicable Medium： |
Water |
|
Communication Method： |
WIFI |
|
MeterTube Mobile App |
Available |
Product Introduction

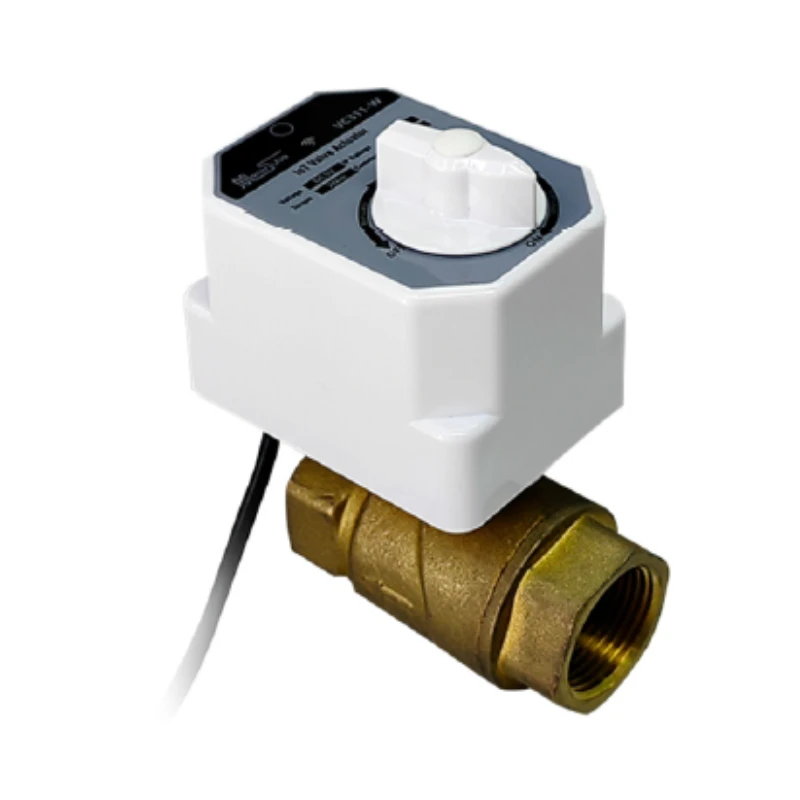

The VC311W IoT valve actuator is a cutting-edge solution for RAS disinfection systems. It leverages advanced WiFi technology for wireless control, allowing users to remotely operate it via smartphone apps. With IP65 rating, it ensures stable communication and durability. Suitable for DN15 to DN32 calibers, it offers precise control, timing functions, and manual override. Its reliable connectivity and strong signal make it ideal for RAS disinfection systems, enhancing efficiency and convenience in water management applications.
Product Applications
●Liquid cooling industry
●Recirculating aquaculture system
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Valve Body Diameter |
Copper: DN15~DN32 Stainless Steel: DN15~DN25 |
|
Applicable Medium |
Water |
|
Power Supply Voltage |
DC5V |
|
Maximum Power |
3W |
|
Output Torque |
2Nm |
|
Communication Method |
WIFI |
|
MeterTube Mobile App |
Available |
|
Controller Operation |
Remote control via MeterTube mobile APP |
|
Operating Pressure |
≤1.0MPa |
|
Connection Method |
2-Way internal thread G. |
|
IP Rating |
IP65 |
|
Medium Temperature |
≤100℃ |
|
Valve Body Material |
Copper, Stainless Steel |
2)Body Parameters

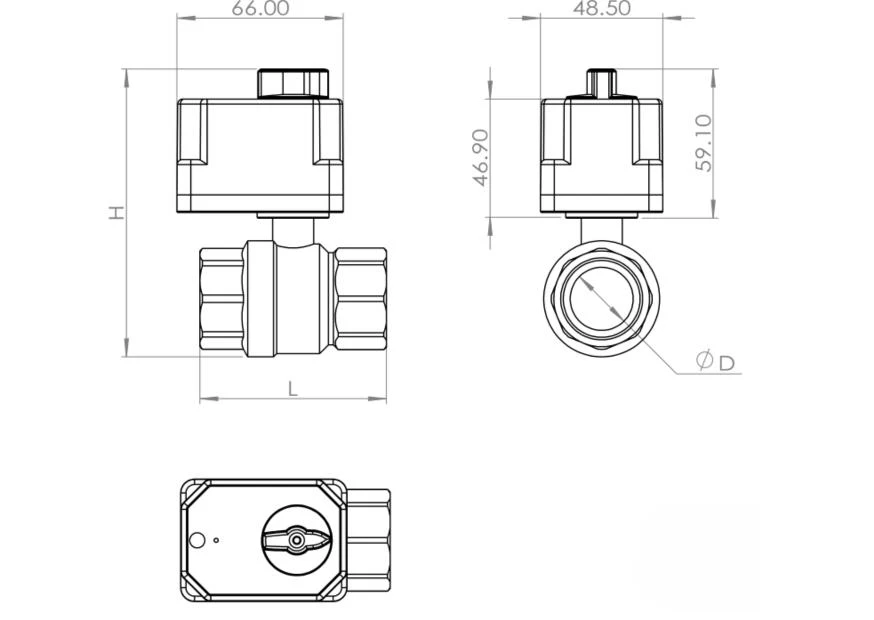

Transmitter Dimension
|
Material |
Caliber |
Interface Type |
D |
L |
H |
|
Stainless Steel |
DN15 |
2-Way internal thread Gl/2 |
1/2'' |
63 |
98 |
|
DN20 |
2-Way internal thread G3/4 |
3/4'' |
66 |
105 |
|
|
DN25 |
2-Way internal thread Gl |
1'' |
89 |
115 |
|
Material |
Caliber |
Interface Type |
D |
L |
H |
|
Copper |
DN15 |
2-Way internal thread Gl/2 |
1/2'' |
60 |
101 |
|
DN20 |
2-Way internal thread G3/4 |
3/4'' |
67 |
107 |
|
|
DN25 |
2-Way internal thread Gl |
1'' |
74 |
114 |
|
|
DN32 |
2-Way internal thread Gl |
1-1/4'' |
86 |
122 |

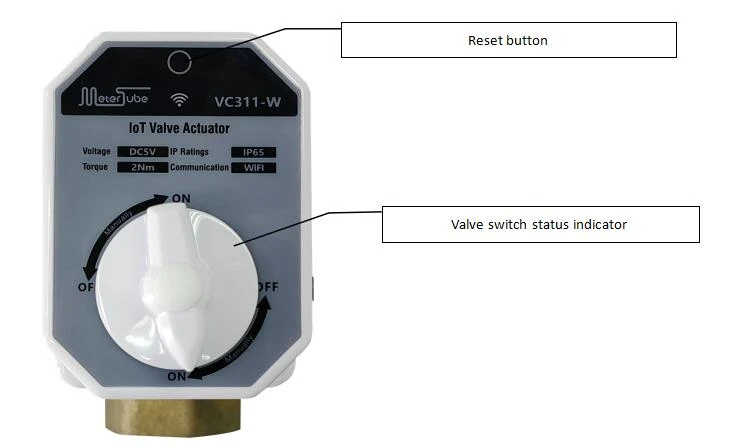

(3) Appearance
Compatible Pipe Materials
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.

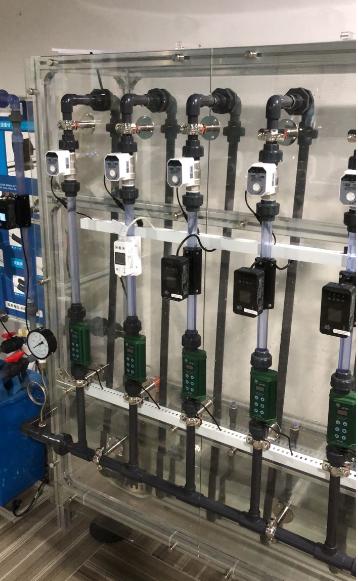

Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A:They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
