Brief Introduction
|
Power supply: |
DC5V |
Pipe size : |
DN15~DN32 |
|
Applicable Medium: |
Water |
IP Rating: |
IP65 |
|
Temperature: |
≤100°C |
||
Product Introduction
The VC311R IoT Valve Actuator is a cutting-edge solution for cultivated plants' irrigation systems. Utilizing advanced LoRa wireless communication technology and supporting the LoRaWAN protocol, it offers long-distance transmission and strong penetration capabilities. This enables farmers and gardeners to remotely control the valve actuator via cloud servers on their PCs or mobile devices, ensuring precise water management for cultivated plants.
With its timing control and valve adjustment features, the VC311R can be programmed to deliver water at specific intervals and flow rates, optimizing irrigation efficiency and conserving water resources. The manual adjustment capability allows users to make on-site fine-tuning based on real-time plant needs and weather conditions. Its IP65 rating ensures durability in outdoor environments, while the DC5V power supply and maximum power of 3W make it energy-efficient. The valve body, available in brass or stainless steel, is robust and corrosion-resistant. The VC311-R is an ideal choice for modern agricultural and horticultural practices, contributing to the sustainable growth of cultivated plants.
Product Applications
●Hotel energy metering,Lodge cooling energy metering
●Liquid cooling industry,efficient cooling, temperature control, energy saving
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Valve Body Diameter |
Copper：DN15~DN32 Stainless Steel：DN15~DN25 |
|
Applicable Medium |
Water |
|
Power Supply Voltage |
DC5V |
|
Maximum Power |
3W |
|
Output Torque |
2Nm |
|
LoRa Communication |
Support LoRaWAN communication protocol |
|
Maximum transmit power：22dBm |
|
|
Temperature：-40℃~85℃ |
|
|
LoRa Frequency Selection |
EU868 Frequency：863000000~865400000,Unit:HZ |
|
US915 Frequency：902300000~914900000,Unit: HZ |
|
|
CN779 Frequency：780100000~786500000,Unit: HZ |
|
|
EU433 Frequency：433775000~434665000,Unit: HZ |
|
|
AU915 Frequency：915200000~927800000,Unit: HZ |
|
|
CN470 Frequency：470300000~489300000,Unit: HZ |
|
|
AS923(HK) Frequency：920000000~925000000,Unit: HZ |
|
|
MeterTube App |
Available |
|
Controller Operation |
Remote control via MeterTube Mobile APP |
|
Operation Pressure |
≤1.0MPa |
|
Connection Method |
2-Way internal thread G |
|
IP Rating |
IP65 |
|
Medium Temperature |
≤100℃ |
|
Valve Body Material |
Copper, Stainless Steel |

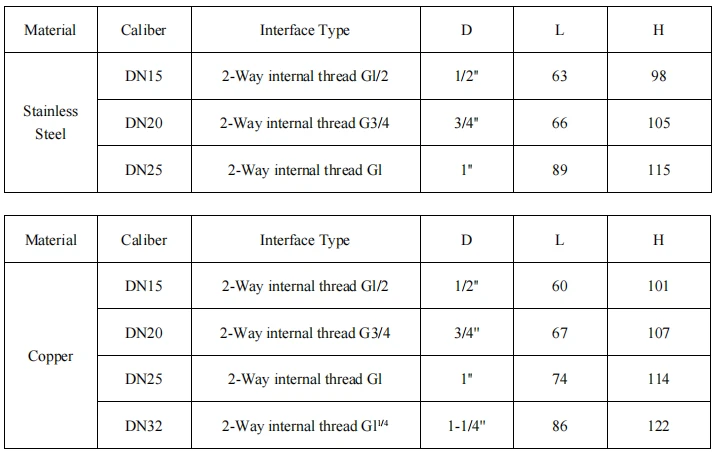

Body Parameters
*Note: H/L/D refers to valve body materials and caliber specifications, with a tolerance of ±1mm.

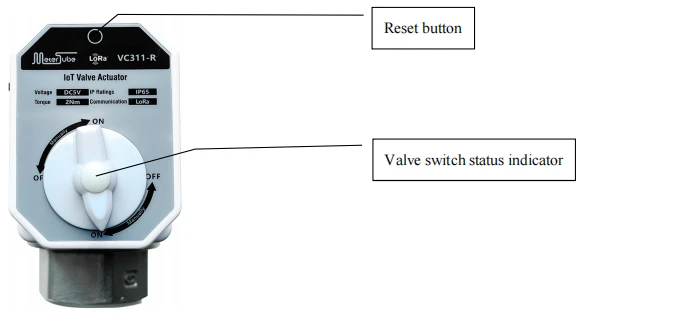

Panel Instructions
1. Double-click the reset button to change the status of the ball valve from open to closed, or from closed to open.
2. Press and hold the reset button (5 seconds), then release it; LoRa will reset, and the LoRa device will automatically connect to the gateway without needing to add the device again.
3. Please note that the rotation angle of the manual valve switch should be limited to the range indicated by the double arrows on the nameplate, which allows for only a 90° rotation. Do not exceed this range to avoid damaging the internal gear mechanism.

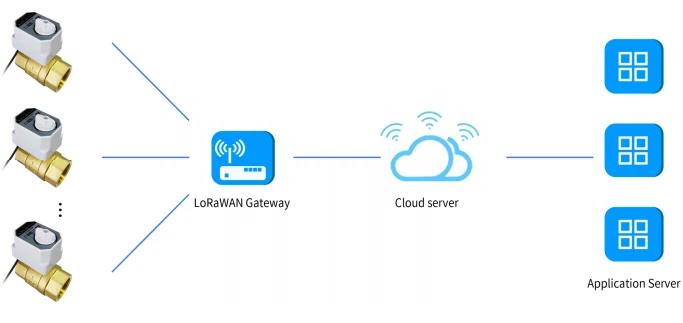

Wiring
1. IoT valve actuator is connected to DC5V power supply.
2. Users access the IoT valve actuator through the cloud server
3)Appearance
Compatible Pipe Materials
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.

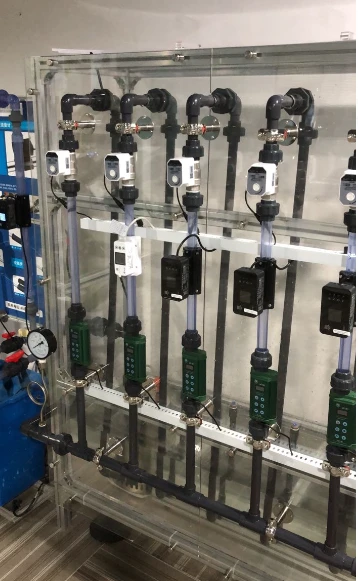

Company environment display：

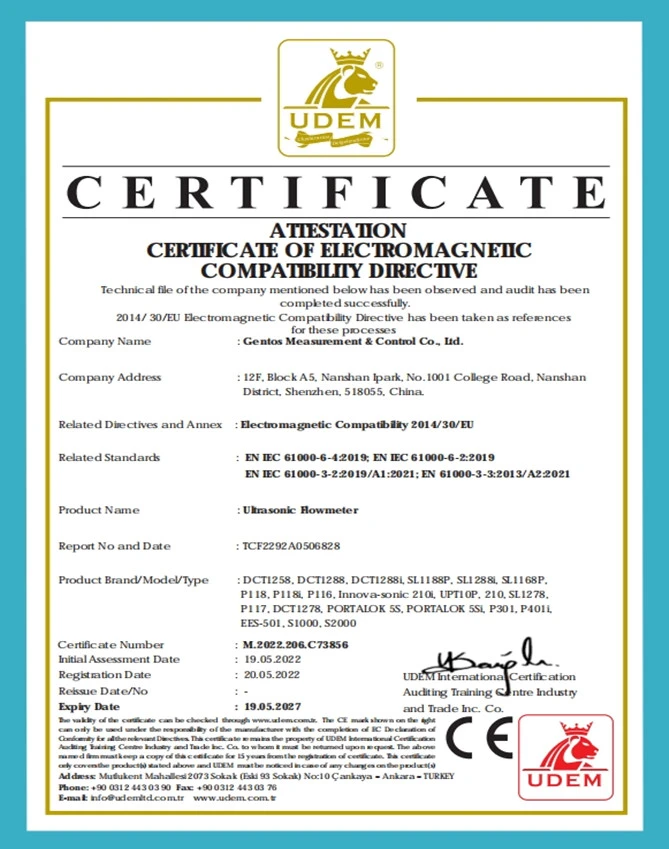

Certificate display：
Deliver, Shipping, and Serving
Direct support：
Quick response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: What is the difference between a flow meter and a water meter?
A: A flow meter is a device used to measure the rate of flow of a fluid (such as water, gas, or oil) in a pipeline or system. A water meter is a specific type of flow meter designed to measure the volume of water passing through a pipe
Q: Which type of flowmeter is used for measuring water flow?
A: The type of flow meter commonly used for measuring water flow is a water meter. Water meters are specifically designed flow meters that are calibrated to accurately measure the volume of water passing through a pipe. They are widely used by utility companies to monitor water consumption for billing purposes in residential, commercial, and industrial settings. Water meters come in various types, including mechanical (such as positive displacement and turbine meters) and electronic (such as electromagnetic and ultrasonic meters), each with its own advantages and applications.
Q: How does water flow meter work?
A: Water flow meters work by measuring the velocity of the water flow and then calculating the volume of water passing through the meter based on this velocity and the cross-sectional area of the pipe
Q: How does an inductive flow meter work?
A: Inductive flow meters work by inducing a voltage in a conductive fluid as it flows through a magnetic field. This induced voltage is then measured to determine the flow rate of the fluid passing through the meter.
Q: How do I choose a water flow meter?
A: When selecting a water flow meter, consider the following steps:Confirm the Properties of the Detection Fluid;Clarify the Purpose of Measurement;Confirm Product Specifications etc.
