Brief Introduction
|
Flow velocity: |
0~3m/s |
Valve body: |
Copper: DN15~DN32 Stainless Steel: DN15~DN25 |
|
Output Torque: |
2Nm |
IP Rating: |
IP65 |
|
Communication: |
LoRaWAN |
||
Product Introduction

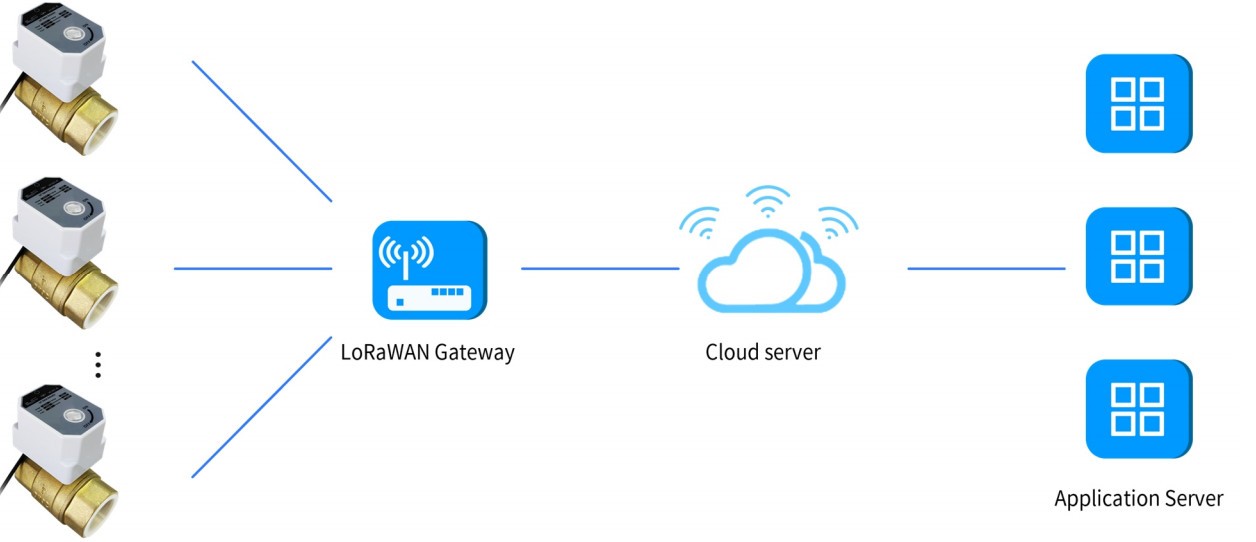

The VC301-R IoT Valve Actuator is a smart device for flow control. It uses LoRa wireless communication technology, supporting the LoRaWAN protocol, enabling long-distance transmission and strong penetration. Users can remotely control the valve via a cloud server on their PC. It offers timing control, valve adjustment, and power-off state control. Suitable for applications like household water management, farm irrigation, and building water management, it ensures efficient water system control.
Product Applications
●Butchery
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Valve Body Diameter |
Copper: DN15~DN32 Stainless Steel: DN15~DN25 |
|
Applicable Medium |
Water |
|
Power Supply Voltage |
DC5V |
|
Maximum Power |
3W |
|
Output Torque |
2Nm |
|
LoRa Communication |
Support LoRaWAN communication protocol |
|
Maximum transmit power: 22dBm |
|
|
Temperature: -40℃~85℃ |
|
|
LoRa Frequency Selection |
EU868 Frequency: 863000000~865400000,Unit: Hz |
|
US915 Frequency: 902300000~914900000,Unit: Hz |
|
|
CN779 Frequency: 780100000~786500000,Unit: Hz |
|
|
EU433 Frequency: 433775000~434665000,Unit: Hz |
|
|
AU915 Frequency: 915200000~927800000,Unit: Hz |
|
|
CN470 Frequency: 470300000~489300000,Unit: Hz |
|
|
AS923(HK) Frequency: 920000000~925000000,Unit: Hz |
|
|
Operation Pressure |
≤1.0MPa |
|
Connection Method |
2-Way internal thread G |
|
IP Rating |
IP65 |
|
Medium Temperature |
≤100℃ |
|
Valve Body Material |
Copper, Stainless Steel |
2)Body Parameters
External Dimensions
|
Material |
Caliber |
Interface Type |
D |
L |
H |
|
Stainless Steel |
DN15 |
2-Way internal thread G1/2 |
1/2'' |
63 |
86 |
|
DN20 |
2-Way internal thread G3/4 |
3/4'' |
66 |
93 |
|
|
DN25 |
2-Way internal thread Gl |
1'' |
89 |
103 |
|
Material |
Caliber |
Interface Type |
D |
L |
H |
|
Copper |
DN15 |
2-Way internal thread Gl/2 |
1/2'' |
60 |
89 |
|
DN20 |
2-Way internal thread G3/4 |
3/4'' |
67 |
95 |
|
|
DN25 |
2-Way internal thread Gl |
1'' |
74 |
102 |
|
|
DN32 |
2-Way internal thread Gl1/4 |
1-1/4'' |
86 |
110 |
Valve Body Parameter
3)Appearance
4)Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A:They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
Hot Tags: lot valve actuator for butchery, China lot valve actuator for butchery manufacturers, suppliers, factory, electronic water flow control valve, Wifi Water Valve for House, MeterTube Platform, IoT Ball Valve, inline flow control valve, Ball Valve
Product Parameter
Technical Parameters
|
Valve Body Diameter |
Copper: DN15~DN32 Stainless Steel: DN15~DN25 |
|
Applicable Medium |
Water |
|
Power Supply Voltage |
DC5V |
|
Maximum Power |
3W |
|
Output Torque |
2Nm |
|
LoRa Communication |
Support LoRaWAN communication protocol |
|
Maximum transmit power: 22dBm |
|
|
Temperature: -40℃~85℃ |
|
|
LoRa Frequency Selection |
EU868 Frequency: 863000000~865400000,Unit: Hz |
|
US915 Frequency: 902300000~914900000,Unit: Hz |
|
|
CN779 Frequency: 780100000~786500000,Unit: Hz |
|
|
EU433 Frequency: 433775000~434665000,Unit: Hz |
|
|
AU915 Frequency: 915200000~927800000,Unit: Hz |
|
|
CN470 Frequency: 470300000~489300000,Unit: Hz |
|
|
AS923(HK) Frequency: 920000000~925000000,Unit: Hz |
|
|
Operation Pressure |
≤1.0MPa |
|
Connection Method |
2-Way internal thread G |
|
IP Rating |
IP65 |
|
Medium Temperature |
≤100℃ |
|
Valve Body Material |
Copper, Stainless Steel |
