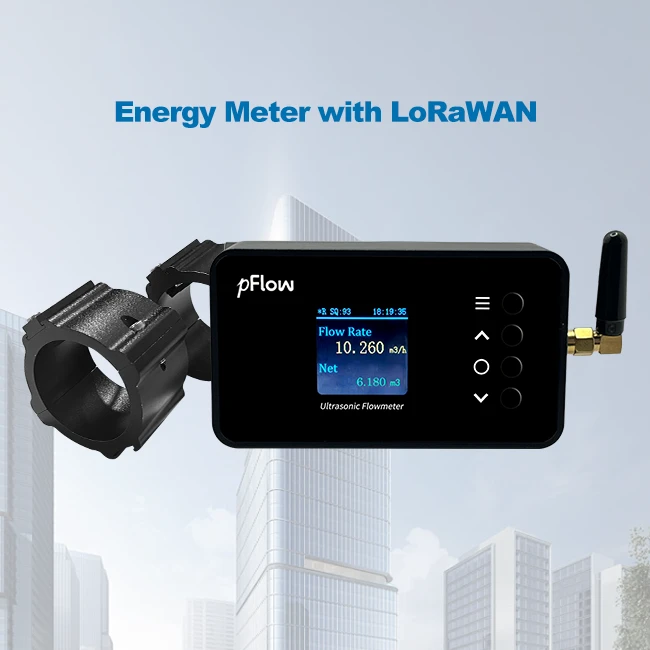

BTU Meter for Chilled Water



The extraordinary E3R btu meter in chilled water elegantly harnesses the mystical powers of LoRa communication, while also embracing the ethereal LoRaWAN communication protocol. This remarkable protocol possesses the enchanting ability to flawlessly transmit information at incredibly low frequencies, embodying simplicity and cost-efficiency. It is a divine entity, bestowing upon us the gift of ultra-remote connectivity, as it gracefully floats on the wings of low-power consumption, unwavering reliability, and affordability, spanning across diverse regions like a beacon of connectivity.



Within the magnificent realm of the E3R btu meter, the sacred principles of ultrasonic transit time measurement intertwine harmoniously, joining forces with Gentos' ingenious patented flow algorithm technology. This divine alliance allows for the embodiment of precise measurements, capturing the very essence of fluid flow within the delicate dance of the pipe. The E3R emerges as an all-encompassing marvel, adorned with the resplendent attire of a Clamp-on structure design, offering a sanctuary of simplicity and convenience during installation. With a mere four steps, one embarks upon a mesmerizing journey, devoid of any need for contact with the fluid medium, while simultaneously transcending the boundaries of flow disruption.



Unveiling its true potential, the E3R btu meter emerges as a testament to innovation and grace, embracing a universe of endless possibilities. Within its grand embrace, the realms of distant communication merge with the whisper of cost-effective connectivity, painting a brilliant tapestry of achievement. It stands as a beacon of ingenuity, a bridge between worlds, offering a glimpse into the future where technology and elegance intertwine seamlessly. Let us venture forth into this enlightened realm, where the sacred dance of measurement and connectivity unfolds in a symphony of precision and harmony.

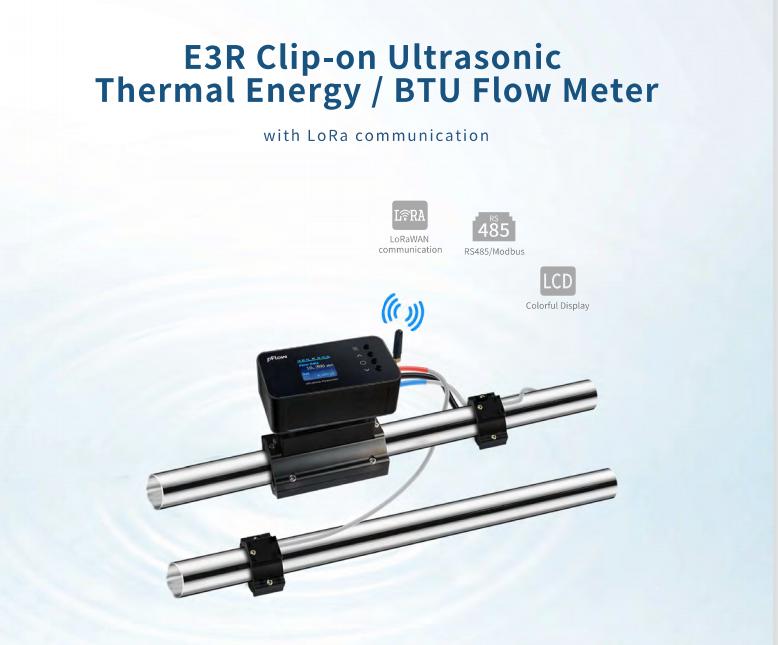

Appearance



Technical Parameters

Performance Specifications
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon steel, Stainless Steel, Copper, PVC (According to the user's model selection, the model has been determined at the time of delivery.)
Accuracy level	±2% of measured value , velocity＞0.3m/s
Temperature range	4~95℃
Temperature difference range	3~75K
Temperature resolution	0.01℃
Function Index
Input interface	2*PT1000 Clamp-on temperature sensor 0~100℃(32～212℉)
Communication interface	RS485; FUJI or MODBUS Protocol
LoRa Communication	Maximum Transmit Power: 22dBm
	Temperature：-40~85℃
	LoRaWAN communication protocol is available
LoRa Frequency selection	EU868 Frequency: 863000000~865400000, unit: HZ
	US915 Frequency: 902300000~914900000, unit: HZ
	CN779 Frequency: 780100000~786500000, unit: HZ
	EU433 Frequency: 433775000~434665000, unit: HZ
	AU915 Frequency: 915200000~927800000, unit: HZ
	CN470 Frequency: 470300000~489300000, unit: HZ
	AS923(HK) Frequency: 920000000~925000000, unit: HZ
Power supply	10～36VDC/500mA
Keyboard	4 touch keys
Display screen	1.44 " LCD colorful screen, resolution 128 * 128
Temperature	Transmitter: -10℃~50℃ Transducer: 0℃~60℃
Humidity	Relative humidity 0~99%, No condensation
IP Rating	IP54
Physical Characteristics
Transmitter	All-in-one
Transducer	Clamp-on
Cable	Ø5 Six-core cable, standard length: 2m





• Easy installation, no pipe damaging
• No adjustment, clip on to measure
• LCD color display
• 360° rotation adjustable display screen
• Long transmission distance
• Strong penetrating ability
• Low power dissipation
• Strong anti-interference ability
• No wiring
• LoRaWAN communication protocol is available





LoRa (from "long range") is a physical proprietary radio communication technique. LoRaWAN (Wide Area Network) defines the communication protocol and system architecture.

Together, LoRa and LoRaWAN define a Low Power,Wide Area(LPWA)networking protocol designed to wirelessly connect devices to the internet in regional, national or global networks, and targets key Internet of things (loT) requirements such as bi-directional communication, end-to-end security,mobility and localization services.

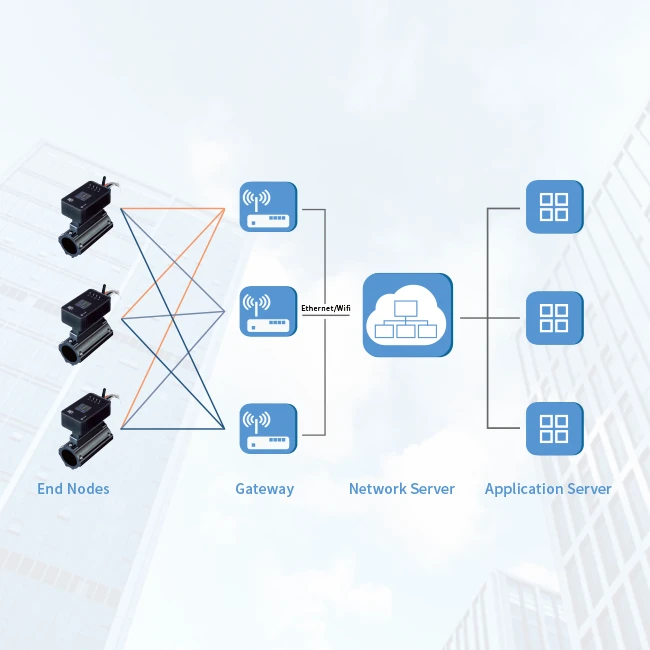

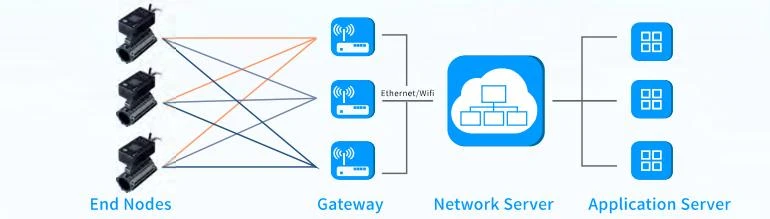

The LoRaWAN architecture contains four major components:

Ethernet/Wifi

End Nodes

Gateway

Network ServerApplication Server

In this architecture, you can see how LoRa and LoRaWAN allow wide and dense networks of edge

devices to be connected. This allows you to capture and monitor data from thousands of nodes in a manageable way.







The chilled water industry, as an indispensable part of modern industry, puts forward higher requirements for the accuracy and reliability of flow measurement. As an advanced measurement technology, ultrasonic flow meters are increasingly widely used in the chilled water industry.



Btu meter use advanced sonic technology to accurately measure the flow rate and flow rate of fluids. In the chilled water industry, this high-precision measurement capability is critical, not only providing accurate flow data but also helping the industry achieve effective management and optimized operations. Through the application of ultrasonic flow meters, chilled water systems can better monitor and control flow, thereby improving production efficiency and reducing energy consumption.



The application of btu meter also has great flexibility and adaptability. Regardless of the difference in pipeline materials or the diversity of liquid media, ultrasonic flowmeters are capable of measuring all types of pipelines and liquid media. This enables flow measurement in the chilled water industry, no matter what kind of pipes and media are involved, to be completed with the help of ultrasonic flow meters. In addition, ultrasonic flow meters are relatively easy to install and operate and have a relatively long service life, making them ideal for flow measurement in the chilled water industry.



Btu meter in chilled water system also have the function of monitoring bubbles and impurities in pipelines. It can monitor bubbles and impurities in the pipeline in real time and perform precise calibration through real-time data. This function can greatly improve the accuracy and stability of the flow meter and ensure the reliability of flow measurement.



In short, as an important tool in the modern chilled water industry, ultrasonic flowmeters provide excellent solutions for flow measurement in the chilled water industry with their accuracy, reliability, flexibility and ease of use. It not only improves the accuracy and stability of flow measurement, but also brings higher operating efficiency and energy savings to the industry. With the development of the chilled water industry, ultrasonic flow meters will play an increasingly important role and provide strong support for the further development of the industry.





Gentos has garnered a distinguished stature through its unwavering commitment to crafting exquisite ultrasonic flow meters revered for their uncompromising quality and accessible pricing for a remarkable span of three decades.

In the captivating voyage of conceiving innovative solutions, we ardently seek the priceless wisdom of our esteemed clientele, cherishing their indelible contributions that have played an instrumental role in our momentous journey.

This harmonious alliance has propelled Gentos to carve out a distinctive niche in the industry, seamlessly intertwining reliability with efficiency.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





In its unwavering pursuit of customer satisfaction, Gentos has established a swift delivery system, ensuring timely product delivery. With utmost efficiency, Gentos expedites order processing and swift product dispatch, aspiring to complete the delivery process within a commendable 2 to 3-day timeframe. Offering an expansive selection of transportation and express delivery options, Gentos strives to go above and beyond in catering to customer needs.





Q: What is the role of ultrasonic flow meters in the chilled water industry?

A: Ultrasonic flow meters play a critical role in accurately measuring the flow rates of chilled water in the industry. They provide non-intrusive and accurate measurements without disrupting the flow or being affected by the composition or temperature of the water. This helps ensure efficient operation and energy management in chilled water systems.



Q: What are the advantages of using ultrasonic flow meters in the chilled water industry?

A: Ultrasonic flow meters offer several advantages in the chilled water industry. They provide high accuracy and reliability, can handle a wide range of flow rates, and work with various fluids. Additionally, their installation is non-intrusive, causing minimal pressure drop in the system. They are also low-maintenance and can be easily integrated into control systems for precise flow control.



Q: How do ultrasonic flow meters contribute to energy efficiency in chilled water systems?

A: Ultrasonic flow meters help optimize energy efficiency in chilled water systems by accurately measuring and monitoring flow rates. This information enables operators to ensure that the appropriate amount of chilled water is supplied to meet cooling demands, minimizing wastage and reducing energy consumption. Proper flow control based on the data from ultrasonic flow meters helps prevent oversupply or undersupply of chilled water, leading to optimal energy management.



Q: Can ultrasonic flow meters detect leaks in chilled water systems?

A: Yes, ultrasonic flow meters can detect leaks in chilled water systems. By continuously monitoring flow rates, ultrasonic flow meters can detect abnormalities or variations in the flow pattern indicative of leaks. Early detection of leaks enables prompt repairs, preventing water wastage and potential damage to the system.



Q: What are the installation considerations for ultrasonic flow meters in chilled water systems?

A: When installing ultrasonic flow meters in chilled water systems, it is important to consider factors such as the location of the meter, ensuring it is installed in straight pipe runs away from disturbances. Proper sizing based on the pipe diameter and material is crucial for accurate measurements. Calibration, accessibility for maintenance, and integration with monitoring systems should also be considered during installation. Following these considerations ensures optimal performance and reliable measurements from ultrasonic flow meters in chilled water systems.
