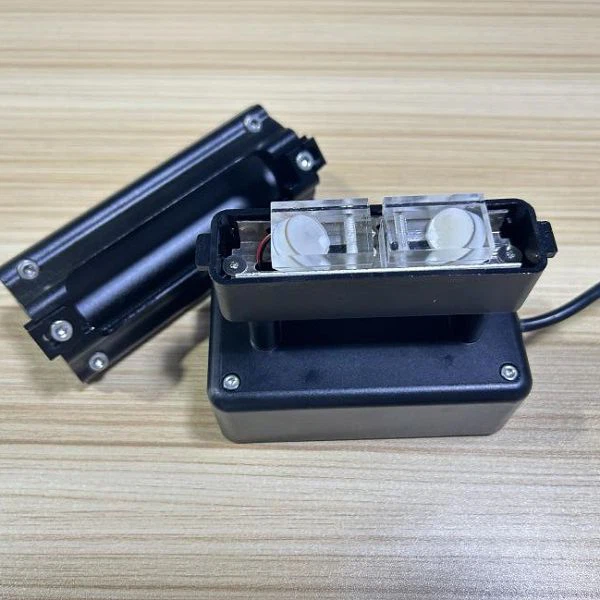

Ultrasonic Water Meter



The ultrasonic water meter F3CL measures fluid flow in the pipeline accurately by using the ultrasonic transit-time method's measuring principle, R&D, to tiny pipes ranging in size from DN20 to DN80. The device has an integrated clamp-on construction that makes installation easy and convenient. It requires four stages of operation before it can be measured and activated. There is no need to interrupt production or come into touch with the fluid medium during the installation procedure.





1)Body Parameters

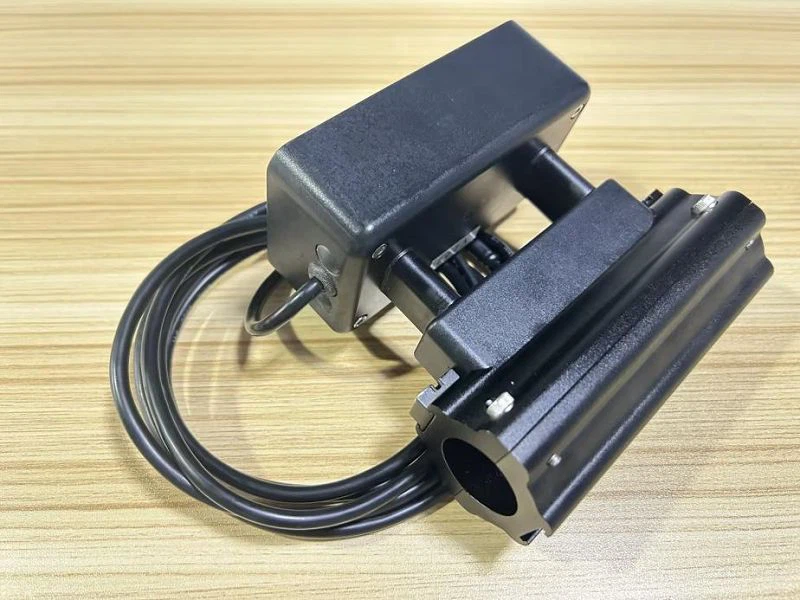

2)Appearance



3)Technical Parameters

Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Functional Index
Communication Protocol	RS485(standard), Support FUJI Protocol and MODBUS Protocol
Power supply	10～36VDC/500mA
Key	4 keys
Display screen	1.44 "LCD color screen, resolution 128 * 128
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Integrated
Transducer	Clamp on
Network Cable	φ5 six core cable, standard length: 2m









For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: How does an ultrasonic water meter work?

A1: Ultrasonic water meters use sound waves transmitted through water pipes. They calculate flow by measuring the time it takes for signals to travel upstream and downstream.



Q2: Which technology is used in ultrasonic water meters?

A2: Ultrasonic water meters typically employ the technology of ultrasonic transducers to measure water flow rates by emitting and detecting ultrasonic waves through the flowing water.



Q3: What water is best for ultrasonic?

A3:Ultrasonic water meters perform optimally with clean, homogeneous water free from air bubbles or contaminants. Low turbidity and consistent temperature contribute to accurate ultrasonic measurements.



Q4:What are the benefits of ultrasonic water meter?

A4:Ultrasonic water meters offer several benefits including high accuracy, low maintenance requirements, no moving parts reducing wear, compatibility with various pipe materials, and the ability to measure bi-directional flow.



Q5: How do I choose an ultrasonic flow meter?

A5: When choosing an ultrasonic flow meter, consider factors like the application (liquid type, flow rate range), accuracy requirements, installation conditions, compatibility with existing systems, maintenance needs, and budget constraints. Additionally, verify the reputation and reliability of the manufacturer and ensure that the chosen meter meets relevant industry standards and certifications. Consulting with a knowledgeable supplier or engineer can also be helpful in making an informed decision.
