Brief Introduction
|
Accuracy: |
±2.0% |
Pipe size : |
DN20~DN80 |
|
|
Output: |
RS485,LoRaWAN |
IP Rating: |
IP54 transducer |
|
|
Temperature: |
0~60℃ |
|||
Product Introduction

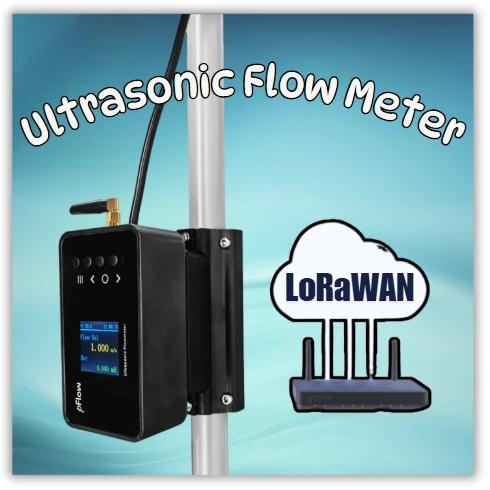

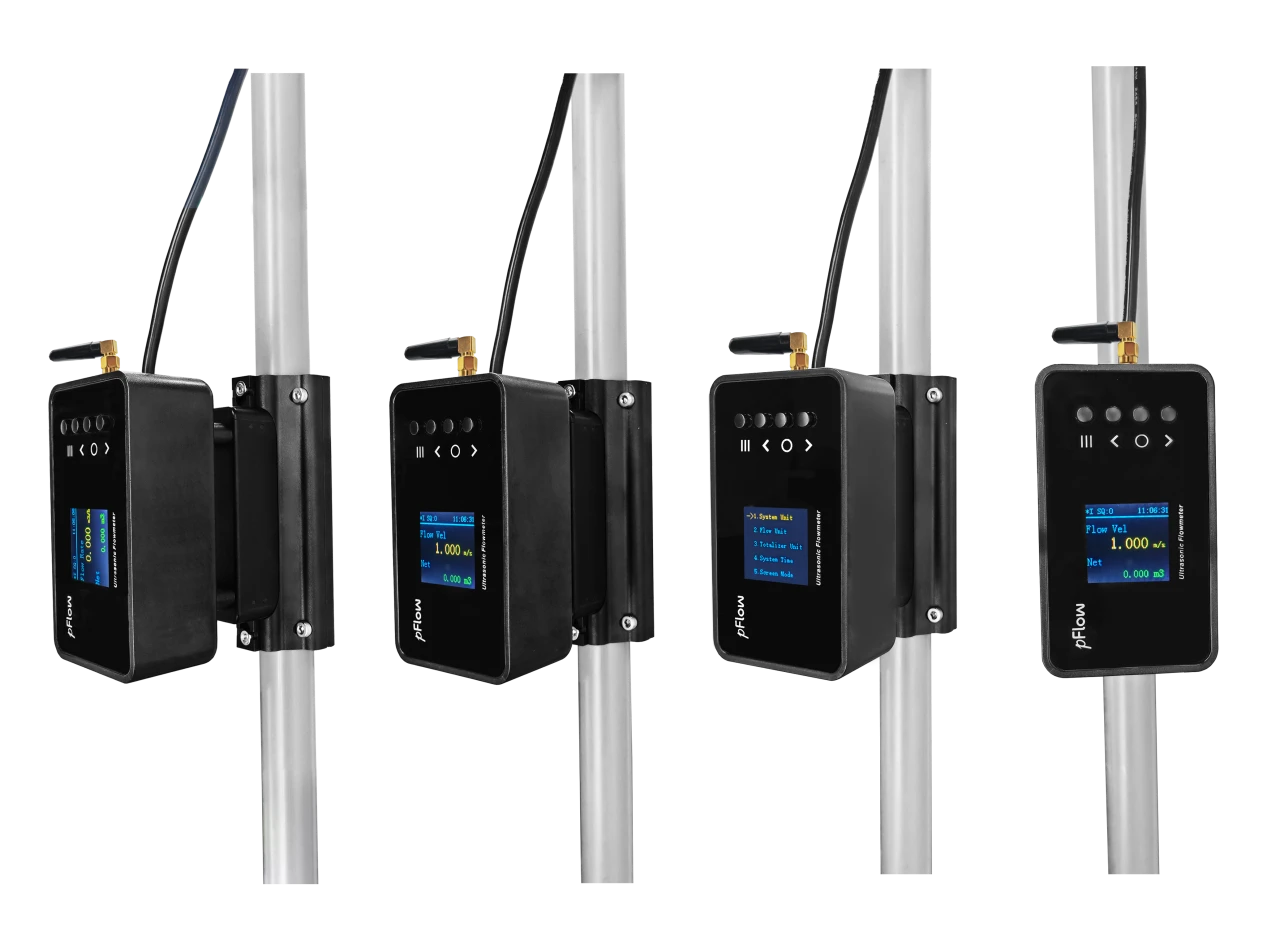

The F3R Clamp-on Ultrasonic Flowmeter is specifically designed to meet the unique challenges of water distribution systems. It offers precise flow measurement with an integrated LoRaWAN communication protocol, enabling seamless integration with IoT platforms for real-time data transmission and remote monitoring. This feature is particularly beneficial for water distribution networks, where real-time data access and analysis are crucial for efficient management and optimization. The F3R's wide flow velocity range and high accuracy ensure reliable performance, while its robust design and low power consumption make it a durable and cost-effective solution for long-term use in water distribution applications.
Product Applications
|
|

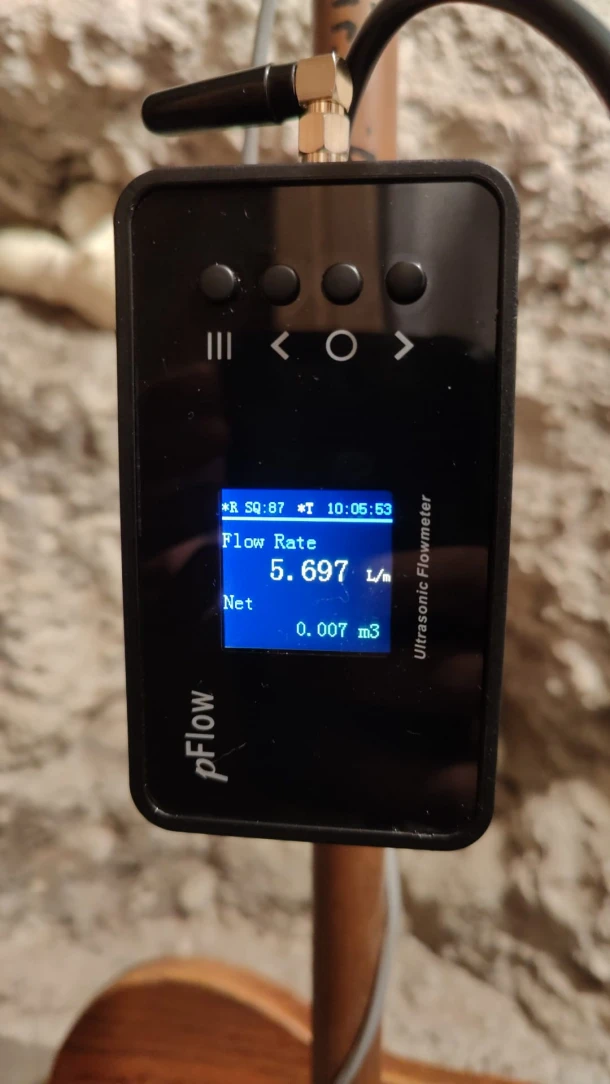

Application: F3R in building water system Pipe material: Copper Pipe size: DN20 Liquid: Water |
●Water distribution
●Hotel temperature metering, Lodge cooling energy metering
●Liquid cooling industry,efficient cooling, temperature control, energy saving
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow Velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2% of measured value (velocity > 0.3m/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
DN20~DN80 |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.) |
|
Functional Index |
|
|
Communication Interface |
RS485; FUJI or MODBUS Protocol, LoRa Communication |
|
LoRa Frequency Selection |
EU868: 863000000~865400000 Hz US915: 902300000~914900000 Hz CN779: 780100000~786500000 Hz EU433: 433775000~434665000 Hz AU915: 915200000~927800000 Hz CN470: 470300000~489300000 Hz AS923(HK): 920000000~925000000 Hz |
|
Power Supply |
10~36VDC/500mA |
|
Keyboard |
4 keys |
|
Display Screen |
1.44" LCD color display, resolution 128*128 |
|
Temperature Range |
Transmitter: -10℃~50℃ Transducer: 0℃~60℃ |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP Rating |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Cable |
Ø5 Six-core cable, standard length: 2m |
2)Body Parameters
|
Pipe Diameter Comparison Table Unit:mm |
|||||||
|
Model |
Nominal Inner Diameter of Pipe |
W |
W1 |
L |
L1 |
H |
Ø |
|
F3R |
DN20 |
60 |
51 |
105 |
118 |
121 |
29 |
|
DN25 |
60 |
56 |
105 |
118 |
128 |
36 |
|
|
DN32 |
60 |
63 |
105 |
118 |
135 |
43 |
|
|
DN40 |
60 |
74 |
105 |
118 |
146 |
54 |
|
|
DN50 |
60 |
89 |
105 |
153 |
159 |
67 |
|
|
DN65 |
60 |
102 |
105 |
153 |
172 |
80 |
|
|
DN80 |
60 |
113 |
105 |
153 |
183 |
91 |
|
|
Function |
Identifier |
Color |
|
10~36VDC power supply |
+ |
Brown |
|
- |
Black |
|
|
RS485 |
A |
Green |
|
B |
White |
|
|
None |
+ |
Red |
|
- |
Yellow |

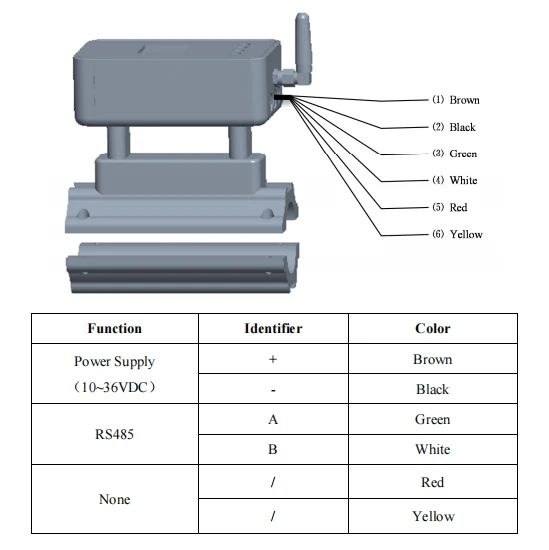

Wiring

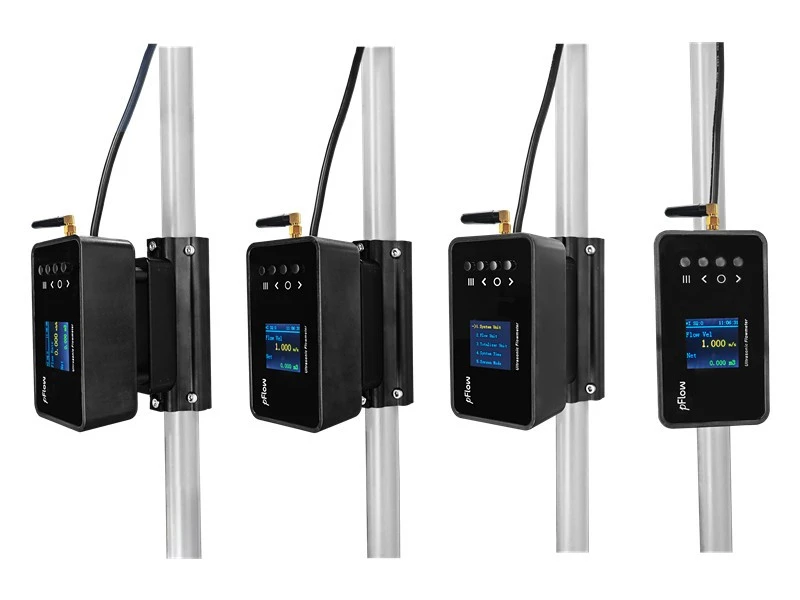

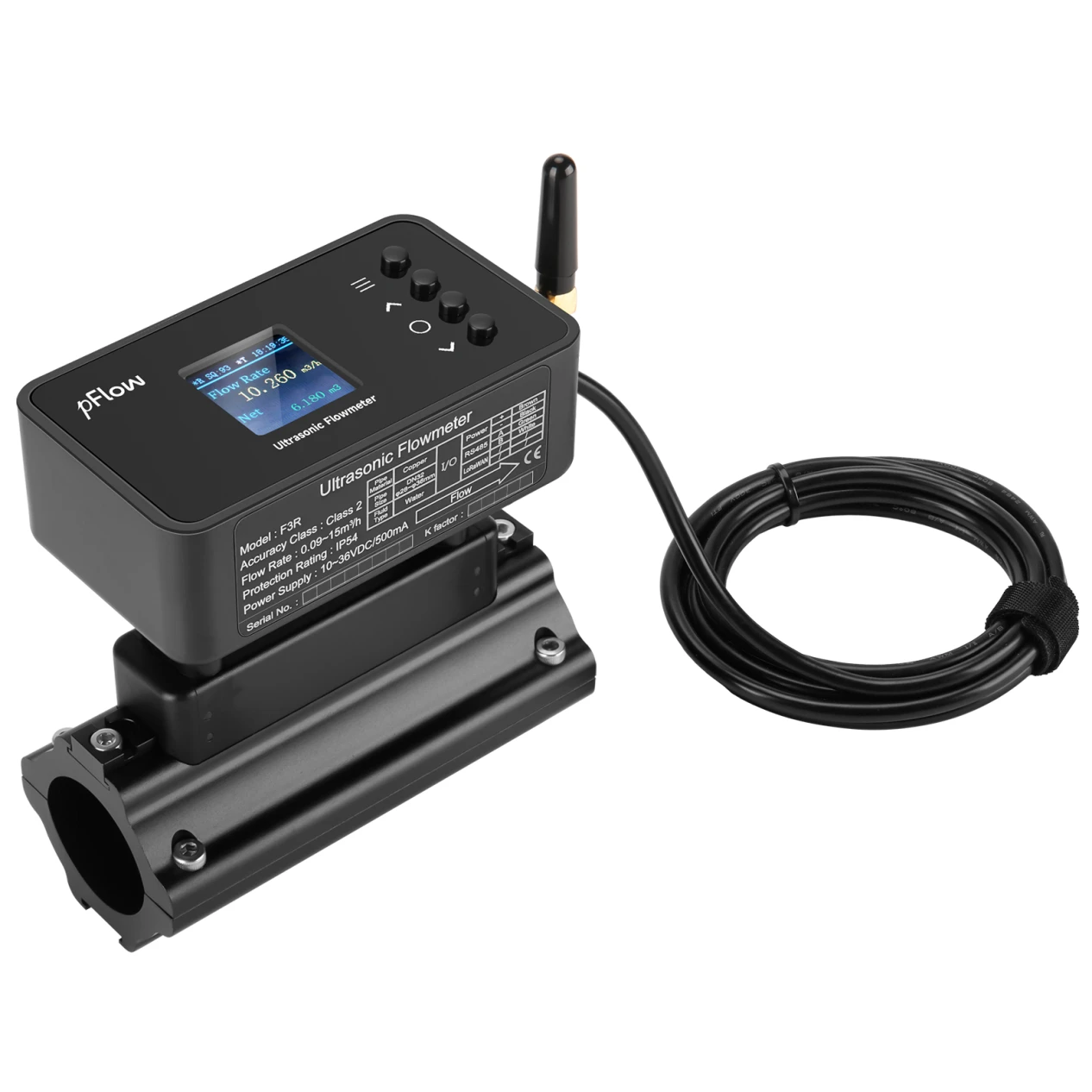

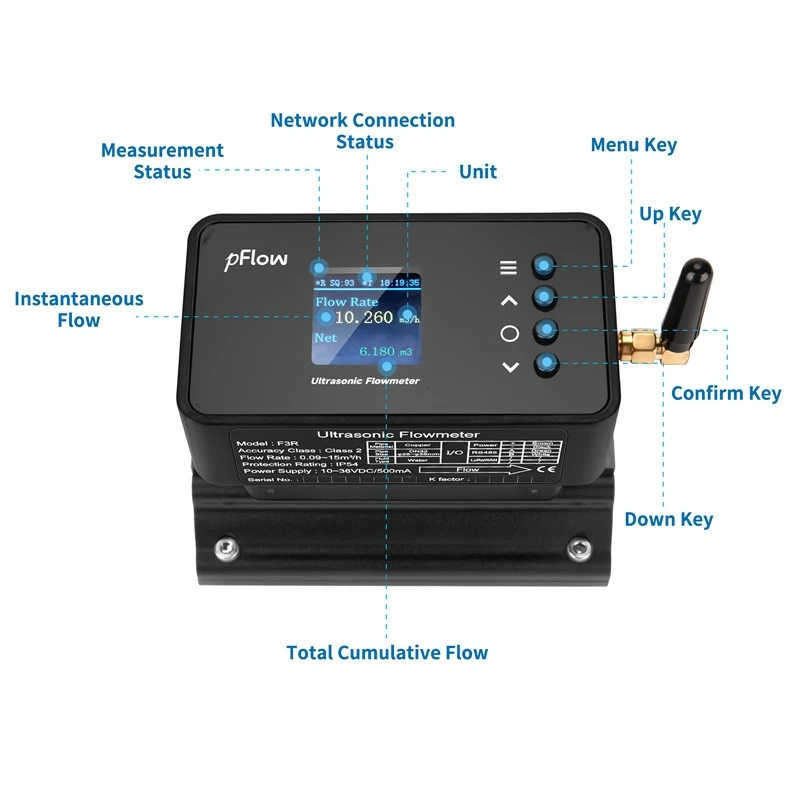

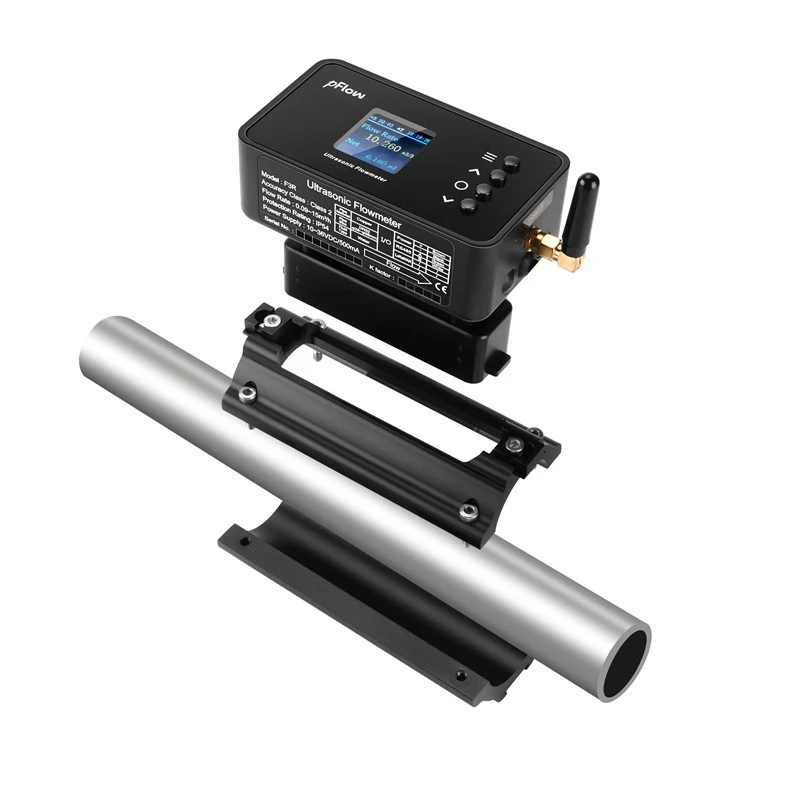

3)Appearance

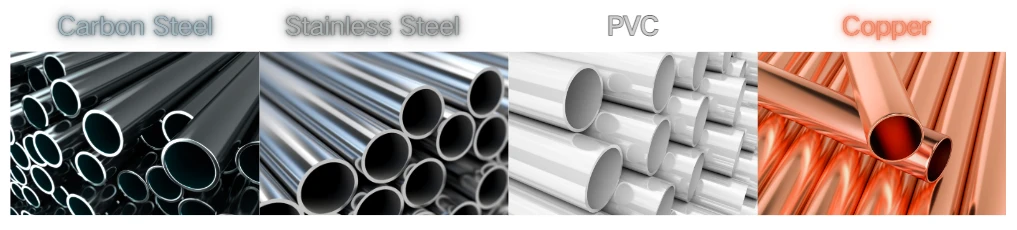

4)Professional Measure Single Material
5)Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: How does the LoRaWAN feature in the F3R Ultrasonic Flowmeter benefit water distribution networks?
A: The LoRaWAN feature in the F3R Ultrasonic Flowmeter enables real-time data transmission over long distances with low power consumption. This capability is crucial for water distribution networks, allowing for continuous monitoring and efficient management of water flow and usage.
Q: Can the F3R Ultrasonic Flowmeter transmit data directly to a central monitoring system using LoRaWAN?
A: Yes, the F3R Ultrasonic Flowmeter can transmit data directly to a central monitoring system using LoRaWAN. This allows for seamless integration with existing IoT platforms, enabling remote monitoring and analysis of water distribution systems without the need for manual data collection.
Q: What is the range of LoRaWAN communication in the F3R Ultrasonic Flowmeter?
A: The F3R Ultrasonic Flowmeter supports LoRaWAN communication over significant distances, typically up to several kilometers in urban environments and even further in rural areas. This extensive range ensures reliable data transmission across large water distribution networks.
Q: How does LoRaWAN contribute to the energy efficiency of the F3R Ultrasonic Flowmeter?
A: LoRaWAN is designed for low-power communication, which significantly reduces the energy consumption of the F3R Ultrasonic Flowmeter. This feature is particularly beneficial for water distribution systems, where long battery life and minimal power requirements are essential for continuous operation.
Q: Can the F3R Ultrasonic Flowmeter be easily integrated into existing water distribution systems using LoRaWAN?
A: Yes, the F3R Ultrasonic Flowmeter can be easily integrated into existing water distribution systems. Its clamp-on design allows for non-invasive installation without the need to cut or modify existing pipelines, and its LoRaWAN communication protocol ensures seamless data integration with central monitoring systems.
