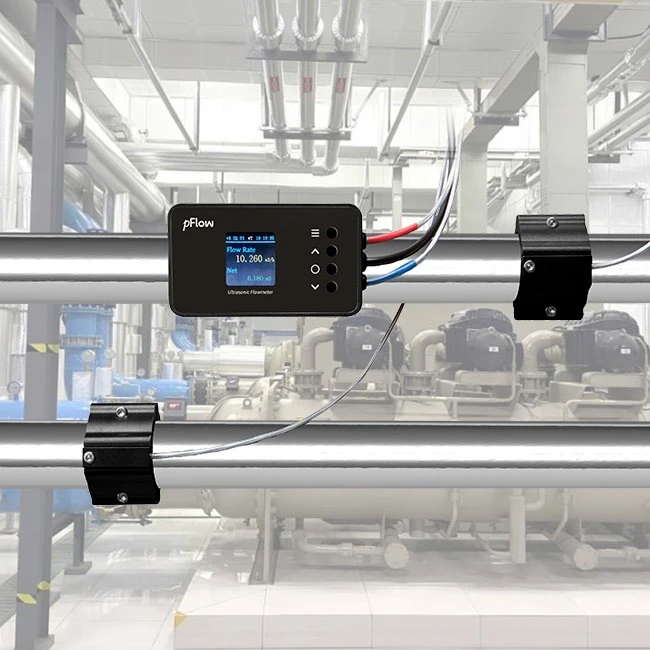

With the use of Gentos' unique flow algorithm technology and the ultrasonic transit time measurement technique, the Ultrasonic Thermal Energy/BTU Air Conditioner Flowmeter E3CL achieves precise measurement of the fluid flow in the pipe. Our extensive experience in the HVAC sector over many years of measurement and servicing allows us to satisfy the installation and measurement demands of a wide range of scenarios. The product has an easy-to-install clip-on structural design that is all-in-one. There are always just four steps required. There is no need to shut down during the installation procedure or come into touch with fluid media.
Product Parameter
Body Parameters
Technical Parameters
|
Performance Index |
|
|
Flow velocity |
0.03m/s ~5.0m/s |
|
Accuracy |
±2%,(0.3m/s ~5m/s) |
|
Repeatability |
0.4% |
|
Medium |
Water |
|

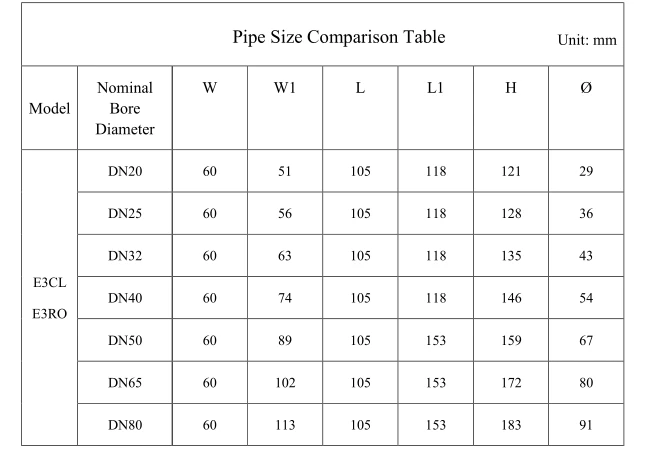

Pipe Size |
DN20 to DN80 |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.) |
|
Functional Index |
|
|
Communication Interface Input Interface |
RS485, Support FUJI Protocol and MODBUS Protocol 2*PT1000 Clamp-on temperature sensor. 32～212℉ (0~100℃) |
|
Output |
4-20mA |
|
Power supply |
10～36VDC/500mA |
|
Keypad |
4 touch keys |
|
Display screen |
1.44 " LCD colorful screen, resolution 128 * 128 |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Temperature |
Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ ) Transducer: 32℉ to 140℉ ( 0℃ ~ 60℃ ) |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Network Cable |
φ5 six core cable, standard length: 2m |

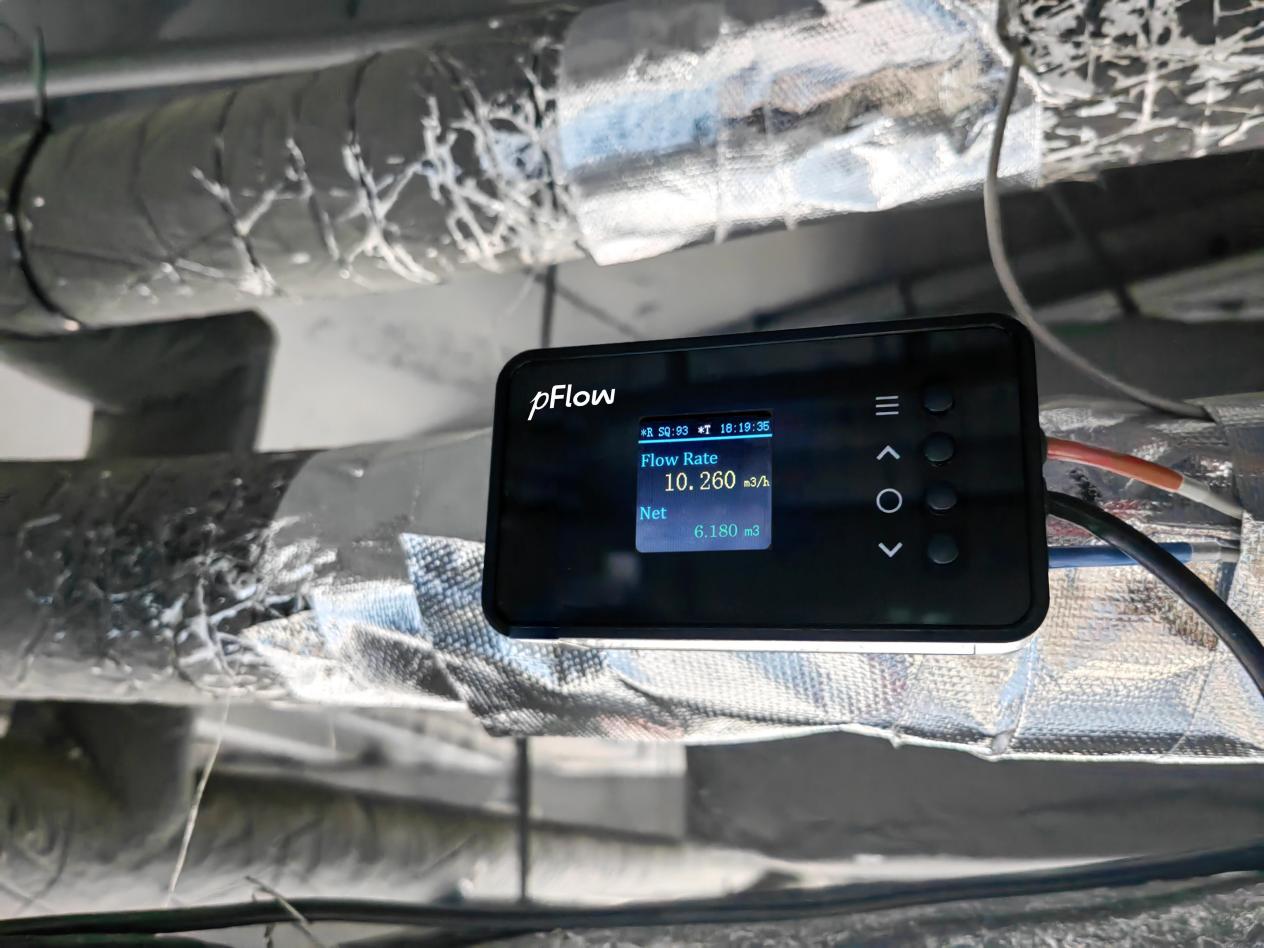

Product Applications
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Quick Response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
1. Q: What is an air conditioner flowmeter?
A: A device measuring cold and heat water flow and energy in air conditioners.
2. Q: How does an air conditioner flowmeter work?
A: It monitors and measures water volume, speed and energy.
3. Q: Why is a flowmeter important in air conditioners?
A: It ensures efficient airflow and system performance.
4. Q: Can a flowmeter detect flow issues?
A: Yes, it helps identify blockages or leaks.
5. Q: How do you install an air conditioner flowmeter?
A: Follow the manufacturer's installation instructions.
