Irrigation Flow Meter



By applying the measurement concept of the ultrasonic transit-time technique, R&D, to small pipes with diameters ranging from DN20 to DN80, the irrigation flow meter F3RO precisely monitors fluid flow in the pipeline. Installation is simple and convenient, thanks to the device's integrated clamp-on structure. Before it can be measured and turned on, it only needs to go through four stages of operation. Neither production interruptions nor contact with the fluid medium are required throughout the installation process.





1)Body Parameters

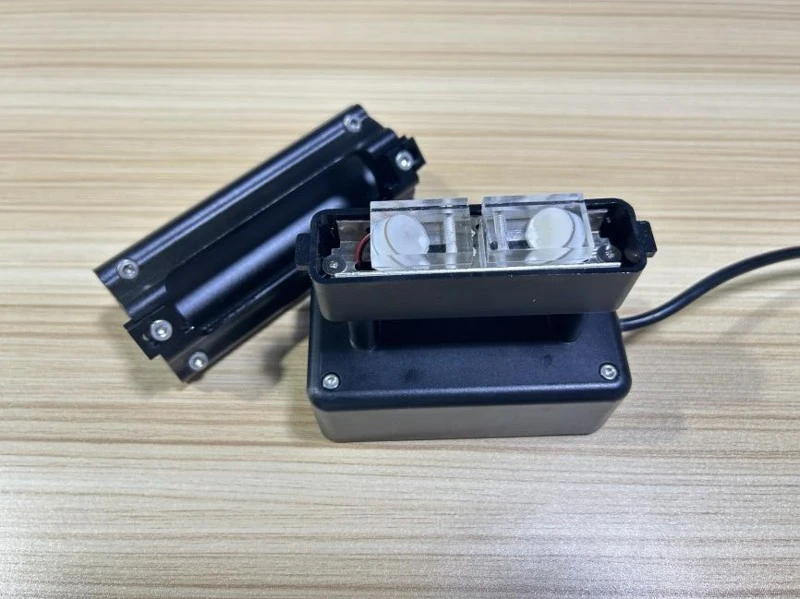

2)Appearance





3)Technical Parameters

Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Functional Index
Communication Protocol	OCT Pulse & Relay, RS485(standard) Support FUJI Protocol and MODBUS Protocol
Power supply	10～36VDC/500mA
Key	4 keys
Display screen	1.44 "LCD color screen, resolution 128 * 128
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Integrated
Transducer	Clamp on
Network Cable	φ5 six core cable, standard length: 2m









For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: How does an irrigation flow meter work?

A1: An irrigation flow meter measures water passing through pipes by various methods like mechanical turbine, ultrasonic, or electromagnetic sensors, providing data crucial for efficient water management in agriculture.



Q2: How do you measure irrigation flow?

A2: Irrigation flow can be measured using flow meters, weirs, flumes, pressure differential devices, water level sensors, or flow timing methods, depending on system characteristics and accuracy requirements.



Q3: What is the difference between a flow meter and a flow sensor?

A3:A flow meter measures fluid flow rate continuously with various mechanisms. A flow sensor detects fluid flow presence or measures flow rate, often used for simpler applications.



Q4:How do I know if my flow meter is bad?

A4:To check if your flow meter is malfunctioning: inspect for damage, verify correct installation, calibration, check for blockages, compare readings with known flow rates, monitor consistency over time.



Q5: What is the function of flow meter?

A5: A flow meter measures the rate of fluid flow in a pipeline or system. It provides accurate data for monitoring, controlling, and optimizing processes in various industries.
