Brief Introduction
Portable Ultrasonic Flowmeter
Installation method: Handheld
8G SD card high memory data logging,
maximum memorize 512 days data.
Flow Range: ±0.03 ft/s ~ ±40 ft/s (±0.01 m/s~ ±12 m/s)
Accuracy: ±0.5%
Repeatability: 0.1%
Output: 4-20mA
Internal lithium power supply: 10hours
Pipe size range: 0.6″~48″(15mm~6000mm)
Transducer: IP54, CP magnet portable transducer, 5m cable
Product Introduction

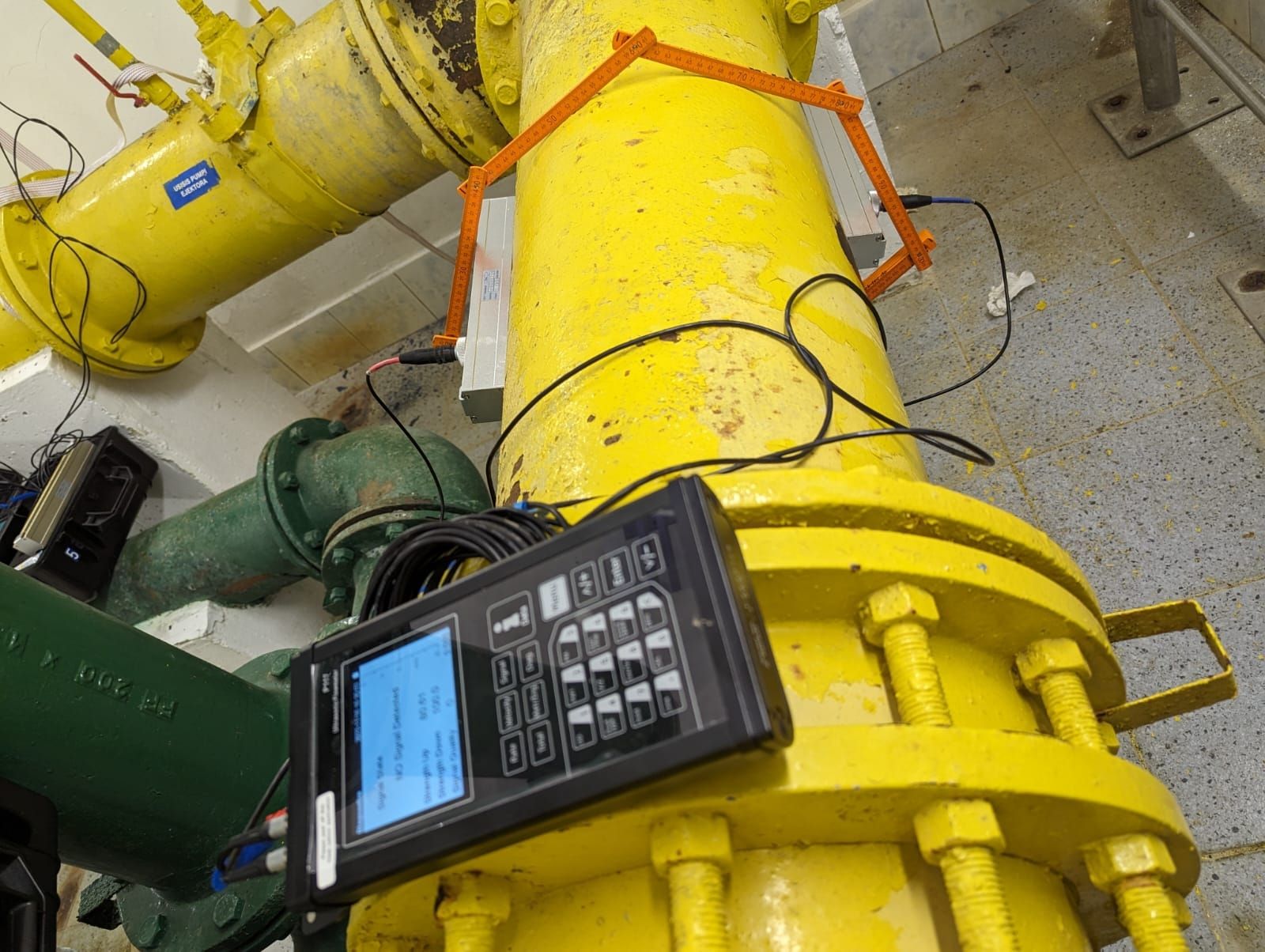

The P118i Comprehensive Flow Control Flow Meter enables users to perform flow measurement checks at multiple points during the flow process. Flow measurement checks without permanent installation.
This ultrasonic flow meter uses Gentos' unique PICOFLY time measurement technology with a resolution of up to 10 picoseconds (0.01 nanoseconds). It realizes high-response, high-precision ultrasonic measurement technology and applications.
Product Parameter
1) Body Parameters

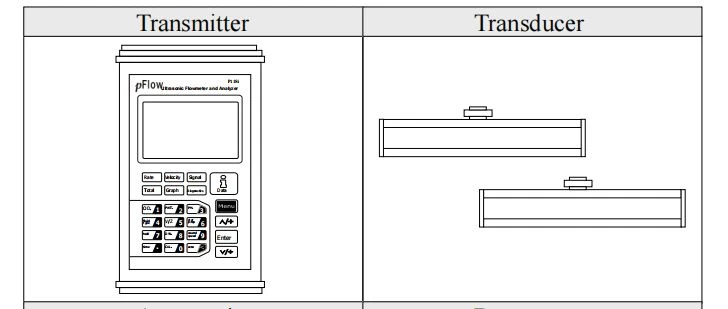

2) Appearance
3)Technical Parameters
|
Performance Index |
|
|
Flow range |
±(0.03 ~ 40) ft/s ± (0.01 ~ 12) m/s |
|
Accuracy |
± 0.5% of measured value. 1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s (0.5 m/s～12 m/s or -0.5 m/s～-12 m/s) |
|
Repeatability |
0.15% |
|
Pipe Size |
0.6" ~ 240" (DN15 ~ DN6000) |
|
Function Specifications |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ); Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ); Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
SD Card |
Storage: 8GB (To prevail in kind); Max: 512 files; Interval: 1 ~ 60 seconds |
|
Power Supply |
rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ) |
|
Keypad |
Tactile Keys |
|
Display |
3.5 inch TFT color screen( 320 ×240 ), backlit LCD |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃～50℃) Transducer: -40°F to 176°F (-40℃～80℃,standard) |
|
Humidity |
0 ~ 99% RH, non-condensing |
|
Physical Characteristics |
|
|
Transmitter |
NEMA13 ( IP54 ) |
|
Transducer |
Encapsulated design, IP68 Standard cable length: 5m |
|
Weight |
Transmitter: 1kg |
Product Applications
P118i Comprehensive Flow Control Flow Meter can be widely used in saving-energy, air-conditioning, building automation system, data central, energy audit, HVAC, etc.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: Can P118i Comprehensive Flow Control Flow Meter track water usage?
A1: Yes!It's the ultimate smart water meter designed to transform the way you use water and your budget. Use this water meter to conveniently monitor and track water usage and detect water leaks in real time!
Q2:How does an P118i Comprehensive Flow Control Flow Meter work?
A2:P118i Comprehensive Flow Control Flow Meter calculate flow rate and volume by sending ultrasonic pulses into the fluid and measuring how long it takes for the detector to receive these pulses.
Q3: What are the advantages of P118i Comprehensive Flow Control Flow Meter?
A3:Advantages include non-invasive measurement, high accuracy, not easily affected by fluid properties, suitable for various fluids, low maintenance requirements, etc.
Q4:What application fields are P118i Comprehensive Flow Control Flow Meter suitable for?
A4:P118i Comprehensive Flow Control Flow Meter are widely used in flow monitoring and control in water treatment, chemical industry, petrochemical industry, food and beverage, pharmaceutical and other fields.
Q5: What are the installation and maintenance precautions for P118i Comprehensive Flow Control Flow Meter?
A5: During installation, attention should be paid to the direction of fluid flow, requirements for straight pipeline sections, etc.; during maintenance, equipment should be regularly calibrated and sensors cleaned to ensure normal operation of the equipment.
