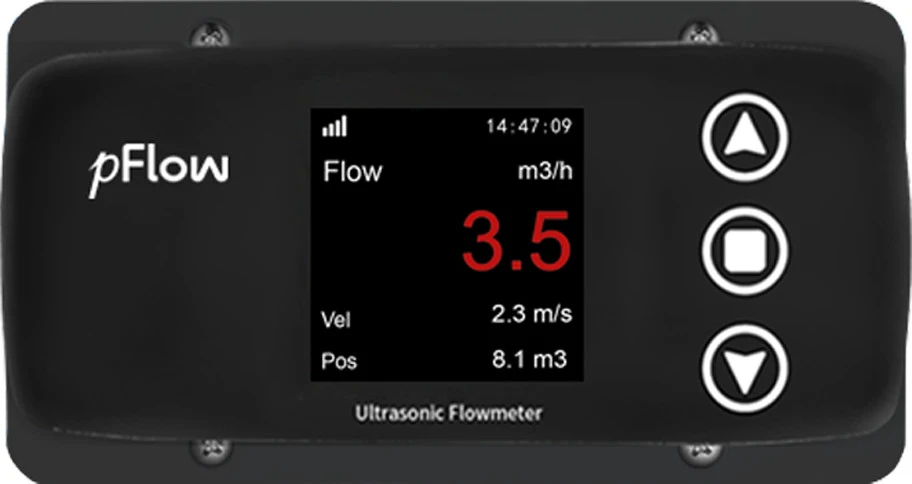

Ultrasonic Flowmeter Wire Once, Use Forever
video
Ultrasonic Flowmeter Wire Once, Use Forever

Ultrasonic Flowmeter Wire Once, Use Forever

Model : GFCL(Black type)
Brand : pFlow
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 3-5 working days
Payment Terms: T/T,Cash

Brief Introduction



Accuracy:

±2.0%

Pipe size :

DN15~DN50

(18.5mm ~63.5mm)

Outputs:

RS485, 4~20mA

Keypad:

3 touch keys

Flow Range:

0.03~5.0m/s



Product Introduction



The GFCL Ultrasonic Flowmeter is designed with the "Wire once, Use forever" philosophy in mind, making it an ideal solution for applications where long-term reliability and minimal maintenance are essential. Its non-invasive clamp-on design allows for quick and easy installation without the need to cut or modify existing pipelines, ensuring minimal disruption to your operations. The GFCL flowmeter is equipped with an intuitive interface and robust construction, ensuring accurate and consistent flow measurements over its operational lifetime. Once installed, it requires no further adjustments, providing a set-it-and-forget-it solution that saves time and reduces maintenance costs. With its user-friendly setup and reliable performance, the GFCL Ultrasonic Flowmeter is the perfect choice for applications that demand high accuracy and long-term stability.



Product Applications

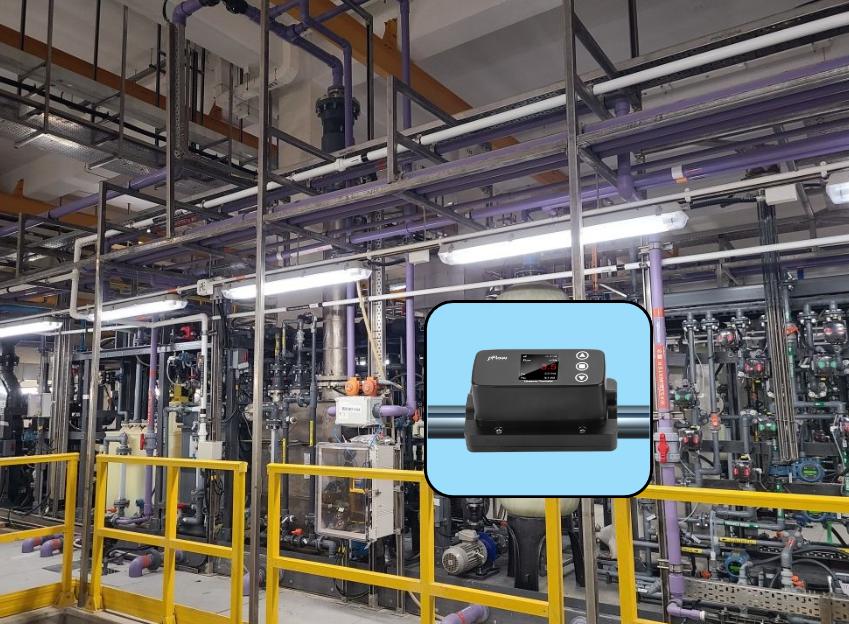

1



●Water distribution

●Hotel temperature metering, Lodge cooling energy metering

●Liquid cooling industry,efficient cooling, temperature control, energy saving

●Water and wastewater management

●HVAC (Heating, Ventilation, and Air Conditioning) systems

●Process industries (chemical, pharmaceutical, food and beverage)

●Energy management and environmental monitoring

●Agriculture and irrigation systems

●Research and development

●Facilities management

●Industrial maintenance and troubleshooting

●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.



Product Parameter



1)Technical Parameters

Performance Index

Flow Velocity

0.03~5.0m/s

Accuracy

±2%,(0.3m/s ~5m/s)

Repeatability

0.4%

Pipe Size

DN15,DN20,DN25,DN32,DN40,DN50

Medium

Water

Pipe Material

Stainless Steel, PVC, Copper, PPR

Functional Index

Communication Interface

RS485, Support MODBUS Protocol

Output

4-20mA

Power Supply

10~36VDC/500mA

Keyboard

3 touch keys

Display Screen

1.54"LCD color screen, resolution 240*240

Temperature

Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ )

Transducer: 32℉ to 140℉ ( 0℃ ~ 60℃ )

Humidity

Relative humidity 0~99%. No condensation

IP

IP54

Physical Characteristics

Casing Material

PC engineering plastic

Clamp Material

Please choose one: aluminum alloy material or PC (Polycarbonate) engineering plastic

Transmitter

All-in-one

Transducer

Clamp on

Cable

Ø 5 black six-core shielded cable with self-locking connectors, standard length: 4m



2)Body Parameters

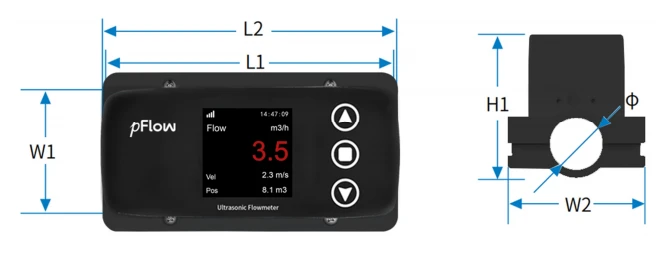

product-670-261

Pipe Size Comparison Table Unit: mm

Model

Nominal Inner Diameter of Pipe

W1

W2

L1

L2

H1

φ

GFCL

DN15

42

42

96

110

63

22.5

DN20

42

59.5

96

110

69.5

29

DN25

42

59.5

96

110

76

35.5

DN32

42

64.5

96

110

83

42.5

DN40

42

76.5

96

110

95

54.5

DN50

42

85.5

96

110

104

63.5

product-1348-1011

Color

Identifier

Function

Brown

+

10~36VDC power supply

Black

-

Power ground

Green

A

RS485+

White

B

RS485-

Red

I+

4~20mA+

Yellow

I-

4~20mA-

Wiring

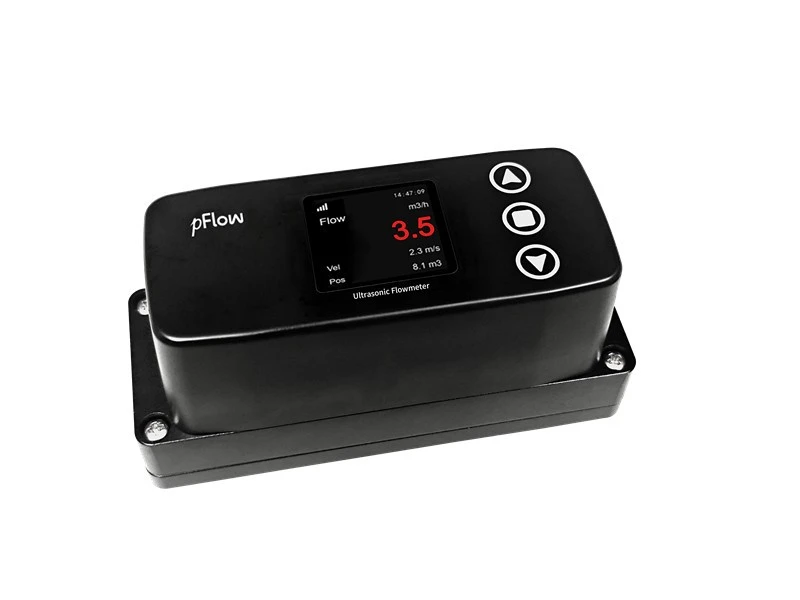

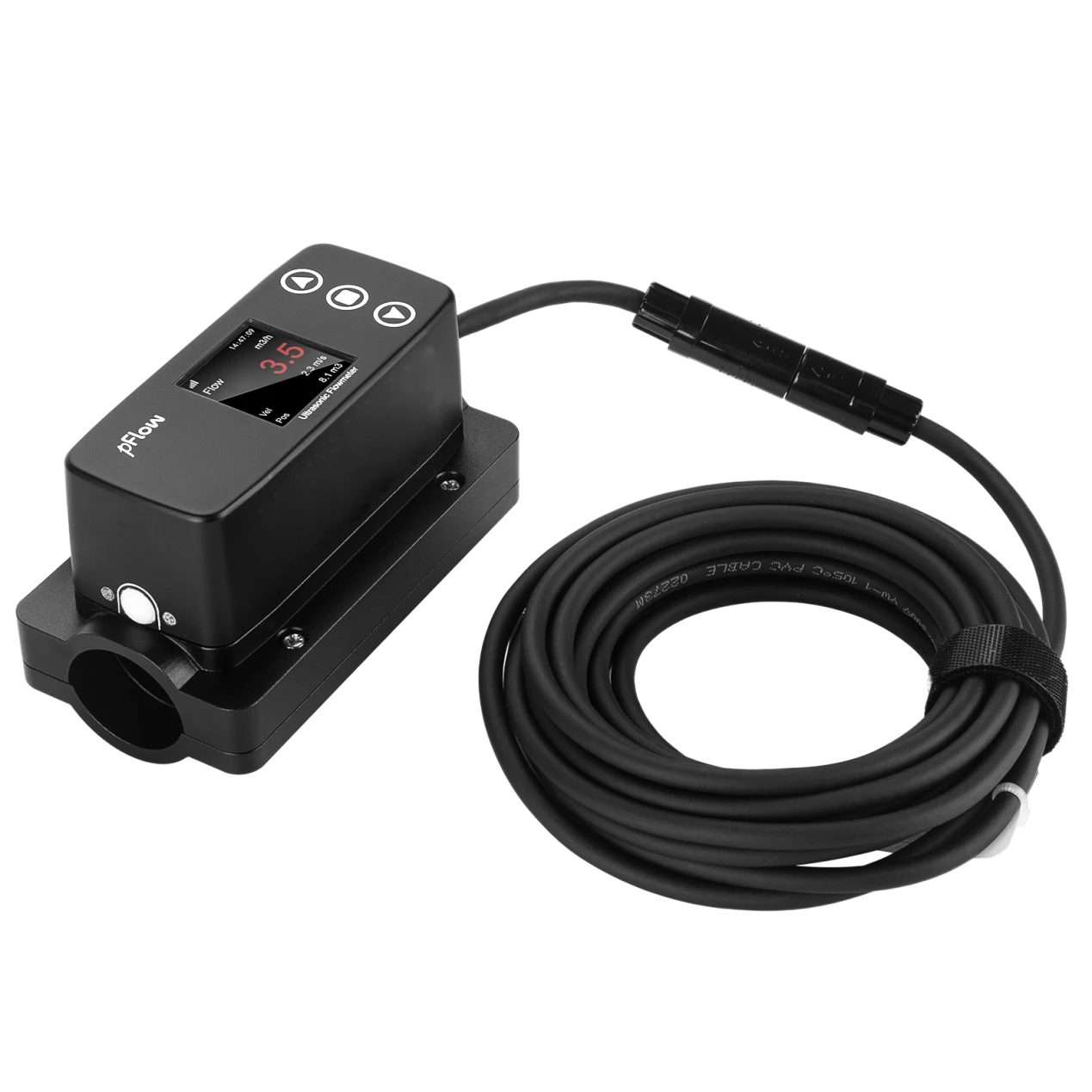

3)Appearance

product-1269-1269

Compatible Pipe Materials

product-838-200



Detectable Fluids

product-835-184



Step 1 Cleaning pipes

Perform pipe surface treatment to remove impurities such as paint, rust, dirt, etc. that are easily removed from the surface.

product-779-249

Step 2 Installation of Pipe Clamp

Snap the upper and lower pipe clamps to the selected location on the pipe. If looseness is found, adhesive pads may be applied to the inside of the lower clamps to enhance the tightening effect.

product-779-249

Step 3 Tighten the screws.

Tighten the 4 screws connecting the upper and lower hose clamps securely to ensure stability and no looseness.

product-779-249

Step 4 Power on and start measurement

Set the actual pipe outer diameter, wall

thickness and pipe parameters through

the "Pipe Parameter Setting" menu item

to make the measurement more accurate.

product-779-249



Product Qualification:



For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display:



product-761-690



product-826-700



product-853-642



Certificate display:



product-581-825
product-469-668
3

Deliver, Shipping, and Serving



Direct support:

product-1023-771

Qucik response:

product-1167-876

Fast delivery:

product-1024-670



Shipping



Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.



FAQ



Q: How does the GFCL Ultrasonic Flowmeter achieve easy installation?

A: The GFCL Ultrasonic Flowmeter features a non-invasive clamp-on design that allows for quick and easy installation without the need to cut or modify existing pipelines. This design ensures minimal disruption to your operations and aligns with the "Wire once, Use forever" philosophy.

Q: What are the benefits of the "Wire once, Use forever" approach in the GFCL Ultrasonic Flowmeter?

A: The "Wire once, Use forever" approach means that once the GFCL Ultrasonic Flowmeter is installed, it requires no further adjustments or reconfiguration. This reduces maintenance costs and downtime, ensuring long-term reliability and consistent performance.

Q: Can the GFCL Ultrasonic Flowmeter be installed by non-specialists?

A: Yes, the GFCL Ultrasonic Flowmeter is designed for easy installation and setup. Its user-friendly interface and straightforward installation process make it accessible for installation by non-specialists, further enhancing its ease of use and versatility.

Q: How does the GFCL Ultrasonic Flowmeter ensure long-term reliability after installation?

A: The GFCL Ultrasonic Flowmeter is built with robust components and advanced signal processing circuits, ensuring high accuracy and reliability over its operational lifetime. Once installed, it operates consistently without the need for frequent recalibration or maintenance, embodying the "Wire once, Use forever" concept.

Q: What kind of maintenance is required for the GFCL Ultrasonic Flowmeter after installation?

A: The GFCL Ultrasonic Flowmeter requires minimal maintenance after installation. Its design ensures long-term stability and reliability, reducing the need for frequent checks or adjustments. This makes it an ideal solution for applications where long-term, hassle-free operation is crucial.
