E3RO Ultrasonic BTU Flow Meter For Food Beverage Industry



Flow Velocity	0.03 ~ 5.0 m/s	Nominal diameter:	DN20~DN80
Power supply	10～36VDC/500mA	IP Rating:	IP54
Temperature range	0-60℃





The E3RO Ultrasonic BTU Flow Meter is highly applicable in the food and beverage industry. Its clip-on design allows for easy installation without the need to shut down production lines, ensuring minimal disruption.

The meter accurately measures the flow rate and thermal energy of fluids, such as water or other process liquids, providing real-time data for precise control. This helps in optimizing heating and cooling processes, ensuring consistent product quality.

The non-intrusive measurement method prevents contamination of the fluid, maintaining hygiene standards. The E3RO's versatility, with options for RS485, OCT, and relay outputs, makes it suitable for integration into various monitoring and control systems in the food and beverage industry.





●Food Beverage Industry

●Rain and Freeze Sensors

●Pharmaceutical Production Water

●Water and wastewater management

●HVAC (Heating, Ventilation, and Air Conditioning) systems

●Process industries (chemical, pharmaceutical, food and beverage)

●Energy management and environmental monitoring

●Agriculture and irrigation systems

●Research and development

●Facilities management

●Industrial maintenance and troubleshooting

●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.





1)Technical Parameters

Performance Index
Flow Velocity	0.03 ~ 5.0 m/s
Nominal diameter	DN20~DN80
Accuracy level	±2%
Temperature range	0-60℃
Temperature difference range	2~50K
Temperature resolution	0.01℃
Measuring medium	Water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.)
Functional Index
Input Interface	2*PT1000 Clamp-on temperature sensor
Communication Interface	RS485(standard). Support FUJI Protocol and MODBUS Protocol
Output	OCT&Relay
Power supply	10～36VDC/500mA
Keyboard	4 touch keys
Display screen	1.44 " LCD colorful screen, resolution 128 *128
Temperature	Transmitter installation ambient temperature: 14 °F to 122 °F(-10℃~50℃) Transducer measures medium temperature: 32 'F to 140°F(0℃~60℃ )
Humidity	Relative humidity 0~99%,No condensation
IP	IP54
Physical Characteristics
Transmitter	Integrated
Transducer	Clamp on
Cable	Ø 5 six core cable, standard length: 2m



2)Body Parameters



E3ROTransmitter dimension

Pipe Size Comparison Table Unit:mm
Model	Nominal Bore Diameter	W	W1	L	L1	H	Ø
E3RO	DN20	60	51	105	118	121	29
	DN25	60	56	105	118	128	36
	DN32	60	63	105	118	135	43
	DN40	60	74	105	118	146	54
	DN50	60	89	105	153	159	67
	DN65	60	102	105	153	172	80
	DN80	60	113	105	153	183	91

Temperature Transducer Clamp Dimension

Pipe Size	Ø Pipe clamp inner diameter (mm)	Ø1 Pipe clamp outer diameter(mm)
DN20	29	43
DN25	36	48
DN32	43	55
DN40	54	66
DN50	67	81
DN65	80	94
DN80	91	105

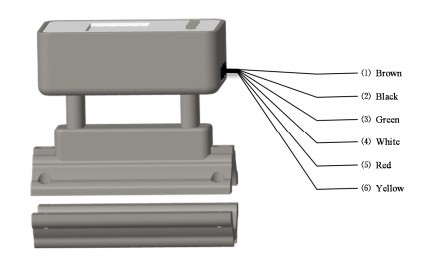

Meter Wiring

3)Appearance





Fast installation steps of E3RO

If the brackets is still loose after locking, the black rubber pad (2mm thick) attached to the accessory bag can be pasted on both sides of the inner wall of the brackets.



1.The temperature sensor include upper bracket and base bracket. The clip-on type temperature sensor is embedded in the groove of the inner wall of the upper bracket. Fix the brackets to the pipe with the screws.

2. Before the clamp-on temperature sensor is installed, it is necessary to clean up the area where the pipeline is to be installed, and remove rust and paint, etc.

3. Temperature sensors with red and blue markings are installed in the influent and effluent pipe sections respectively.
