Brief Introduction
|
Accuracy: |
±1.0% |
Pipe size : |
1"~48" (25~1200mm) |
|
|
Output: |
PoE |
IP Rating: |
IP68 transducer |
|
| Temperature: | 32 °F to 176 °F ( 0℃ ~ 80℃ ) | |||
Product Introduction

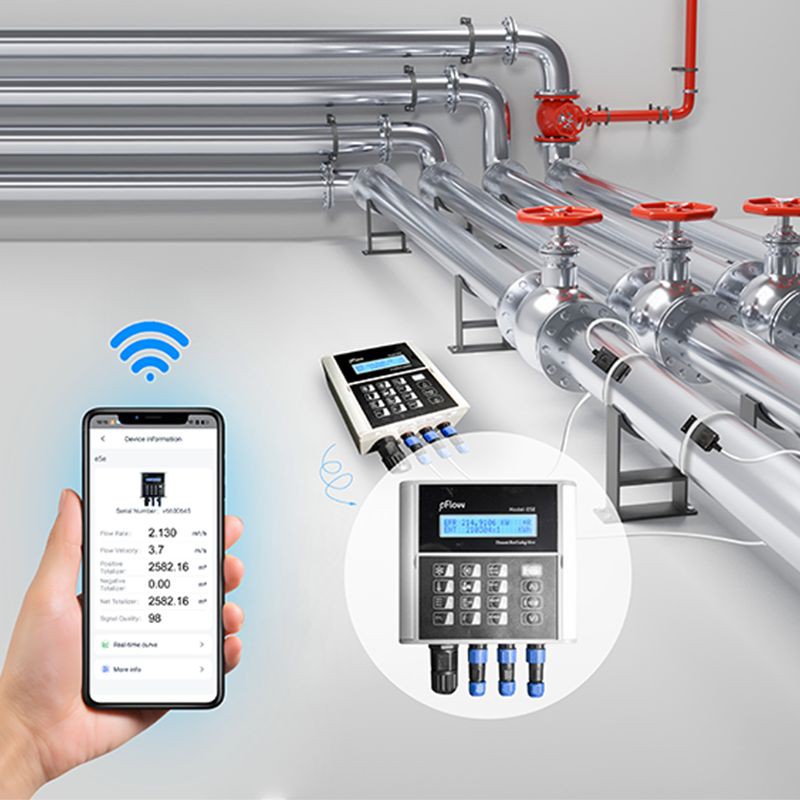

The E5E IoT heat meter is useful tool designed to enhance the efficiency of air conditioning systems. ARM chip technology and low voltage wide pulse emission to provide precise measurements of water flow and energy consumption.
- Easy to operating within 5 minutes
- Non-intrusive design without interrupting existing pipes
- Real-time monitoring of energy usage, flow rates, and temperature differentials
- Hotel energy metering, Lodge cooling energy metering
- Liquid cooling industry,efficient cooling, temperature control, energy saving
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Technical Specifications |
|
|
Flow range |
0.01～5.0 m/s(0.03～16 ft/s) |
|
Accuracy |
Flow accuracy: ±1%, Energy accuracy: ±2%. (0.3~5m/s standard condition) |
|
Pipe size |
Clamp-on: DN25～DN1200(1"～48") |
|
Fluid |
Water |
|
Pipe material |
Carbon steel, stainless steel, PVC |
|
Functional Indicators |
|
|
Support Protocols |
HTTP,MQTT Protocol |
|
Power supply |
POE Network cable power supply |
|
Input Interface |
2*PT1000 interface Three-wire system: 0~100℃(32～212℉) Heat (cold) meter |
|
Keyboard |
16(4×4)Light touch button |
|
Display |
20×2 dot matrix characters, backlit LCD display |
|
Temperature |
Transmitter installation ambient temperature: -10℃～50℃ The sensor measures the temperature of the medium: 0℃～80℃ |
|
Humidity |
Relative Humidity0～99%, No condensation |
|
Physical Characteristics |
|
|
Transmitter |
PC/ABS plastic housing, protection class IP65 |
|
Transducer |
Sealed design, protection class IP68 |
|
Cable Wires |
Flow sensor: Standard length: 9m(30ft) Temperature sensor: standard length: 9m(30ft) |
|
Weight |
Transmitter: 0.6kg Flow Sensor: 0.75kg Temperature Sensor: 0.45kg |
Body Parameters
Transmitter
Transducer
PT1000 Temperature senor
Appearance
Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
