Brief Introduction
|
Accuracy: |
±2.0% |
Pipe size : |
DN20~DN80 |
|
Velocity:
|
0.03～5m/s |
IP Rating: |
IP54 |
|
Temperature: |
Transmitter : 14 °F to 122 °F (-10℃ ~ 50℃) Transducer : 32 °F to 140 °F (0℃ ~ 60℃) |
||
Product Introduction

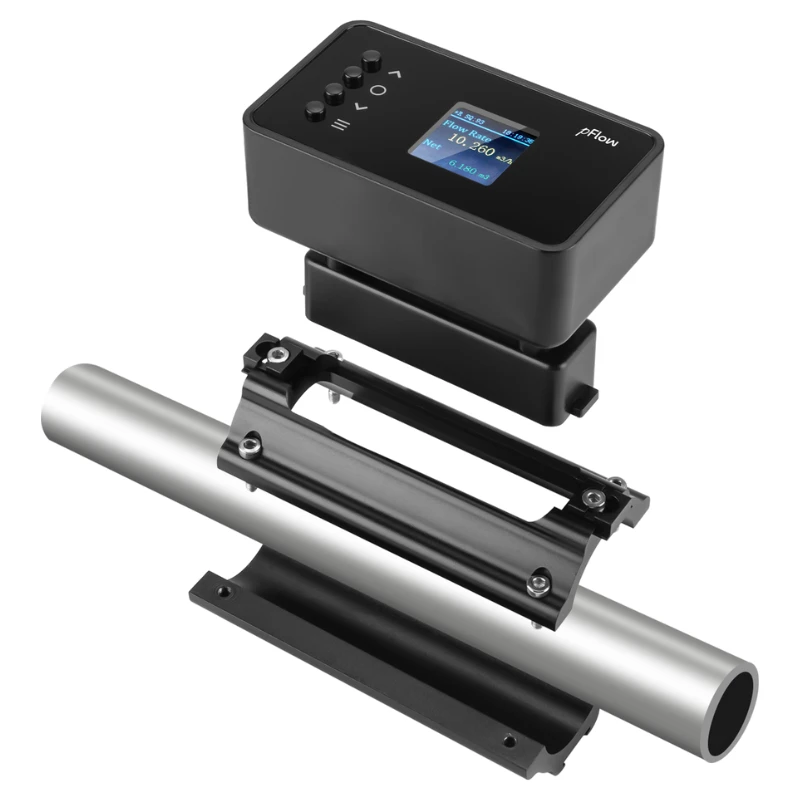

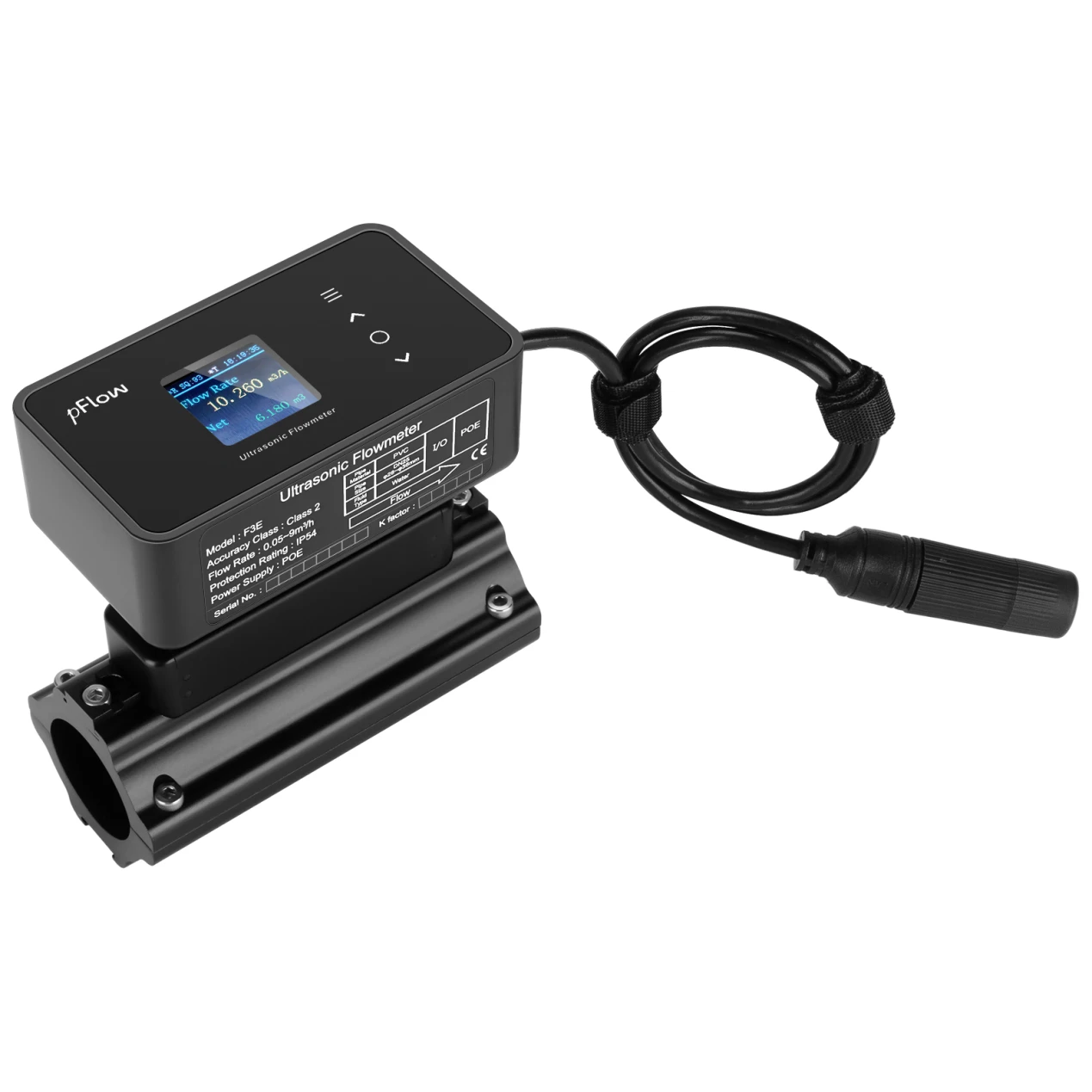

The F3E Clip-on Ultrasonic Flowmeter by Gentos is an all-in-one, easy-to-install device that uses the transit time method to measure fluid flow accurately. It features a clip-on design, requiring no pipe breaks or shutdowns. Powered by POE, it supports Ethernet communication for cloud data storage and remote monitoring via mobile or PC. Suitable for various applications like Medical center water,HVAC, irrigation, and industrial water, it offers a convenient, non-intrusive solution for flow measurement.

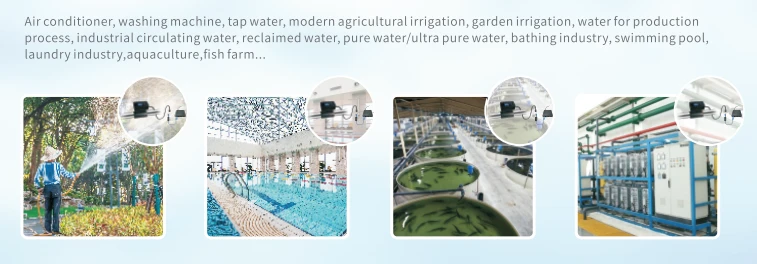

Product Applications
●Medical center
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow Velocity |
0.1~16 ft/s (0.03~5.0 m/s) |
|
Accuracy |
±2% , (1.0~16 ft/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
DN20~DN80 |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC |
|
Functional Index |
|
|
Support Protocol |
HTTP,MQTT Protocol |
|
Power Supply |
POE network cable power supply |
|
Key |
4 keys |
|
Display Screen |
1.44 " LCD colorful screen, resolution 128 * 128 |
|
Temperature |
Transmitter installation ambient temperature: 14 °F to 122 °F (-10 ℃ ~ 50 ℃) Measured medium temperature: 32 °F to 140 °F (0 ℃ ~ 60 ℃) |
|
Humidity |
Relative humidity 0~99%. No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
Integrated |
|
Transducer |
Clamp on |
|
Cable |
POE waterproof tail line, standard length: 0.5m |
2)Body Parameters
Transmitter dimension
|

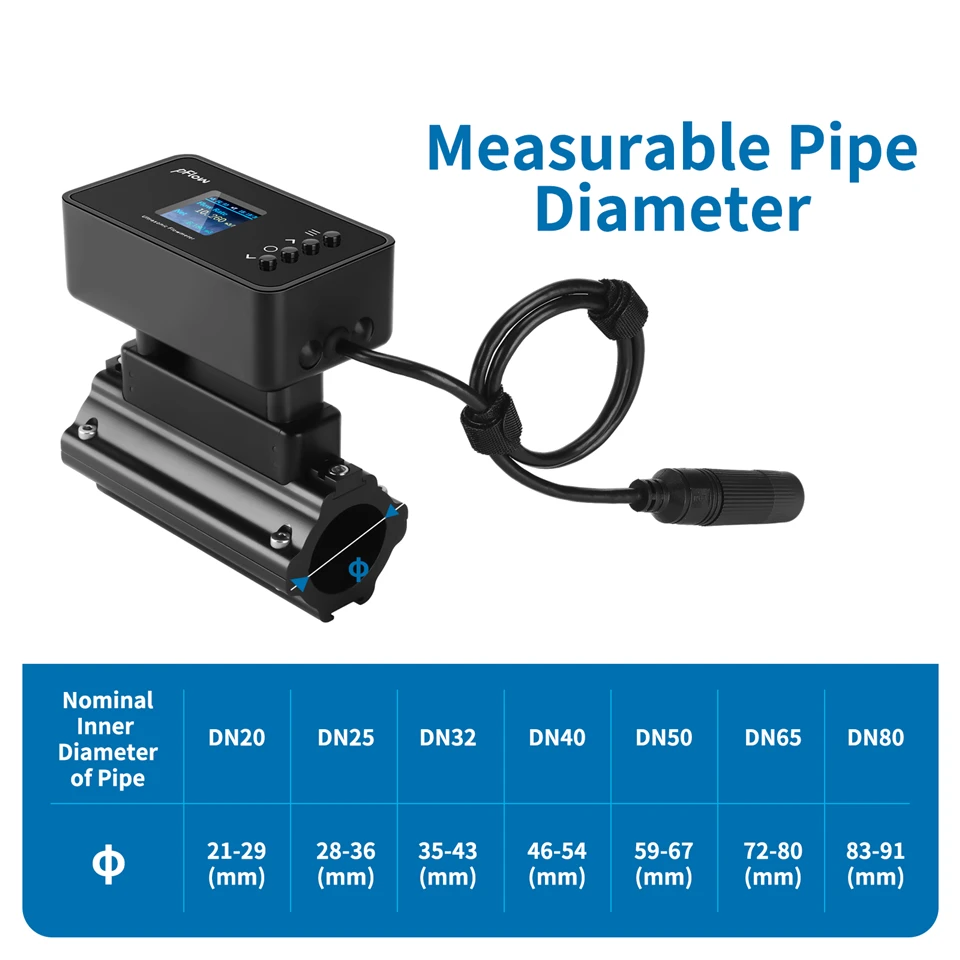

Pipe Diameter Comparison Table Unit:mm |
|||||||
|
Model |
Nominal |
W |
W1 |
L |
L1 |
H |
Ø |
|
F3E |
DN20 |
60 |
51 |
105 |
118 |
121 |
29 |
|
DN25 |
60 |
56 |
105 |
118 |
128 |
36 |
|
|
DN32 |
60 |
63 |
105 |
118 |
135 |
43 |
|
|
DN40 |
60 |
74 |
105 |
118 |
146 |
54 |
|
|
DN50 |
60 |
89 |
105 |
153 |
159 |
67 |
|
|
DN65 |
60 |
102 |
105 |
153 |
172 |
80 |
|
|
DN80 |
60 |
113 |
105 |
153 |
183 |
91 |
|

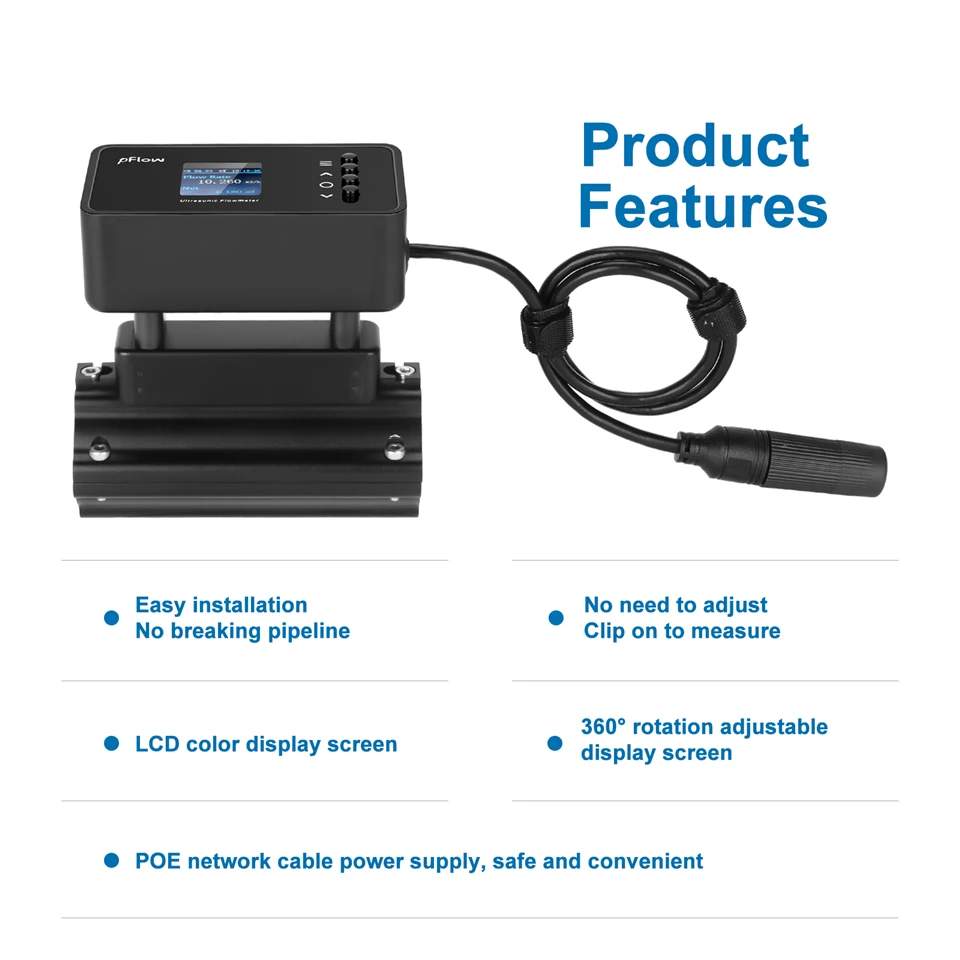

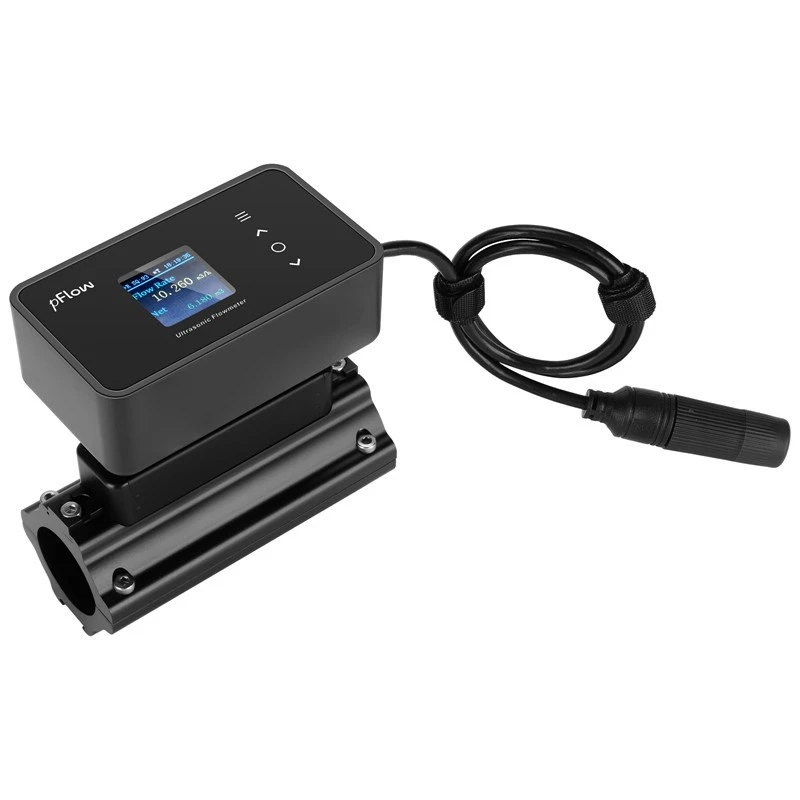

(3)Appearance
Professional Measure Single Material
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
