Brief Introduction
|
Fluid: |
water |
Pipe Size: |
1" ~ 24" ( 25mm ~ 600mm ) |
|
Power Supply: |
POE Network cable power supply |
Medium Temperature: |
0℃ ~ 60℃ |
Product Introduction

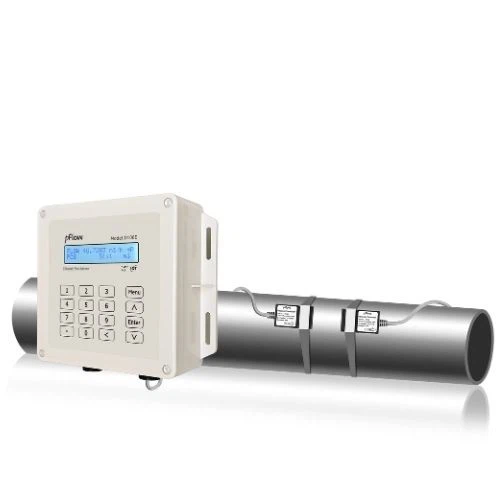

Smart Home Ultrasonic Flow Indicator D106E: Clip-on install, 1–24" pipes, water-ready. ARM precision , low cost-flow insight in minutes.
- Ultra-low-power, interference-resistant IC design enables
- Clamp-and-play operation like a multimeter
- PoE cable power supply
- IoT Smart Home
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Technical Specifications |
|
|
Flow range |
0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ). |
|
Pipe size |
1" ~ 24" (25mm ~ 600mm ). |
|
Fluid |
Water |
|
Pipe material |
Carbon steel, stainless steel, PVC, Copper |
|
Functional Indicators |
|
|
Support Protocols |
HTTP,MQTT Protocol |
|
Power supply |
POE Network cable power supply |
|
Keyboard |
Touch Keys*16 |
|
Display |
20×2 lattice alphanumeric, back lit LCD. |
|
Temperature |
Transmitter temperature: -10℃～50℃ Transducer temperature: 0℃～60℃ |
|
Humidity |
Relative Humidity0～99%, No condensation |
|
Physical Characteristics |
|
|
Transmitter |
Engineering Plastic (ABS), IP Rating IP65 |
|
Transducer |
Sealed design, protection class IP68 |
|
Transducer cable |
Standard cable length: 16 ft (5m). |
|
Weight |
Transmitter: approximately 0.6kg; Transducer: approximately 0.5kg. |
Body Parameters
Appearance
Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
Hot Tags: smart home ultrasonic flow indicator, China smart home ultrasonic flow indicator manufacturers, suppliers, factory, BMS Meter, BMS Water Meter, Chilled Water BTU Meter, electrical power monitoring system, Flow Meter for Marine, measurement of industrial waste water flow
Product Parameter
1)Technical Parameters
|
Technical Specifications |
|
|
Flow range |
0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ). |
|
Pipe size |
1" ~ 24" ( 25mm ~ 600mm ). |
|
Fluid |
Water |
|
Pipe material |
Carbon steel, stainless steel, PVC, Copper |
|
Functional Indicators |
|
|
Support Protocols |
HTTP,MQTT Protocol |
|
Power supply |
POE Network cable power supply |
|
Keyboard |
Touch Keys*16 |
|
Display |
20×2 lattice alphanumeric, back lit LCD. |
|
Temperature |
Transmitter temperature: -10℃～50℃ Transducer temperature: 0℃～60℃ |
|
Humidity |
Relative Humidity0～99%, No condensation |
|
Physical Characteristics |
|
|
Transmitter |
Engineering Plastic (ABS), IP Rating IP65 |
|
Transducer |
Sealed design, protection class IP68 |
|
transducer cable |
Standard cable length: 16 ft (5m). |
|
Weight |
Transmitter: approximately 0.6kg; Transducer: approximately 0.5kg. |
