Product Introduction
Unmatched Accuracy and Repeatability:
The D348D Plus offers superior accuracy with ±0.2% of the measured value for spool piece types and ±0.5% for insertion types. Its repeatability is an impressive 0.07% for spool piece types and 0.15% for insertion types, ensuring consistent and reliable performance.
Customizable and Scalable:
With a flow range of 0.01 to 7m/s and the ability to handle pipe sizes from 100mm to 5000mm , the D348D Plus is adaptable to various industrial setups. Its memory card can store up to 512 files, with a time interval as short as 1 second, making it an ideal choice for detailed flow analysis.
Installation and Application Flexibility:
The D348D Plus is designed for easy installation, with support for both V and Z method transducer installation methods, suitable for pipe sizes from 100mm to 5000mm. It's perfect for applications in sewage treatment, power plants, and water supply, among others.
Brief Introduction
- Wall-mounted, insertion flow meter
- DN25~DN5000( 1''~200'')
- 90～250VAC@48～63Hz or 10～36VDC
- support 2~6 sound channels
Product Applications
|

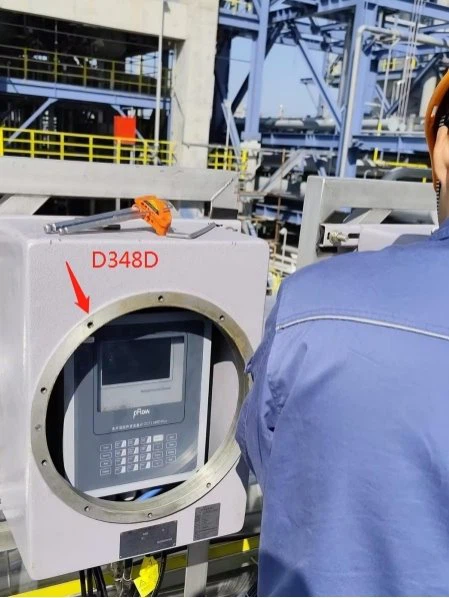

Model: D348D |
Pipe size: DN500mm |
|
Pipe material: Carbon steel |
Medium: water |
- Liquid cooling industry
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: What is a multipath ultrasonic flow meter?
A1: Multi. path meters tend to be more accurate since they collect velocity information in several points of the flow profile. The transit time of an ultrasonic signal can be calculated.
Q2: What is the most accurate way to measure water flow?
A2:The most accurate methods for measuring water flow depend on the context and application. Here are some reliable approaches:
Q3: How do I choose a water flow meter?
A3:Choosing a water flow meter involves considering several factors to ensure that you select the right type of meter for your specific application.
Q4:What are the five 5 types of flow meters?
A4:There are several types of flow meters used to measure the flow rate of fluids. Here are five common types of flow meters:Electromagnetic Flow Meters,Ultrasonic Flow Meters,Turbine Flow Meters,Vortex Flow Meters, Differential Pressure Flow Meters.
Q5: What are flow meters used for in industry?
A5: Flow meters play a crucial role in various industries by measuring the flow rate of liquids or gases in a wide range of applications.
Hot Tags: d348d multi-path ultrasonic flow meter, China d348d multi-path ultrasonic flow meter manufacturers, suppliers, factory, Data Flow Meter, panel mount rotameter, Wifi Water Valve for House, beer flow sensor, BTU Meter in Chilled Water System, BTU Meter
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow velocity |
±(0.03 ft/s ~23 ft/s), ±(0.01 m/s ~7 m/s) |
|
Accuracy |
±0.5% of measured value |
|
Repeatability |
0.1% |
|
Medium |
Water |
|
Pipe Size |
1"~200"(DN25~DN5000), support 2~6 sound channels |
|
Pipe Material |
Carbon Steel,Stainless Steel,PVC,Cast Iron,Ductile Iron,Copper,Aluminum,Asbestos,Fiber Glass-Epoxy,Other |
|
Fluid |
Water(chilled water,pure water,clean water,sea water,hot water,etc.) |
|
Functional Index |
|
|
Communication Interface |
RS-485 Communication Interface,Support Modbus Protocol |
|
Output |
Analog output：4~20mA,maximum：750Ώ Pulse output：0~9999Hz,OCT output(adjustable) Relay output：the highest 1Hz(1A@125VAC or 2A@30VDC) |
|
TF Card |
Max record: 8 GB Storage time interval: 1~13000 s |
|
Power supply |
90～250VAC@48～63Hz or 10～36VDC |
|
Keypad |
24 light tactile keys |
|
Display screen |
4.7 inch TFT color screen |
|
Humidity |
Up to 0 ~ 99% RH, non-condensing |
|
Temperature |
Transmitter:-10℃～60℃ Transducer:- 40℃～80℃(standard) |
|
IP Rating |
IP65 |
|
Physical Characteristics |
|
|
Transmitter |
Die-cast aluminum, wall-mounted |
|
Transducer |
Encapsulated design., IP Rating: IP68 |
|
Cable |
The standard length of cable: 30ft (9m) |
|
Weight |
Transmitter: 4.5kg Transducer: 6.7kg (A pair of W110) |
2)Body Parameters
Transmitter
Transducer W110
3)Appearance
4)Compatible Pipe Materials
5)Detectable Fluids
