Brief Introduction
|
Accuracy: |
±2% of RD |
Pipe Size: |
DN20~DN80 |
|
Velocity Range: |
0.03m/s ~5.0m/s |
Medium: |
Water |
Product Introduction
The product is designed with a split clamp-on structure, which is simple and convenient to install. The installation process does not need to contact the fluid medium,nor stop production.
- Connect a network cable and use directly
- POE power supply, safe and convenient
- Support online update and upgrade
- IOT
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
||
|
Velocity Range |
0.03m/s ~5.0m/s |
|
|
Accuracy |
±2% |
|
|
Repeatability |
0.2% |
|
|
Pipe Size |
DN20~DN80 |
|
|
Medium |
Water |
|
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC |
|
|
Function Index |
||
|
Communication Interface |
|
|
|
Power Supply |
POE |
|
|
Keyboard |
4 Touch Keys |
|
|
Display Screen |
1.44"LCD colorful screen, Resolution 128*128. |
|
|
Temperature |
Transmitter:14°F to 122°F(-10℃~50℃) |
|
|
Humidity |
Relative humidity 0~99%, No condensation |
|
|
Physical Characteristics |
||
|
Transmitter |
Plate mounted type |
|
|
Transducer |
Clamp On Standard cable length：9m |
|
|
Network Cable |
POE network cable, standard length: 2m |
|

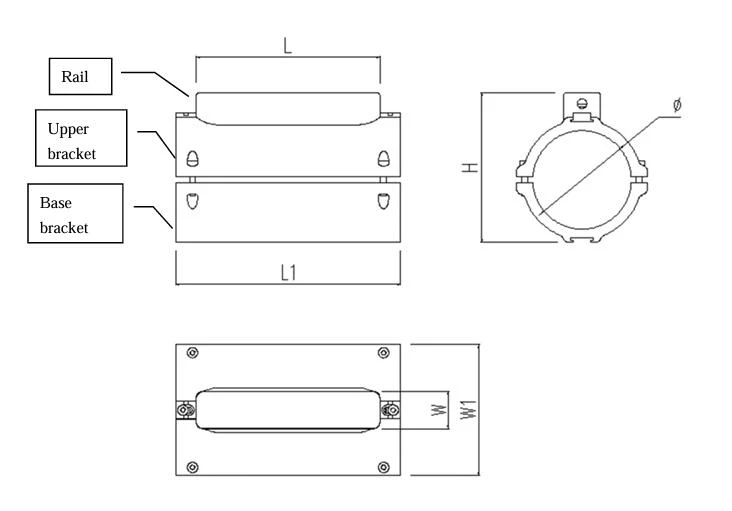

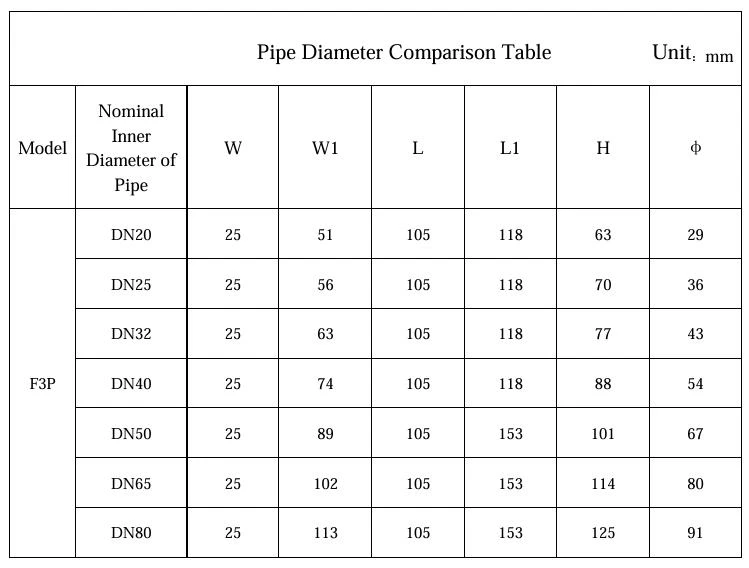

Body Parameters

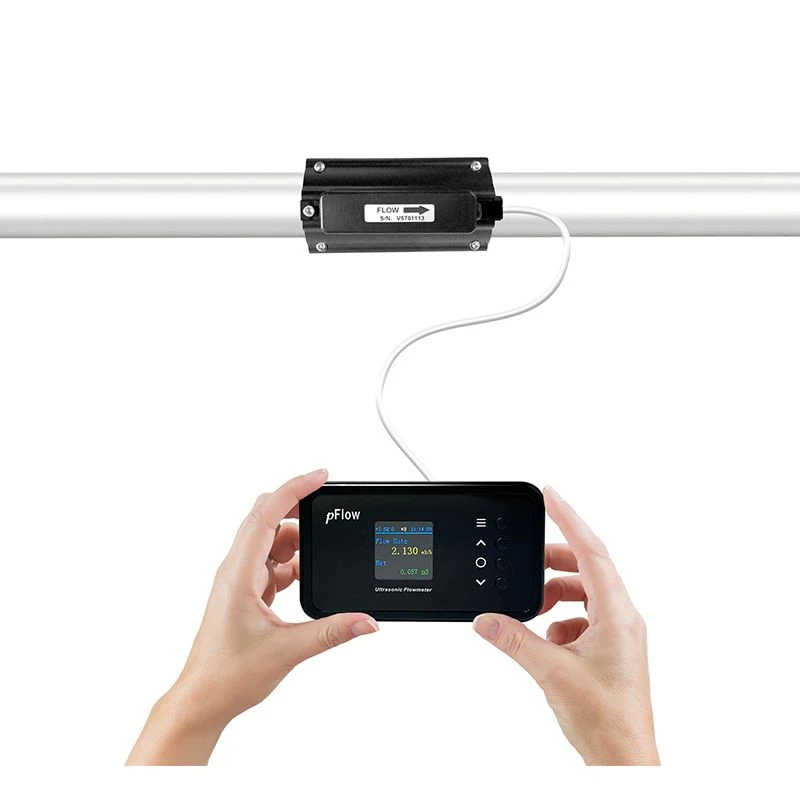

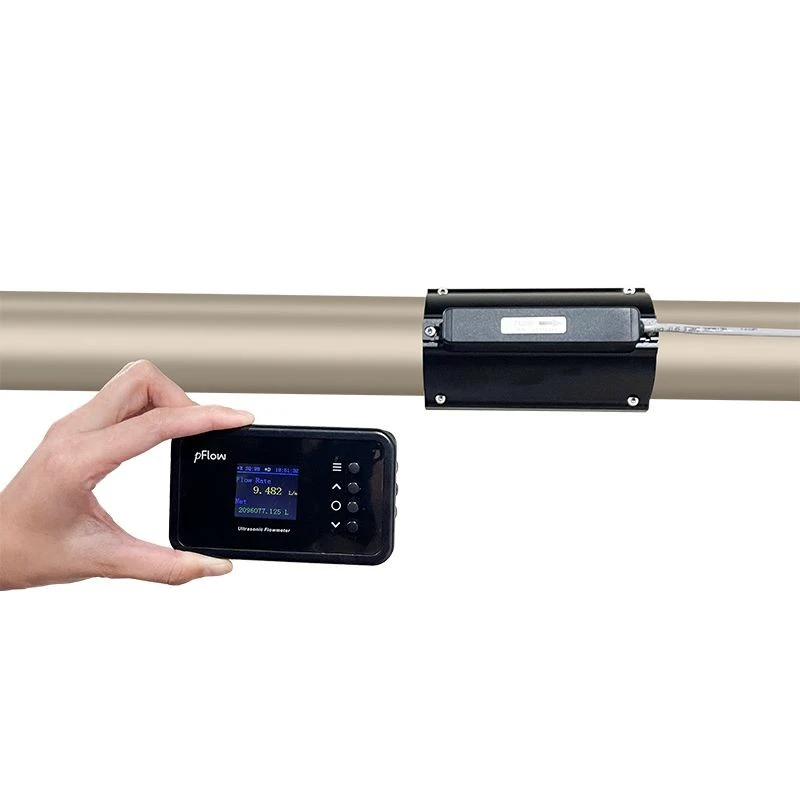

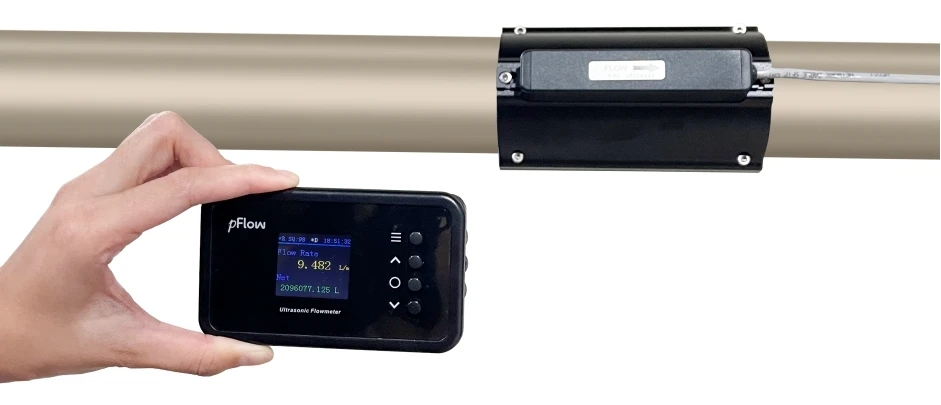

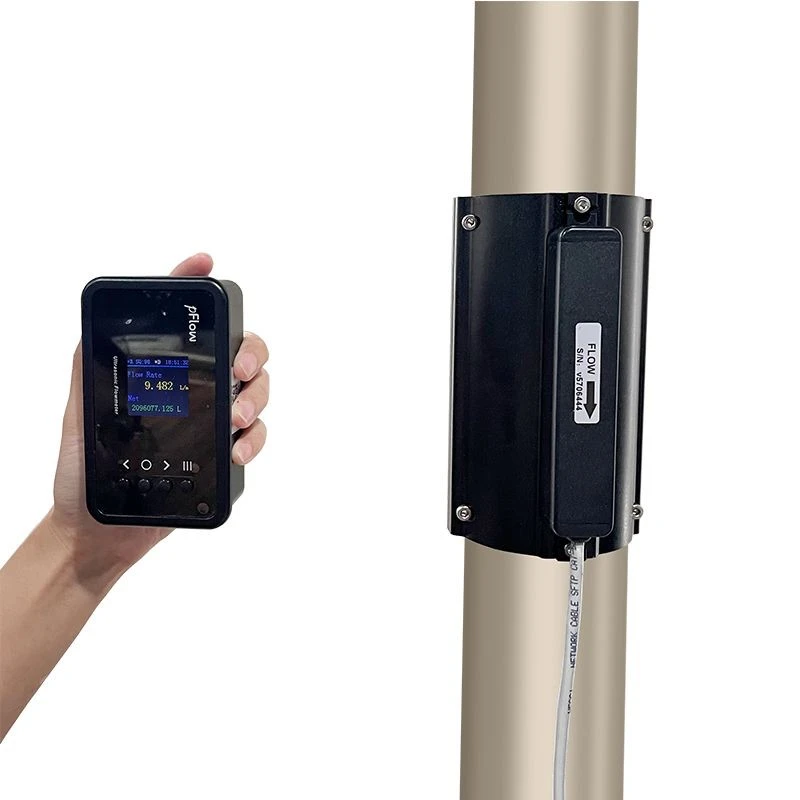

Appearance

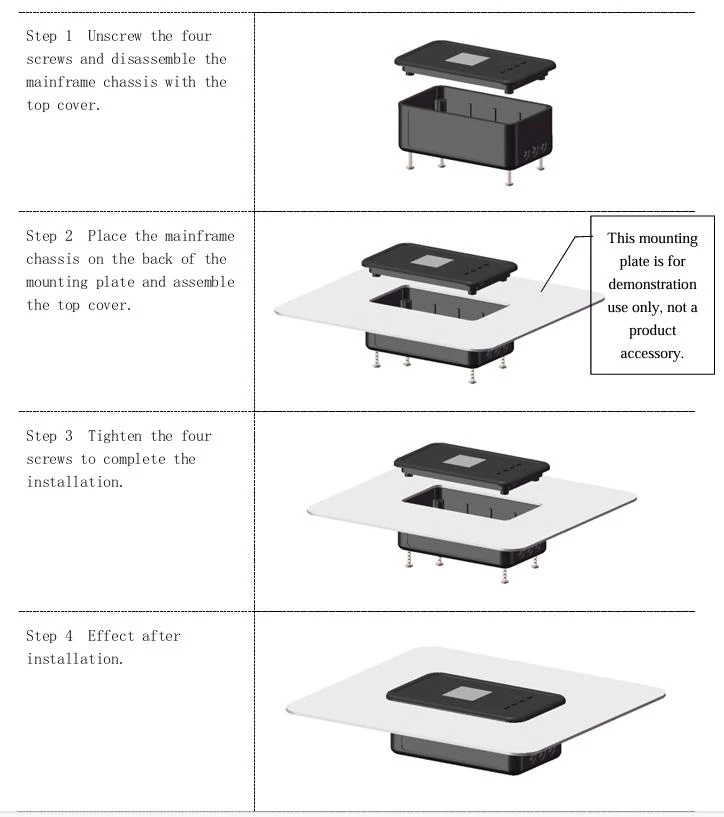

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What principle does the F3P use?
A: Ultrasonic transit-time difference. The electronics measure the up- and downstream time-of-flight to calculate average velocity and convert it to volumetric flow.
Q: Which pipe sizes can I install it on?
A: DN20, DN25, DN32, DN40, DN50, DN65 and DN80 (outer diameter 21 mm – 91 mm depending on material). The meter is NOT offered for DN100 and above.
Q: Does it contain any moving wetted parts?
A: No. The transducers are clamp-on; nothing touches the liquid.
Q: Does the meter support firmware updates?
A: Yes. Place the new file on the cloud server or local HTTP repository, then Menu → System Setting → Upgrade → "Yes". Keep the network stable during the process.
