Brief Introduction
|
Accuracy: |
±2% of RD |
Pipe Material: |
Stainless steel |
|
Output: |
4~20 mA, max load 500Ω |
Pipe Clamp Material: |
Aluminum alloy |
Product Introduction

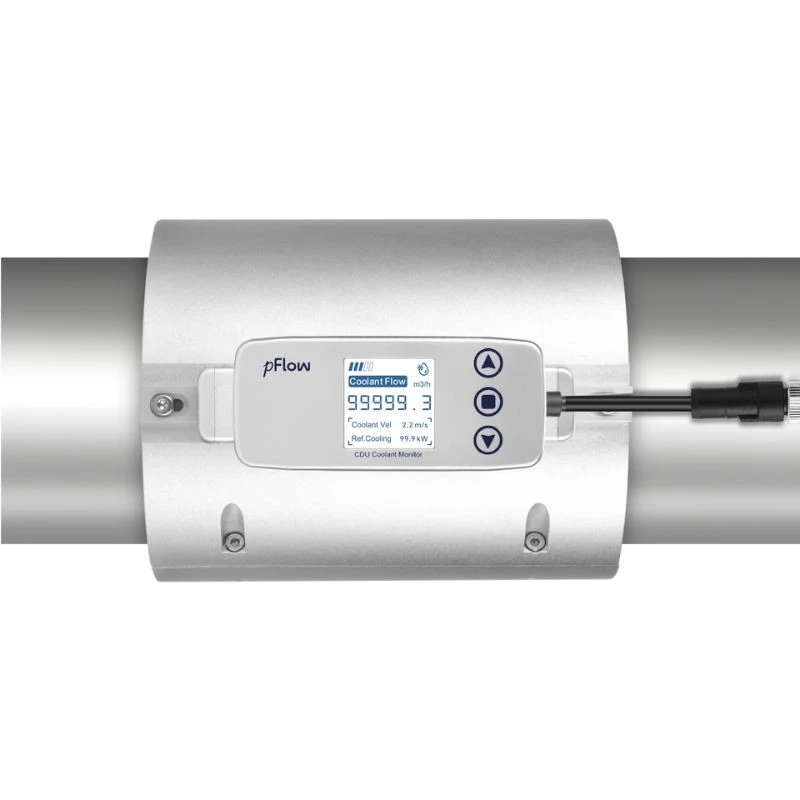

The D5 CDU Coolant Monitor, based on ultrasonic time-difference measurement, provides precise flow rate monitoring of the coolant in cooling towers. This ensures optimal coolant supply matching the thermal load, enhancing cooling efficiency.
- Easy installation, no pipeline disruption required
- Real-time Data, wide Compatibility
- LCD color display with 360°rotatable screen
- Metal casing & long-term reliability

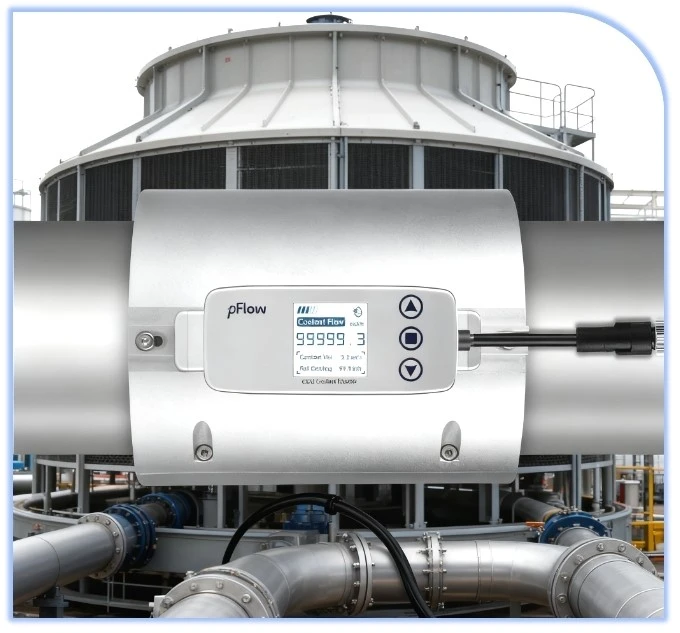

- Cooling tower (heat dissipation solutions in data centers)
- Process industries (chemical, pharmaceutical, food and beverage)
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.3m/s ~5.0m/s |
|
Accuracy |
±2% of RD |
|
Repeatability |
0.4% |
|
Pipe Size |
DN50, DN65, DN80, DN100, DN125, DN150 |
|
Medium |
Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
|
Pipe Material |
Stainless steel |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20 mA, max load 500Ω |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
1.54"LCD colorful screen, Resolution 240*240. |
|
Temperature |
Transmitter: -10℃ to 50℃ Transducer: 0℃~60℃ |
|
Humidity |
20~90% relative humidity, no condensation |
|
IP |
IP65 |
|
Physical Characteristics |
|
|
Casing Material |
PC engineering plastic |
|
Clamp Material |
Aluminum alloy |
|
Transmitter |
Integrated |
|
Transducer |
Clamp On |
|
cable |
φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |
Body Parameters
|

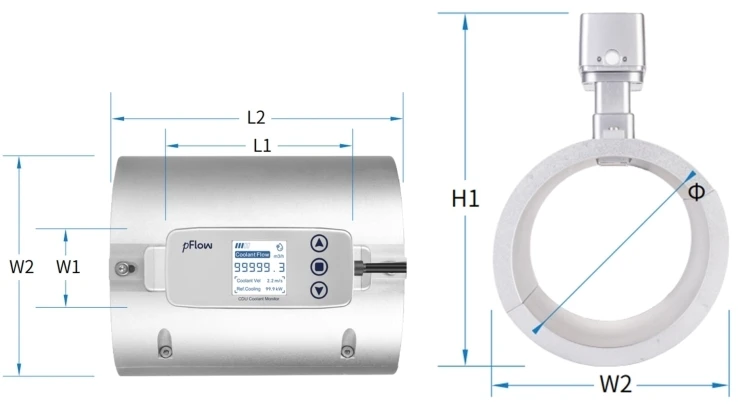

Pipe Dimension Comparison Table Unit:mm |
||||||
|
Nominal Inner Diameter of Pipe |
W1 |
W2 |
L1 |
L2 |
H1 |
φ |
|
DN50 |
42 |
89 |
96 |
153 |
163 |
67 |
|
DN65 |
42 |
102 |
96 |
153 |
176 |
80 |
|
DN80 |
42 |
113 |
96 |
153 |
187 |
91 |
|
DN100 |
42 |
138 |
96 |
165 |
214 |
116 |
|
DN125 |
42 |
160 |
96 |
180 |
237 |
140 |
|
DN150 |
42 |
190 |
96 |
180 |
267 |
190 |

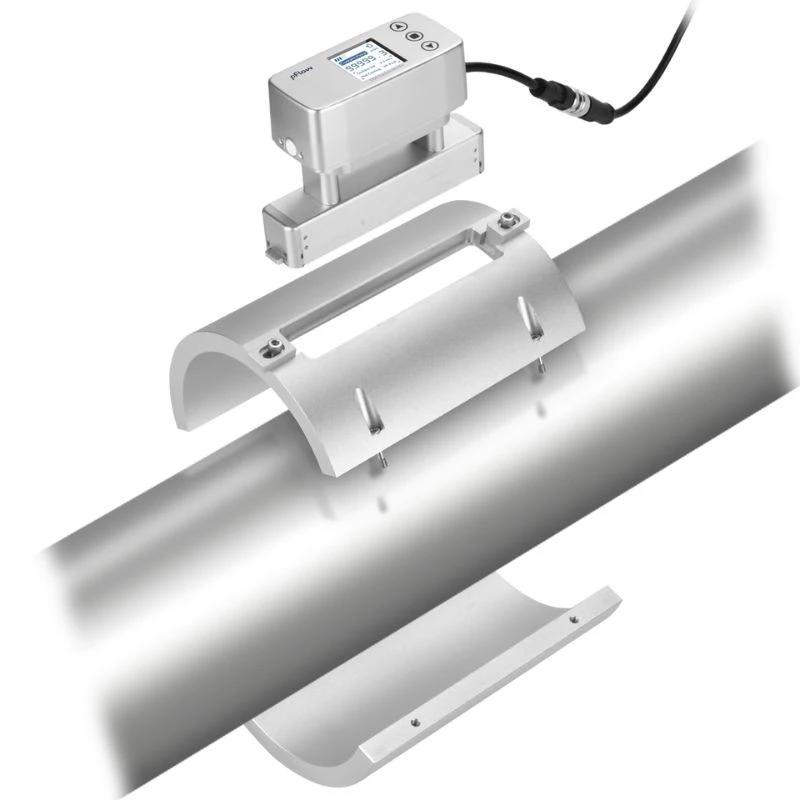

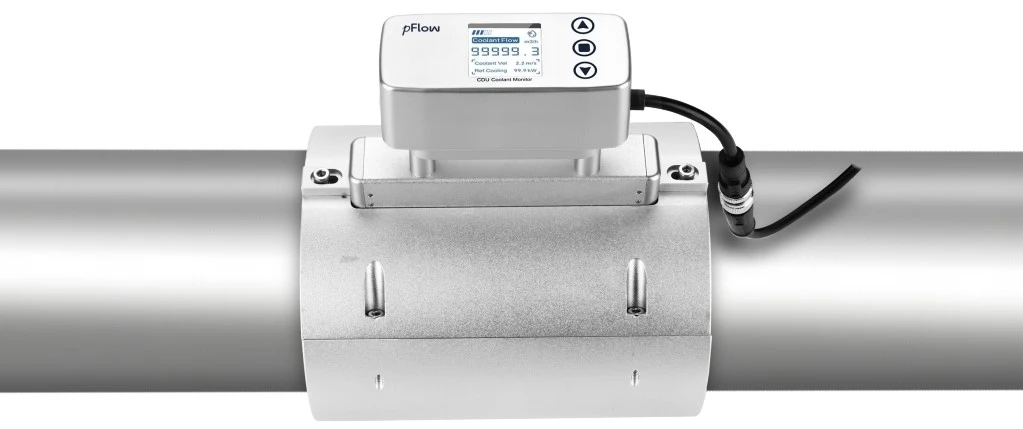

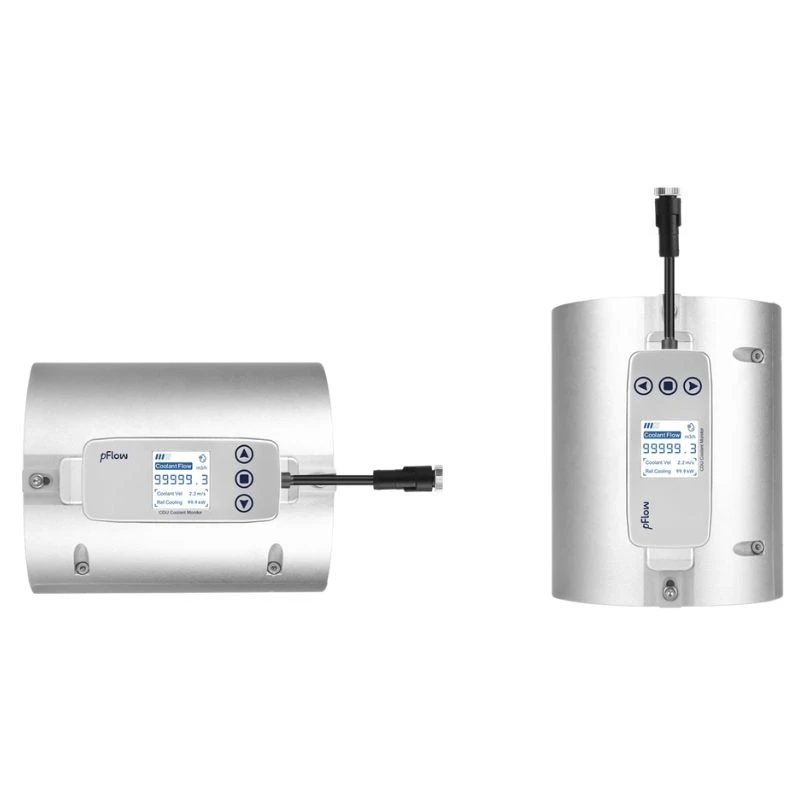

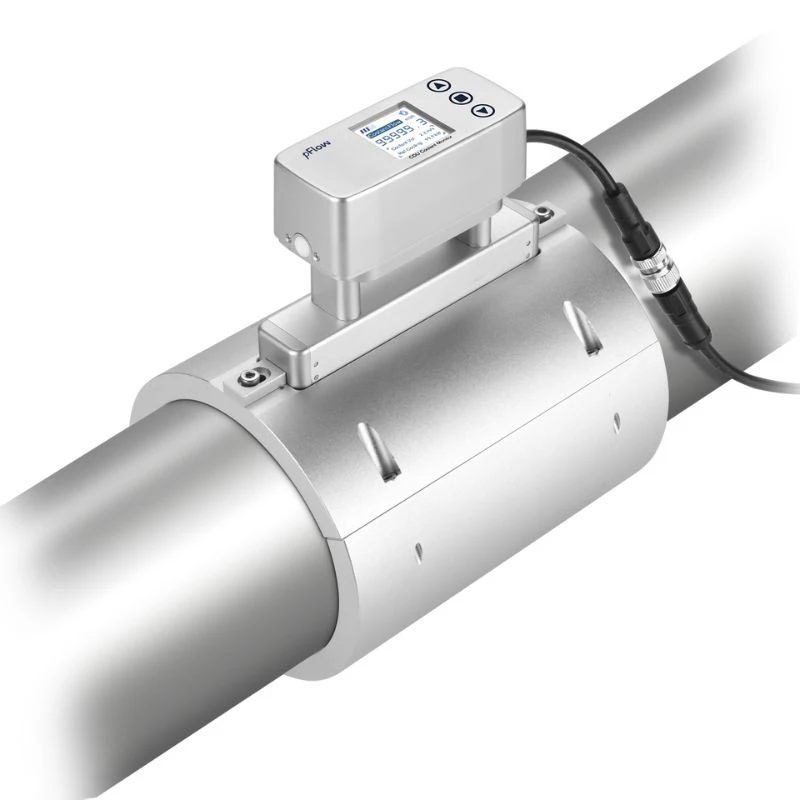

Appearance

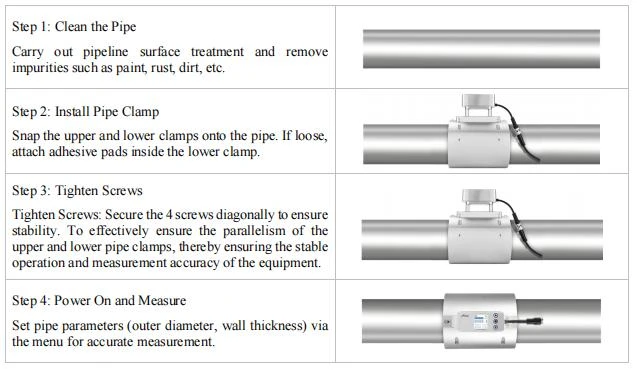

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
Hot Tags: cdu coolant monitor for cooling tower, China cdu coolant monitor for cooling tower manufacturers, suppliers, factory, beer flow sensor, BMS Water Meter, Chilled Water BTU Meter, Flow Meter for Marine, semiconductor parts cleaning, Waste Water Meter
Products Description
1)Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.3m/s ~5.0m/s |
|
Accuracy |
±2% of RD |
|
Repeatability |
0.4% |
|
Pipe Size |
DN50, DN65, DN80, DN100, DN125, DN150 |
|
Medium |
Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
|
Pipe Material |
Stainless steel |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20 mA, max load 500Ω |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
1.54"LCD colorful screen, Resolution 240*240. |
|
Temperature |
Transmitter: -10℃ to 50℃ Transducer: 0℃~60℃ |
|
Humidity |
20~90% relative humidity, no condensation |
|
IP |
IP65 |
|
Physical Characteristics |
|
|
Casing Material |
PC engineering plastic |
|
Clamp Material |
Aluminum alloy |
|
Transmitter |
Integrated |
|
Transducer |
Clamp On |
|
cable |
φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |
