Brief Introduction
|
Accuracy: |
±2% of RD |
Pipe Material: |
Stainless steel |
|
Output: |
4~20 mA, max load 500Ω |
Display: |
1.54"LCD color screen, resolution 240*240 |
Product Introduction

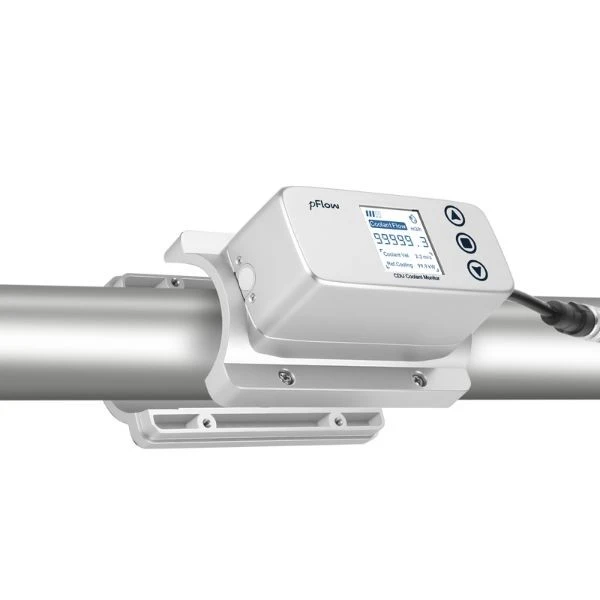

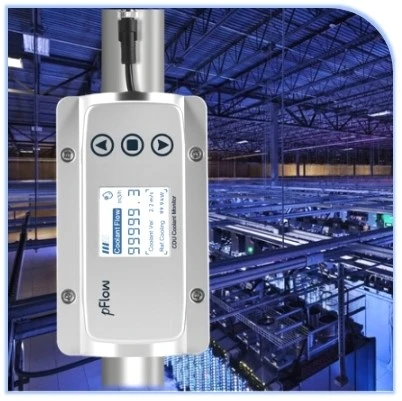

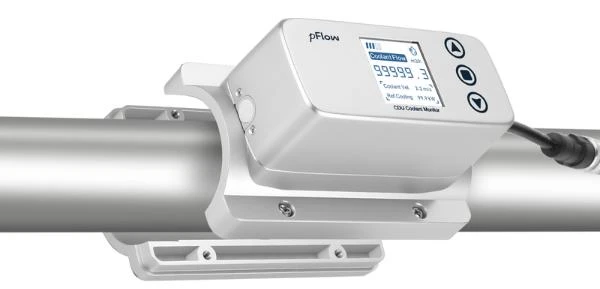

The D2 CDU Coolant Monitor is a clamp-on ultrasonic flowmeter. By attaching externally to stainless steel pipes (DN15–DN32), it measures flow velocity and cooling load without disrupting pipe integrity, making it ideal for dense server rack setups.
- Easy installation, no pipeline disruption required
- No adjustments needed, simply clamp and measure
- LCD color display with 360°rotatable screen
- Process industries (chemical, pharmaceutical, food and beverage)
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.3m/s ~5.0m/s |
|
Accuracy |
±2% of RD |
|
Repeatability |
0.4% |
|
Pipe Size |
DN15,DN20,DN25,DN32 |
|
Medium |
Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
|
Pipe Material |
Stainless steel |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20 mA, max load 500Ω |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
1.54"LCD colorful screen, Resolution 240*240. |
|
Temperature |
Transmitter: -10℃ to 50℃ Transducer: 0℃~60℃ |
|
Humidity |
20~90% relative humidity, no condensation |
|
IP |
IP65 |
|
Physical Characteristics |
|
|
Housing Material |
PC engineering plastic |
|
Pipe Clamp Material |
PC engineering plastic |
|
Transmitter |
Integrated |
|
Transducer |
Clamp On |
|
Cable |
φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |

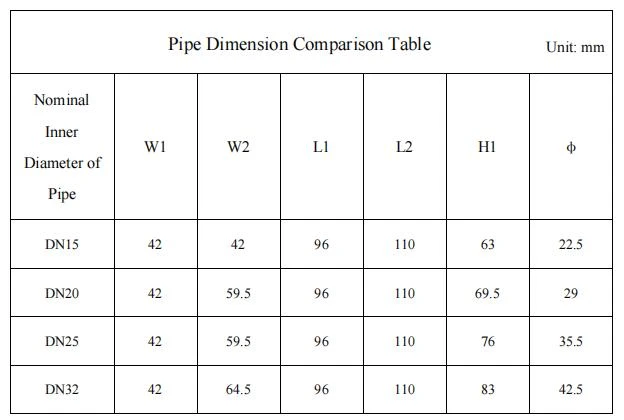

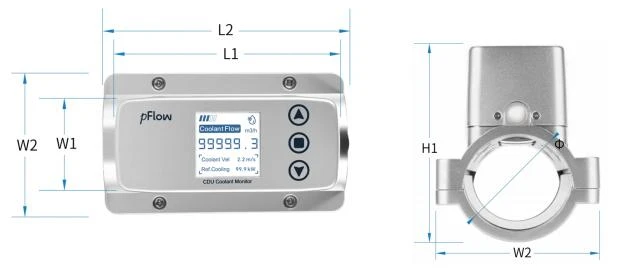

Body Parameters

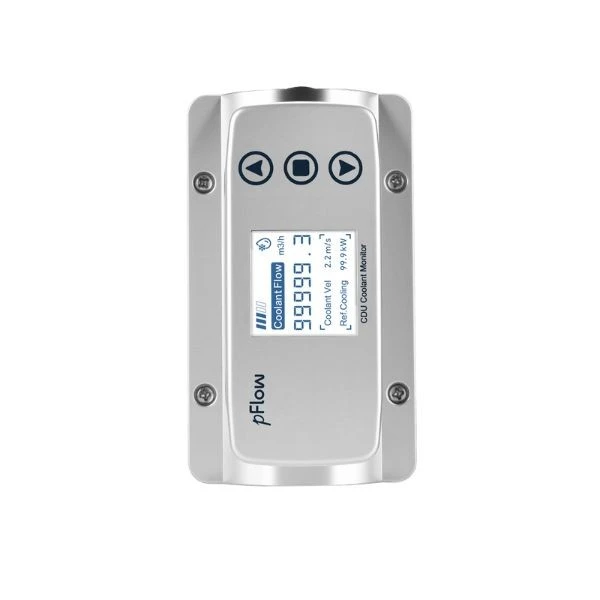

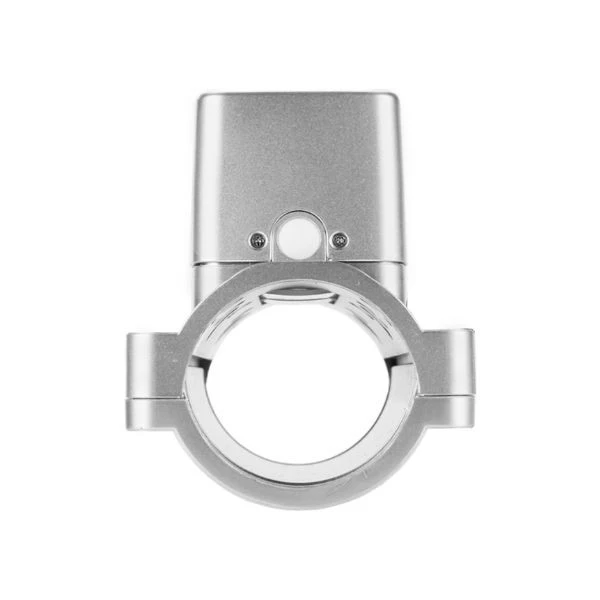

Appearance
Installation
|
Step 1: Clean the Pipe Carry out pipeline surface treatment and remove impurities such as paint, rust, dirt, etc. |
|
|

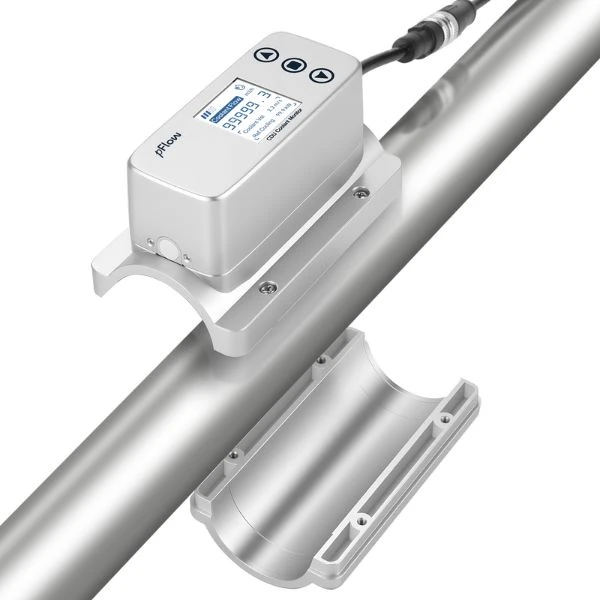

Step 2: Install Pipe Clamp Snap the upper and lower clamps onto the pipe. If loose, attach adhesive pads inside the lower clamp. |
|
|
Step 3: Tighten Screws Secure the 4 screws diagonally to ensure parallelism and stability. |
|
|
Step 4: Power On and Measure Set pipe parameters (outer diameter, wall thickness) via the menu for accurate measurement. |
|
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
Hot Tags: coolant monitor for small pipe, China coolant monitor for small pipe manufacturers, suppliers, factory, BMS Meter, BMS Water Meter, Flow Meter for Marine, Industrial Ultrasonic Flow Meters, measurement of industrial waste water flow, portable ultrasonic water flow meter
Products Description
1)Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.3m/s ~5.0m/s |
|
Accuracy |
±2% of RD |
|
Repeatability |
0.4% |
|
Pipe Size |
DN15,DN20,DN25,DN32 |
|
Medium |
Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
|
Pipe Material |
Stainless steel |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20 mA, max load 500Ω |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
1.54"LCD colorful screen, Resolution 240*240. |
|
Temperature |
Transmitter: -10℃ to 50℃ Transducer: 0℃~60℃ |
|
Humidity |
20~90% relative humidity, no condensation |
|
IP |
IP65 |
|
Physical Characteristics |
|
|
Housing Material |
PC engineering plastic |
|
Pipe Clamp Material |
PC engineering plastic |
|
Transmitter |
Integrated |
|
Transducer |
Clamp On |
|
Cable |
φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |
